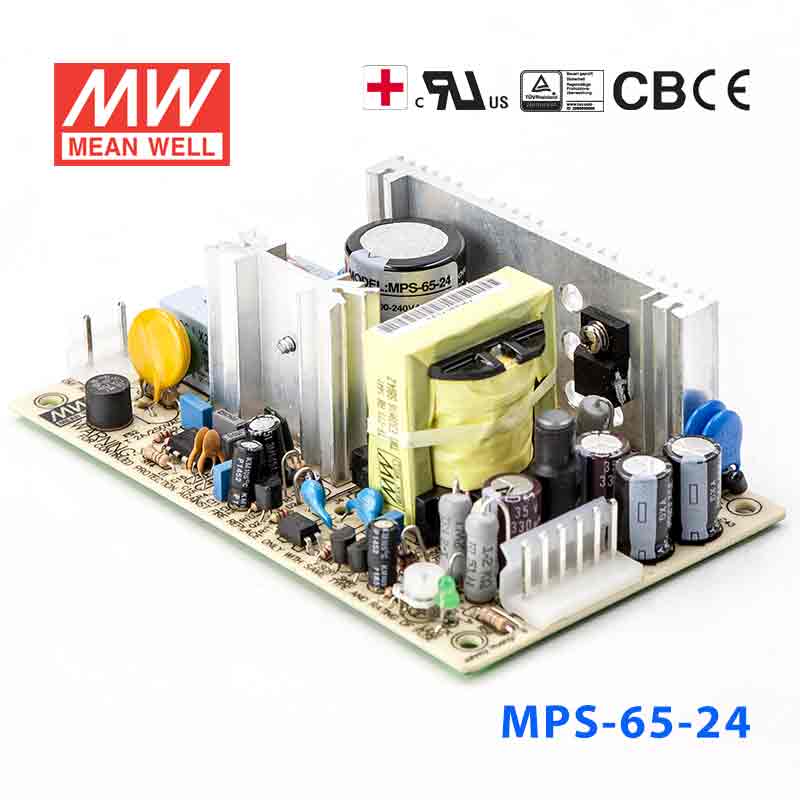

Mean Well MPS-65-24 Power Supply 65W 24V
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating64.8 Watt
-
Output Voltage24 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-24 for 24V PLC, relay, or automation control loads?
Yes, if the equipment requires constant 24V DC and the total load stays within 2.7A and 64.8W. That aligns with many lower-power industrial automation and control applications built around a 24V rail. The input range is 90-264VAC.
Is the MPS-65-24 suitable for 24V sensors, actuators, or industrial I/O hardware?
It can fit 24V DC hardware where the combined current requirement is no more than 2.7A. For sensor groups, I/O modules, or small actuators that stay inside that limit, the constant-voltage output is appropriate. It should not be selected for loads that need more than 64.8W.
Can this model power 24V embedded or telecom support electronics?
It is a possible fit for embedded or support electronics designed for a 24V constant-voltage input and drawing up to 2.7A. The compact dimensions of 127.0 x 76.0 x 42.0 mm can help in tight cabinets or equipment housings. Confirm that the downstream electronics are specified for 24V DC.
How does the MPS-65-24 compare with other MPS-65 output variants?
The MPS-65 series includes 3.3V 12A 39.6W, 5V 12A 60W, 7.5V 8A 60W, 12V 5.2A 62.4W, 13.5V 4.7A 63.45W, 15V 4.2A 63W, 24V 2.7A 64.8W, 27V 2.4A 64.8W, and 48V 1.35A 64.8W versions. This model is the 24V option and provides 2.7A. The family keeps a similar form factor while changing the DC output rating.
Is the MPS-65-24 rated for outdoor or washdown conditions?
The available specifications show an operating temperature range of -10°C to +60°C, but they do not include an IP rating. Without an IP rating in the listing, it should not be treated as a sealed outdoor or washdown power supply. It is more appropriate for protected indoor environments or an enclosure that provides the required protection.
