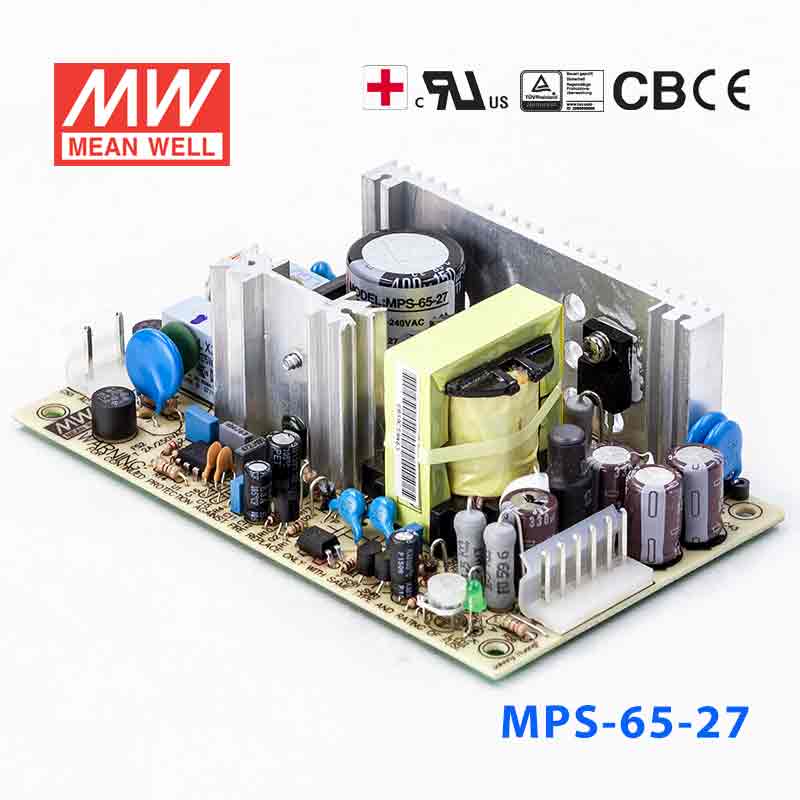

Mean Well MPS-65-27 Power Supply 65W 27V
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating64.8 Watt
-
Output Voltage27 Volt
-
Rated Current2.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-27 for 27V automation or process-control equipment?
It can be used where the equipment specifically requires a constant 27V DC supply and stays within 2.4A and 64.8W. That makes it relevant for specialized automation or process-control loads built around a 27V bus. Voltage matching is the first requirement here.
Is this 27V power supply suitable for industrial electronics or instrumentation?
Yes, for industrial electronics or instrumentation designed for 27V constant voltage and drawing no more than 2.4A. The unit accepts 90-264VAC input, which is useful where line voltage may vary. It is not intended for lower-voltage devices such as 24V or 15V equipment.
Can the MPS-65-27 support a compact embedded system that runs on 27V DC?
It can, provided the embedded system is rated for 27V DC input and its load remains under 64.8W. The housing measures 127.0 x 76.0 x 42.0 mm and weighs 0.23 kg, which can matter in compact assemblies. The output is constant voltage rather than constant current.
What output choices are available around the MPS-65-27 in the same series?
The MPS-65 family is offered in 3.3V 12A 39.6W, 5V 12A 60W, 7.5V 8A 60W, 12V 5.2A 62.4W, 13.5V 4.7A 63.45W, 15V 4.2A 63W, 24V 2.7A 64.8W, 27V 2.4A 64.8W, and 48V 1.35A 64.8W versions. This SKU is the 27V model. The series mainly changes output voltage and the corresponding current rating.
Can this model be used in outdoor enclosures or unprotected industrial areas?
The specified ambient operating range is -10°C to +60°C, which defines the temperature limits given in the product data. No IP rating is listed, so the supplied specs do not indicate protection against water or dust ingress. For that reason, it should be treated as a protected-environment power supply unless another enclosure provides that protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-65 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-65-48 Power Supply 65W 48V | 64.8W | 48V | 1.35A | Indoor | $41.88 | View |
| Mean Well MPS-65-7.5Power Supply 65W 7.5V | 60W | 7.5V | 8A | Indoor | $41.88 | View |
| Mean Well MPS-65-5 Power Supply 65W 5V | 60W | 5V | 12A | Indoor | $40.28 | View |
| Mean Well MPS-65-3.3 Power Supply 65W 3.3V | 39.6W | 3.3V | 12A | Indoor | $41.88 | View |
| Mean Well MPS-65-24 Power Supply 65W 24V | 64.8W | 24V | 2.7A | Indoor | $41.88 | View |
| Mean Well MPS-65-15 Power Supply 65W 15V | 63W | 15V | 4.2A | Indoor | $41.88 | View |
| Mean Well MPS-65-13.5 Power Supply 65W 13.5V | 63.45W | 13.5V | 4.7A | Indoor | $41.88 | View |
| Mean Well MPS-65-12 Power Supply 65W 12V | 62.4W | 12V | 5.2A | Indoor | $41.13 | View |
