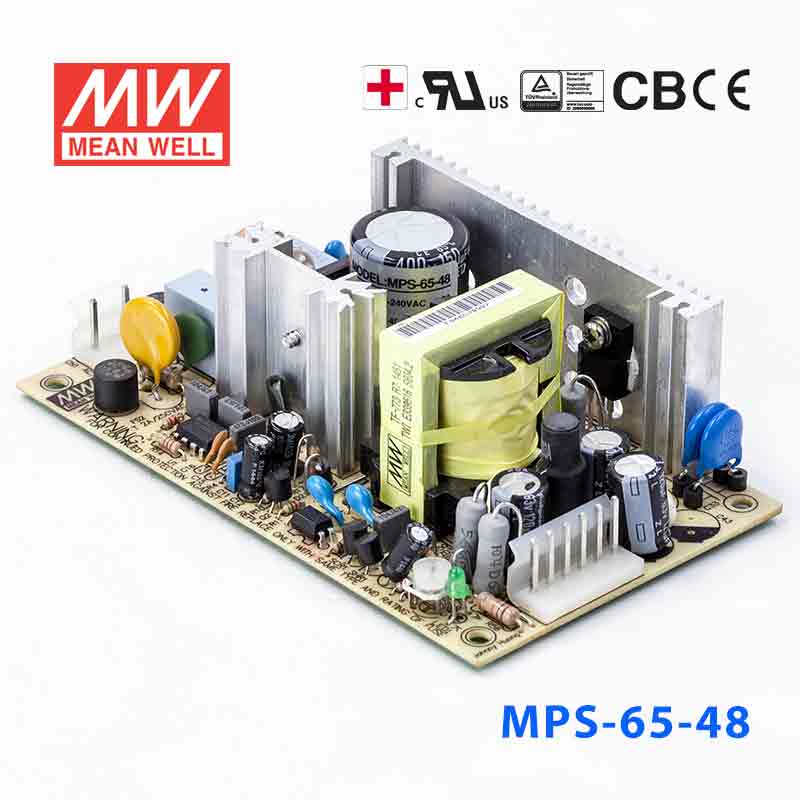

Mean Well MPS-65-48 Power Supply 65W 48V
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating64.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.35 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-48 for a 48V PLC, sensor, or industrial control load?
Yes, this model is a constant-voltage 48V supply rated for 1.35A and 64.8W. It fits industrial or automation equipment that requires a regulated 48V DC input and stays within that current and power limit.
Is the MPS-65-48 suitable for 48V embedded or communications hardware?
It can be used for embedded or communications equipment that needs a constant 48V output and draws no more than 1.35A. The wide 90-264VAC input also supports installations where the AC source may vary across regions.
Can this power supply run a low-power 48V automation node instead of a higher-wattage 48V unit?
Yes, if the load is within 64.8W and 1.35A at 48V, this model is sized for lower-power 48V applications. If the 48V load is larger, the MPS family also includes MPS-120-48 at 120W and 2.5A and MPS-200-48 at 200W and 4.2A.
Can I use the MPS-65-48 for indoor industrial equipment in normal plant conditions?
The published operating temperature range is -10°C to +60°C, so it is specified for that temperature window. No IP rating is listed in the provided specs, so outdoor or washdown use is not defined by this product data.
How does the MPS-65-48 compare with other 48V models in the MPS series?
Within the listed 48V siblings, MPS-30-48 is 28.8W at 0.6A, MPS-45-48 is 48W at 1A, MPS-65-48 is 64.8W at 1.35A, MPS-120-48 is 120W at 2.5A, and MPS-200-48 is 200W at 4.2A. The main differences are available power and output current at the same 48V output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-65 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-65-7.5Power Supply 65W 7.5V | 60W | 7.5V | 8A | Indoor | $41.88 | View |
| Mean Well MPS-65-5 Power Supply 65W 5V | 60W | 5V | 12A | Indoor | $40.28 | View |
| Mean Well MPS-65-3.3 Power Supply 65W 3.3V | 39.6W | 3.3V | 12A | Indoor | $41.88 | View |
| Mean Well MPS-65-27 Power Supply 65W 27V | 64.8W | 27V | 2.4A | Indoor | $41.88 | View |
| Mean Well MPS-65-24 Power Supply 65W 24V | 64.8W | 24V | 2.7A | Indoor | $41.88 | View |
| Mean Well MPS-65-15 Power Supply 65W 15V | 63W | 15V | 4.2A | Indoor | $41.88 | View |
| Mean Well MPS-65-13.5 Power Supply 65W 13.5V | 63.45W | 13.5V | 4.7A | Indoor | $41.88 | View |
| Mean Well MPS-65-12 Power Supply 65W 12V | 62.4W | 12V | 5.2A | Indoor | $41.13 | View |
