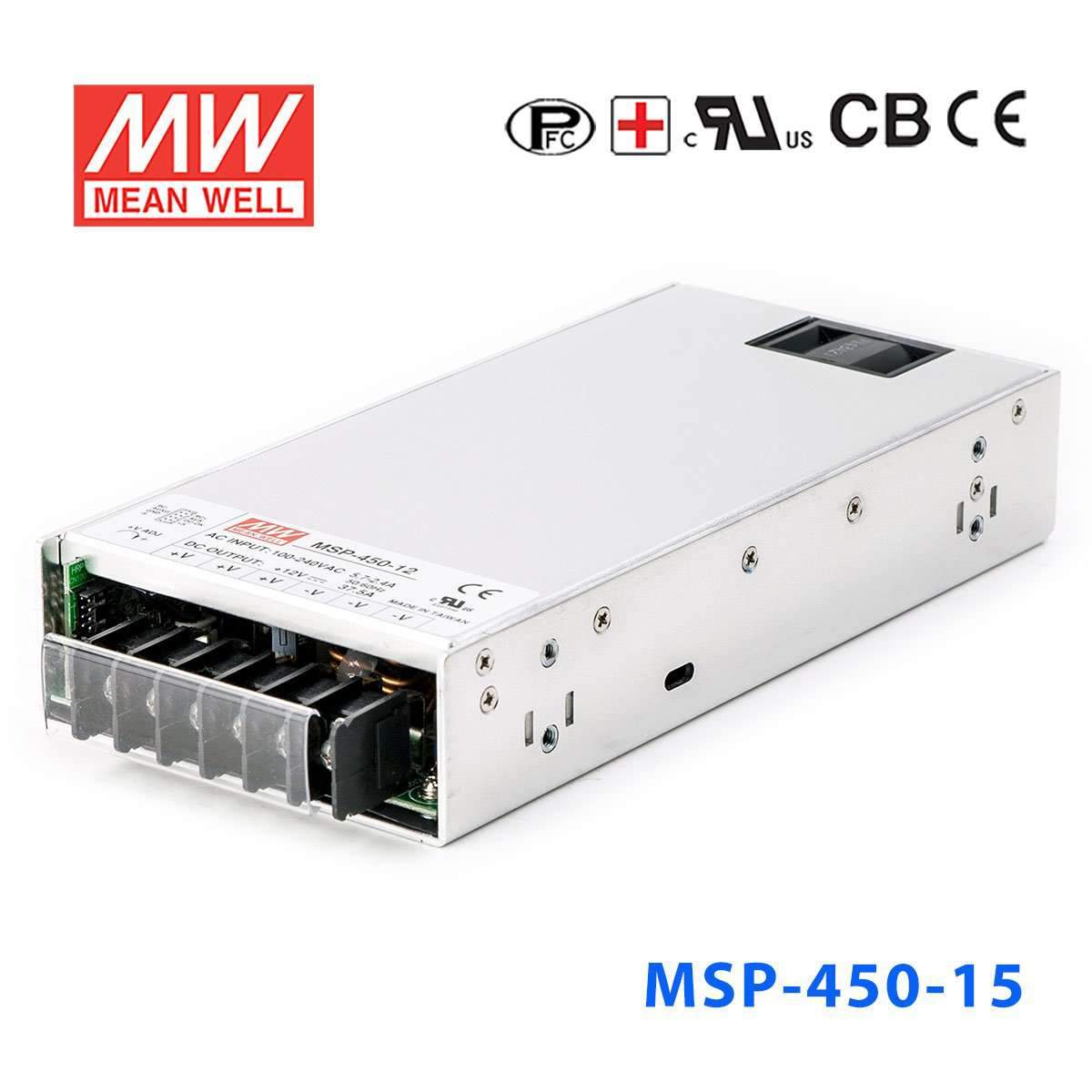

Mean Well MSP-450-15 Power Supply 450W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-450-15 Power Supply 450W 15V
The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating450 Watt
-
Output Voltage15 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the MSP-450-15 for a 15V industrial or automation load?
Yes, if the equipment is designed for a constant voltage 15V input, this model provides up to 450W and 30A. It is intended for systems that specifically need 15V DC rather than the more common 12V or 24V rails.
Is the MSP-450-15 a fit for 15V test equipment or production fixtures?
It can be suitable for fixed equipment or fixtures that require a stable 15V DC source and draw up to 30A, with a total capacity of 450W. Buyers should size it against the actual 15V load rather than selecting it only by series name.
Can the MSP-450-15 support 15V embedded systems or specialty control hardware?
Yes, for hardware built around a 15V constant voltage bus, this supply offers 450W of output capacity and 30A of current. That makes it more appropriate for higher-demand 15V systems than lower-power 15V siblings.
Is the MSP-450-15 meant for exposed outdoor environments?
Its operating temperature range is -40°C to +70°C, so the thermal specification is broad. However, the provided data does not include an IP rating, which means it is better treated as a supply for protected indoor or enclosed industrial environments.
What are the 15V options in the MSP series around this model?
The 15V siblings are MSP-100-15 at 105W and 7A, MSP-200-15 at 201W and 13.4A, MSP-300-15 at 330W and 22A, MSP-450-15 at 450W and 30A, MSP-600-15 at 645W and 43A, and MSP-1000-15 at 960W and 64A. This model is the 450W, 30A option in that 15V progression.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-450 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-450-7.5 Power Supply 450W 7.5V | 450W | 7.5V | 60A | Indoor | $176.58 | View |
| Mean Well MSP-450-5 Power Supply 450W 5V | 450W | 5V | 90A | Indoor | $175.27 | View |
| Mean Well MSP-450-48 Power Supply 456W 48V | 456W | 48V | 9.5A | Indoor | $175.27 | View |
| Mean Well MSP-450-36 Power Supply 450W 36V | 450W | 36V | 12.5A | Indoor | $176.58 | View |
| Mean Well MSP-450-3.3 Power Supply 297W 3.3V | 297W | 3.3V | 90A | Indoor | $176.58 | View |
| Mean Well MSP-450-24 Power Supply 451.2W 24V | 451.2W | 24V | 18.8A | Indoor | $175.27 | View |
| Mean Well MSP-450-12 Power Supply 450W 12V | 450W | 12V | 37.5A | Indoor | $175.27 | View |
