Mean Well MSP-450-36 Power Supply 450W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours

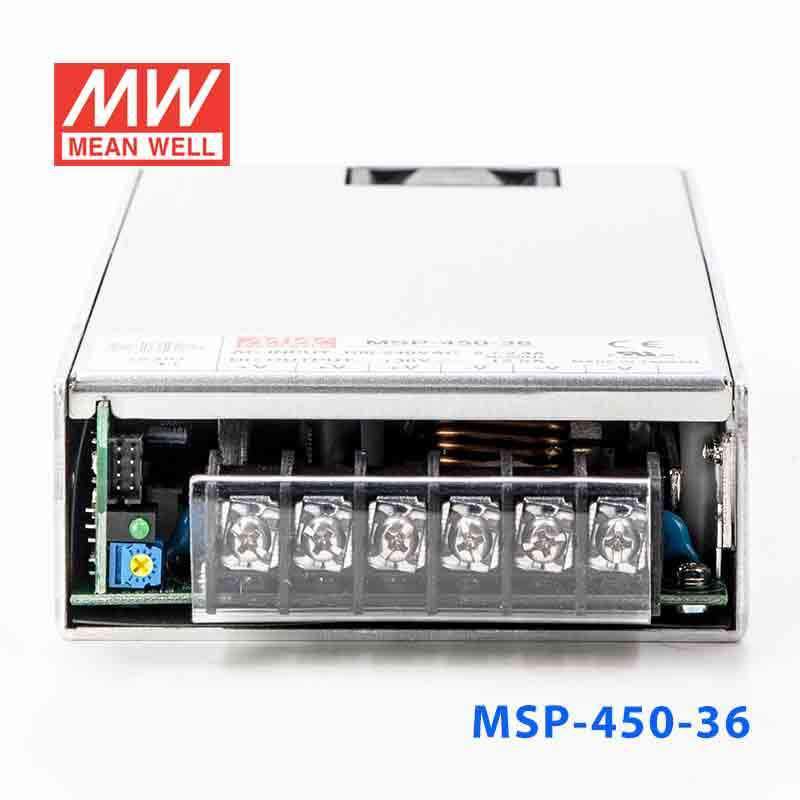

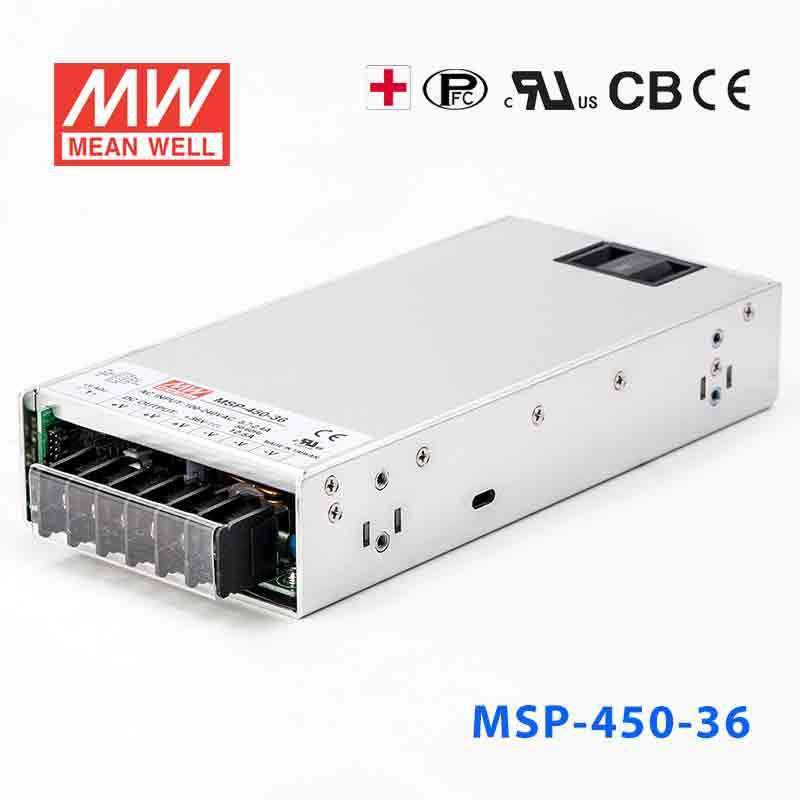

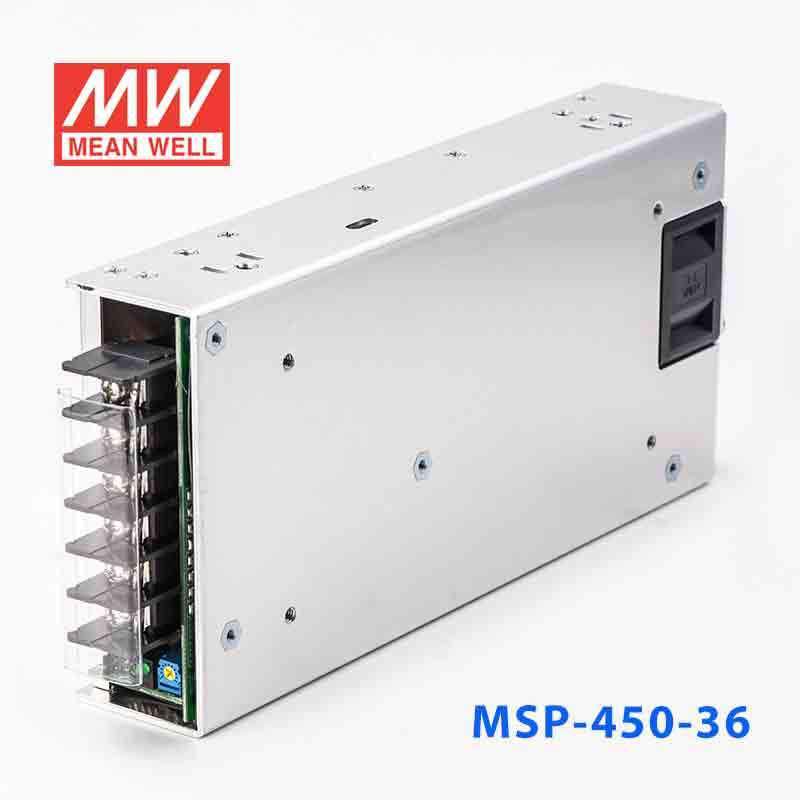

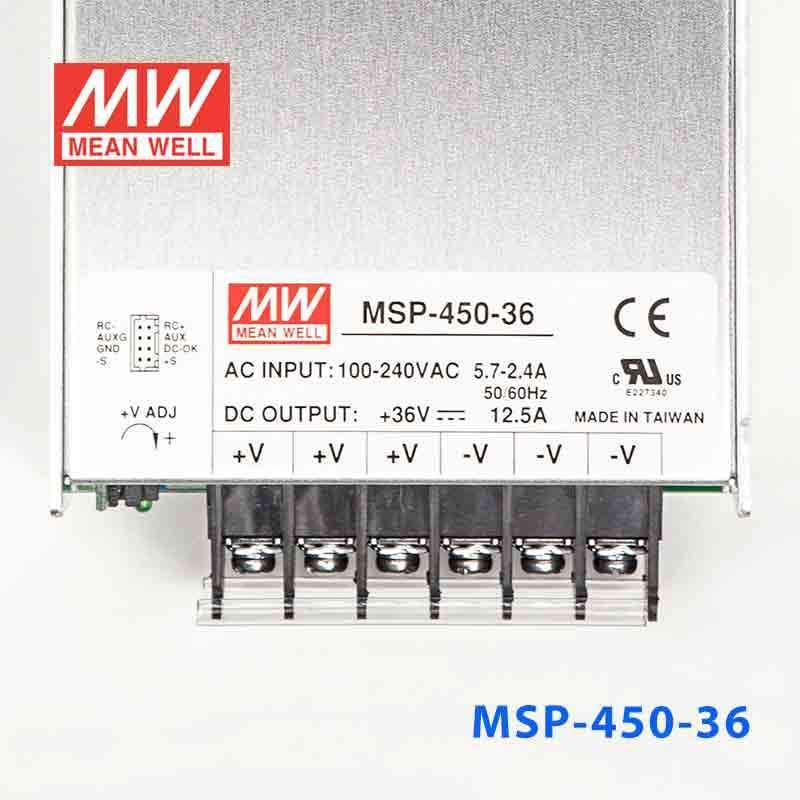

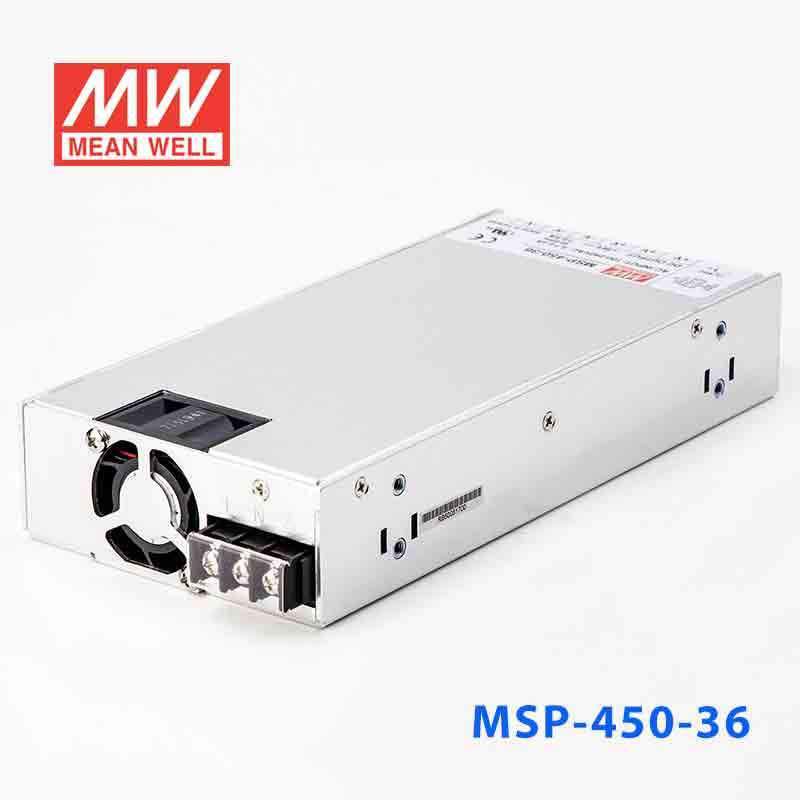

Mean Well MSP-450-36 Power Supply 450W 36V
The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating450 Watt
-
Output Voltage36 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the MSP-450-36 for 36V industrial automation equipment?
Yes, this unit is a constant voltage 36V supply rated at 450W and 12.5A. That makes it a practical choice for industrial automation equipment designed around a 36V DC bus.
Is the MSP-450-36 a good match for 36V motion-control or actuator systems?
It can be, provided the equipment is specified for a 36V constant voltage source and stays within 12.5A and 450W. The output profile is better aligned with fixed-voltage 36V devices than with loads that need a different DC rail.
Would this 36V model work in industrial test stands or lab equipment?
Yes, the MSP-450-36 is suited to test stands or lab systems that require regulated 36V DC at up to 12.5A. Its 85-264VAC input range is also useful when equipment may be deployed across different AC mains environments.
Can the MSP-450-36 power a 36V control cabinet system with multiple DC loads?
It can support a 36V control cabinet if the combined load stays within 450W and 12.5A. Because it is a constant voltage model, it is intended for equipment that expects a stable 36V output rail.
Is the MSP-450-36 suitable for indoor or outdoor installations?
The operating temperature range is -40°C to +70°C, so the temperature spec is broad for industrial environments. No IP rating is provided in the product specs, so the listing does not define it as an outdoor-rated enclosure.
