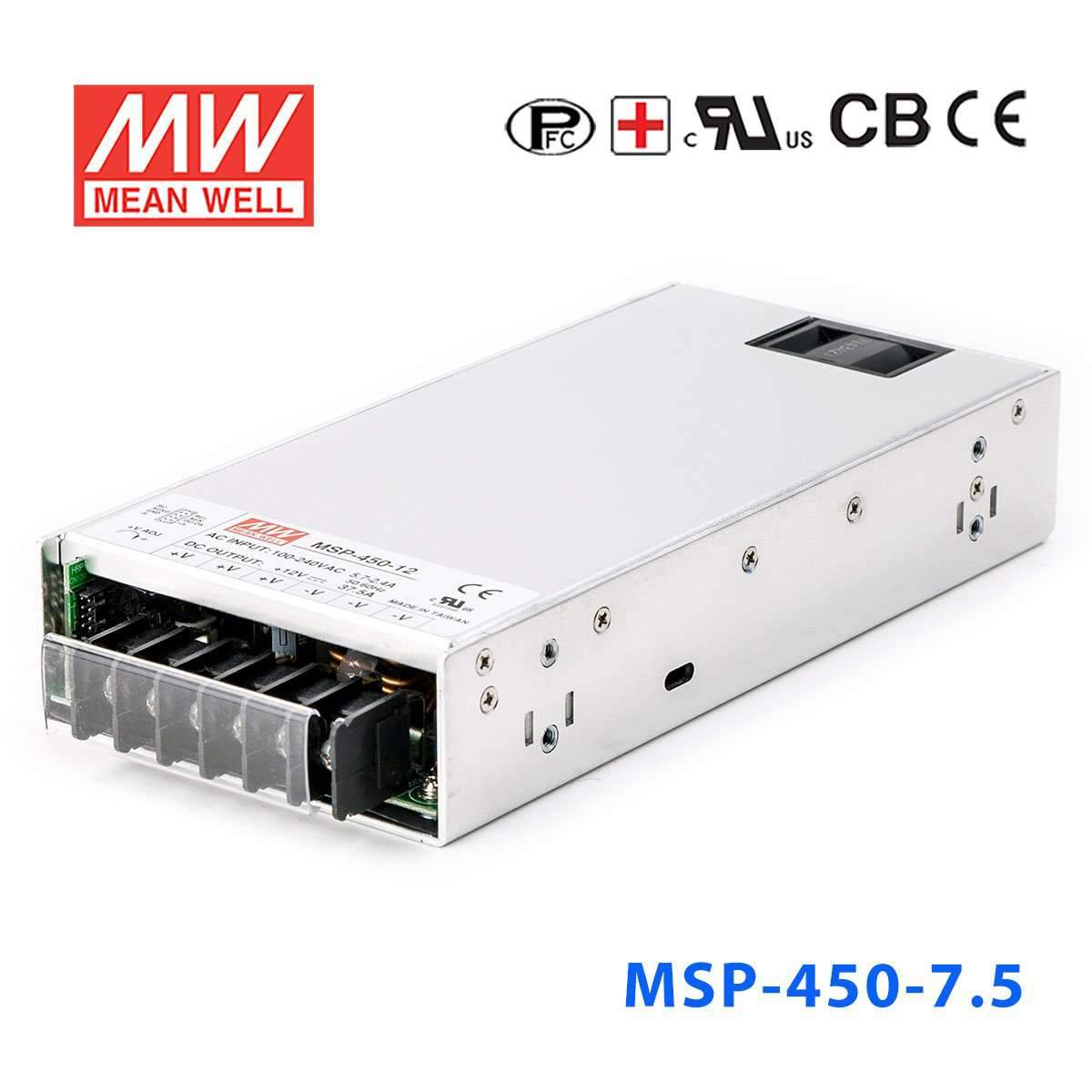

Mean Well MSP-450-7.5 Power Supply 450W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-450-7.5 Power Supply 450W 7.5V
The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating450 Watt
-
Output Voltage7.5 Volt
-
Rated Current60 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the MSP-450-7.5 for 7.5V industrial electronics or legacy control hardware?
Yes, this model supplies constant 7.5V output at up to 60A with a 450W rating. That suits industrial or legacy DC equipment specifically designed around a 7.5V rail.
Is the MSP-450-7.5 suitable for embedded test systems that require a regulated 7.5V bus?
It can be, as long as the equipment is intended for a constant voltage 7.5V source and the load stays within 60A and 450W. The high available current is useful for larger embedded test platforms or multi-board fixtures.
Would this 7.5V power supply work for control panels or automation assemblies with uncommon DC voltage requirements?
Yes, the MSP-450-7.5 is relevant when the assembly is built for 7.5V DC rather than more common 5V, 12V, or 24V rails. Its 450W capacity gives more margin than lower-power 7.5V models for heavier assemblies.
Can the MSP-450-7.5 be used in electronics manufacturing fixtures that need high current at 7.5V?
It is a practical option for manufacturing fixtures or burn-in equipment that require a fixed 7.5V output and substantial current capacity. The unit provides up to 60A from a single 7.5V constant voltage supply.
Is the MSP-450-7.5 suitable for indoor harsh-temperature environments or outdoor use?
The operating temperature range is -40°C to +70°C, which supports demanding indoor temperature conditions. No IP rating appears in the listed specs, so the product data does not classify it as outdoor-rated.
