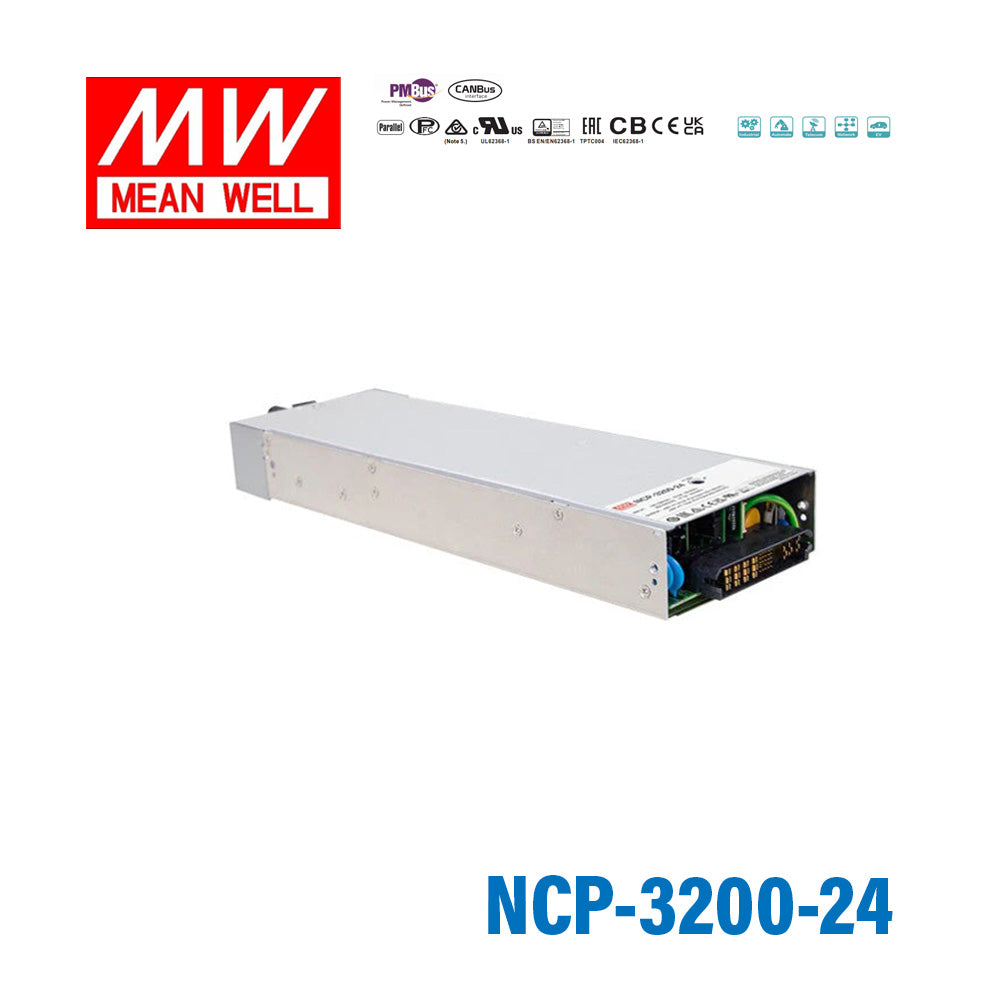

Mean Well NCP-3200-24 2-in-1 Rack Power Supply and Charger, 3192W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NCP-3200-24 2-in-1 Rack Power Supply and Charger, 3192W 24V
The NCP-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNCP Series
-
Power Rating3200 Watt
-
Output Voltage24 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.83 in
-
Width4.21 in
-
Height1.61 in
-
Weight5.07 lb
::specification::
Frequently Asked Questions
What is the Mean Well NCP-3200-24 designed for?
The NCP-3200-24 is a high-power 2-in-1 rack unit that can operate as either a 24V power supply or a charger. It is suited to rack-based systems that need high output power, centralized DC power, or managed charging capability in a single platform.
What are the main electrical ratings of the NCP-3200-24?
This model is rated for 3192W output at 24V DC with a rated current of 133A. It accepts universal AC input and is built for high-power applications where a standard lower-wattage supply would not be sufficient.
Can the NCP-3200-24 be monitored or controlled by a system controller?
Yes. The NCP-3200-24 supports PMBus and CANBus, and power supply or charger mode can be selected through PMBus, CANBus, or SBP-001 on 24V and 48V models. That makes it a better fit for managed rack systems than a basic standalone supply with no communications support.
Does this model support parallel or redundant rack power configurations?
Yes. The unit includes built-in OR-ing FET or diode support for hot swap and active current sharing for up to 10 rack shelves, with a maximum of 40 units connected in parallel. This makes it suitable for larger rack power systems that need scalability or higher total output capacity.
Is the NCP-3200-24 suitable for demanding industrial environments?
It is built for a wide operating temperature range of -30°C to 70°C and includes short circuit, overload, over voltage, and over temperature protection. The design also refers to the SEMI F47 standard specification, which is relevant for applications where AC input disturbance tolerance matters.
How does the NCP-3200-24 differ from a standard rack power supply?
Unlike a basic fixed-output rack supply, the NCP-3200-24 combines power supply and charger functions in one model and includes built-in programmable output voltage and output current. It also adds features such as 2-stage or 3-stage charging curves for this 24V version, communications support, and up to 94% efficiency.
