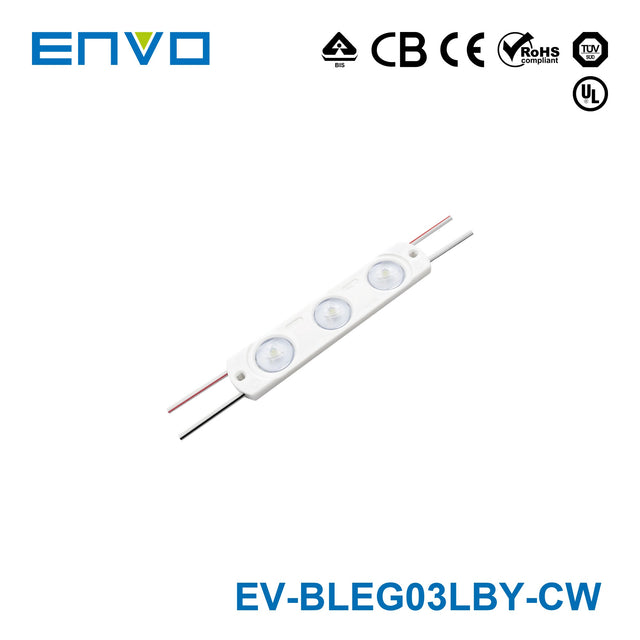

ENVO EcoGlo LED Module Backlit - Triple LED
The ENVO EcoGlo Backlit Triple LED module is a cost-effective 12V backlighting solution engineered for illuminated channel letters and backlit sign cabinets, delivering increased output from three LEDs across a broad range of sign depths and cabinet sizes. Its wide 170° beam angle disperses light evenly across the sign face, minimising bright spots directly above each module and reducing the number of strings required for consistent, uniform illumination throughout the sign cavity. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 water and dust resistance making it suitable for both indoor and covered outdoor installations, certified to CB, CE, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 12V DC
- ✓ Power: 1.2W per module
- ✓ Beam angle: 170°
- ✓ Module dimensions: 80 × 17.5 × 6.2 mm
- ✓ Max modules per series: 20
- ✓ Rated current: 0.1A
- ✓ CRI: 75
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesEcoGlo
-
Power Rating1.2 Watt
-
Rated Current0.1 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length3.15 in
-
Width0.69 in
-
Height0.24 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
What is the ENVO EcoGlo LED Module Backlit - Triple LED designed for?
This LED module family is designed for illuminated letters and light boxes in commercial and public environments. The product description specifically positions it for signage in places such as airports, metros, banks, buildings, and shopping malls. It is intended for applications with box or letter depths from 4-15 cm.
What light color options are available in this EcoGlo Triple LED family?
This parent product family is available in three correlated color temperature options: 3000K, 4000K, and 7000K. These correspond to warm white, neutral white, and cool white style outputs within the same product range. The shared performance specs remain the same across the listed variants.
What are the main performance specs for this LED module family?
Each listed variant uses 1.2 W of power and delivers 120 lumens of brightness. The family also has a 170 degree beam angle, CRI 75, and dimmable operation. Rated lifetime is 50,000 hours with a 5-year warranty.
How does the wide 170 degree beam angle benefit signage applications?
The 170 degree beam angle is intended to provide broad light distribution across illuminated letters and light boxes. According to the product description, the optic lens is designed to maximize coverage and help minimize shadows. This makes it suitable for backlit signage where even illumination is important.
Is this LED module suitable for long-term commercial use?
Yes, this family is positioned for commercial signage projects that need reliable ongoing performance. It has a rated life of 50,000 hours and a 5-year warranty, and the description states the products are 100% tested during production. The product description also lists multiple certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80.
What are the physical dimensions of the ENVO EcoGlo Triple LED module?
The parent model dimensions are 80.0 mm long, 17.5 mm wide, and 6.2 mm high. The listed weight is 12.3 g. These measurements can help buyers assess fit within compatible signage housings and light box depths.
