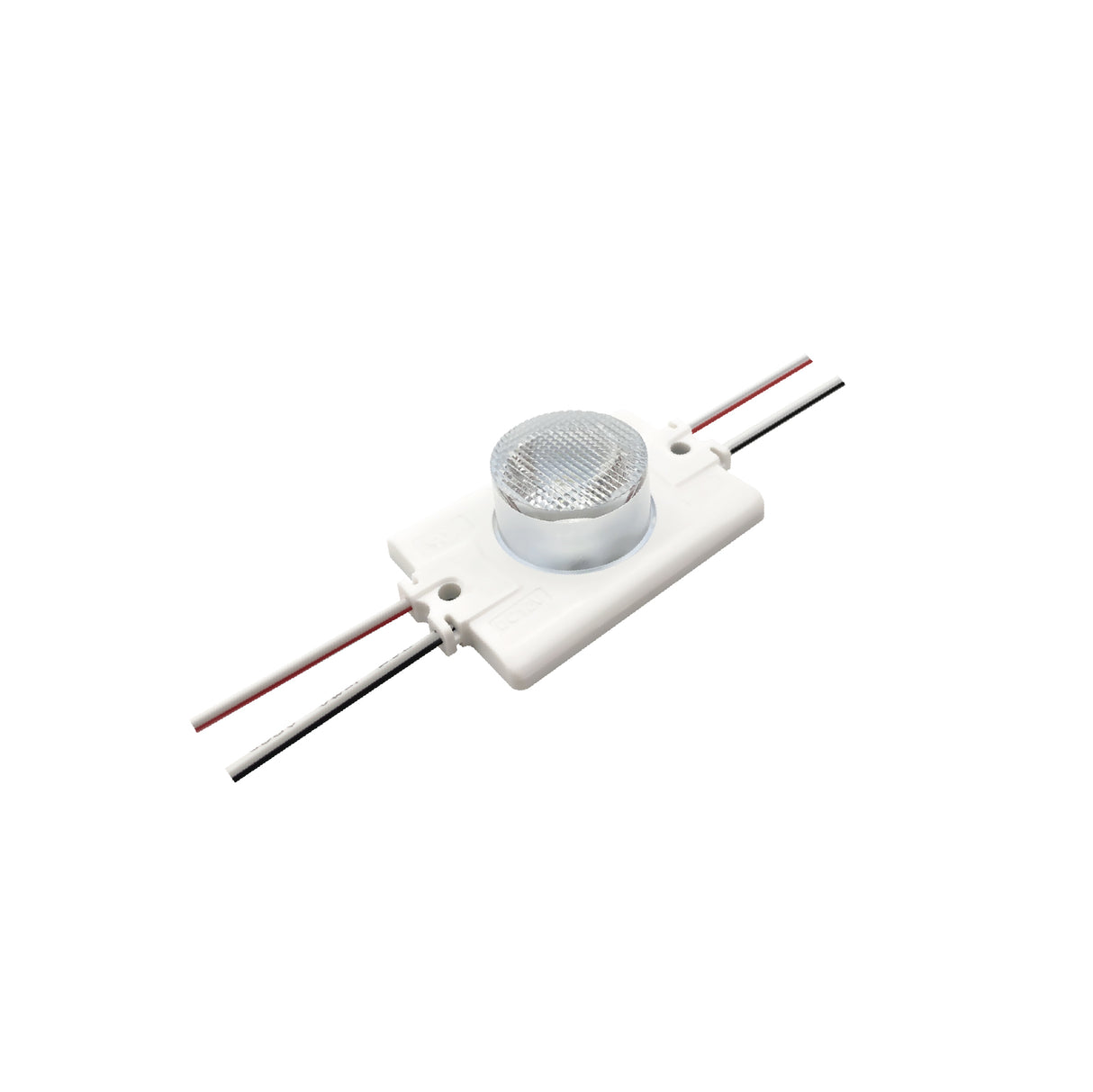

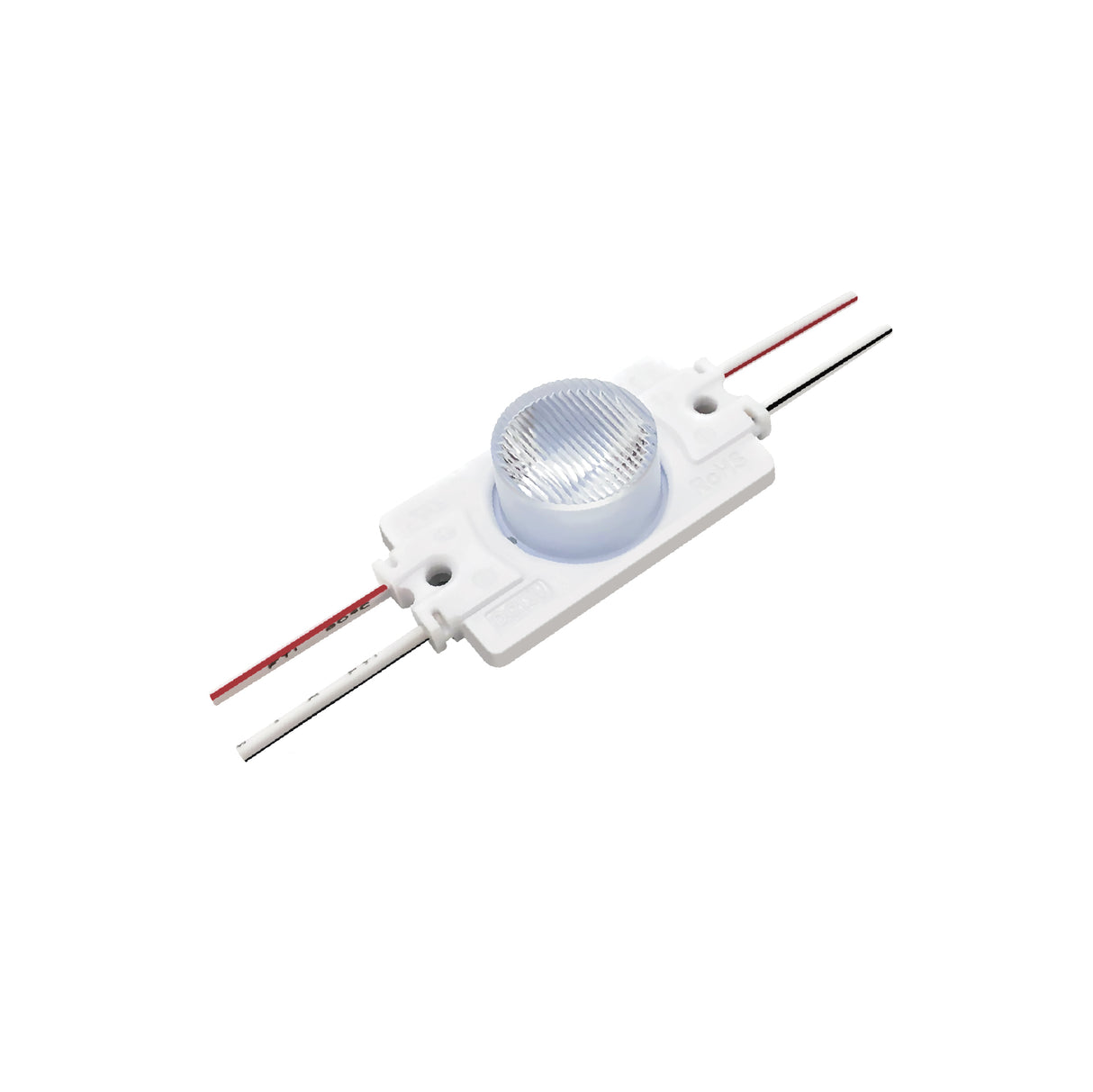

ENVO EdgeFlare LED Module Sidelit - Single LED
The ENVO EdgeFlare Sidelit Single LED module is a 12V sidelit backlighting module designed for sidelit channel letters and slim sign faces where the LED is mounted on the letter return rather than the back face to achieve a smooth, even glow across the front panel. Its 15°×45° beam provides a slightly wider spread than tighter edge-lit modules, making it well suited to letter returns with a wider depth or front panels requiring more diffused illumination without hard dark bands at module intervals. Running on a standard 12V DC supply and fully dimmable, it carries IP67 water and dust resistance for indoor and light outdoor installations, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 12V DC
- ✓ Power: 2.5W per module
- ✓ Beam angle: 15°×45°
- ✓ Module dimensions: 45 × 32 × 14.8 mm
- ✓ Module pitch: 185.4 mm
- ✓ Max modules per series: 10
- ✓ Rated current: 0.21A
- ✓ CRI: 75
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesEdgeFlare
-
Power Rating2.5 Watt
-
Rated Current0.21 Ampere
-
Dimming ControlDimmable
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length1.77 in
-
Width1.26 in
-
Height0.58 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
What is the ENVO EdgeFlare LED Module Sidelit - Single LED designed for?
This LED module is designed for double-sided light boxes in commercial and public environments. The product description specifically positions it for applications such as airports, metros, banks, buildings, and shopping malls where bright, even sidelighting is needed.
What light box depth is this LED module suitable for?
This module is intended for double-sided light boxes with a depth of 10-20 cm. ENVO states it can provide effective light coverage up to 2 meters when used in those signage applications.
What are the main performance specifications of this LED module family?
Across this family, each module is rated at 2.5 W and 250 lm with a 15x45 degree beam angle and CRI 75. The modules are dimmable, run on 12V input, and are specified for a 50,000-hour lifetime with a 5-year warranty.
How do the variants in this parent family differ?
The main difference between the listed child variants is color temperature. The family includes 3000K warm white, 4000K neutral white, and 7000K cool white options, while the beam angle, brightness, power rating, CRI, lifetime, dimming capability, and warranty remain the same.
What optic lens does this module use, and why does it matter?
This family uses an elliptical 15x45 degree optic lens. That lens shape helps direct light more precisely across signage surfaces, which is especially useful for sidelighting applications where controlled spread and display visibility matter.
Is this LED module family intended for long-term commercial use?
Yes. The family is specified with a 50,000-hour lifetime, 5-year warranty, and a constant current system for stable performance, which supports long-term use in demanding commercial display environments.
What certifications are listed for the ENVO EdgeFlare LED Module family?
The product description lists CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications. These certifications indicate the family is positioned to meet recognized quality, safety, and environmental standards.
