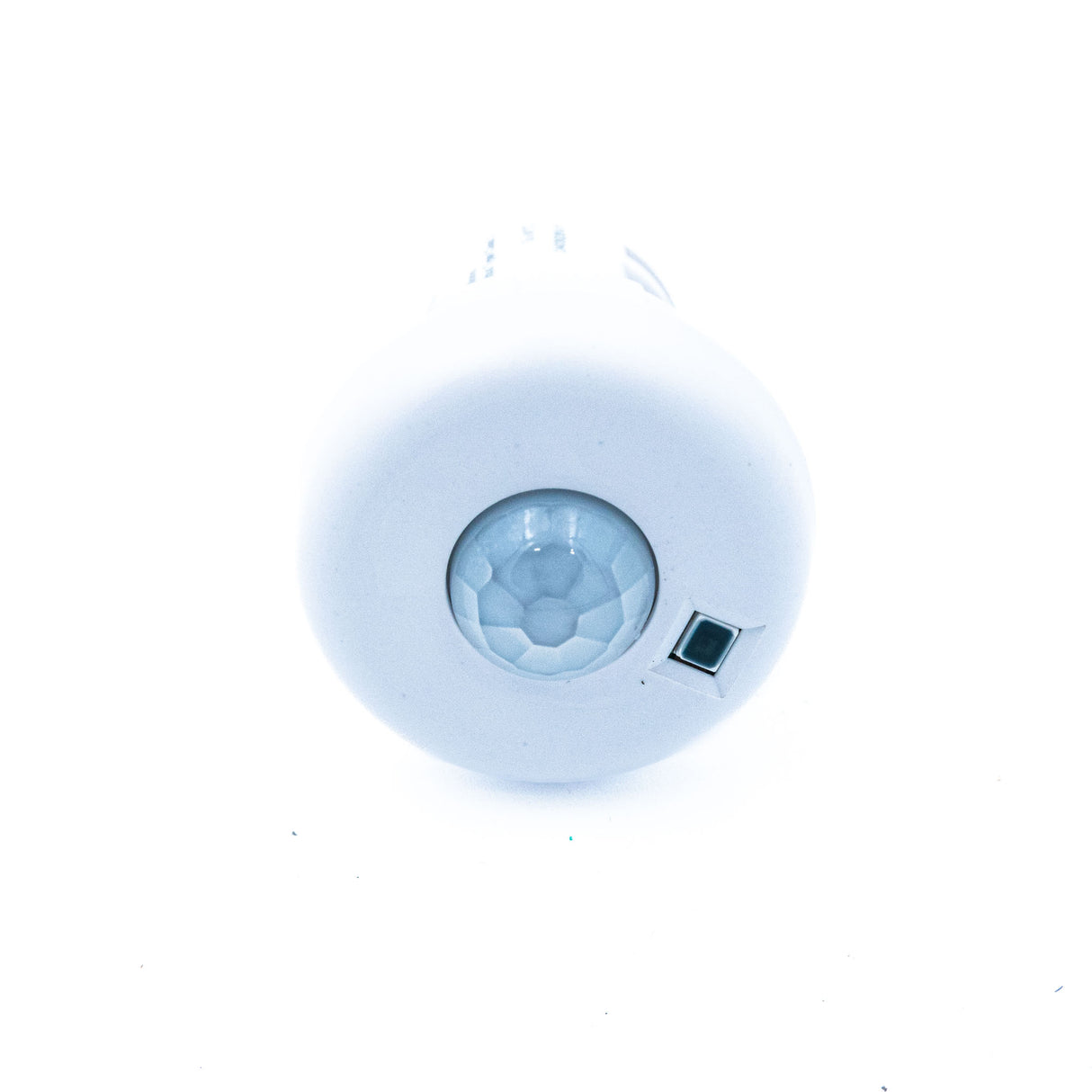

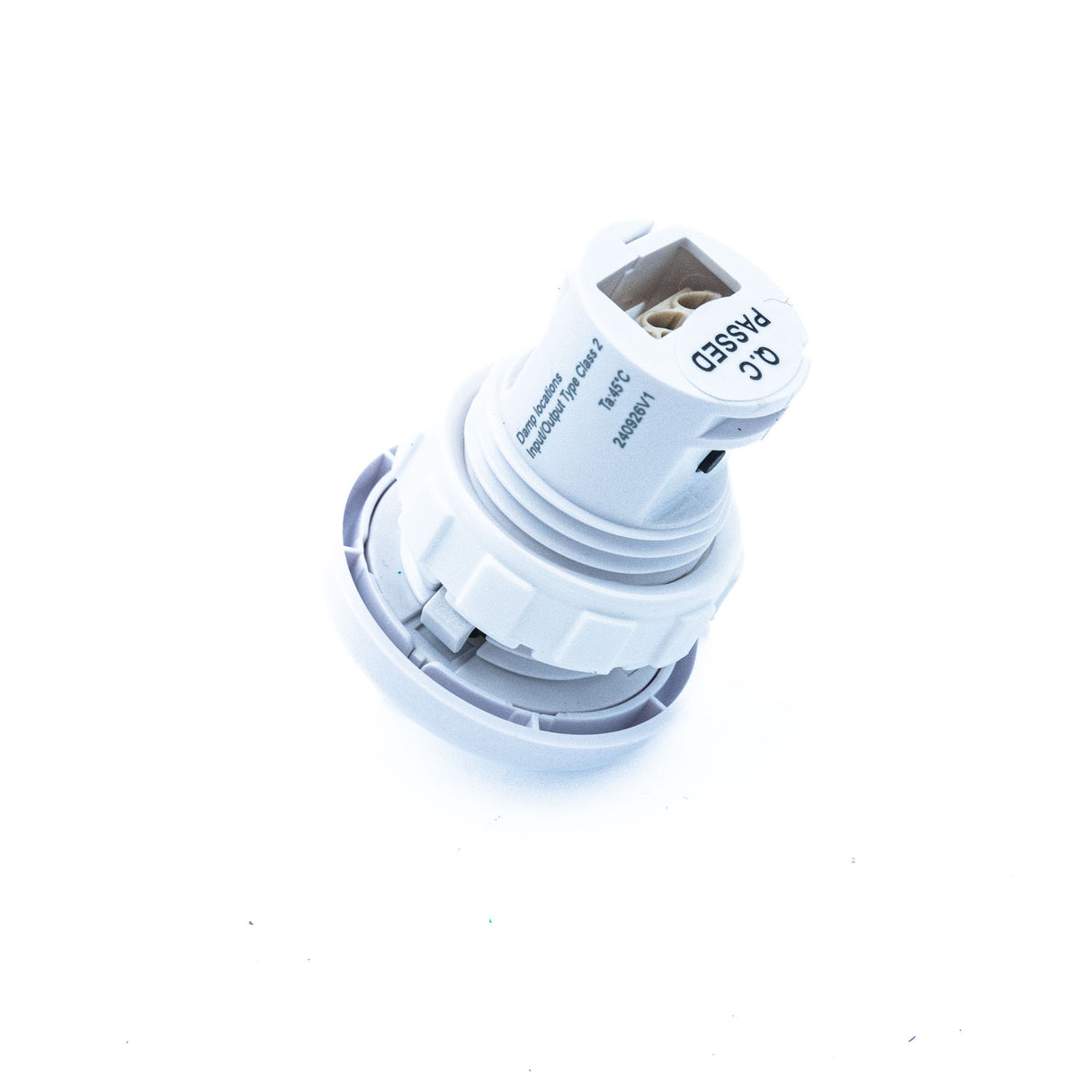

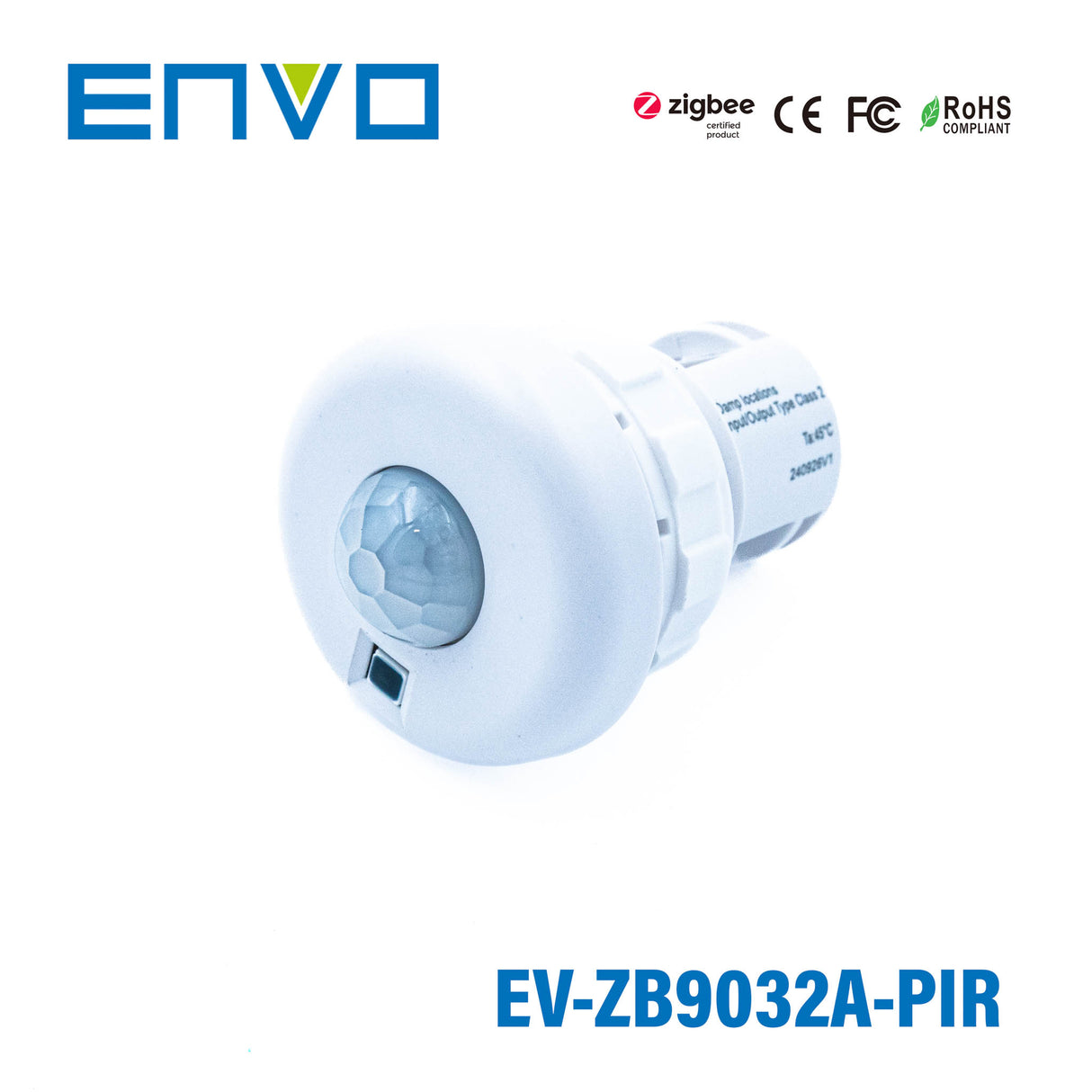

ENVO ZigBee Fixture Integrated PIR+Photocell Sensor
The EV-ZB9032A-PIR is an ENVO Zigbee controller (supply: 12/24VDC, operating temperature: 0~+40°C).
Key Features
- ✓ Supply voltage: 12/24VDC
- ✓ ZigBee 3.0 compliant
- ✓ Operating temperature: 0~+40°C
- ✓ 5 year warranty
-
BrandEnvo
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length1.26 in
-
Width1.26 in
-
Height1.43 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Fixture Integrated PIR+Photocell Sensor do?
This model combines PIR motion detection with a photocell for daylight harvesting in a single fixture-integrated ZigBee 3.0 sensor. It is designed to support autonomous sensor-based lighting control for indoor applications and help reduce energy use.
Is this sensor compatible with ZigBee lighting control systems?
Yes. The EV-ZB9032A-PIR is ZigBee 3.0 compliant and is listed as compatible with universal ZigBee platforms that support sensors. It also supports OTA firmware upgrade capability for ongoing platform support.
What kind of dimming control does this sensor support?
This sensor is intended for analog 0-10V dimming applications and works with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode or 20mA in source mode.
Is this sensor suitable for indoor commercial spaces?
Yes, it is specified for indoor applications and can be a good fit where occupancy sensing and daylight response are needed. Its energy-saving focus and energy code compliance make it relevant for commercial lighting projects.
What are the key operating specifications for this model?
The EV-ZB9032A-PIR operates on 12/24 VDC and uses ZigBee 3.0 at 2.4 GHz. It has a listed wireless range of up to 100 feet line of sight and a current consumption below 30mA when the dimming method is sink.
How compact is the ENVO ZigBee Fixture Integrated PIR+Photocell Sensor?
This is a compact recessed sensor with dimensions of 35 mm diameter by 30 mm height. Its listed weight is 0.0213 kg, which supports use in fixture-integrated sensor applications.
What environmental range is this sensor rated for?
This model is rated for operation from 0°C to 40°C. That makes it appropriate for typical indoor temperature-controlled environments rather than extreme-temperature locations.
