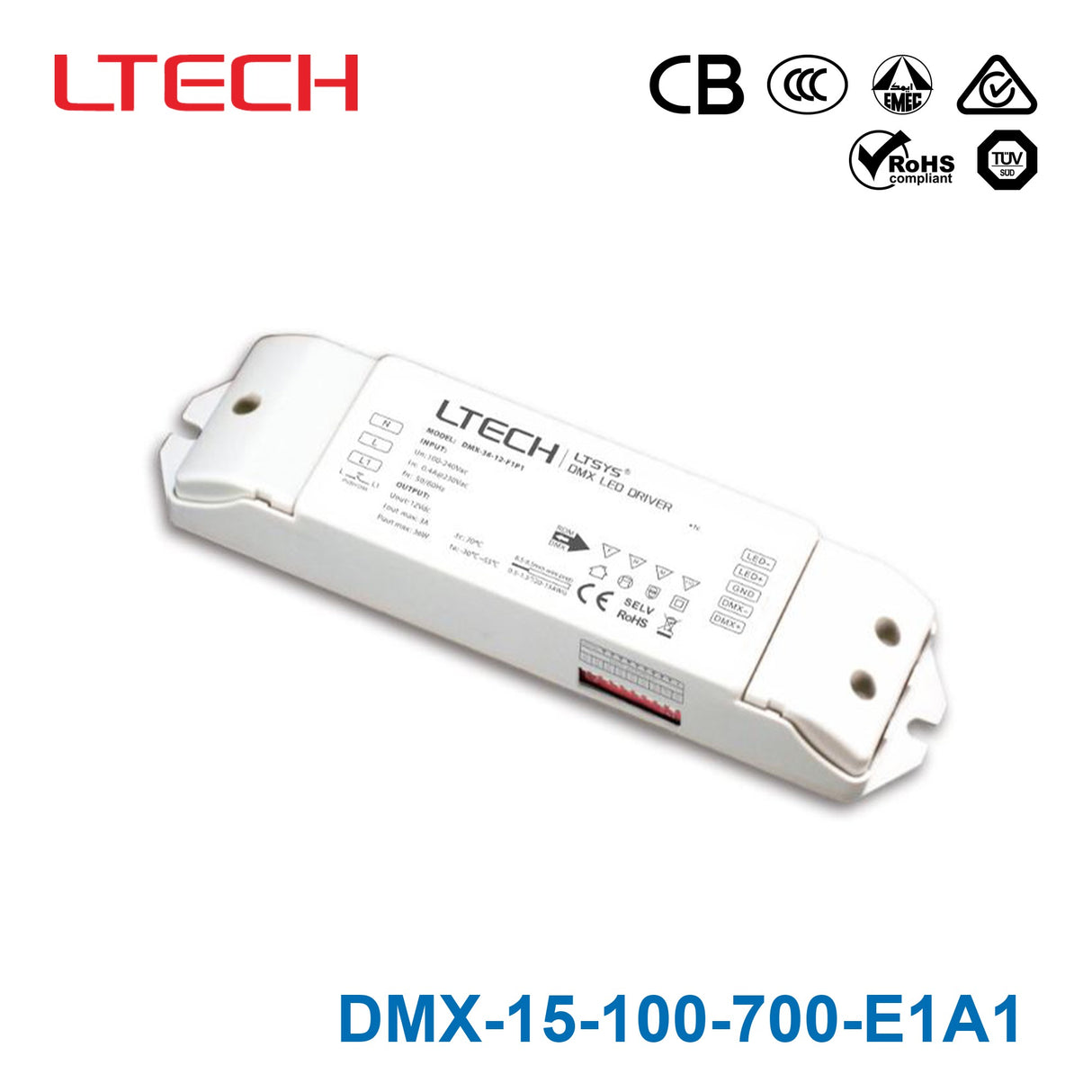

LTECH DMX-15-100-700-E1A1 15W 100~700mA CC DMX LED Driver - Selectable Output

• Dimming interface: DMX512/RDM
• Push DIM
• T-PWM digital dimming
• With RDM remote device management protocol.
• DIP switch for 8 optional currents' quick selection.
• 0-100% flicker-free
• High Frequency Exemption
• Dimming range from 0-100%
• LED start at 0.01%possible.
• Innovative thermal management technology
• intelligent power life protection.
• Multi-current & wide voltage
• suitable for different power LED.
• Short circuit / Over load/Over heat/Over voltage
• Non-load protection
• recover automatically
• Non-load output voltage 0V to prevent damages to LED caused by poor contact
• Suitable for indoor I/II/III
• 5 years warranty (Rubycon capacitor).

• Brand
  Ltech
• Series
  Ltech DMX Series
• Power Rating
  15 Watt
• Output Voltage
  58 Volt
• Rated Current
  0.1 Ampere
• Input Voltage
  220V~240V
• No of Output
  1
• Dimming Control
  DMX
• Standards Met
  CB,CCC,EMEC,RCM,ROHS,TUV
• Operation Mode
  Constant Current
• Operating Temperature
  -20°C~50°C
• Warranty
  3 Year
• Length
  6.57 in
• Width
  1.61 in
• Height
  1.26 in
• Weight
  0.37 lb
