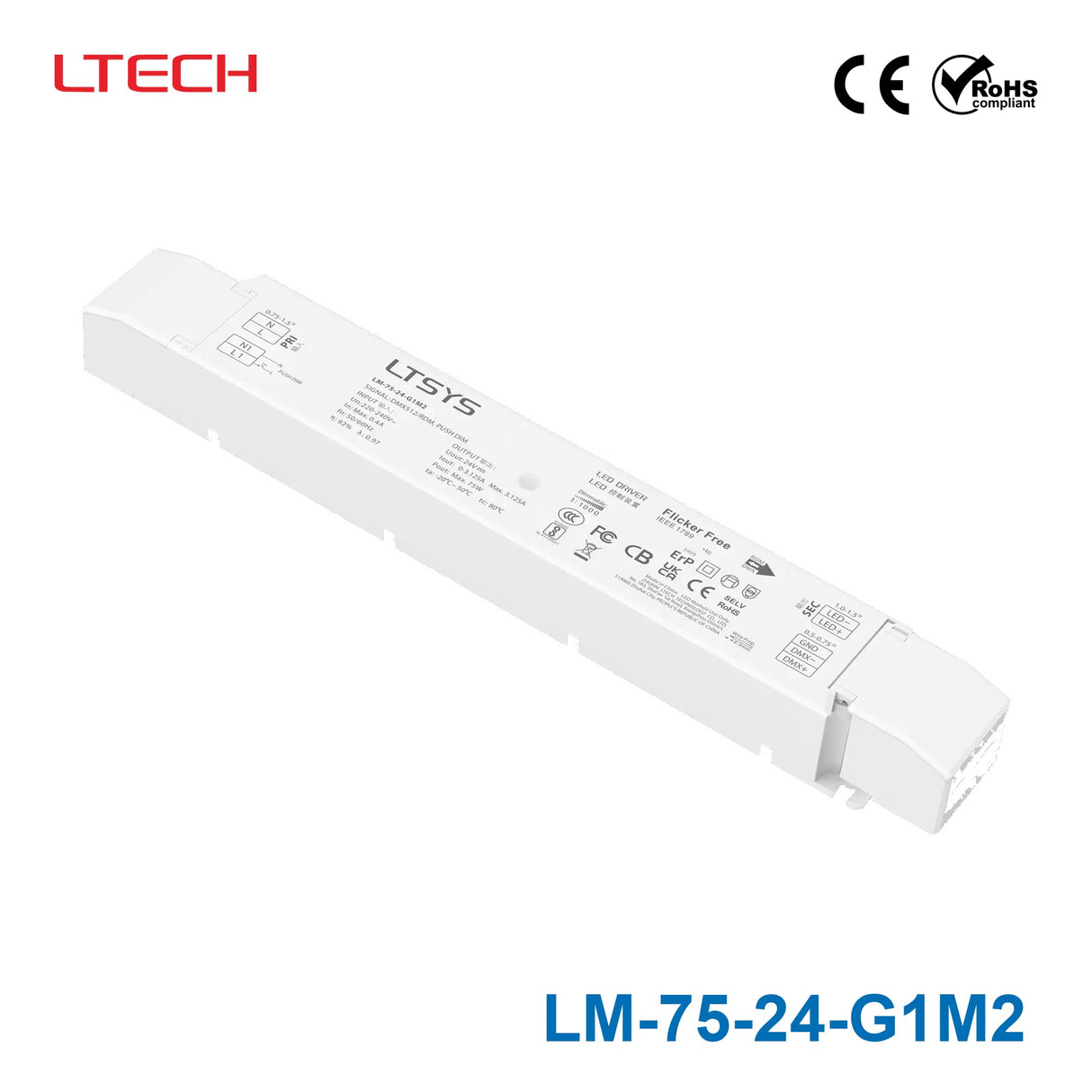

Ltech LM-75-24-G1M2 75W 24VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- Supports RDM remote device management protocol.
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- 0-100% flicker-free
- High Frequency Exemption
- In line with the EU energy efficiency ERP directive
- standby power consumption < 0.5W
- Innovative thermal management technology
- intelligent power life protection.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Full protective plastic housing.
- Suitable for indoor I/II/IIItype lamps application
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What type of LED applications is the Ltech LM-75-24-G1M2 designed for?
The LM-75-24-G1M2 is a constant-voltage 24VDC LED driver intended for indoor lighting applications that need DMX dimming. It suits commercial and architectural LED systems where a 24V constant-voltage supply and smooth dimming control are required.
What are the main electrical ratings of the LM-75-24-G1M2?
This model is rated at 75W output with a 24VDC constant-voltage output. Its rated output current is 3.12A, which makes it suitable for 24V LED loads within that power range.
Does this LED driver support DMX control only, or other dimming options as well?
The product supports DMX512/RDM dimming and also lists Push DIM as a dimming interface. That makes it a fit for projects that need DMX-based control with support for RDM remote device management.
How smooth is the dimming performance on this model?
The LM-75-24-G1M2 is specified for 0-100% flicker-free dimming. It also includes soft-on and fade-in behavior, which helps create a more comfortable lighting transition.
Is the LM-75-24-G1M2 suitable for indoor environments with varying temperatures?
Yes. This model is specified for operation from -20°C to 50°C, so it can cover a wide range of indoor commercial and lighting enclosure conditions within that temperature band.
What protection and reliability features does this LED driver include?
The unit includes short circuit, over-heat, and overload protection, with automatic recovery for short circuit protection. It also has a full protective plastic housing and a 5-year warranty, with the listing specifically noting Rubycon capacitors.
