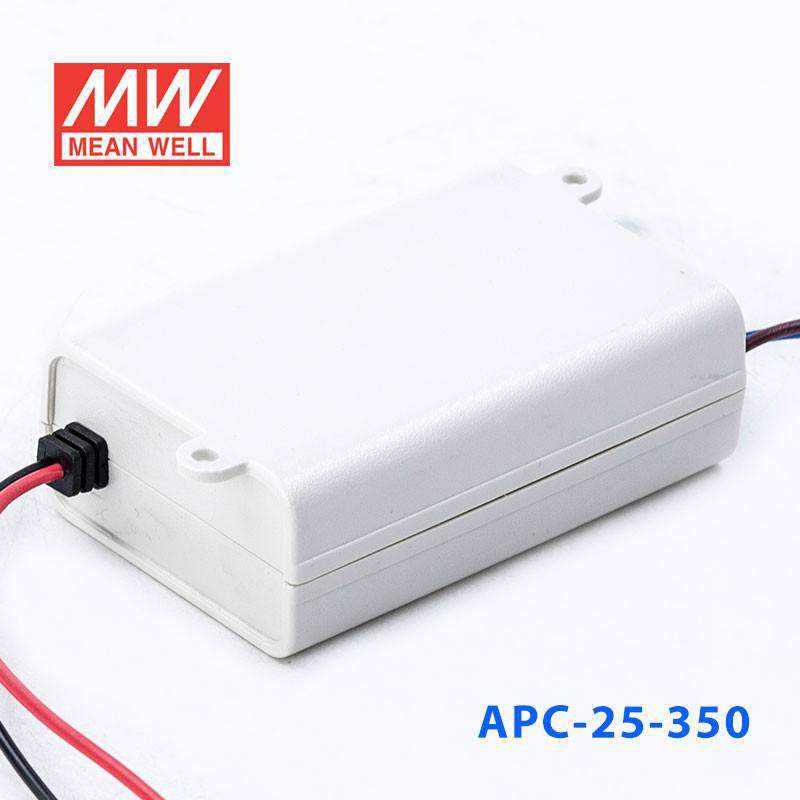

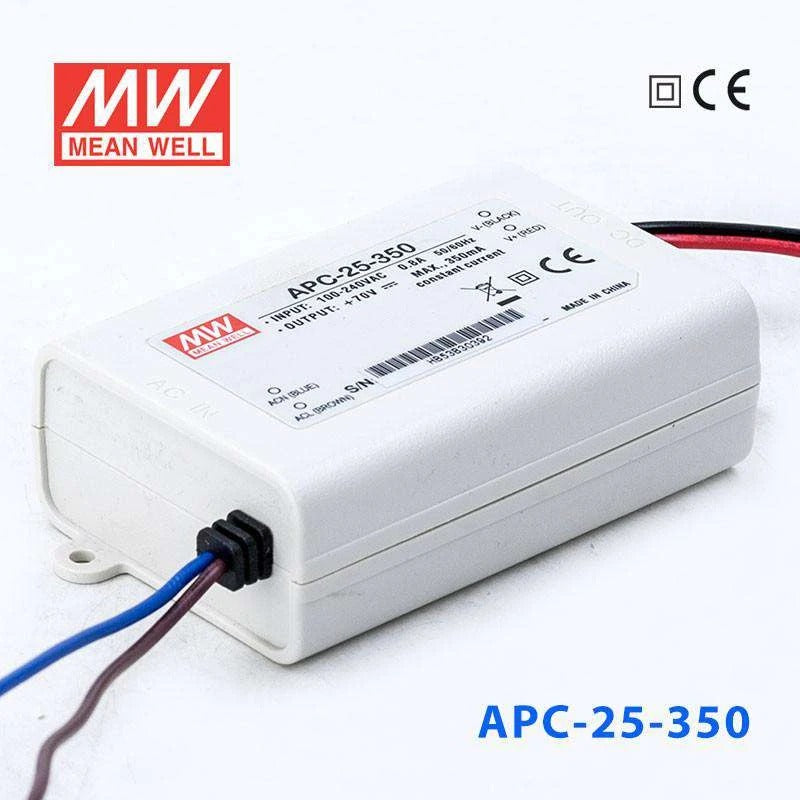

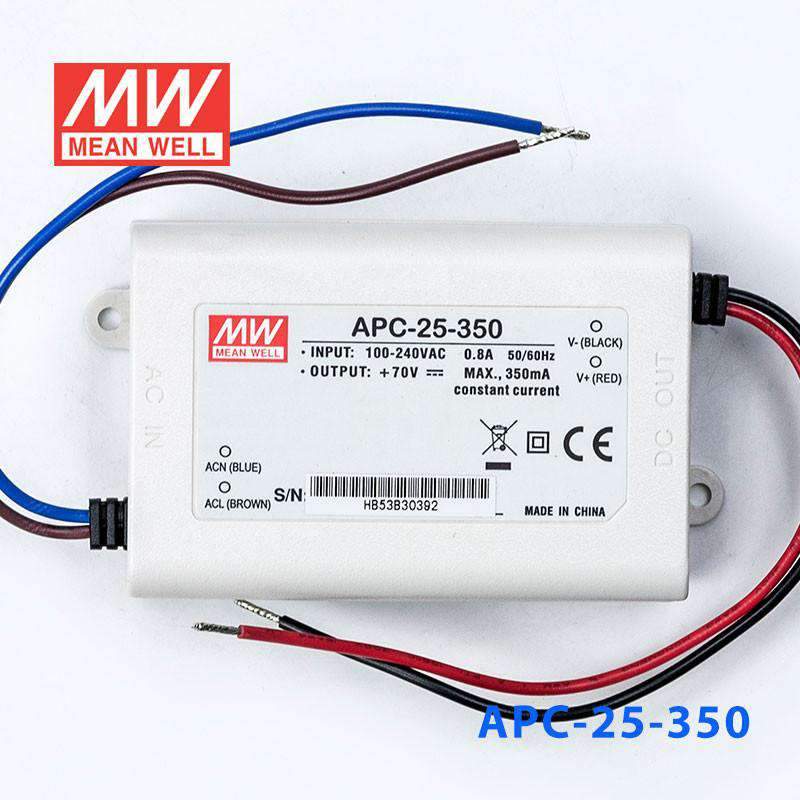

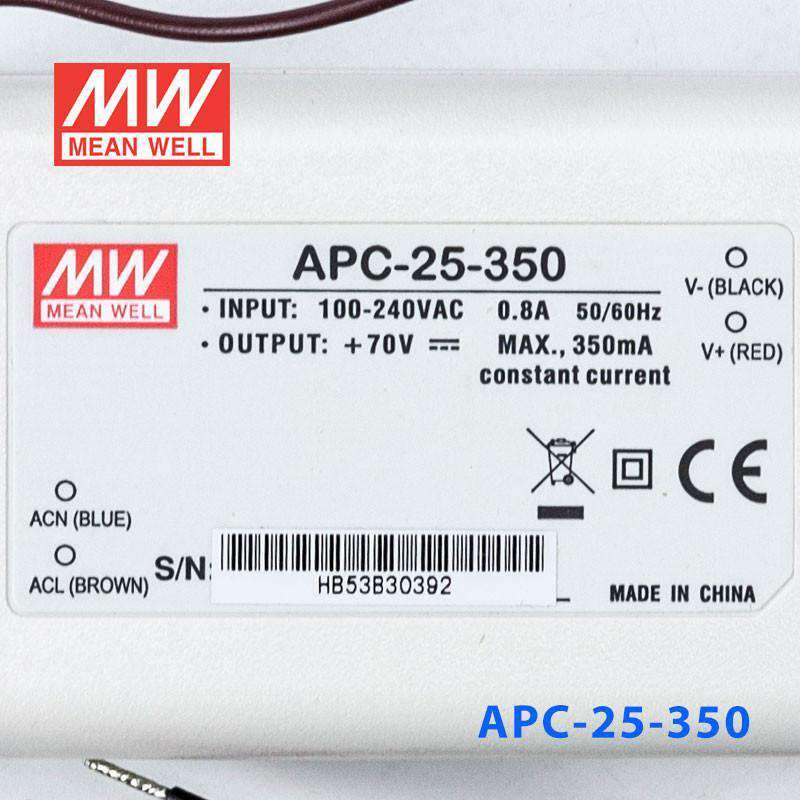

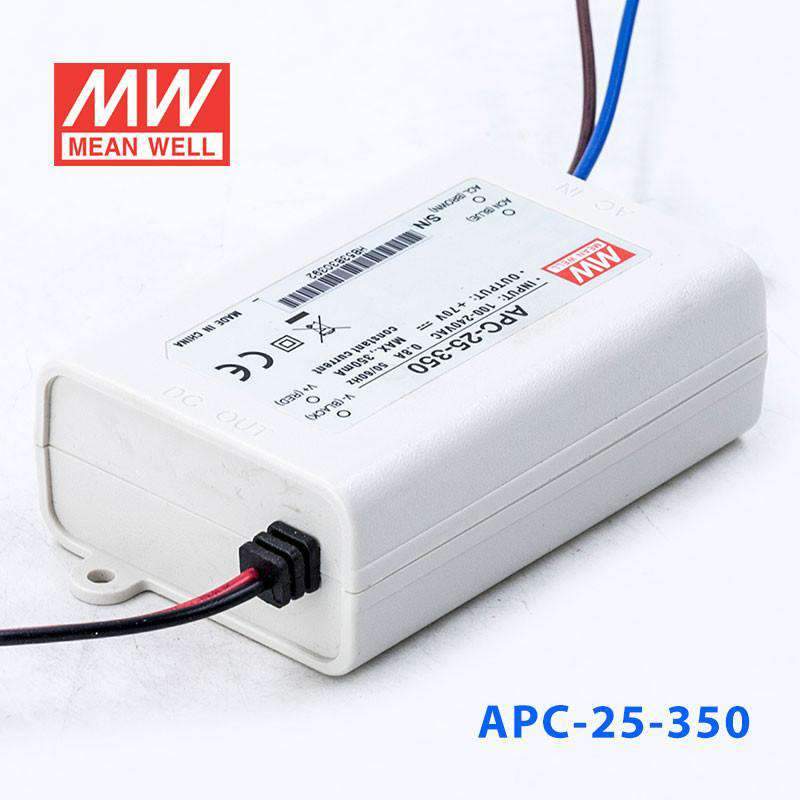

Mean Well APC-25-350 Power Supply 25W 350mA
The APC-25 is a 25W Mean Well. power converter. and an input range of 25~70V.
Key Features
- ✓ Input voltage range: 25~70V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating24.5 Watt
-
Output Voltage70 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What is the APC-25-350 typically used for?
The Mean Well APC-25-350 is typically used for constant-current LED lighting and moving sign applications that need a 350mA drive current with more output headroom than smaller APC models. With 24.5W rated power, it is suited to 350mA LED loads that need higher voltage or a larger output range.
Is the APC-25-350 a good fit for 350mA LED loads that need more capacity than the APC-16-350?
Yes. Both models are 350mA constant-current drivers, but the APC-25-350 provides 24.5W compared with 16.8W on the APC-16-350. That makes it a better fit when the LED load still needs 350mA but requires more output capability.
Can the APC-25-350 be used for indoor sign and LED lighting projects?
Yes. The APC-25-350 is intended for LED lighting and moving sign applications, so indoor sign lighting and other constant-current LED assemblies are typical uses when the connected load is designed for 350mA operation and fits within the driver's electrical rating.
Will the APC-25-350 run on common AC mains supplies?
Yes. The specified input range is 90-264VAC, so the APC-25-350 can operate from common 120V and 240V AC mains systems within that range. That makes it suitable for general-purpose indoor lighting installations.
Is the APC-25-350 suitable for exposed outdoor installation?
No. The APC-25-350 has an IP30 design, so it should generally be used indoors or inside a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-25-350 compare with APC-16-350 and APC-25-500?
The APC-25-350 provides 24.5W at 350mA, which gives it more output capacity than the APC-16-350 at 16.8W and 350mA. Compared with the APC-25-500, the main difference is current level: the APC-25-350 is for 350mA LED loads, while the APC-25-500 is for 500mA loads. Matching the driver current to the LED requirement is the key selection rule.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APC-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-25-700 Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $11.74 | View |
| Mean Well APC-25-500 Power Supply 25W 500mA | 25.2W | 50V | 0.5A | Indoor | $11.74 | View |
| Mean Well APC-25-1050 Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $10.81 | View |
