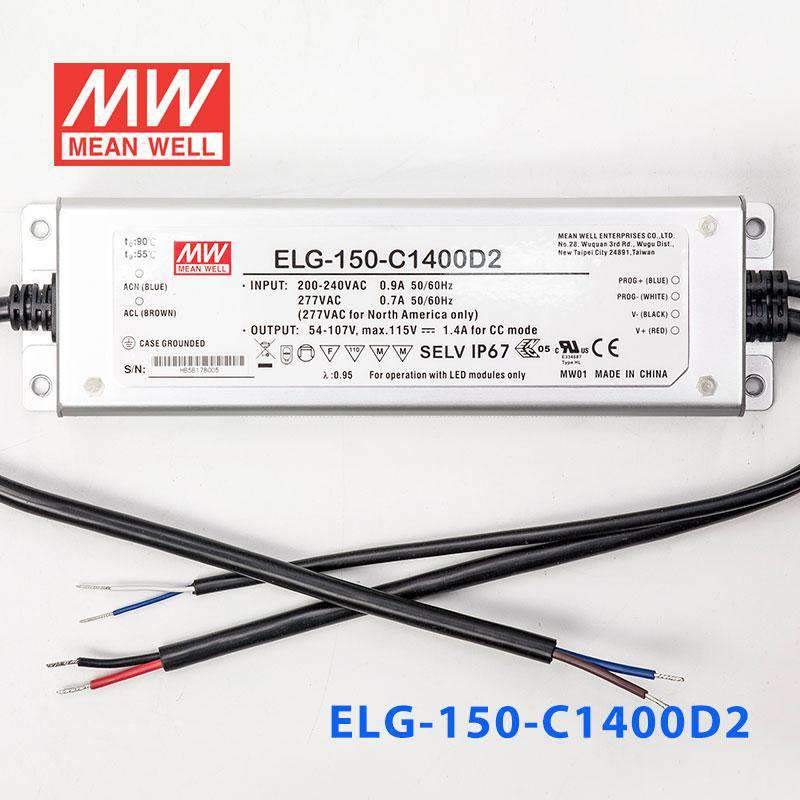

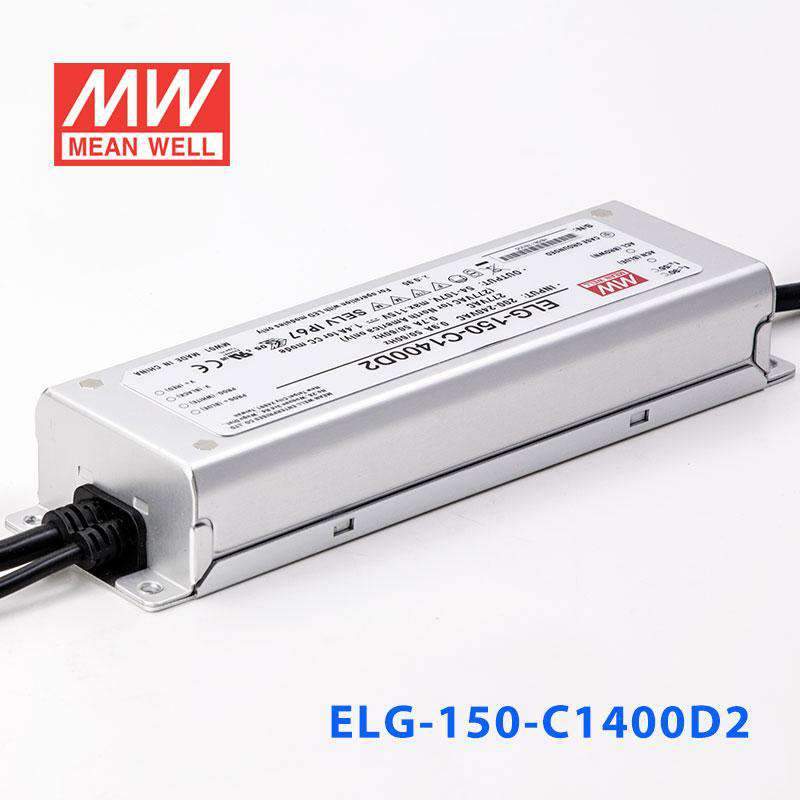

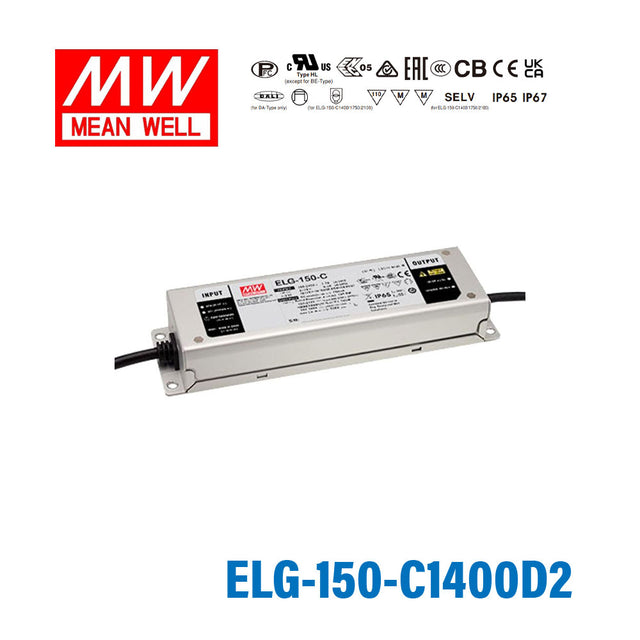

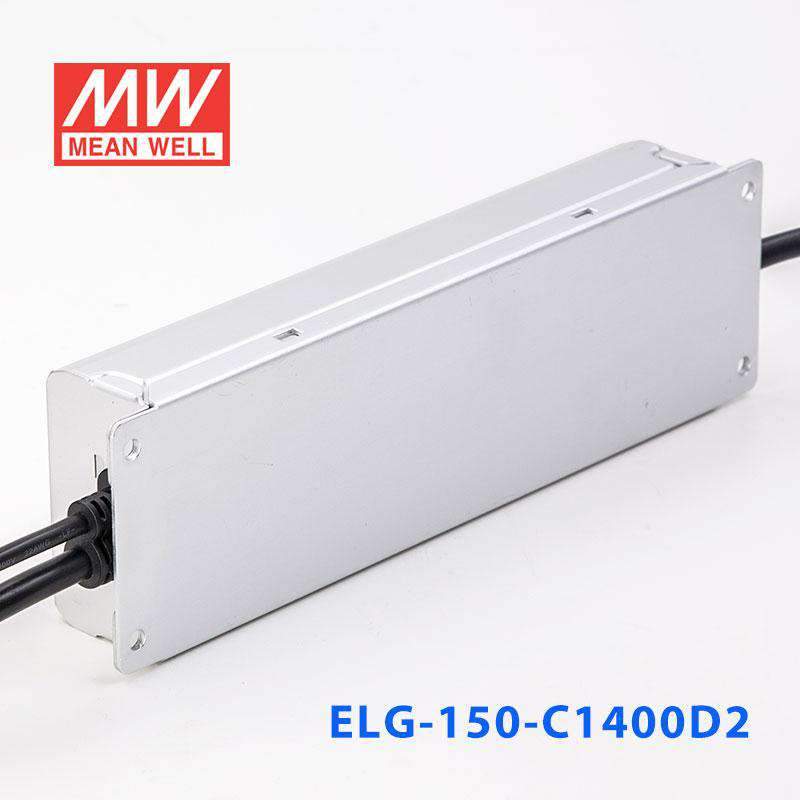

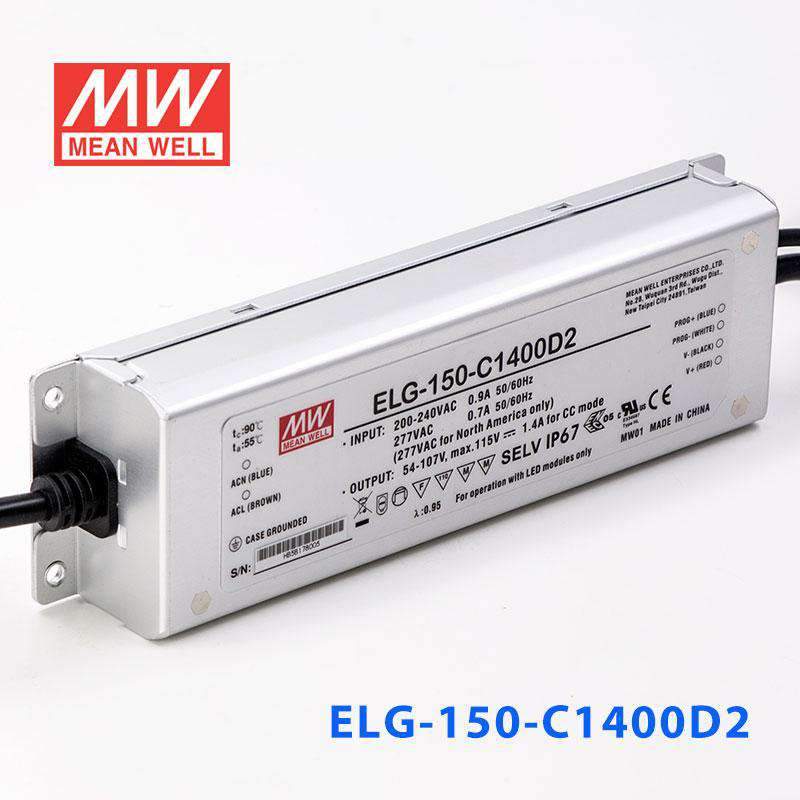

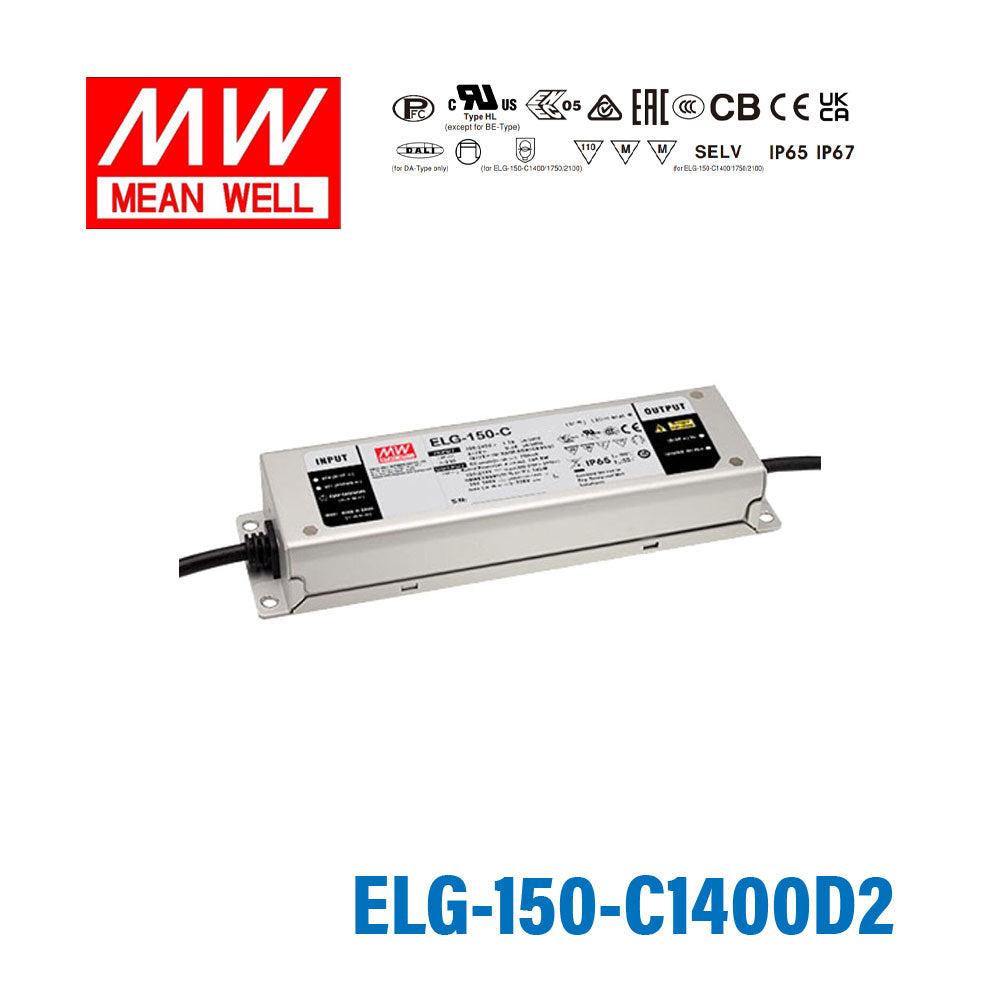

Mean Well ELG-150-C1400D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C1400D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage107 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the ELG-150-C1400D2 designed to power?
The ELG-150-C1400D2 is a constant current LED driver at 150W, suited for driving LED modules, downlights, or small LED arrays that operate within its output voltage range. Its D2 dimming interface makes it compatible with 0–10V dimming systems common in commercial lighting controls.
Is the ELG-150-C1400D2 suitable for outdoor installations?
Yes. The ELG-150-C1400D2 is IP67 rated, meaning it withstands temporary water immersion and is dust-tight. Its operating temperature range of -40°C to +90°C supports outdoor use in most climates.
What dimming protocol does the ELG-150-C1400D2 support?
The D2 suffix indicates this driver supports the D2 dimming interface, which accepts a 0–10V analog dimming signal. This is distinct from the DALI-based DA variants and the analog 1–10V/PWM/resistance dimming of the B variants in this series.
How does the ELG-150-C1400D2 differ from other ELG-150-C1400 variants?
The ELG-150-C1400D2 uses a D2 dimming interface and has an output voltage of 107V at 1.4A constant current, operating at 150W. The non-D2 variants (C1400, C1400A, C1400B, C1400AB, C1400DA) share a 149.8W output and 115V voltage, while the D2 version operates at a slightly different output point. Certifications also differ — the D2 model carries BSMI, CB, CE, EAC, and UL rather than the full ENEC and c-tick approvals of the other variants.
Can I install the ELG-150-C1400D2 in a cold environment such as a refrigerated warehouse?
Yes. The driver is rated for operation from -40°C to +90°C and carries an IP67 waterproof rating, both of which are compatible with refrigerated warehouse conditions including condensation and low ambient temperatures.
