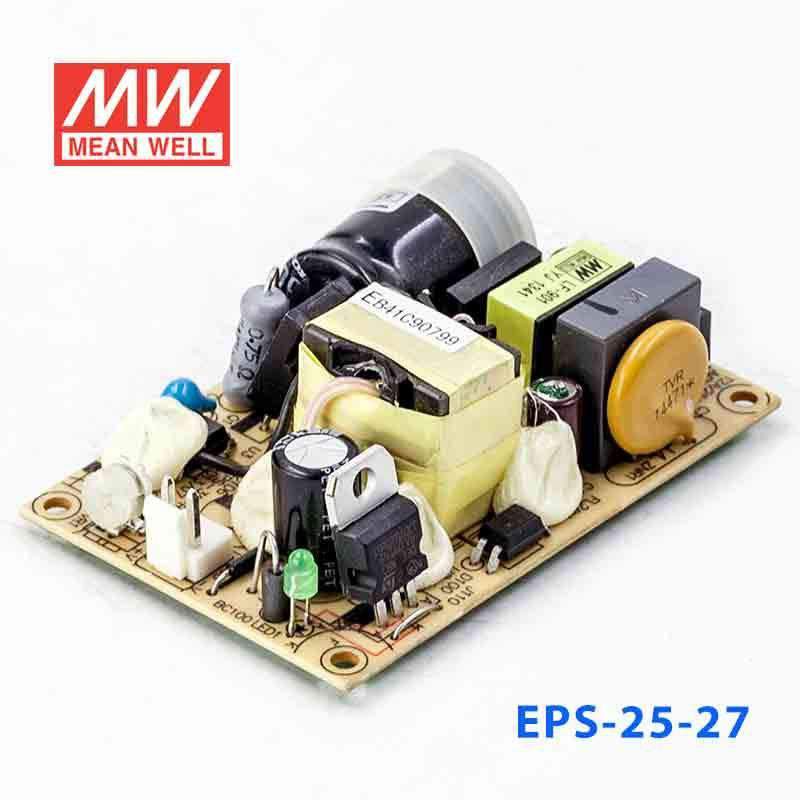

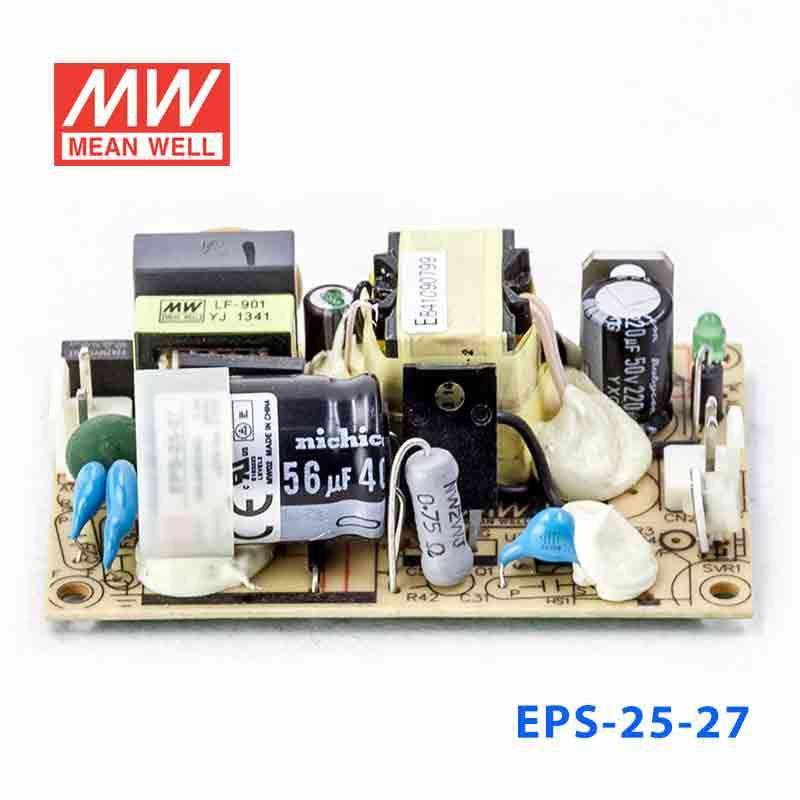

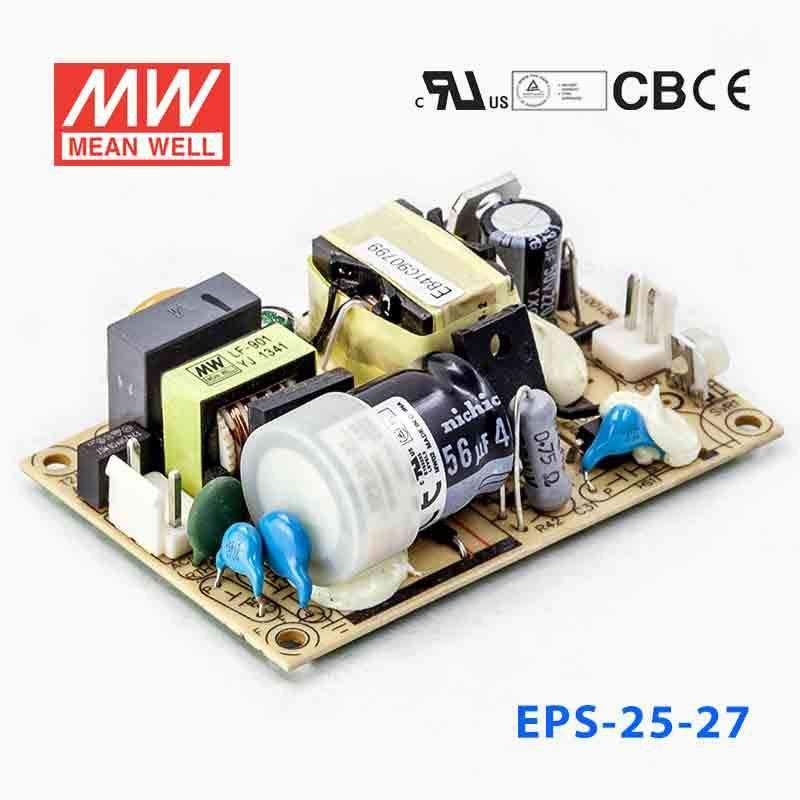

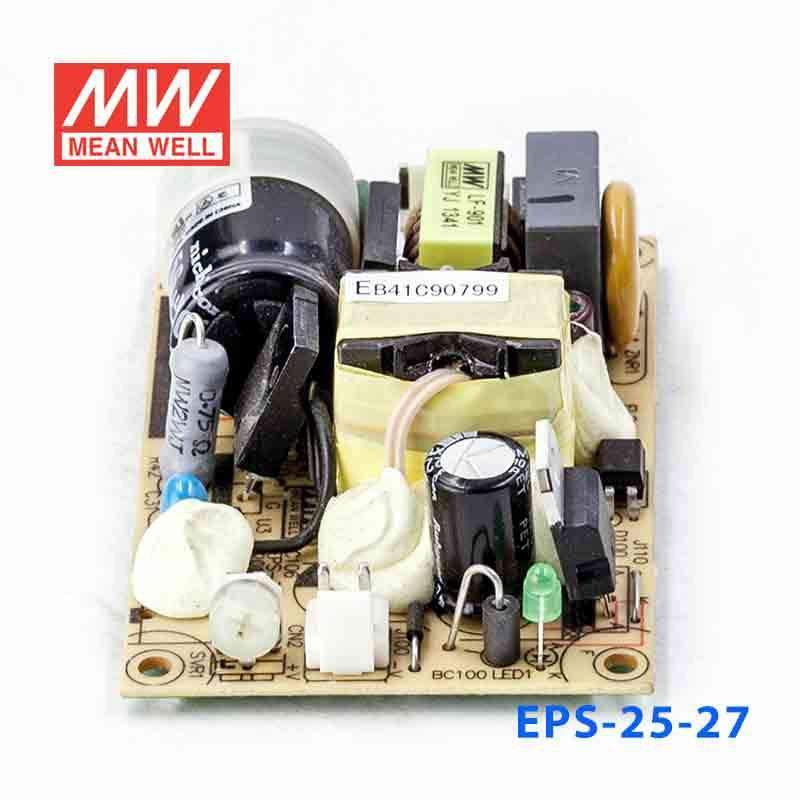

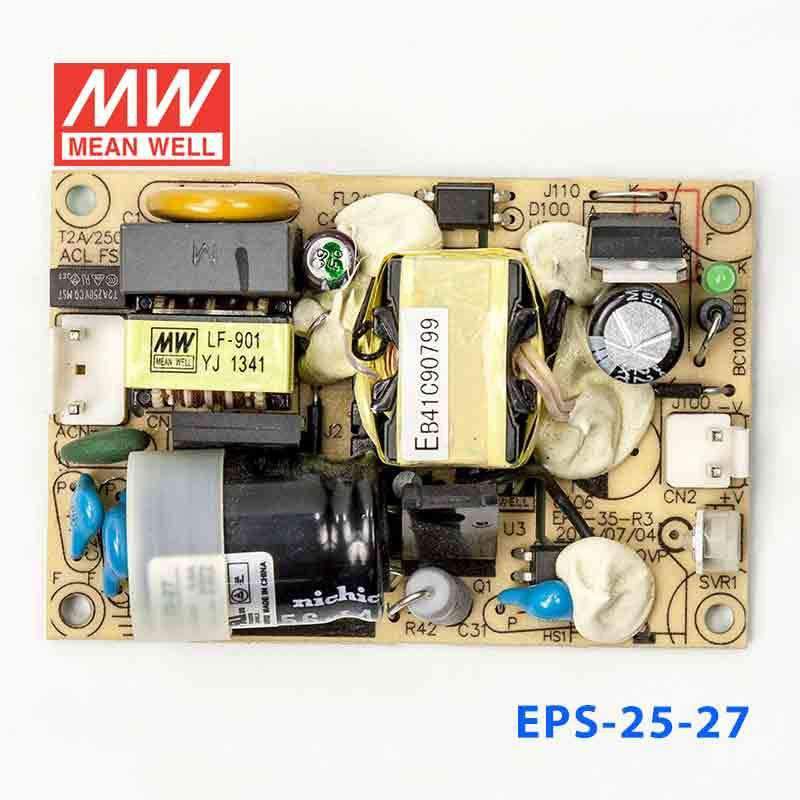

Mean Well EPS-25-27 Power Supply 25W 27V
The EPS-25 is a 25W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.65 Watt
-
Output Voltage27 Volt
-
Rated Current0.95 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the EPS-25-27 for a 27V industrial control or instrumentation load?
It can be used where the equipment specifically requires a constant 27V DC source and the total load stays within 25.65W and 0.95A. That makes it a fit for lighter 27V control and instrumentation circuits rather than higher-current loads.
Is the EPS-25-27 suitable for 27V alarm, signaling, or interface equipment?
Yes, if the equipment is rated for 27V DC and its demand does not exceed 0.95A. The constant voltage output is appropriate for fixed-voltage electronics instead of devices that need a different drive method.
Can this model power a compact 27V embedded or telecom-related subsystem?
It can support compact 27V electronics when the required power is within 25.65W. The 85-264VAC input range is useful when the same equipment may be deployed in regions with different AC input conditions.
Is the EPS-25-27 suitable for outdoor installations?
The operating temperature rating is -30°C to +70°C, but the provided specs do not include an IP rating. Without an IP rating in the listed specifications, it should be used only in protected equipment or enclosures rather than exposed outdoor conditions.
What other outputs are available in the EPS-25 series if I am comparing the 27V version?
Other EPS-25 versions are EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. The comparison is mainly a matter of matching the required output voltage and the corresponding current limit.
