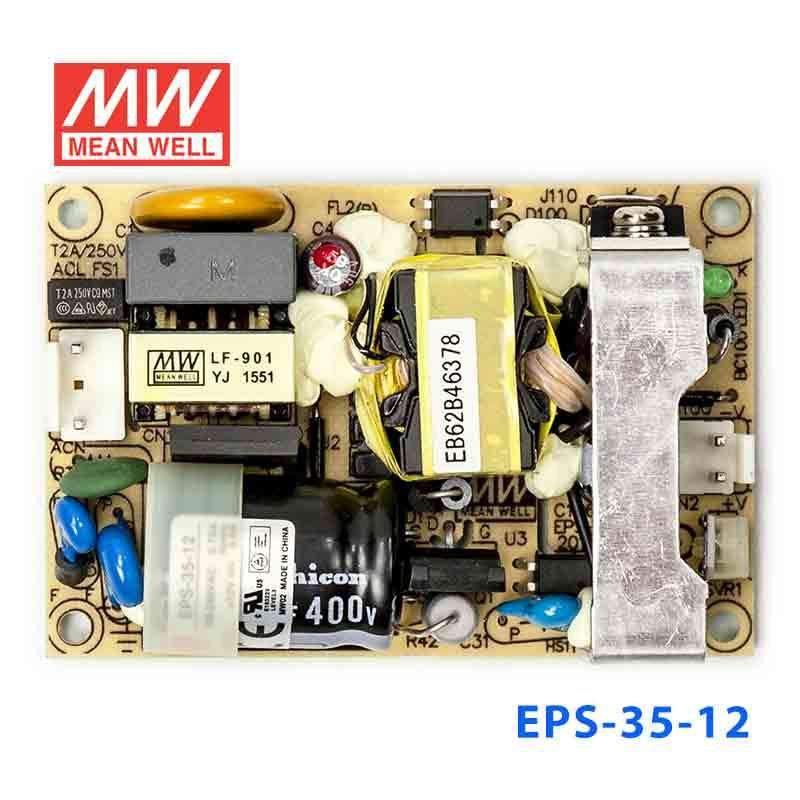

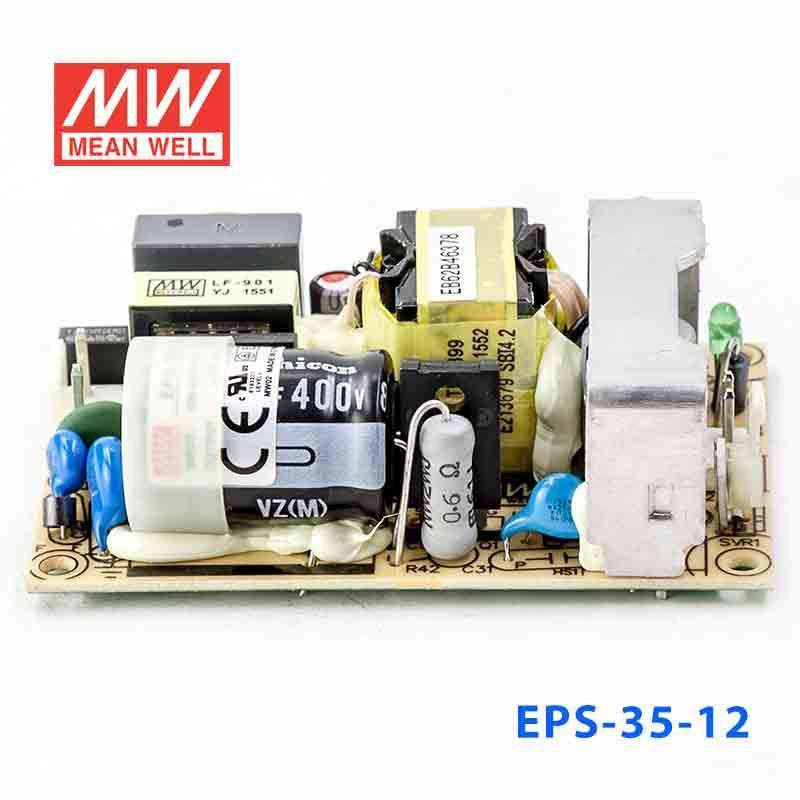

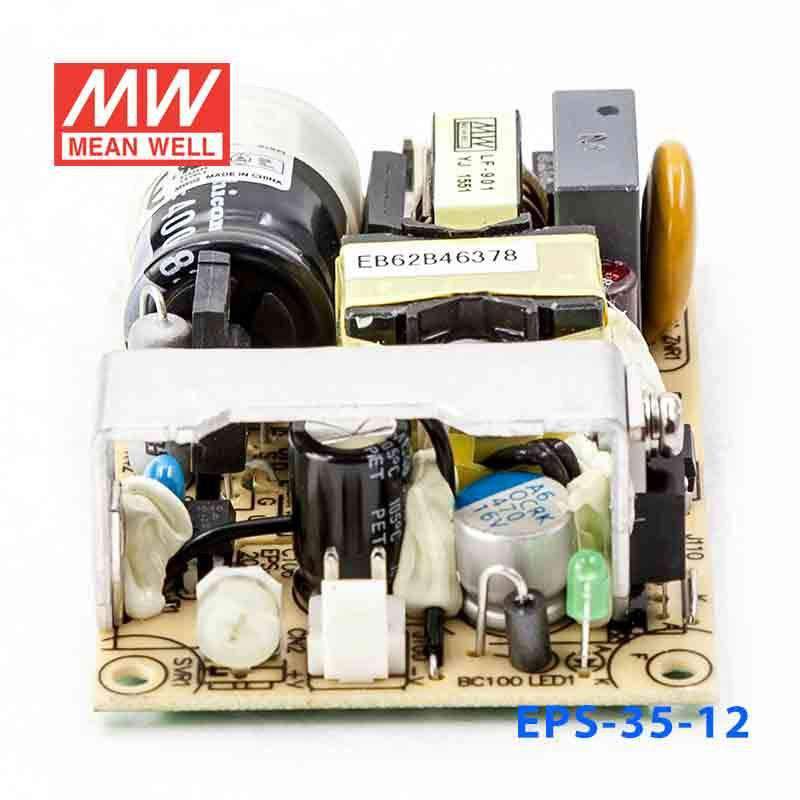

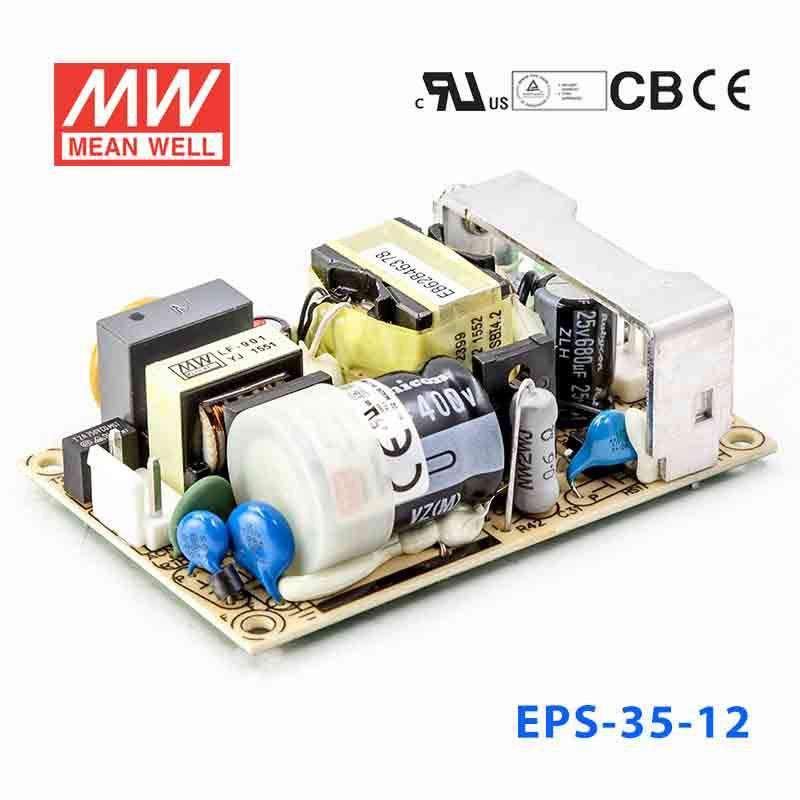

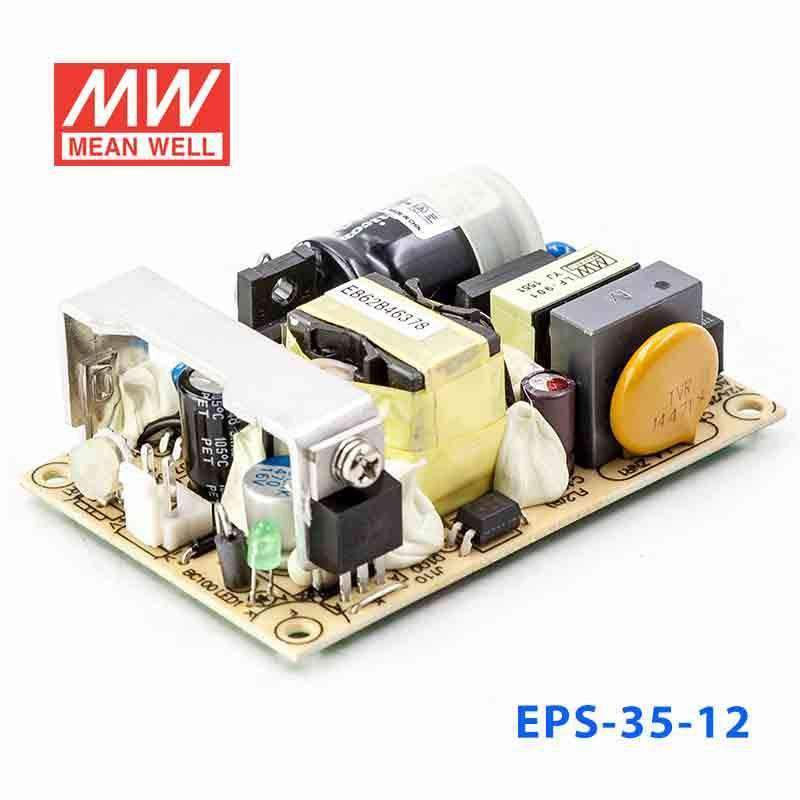

Mean Well EPS-35-12 Power Supply 36W 12V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-12 for a 12V PLC accessory or industrial control device?
Yes, if the equipment is designed for constant-voltage 12V DC and its total draw stays within 3A and 36W. That makes it suitable for many low-power PLC accessories, relays, interface modules, and control electronics.
Is the EPS-35-12 a fit for a 12V HMI, display, or embedded panel computer?
It can be, when the device requires 12V DC and does not exceed 36W. The 3A output gives more current headroom than the 25.2W 12V version in the same series.
Can this 12V model power sensors, fans, and small automation loads in one enclosure?
Yes, if the combined 12V load remains at or below 3A and 36W. For grouped low-power panel devices, the important check is the total demand on the 12V rail rather than each load individually.
Is the EPS-35-12 suitable for indoor equipment exposed to temperature swings?
The published operating range is -30°C to +70°C, which supports a wide range of equipment-enclosure temperatures. No IP rating is listed in the provided specs, so the data does not show exposed outdoor or washdown suitability by itself.
How does the EPS-35-12 compare with other 12V EPS models?
Among the listed 12V versions, EPS-15-12 is 15W at 1.25A, EPS-25-12 is 25.2W at 2.1A, EPS-35-12 is 36W at 3A, EPS-45-12 and EPS-45-12-C are 45W at 3.75A, EPS-45S-12 is 45.6W at 3.8A, EPS-65-12 and EPS-65-12-C are 65.04W at 5.42A, EPS-65S-12 is 65W at 5.42A, and EPS-120-12 is 84W at 7A. This model sits in the middle of that 12V range, above the 15W and 25.2W units and below the 45W, 65W, and 84W options.
