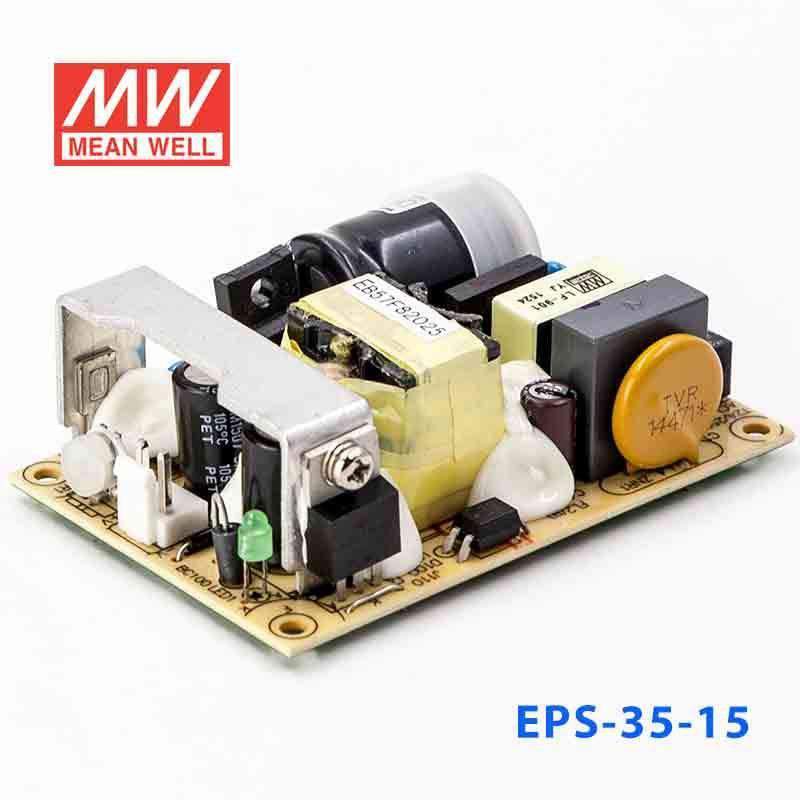

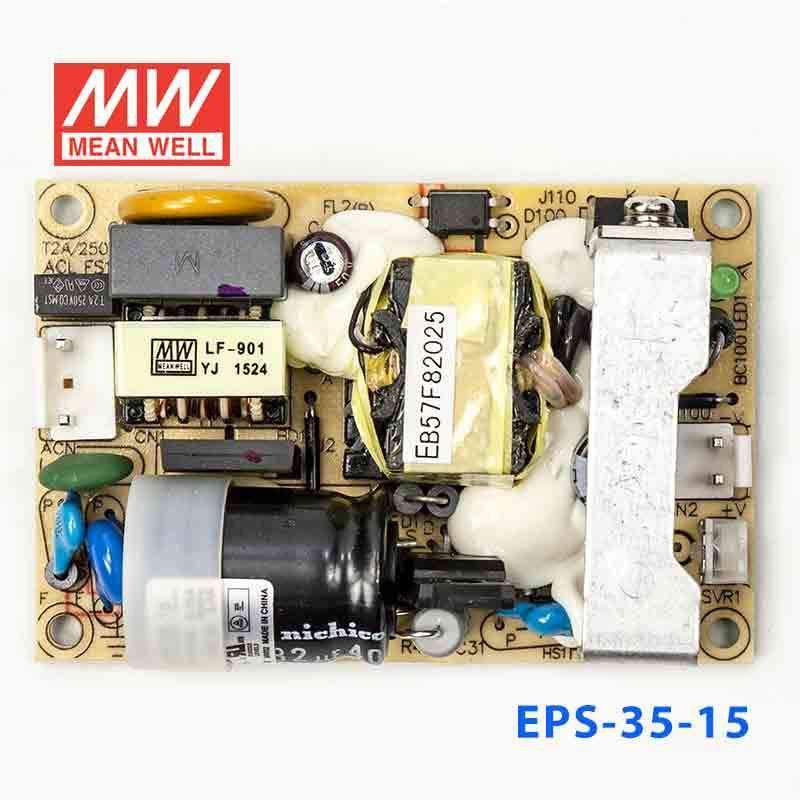

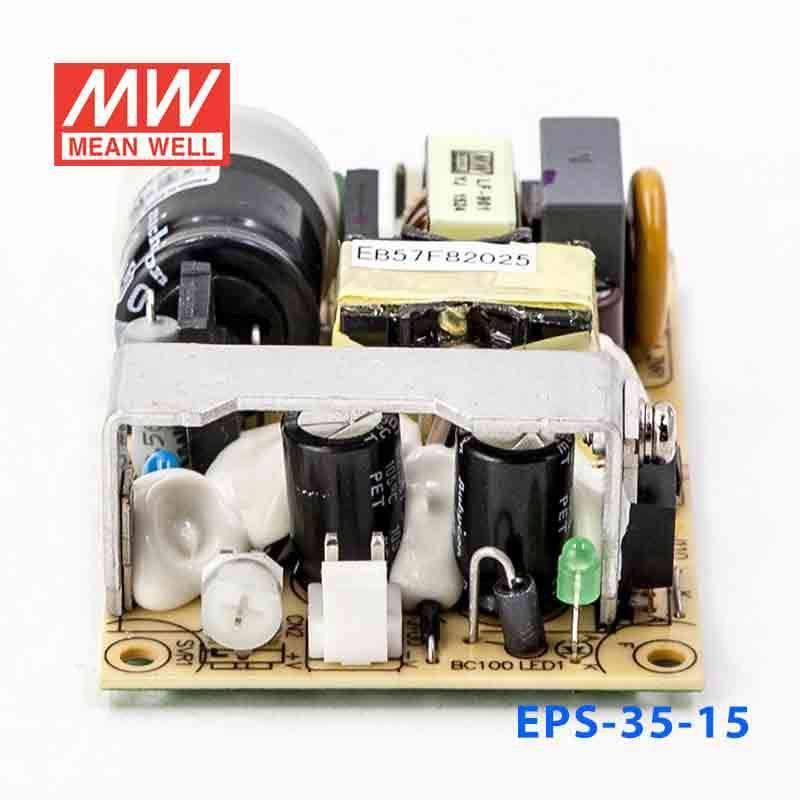

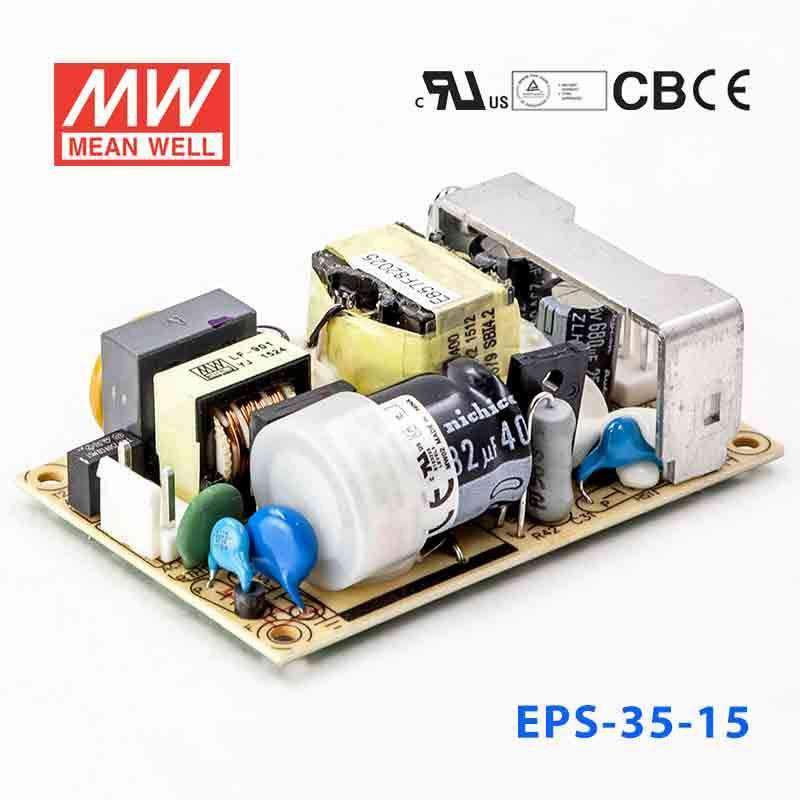

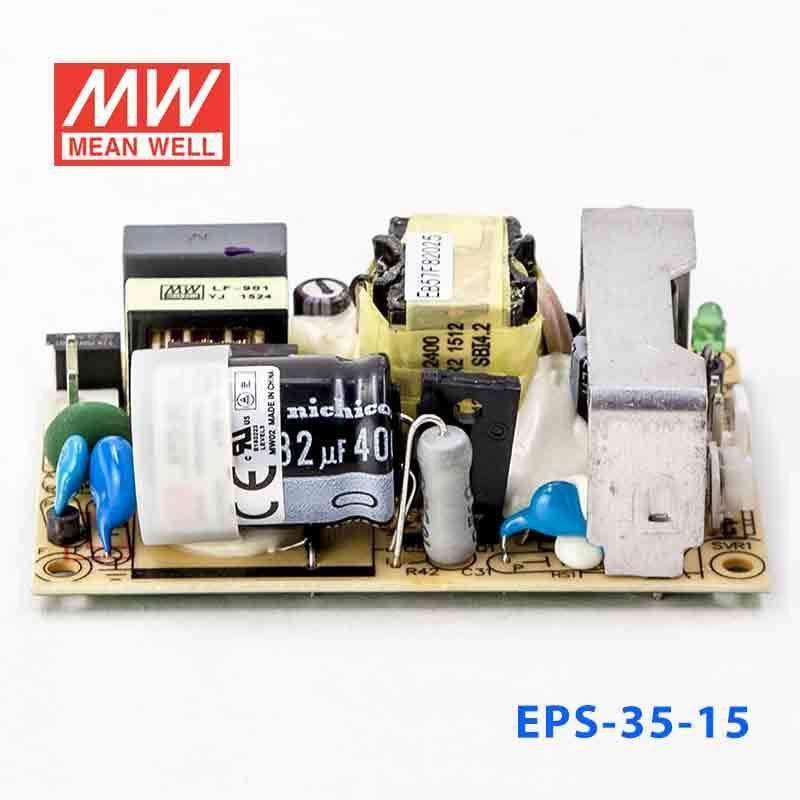

Mean Well EPS-35-15 Power Supply 36W 15V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well EPS-35-15 power supply?
The Mean Well EPS-35-15 is rated for 36W total output power. It provides a 15V DC output with a rated current of 2.4A. This makes it suitable for applications that need a compact regulated 15V power source within that power range.
What input voltage range does the EPS-35-15 support?
This model accepts a universal input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. That wide range helps it fit equipment intended for different regional power systems. It is designed as a full-range AC/DC open-frame power supply.
Can the output voltage on the EPS-35-15 be adjusted?
Yes, the EPS-35-15 has a DC adjustment range of plus or minus 10% of the rated output voltage. Since the nominal output is 15V, that allows limited adjustment around the standard setpoint. This can help in designs that need minor output trimming rather than a fixed exact voltage only.
What protection features are included in the Mean Well EPS-35-15?
The EPS-35-15 includes short circuit, overload, and over-voltage protection. Its overload protection operates in hiccup mode with auto recovery, and the overload range is specified at 115% to 170% of rated output power. These built-in protections help support reliable operation in industrial and embedded equipment.
Is the EPS-35-15 suitable for compact embedded or OEM equipment?
Yes, this model is designed as a compact open-frame PCB power supply, with dimensions of 76.2 x 50.8 x 24 mm. Its small footprint, free-air convection cooling, and low no-load power consumption of less than 0.3W make it a practical option for space-constrained OEM and embedded applications. Buyers commonly consider this style of supply for internal use inside finished equipment.
What operating temperature range can the EPS-35-15 handle?
The specified working temperature range is -30°C to +70°C, with reference to the output derating curve. That gives it a broad operating window for many commercial and industrial environments. As with similar open-frame supplies, performance at higher temperatures should be considered against the published derating behavior.
What certifications and compliance standards are listed for the EPS-35-15?
The EPS-35-15 is listed with UL60950-1 and TUV EN60950-1 safety approvals. Its EMC information includes EN55022 Class B and EN61000-3-2, EN61000-3-3, and multiple EN61000-4 immunity standards. These published standards are useful for buyers evaluating the unit for regulated equipment designs.
