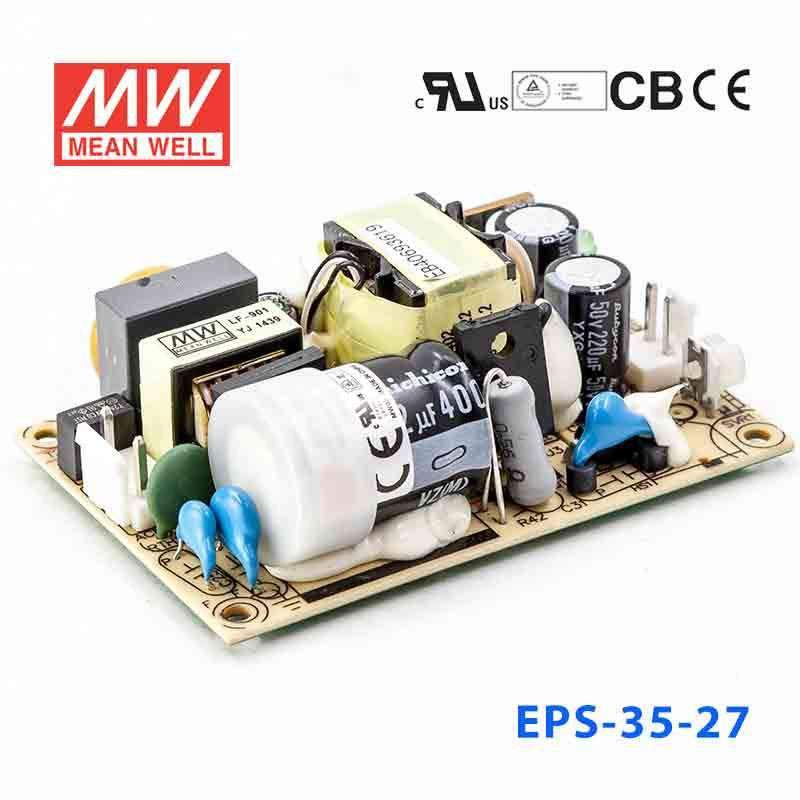

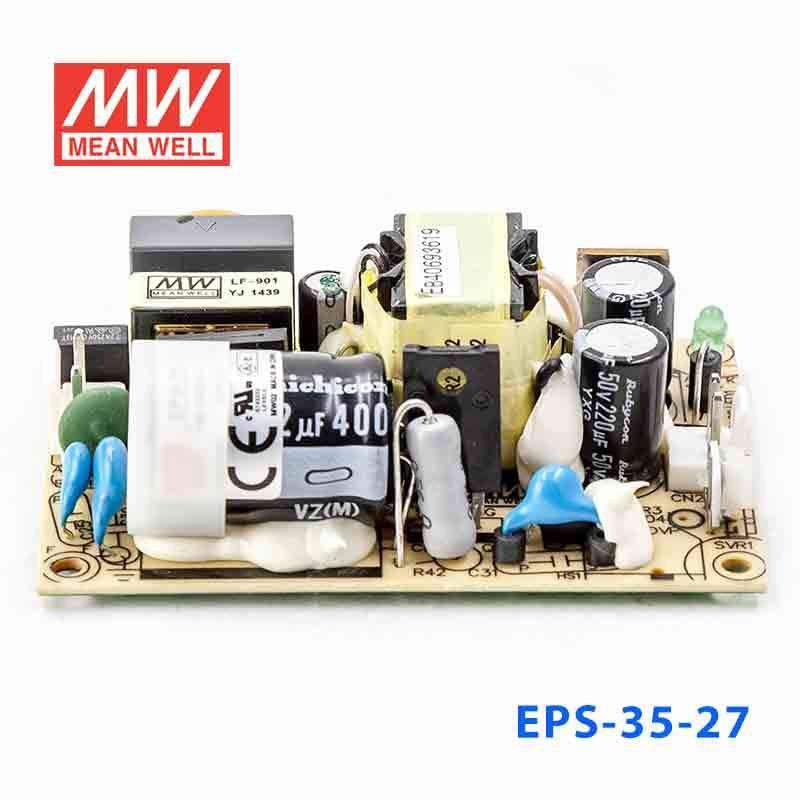

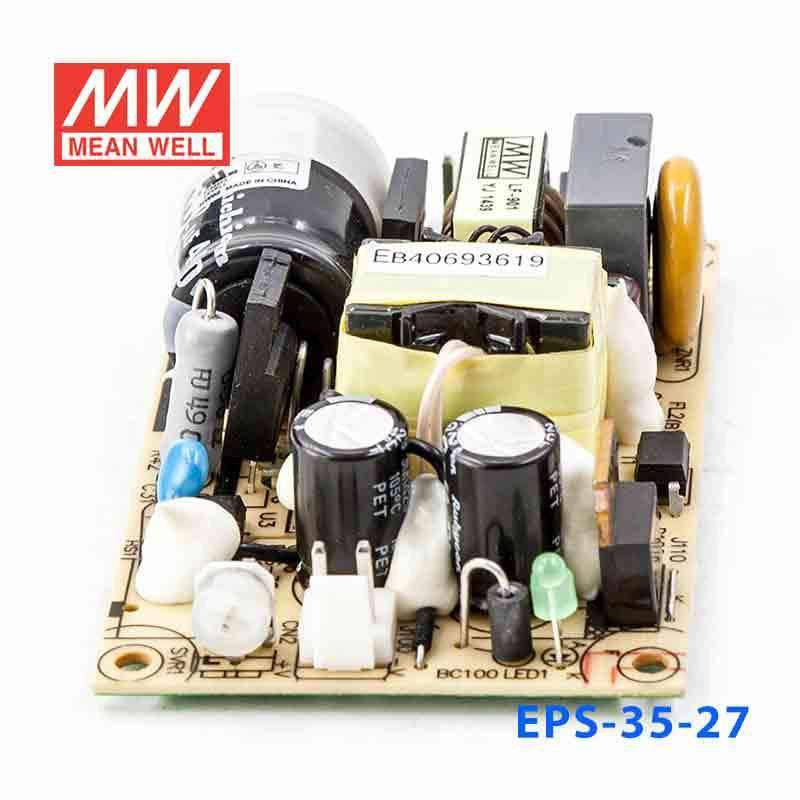

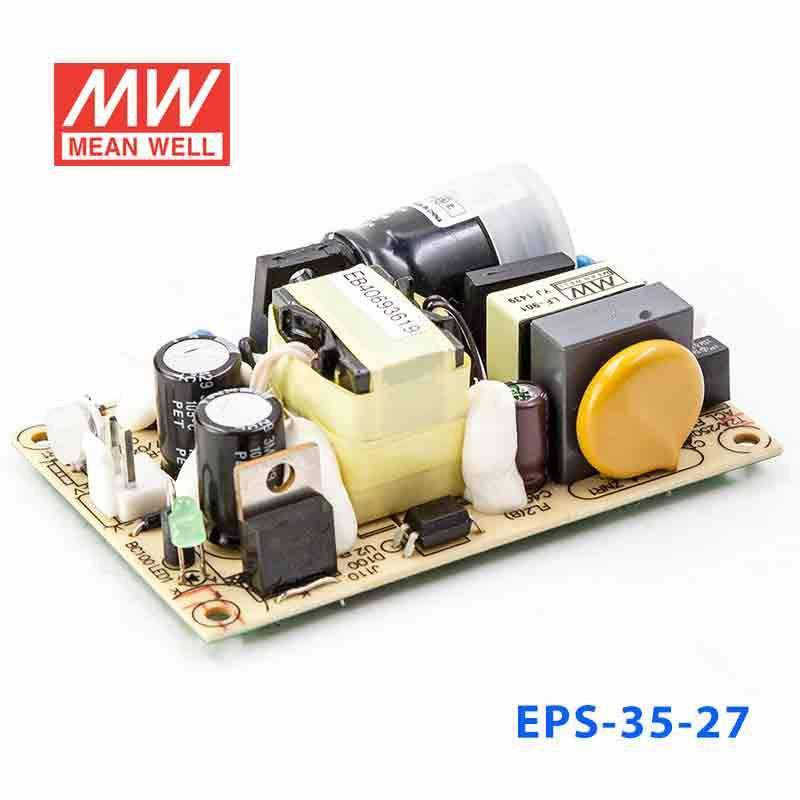

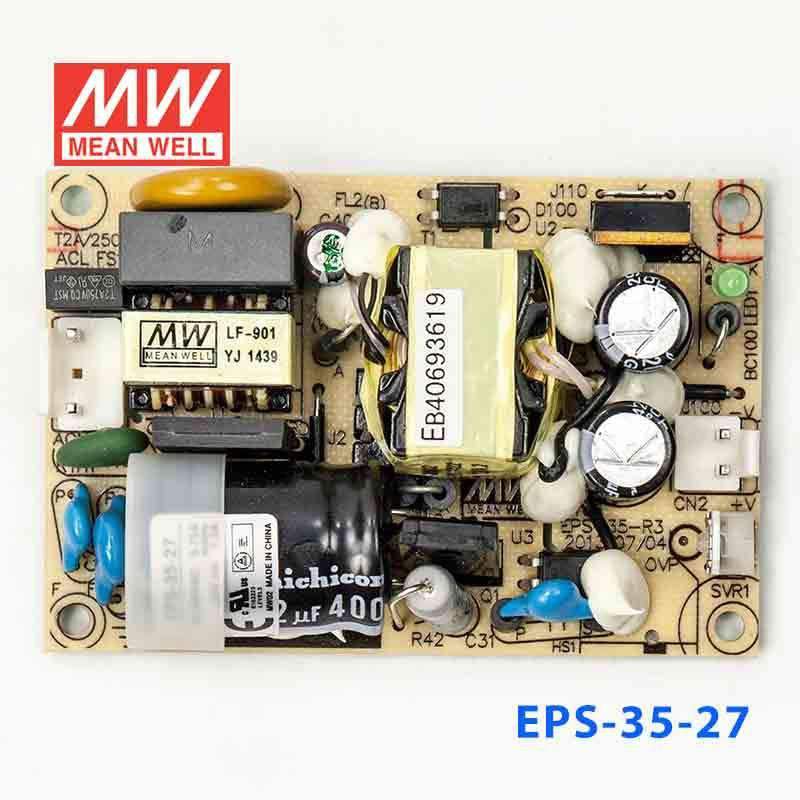

Mean Well EPS-35-27 Power Supply 35W 27V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating35.1 Watt
-
Output Voltage27 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-27 for a 27V industrial control device or automation subassembly?
Yes, it is a constant-voltage 27V supply rated for 35.1W and 1.3A, which fits equipment that specifically requires a 27V DC source within that load range. It is best suited to compact internal industrial, embedded, or automation assemblies where the device load stays at or below 1.3A.
Is the EPS-35-27 suitable for embedded electronics that need a small internal 27V power supply?
It can be a good fit for embedded designs that need 27V DC and up to 35.1W from an AC input of 85-264VAC. The 76.2 × 50.8 × 24.0 mm size and 0.085 kg weight make it more appropriate for space-conscious internal equipment than larger chassis supplies.
Can this power supply run a 27V panel device, interface module, or low-power actuator load?
It is intended for 27V constant-voltage loads drawing up to 1.3A, so it fits panel devices, interface electronics, or similar low-power automation loads that stay within 35.1W. The key selection point is matching both the required 27V output and the current draw to the 1.3A limit.
How does EPS-35-27 compare with the other 27V EPS models?
Within the 27V EPS range, EPS-15-27 is 15.12W at 0.56A, EPS-25-27 is 25.65W at 0.95A, EPS-35-27 is 35.1W at 1.3A, and EPS-120-27 is 85W at 3.15A. The main difference is available output power and current while keeping the same 27V output.
Is the EPS-35-27 suitable for outdoor or harsh-environment use?
The listed operating temperature is -30°C to +70°C, but no IP rating is provided in these specs. That means the product data here supports temperature capability, but does not indicate sealed protection for outdoor, wet, or washdown exposure.
