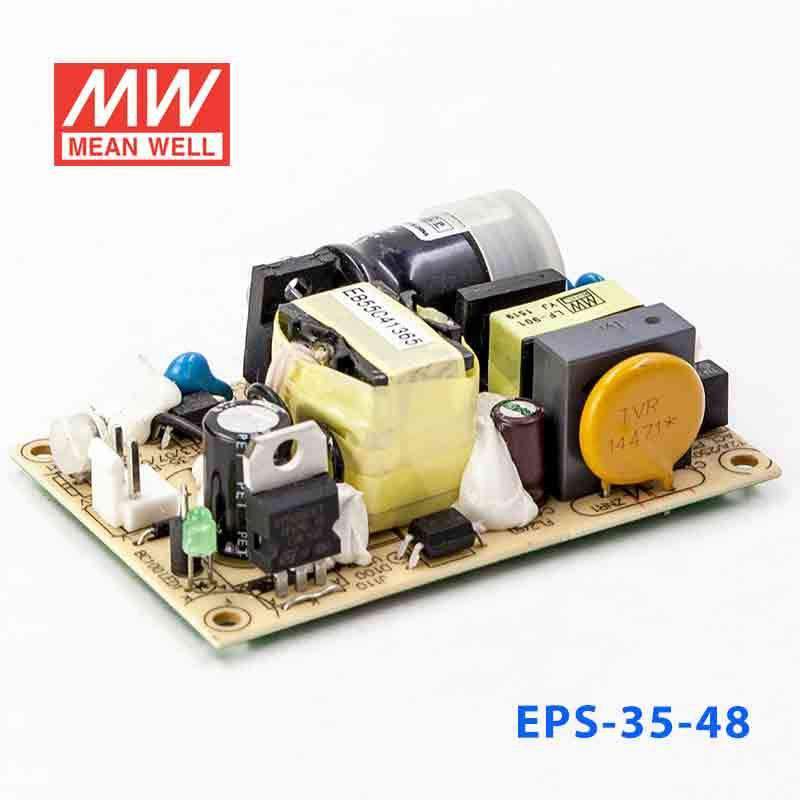

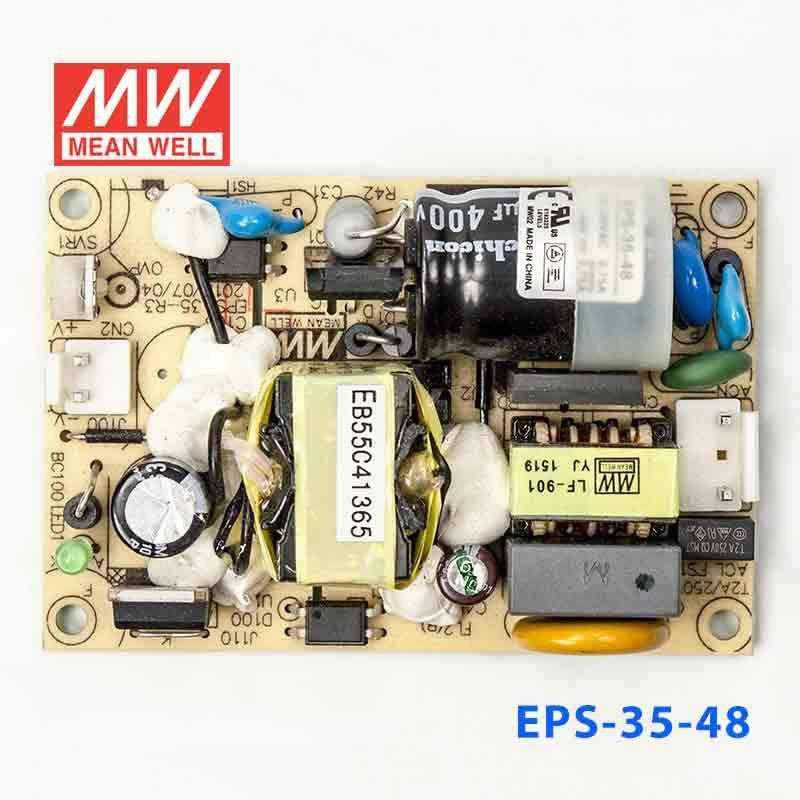

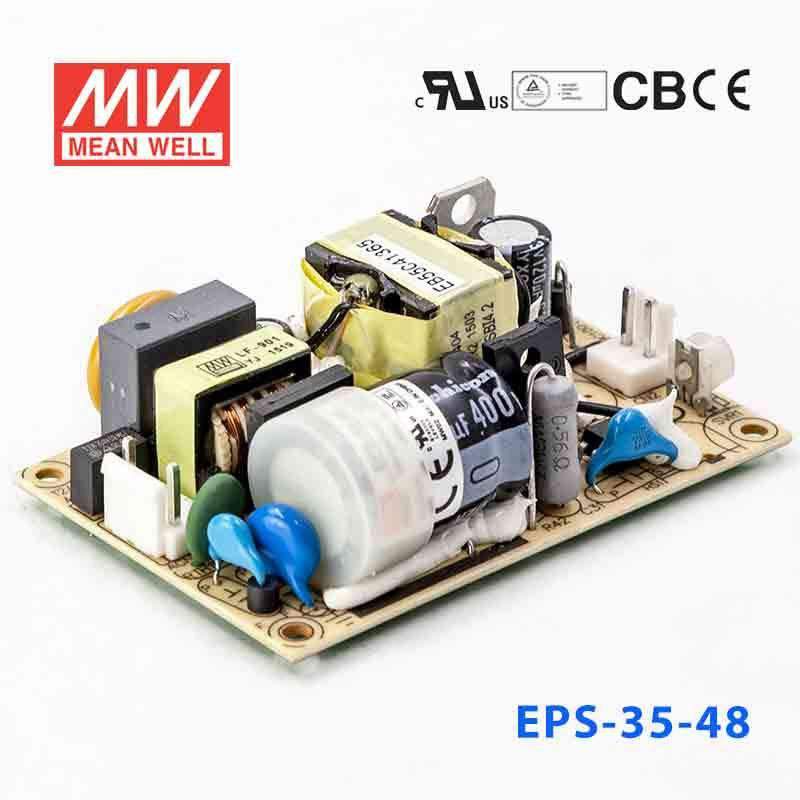

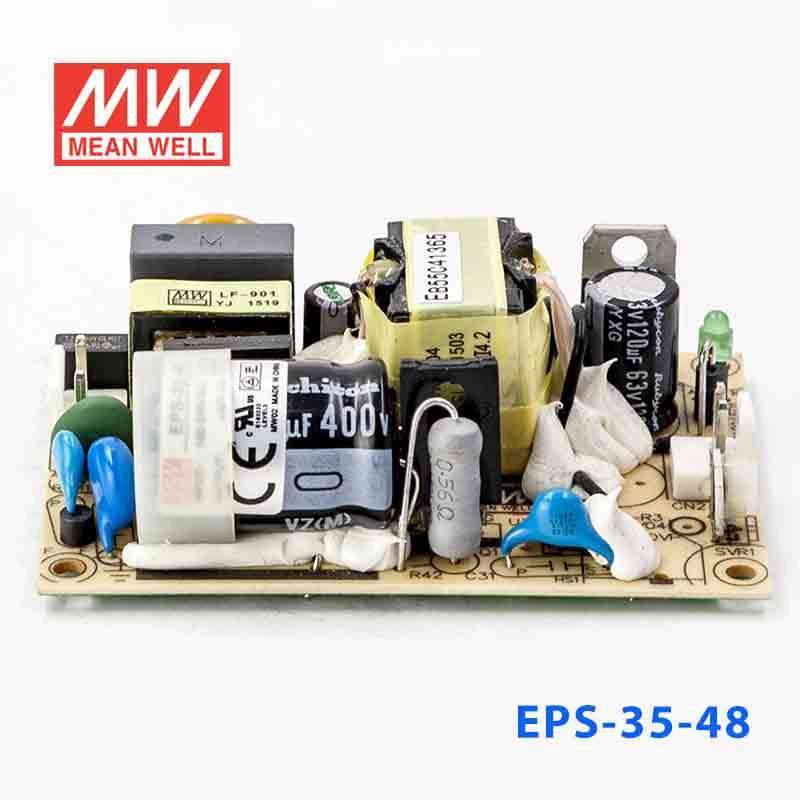

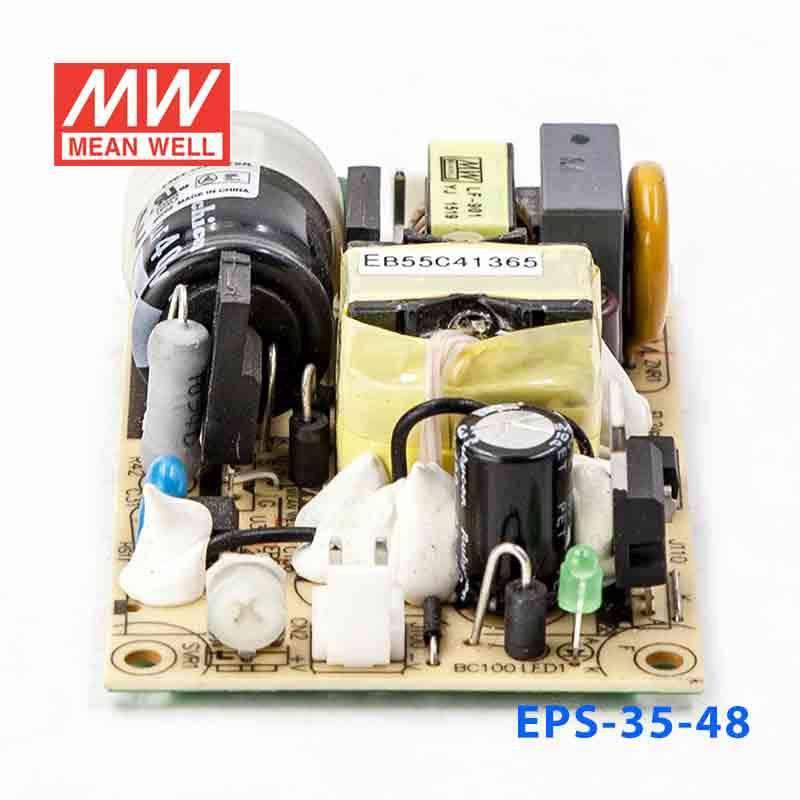

Mean Well EPS-35-48 Power Supply 36W 48V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-48 for a 48V control or industrial electronics load?
Yes, if the load requires 48V constant voltage and draws up to 0.75A, because this supply is rated for 36W at 48V. It fits lower-power industrial, embedded, and automation electronics that need a regulated 48V DC source from 85-264VAC input.
Is the EPS-35-48 suitable for compact internal 48V equipment designs?
It is appropriate for internal equipment that needs a compact 48V AC-DC supply with modest current demand. The 76.2 × 50.8 × 24.0 mm size and 0.085 kg weight support use in space-limited control housings or embedded assemblies.
Can this power supply run a 48V panel subsystem or communications device?
It can support 48V devices as long as the total load stays within 0.75A and 36W. That makes it better suited to lower-power 48V electronics than to applications that require the higher current available from larger 48V models.
How does EPS-35-48 compare with the other 48V EPS models?
The 48V EPS options include EPS-15-48 at 15.02W and 0.31A, EPS-25-48 at 25.44W and 0.53A, EPS-35-48 at 36W and 0.75A, EPS-45-48 and EPS-45-48-C at 48W and 1A, EPS-45S-48 at 45.1W and 0.94A, EPS-65-48 and EPS-65-48-C at 65.28W and 1.36A, EPS-65S-48 at 65.3W and 1.36A, and EPS-120-48 at 84W and 1.75A. They differ mainly by available output current and total wattage while keeping the same 48V output.
Can the EPS-35-48 be used outdoors or in washdown areas?
Its operating temperature is specified from -30°C to +70°C, but no IP rating is listed in the product data provided here. That supports temperature-based selection, but it does not establish protection against water or dust exposure.
