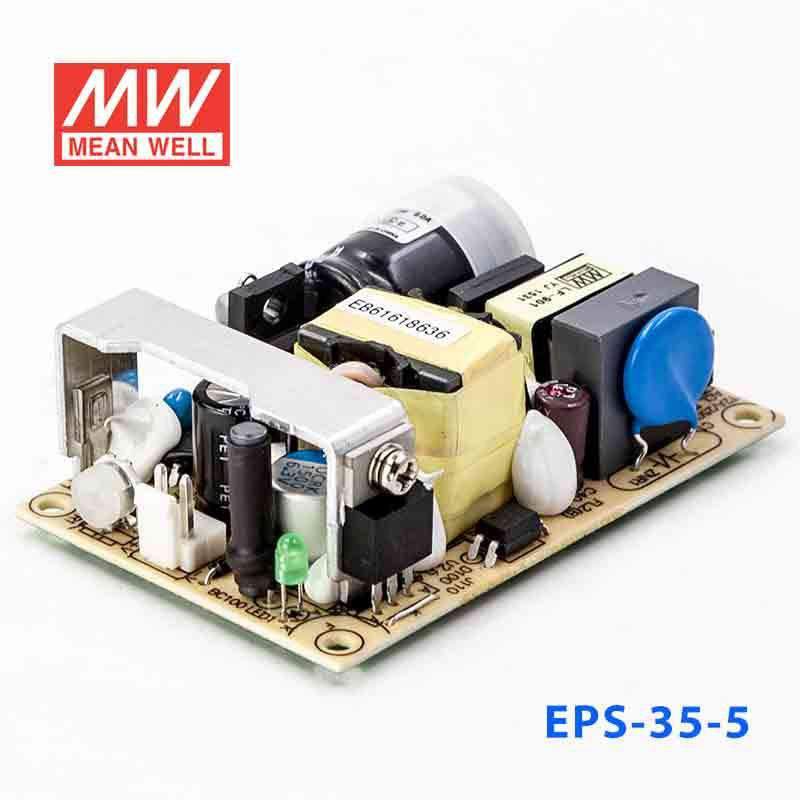

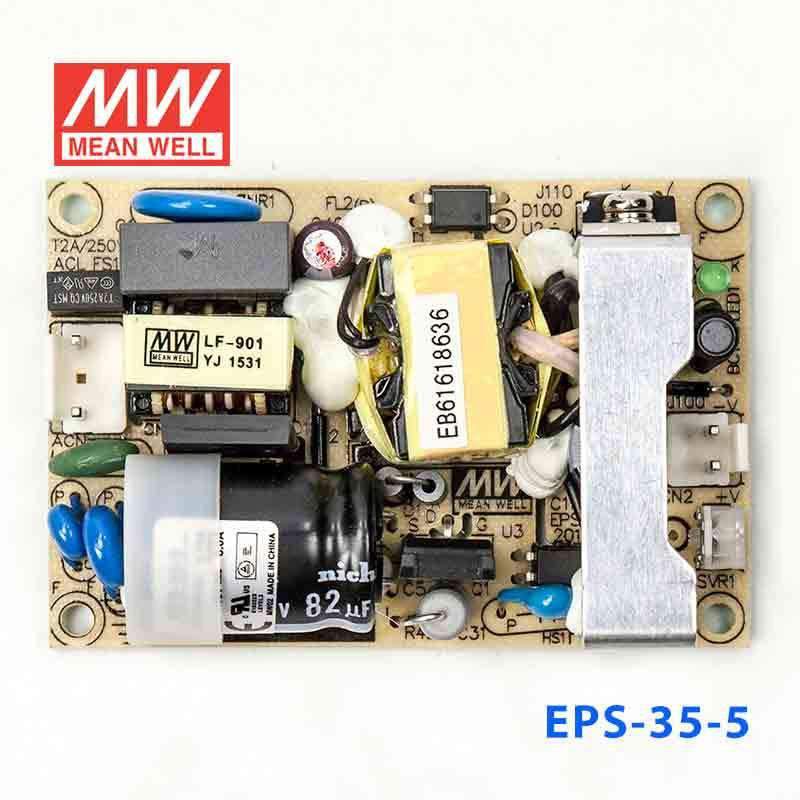

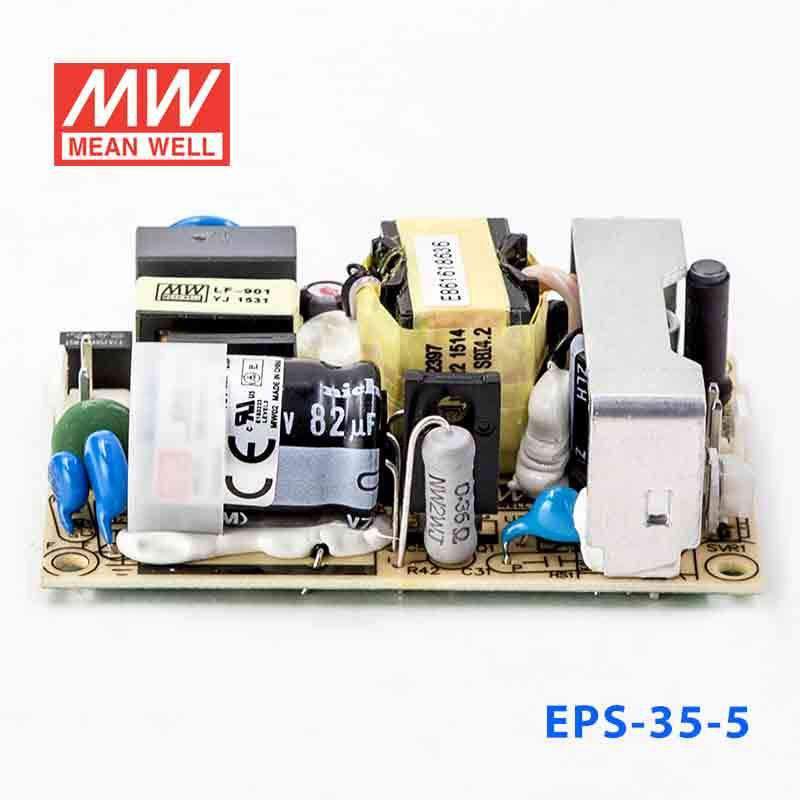

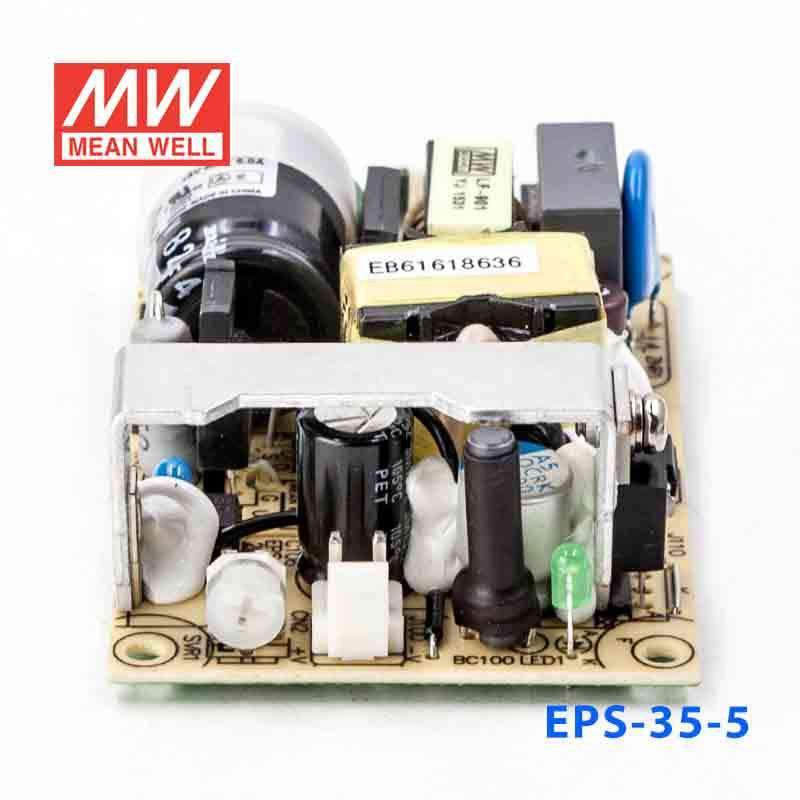

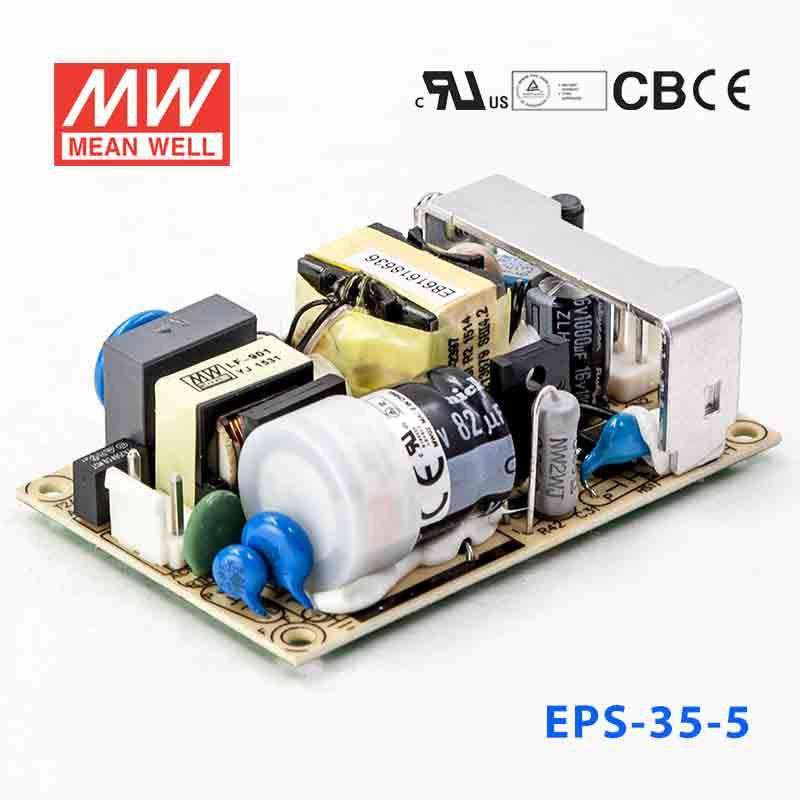

Mean Well EPS-35-5 Power Supply 30W 5V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-5 for 5V industrial controllers or embedded electronics?
Yes, if the equipment requires a constant 5V output and draws no more than 6A, since this model is rated for 30W at 5V. It suits embedded boards, controller electronics, and other low-voltage industrial subsystems powered from 85-264VAC input.
Is the EPS-35-5 suitable for powering 5V logic, USB-powered-style electronics, or digital control boards inside equipment?
It is suitable for 5V DC loads up to 6A in internal equipment where a compact AC-DC supply is needed. The constant-voltage 5V output is the critical requirement, and the total load must remain within the 30W rating.
Can this model power a 5V automation interface or communications module?
Yes, for 5V interface, communications, or control electronics that stay within 6A output current. Its compact 76.2 × 50.8 × 24.0 mm size also makes it easier to use in tighter control cabinets or embedded housings.
How does EPS-35-5 compare with the other 5V EPS models?
At 5V, EPS-15-5 is 15W and 3A, EPS-25-5 is 25W and 5A, EPS-35-5 is 30W and 6A, EPS-45-5 and EPS-45-5-C are 40W and 8A, EPS-45S-5 is 40W and 8A, EPS-65-5 and EPS-65-5-C are 55W and 11A, and EPS-65S-5 is 50W and 10A. The main selection difference is how much current and wattage the 5V load requires.
Is the EPS-35-5 suitable for outdoor or exposed environments?
The specified operating temperature range is -30°C to +70°C, but the provided specs do not list an IP rating. That means the temperature range is defined, while outdoor or water-exposed use is not confirmed by this product data.
