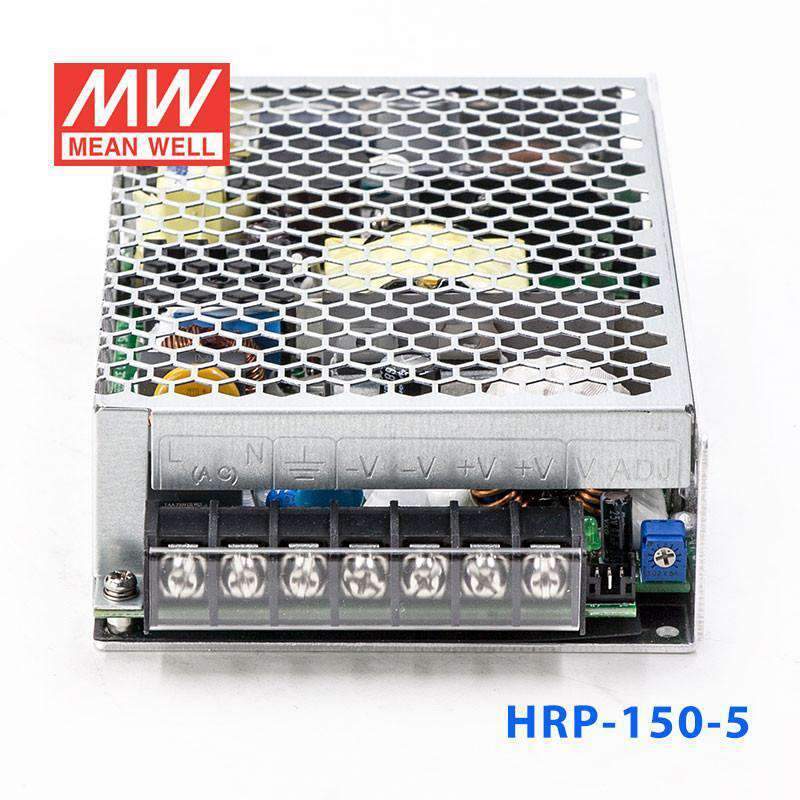

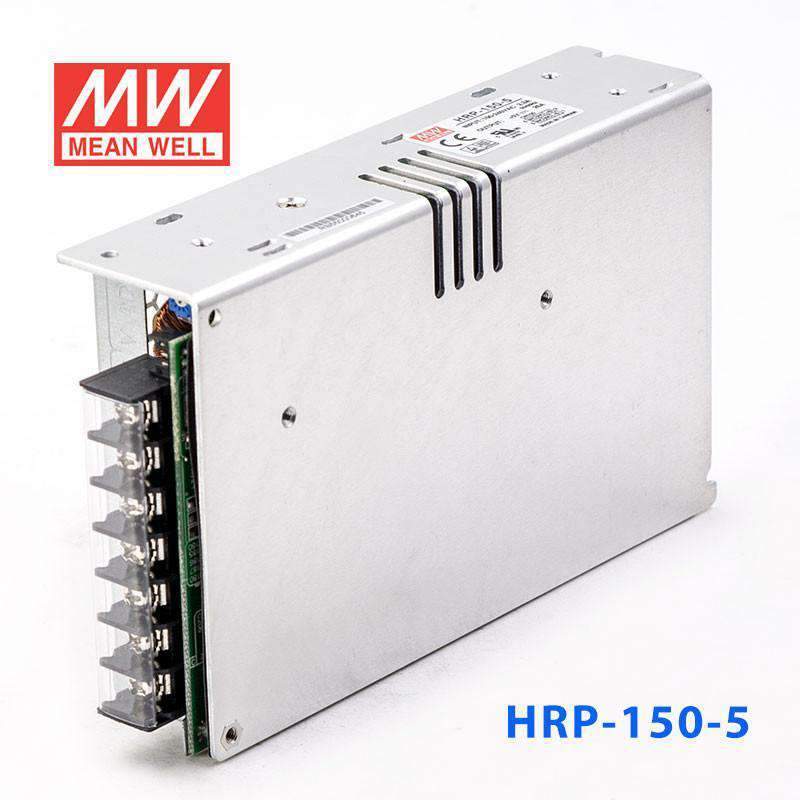

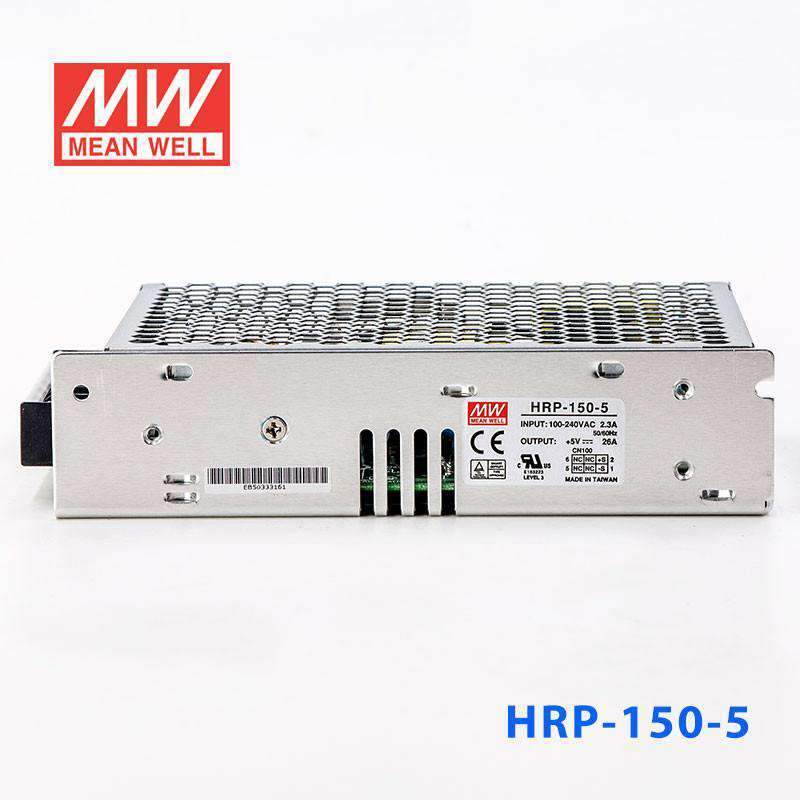

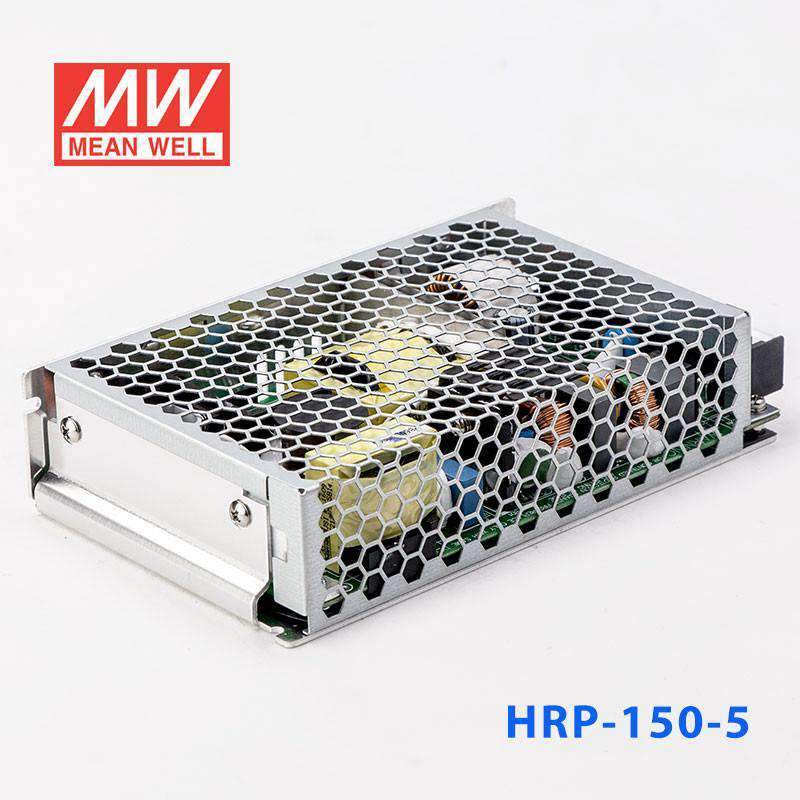

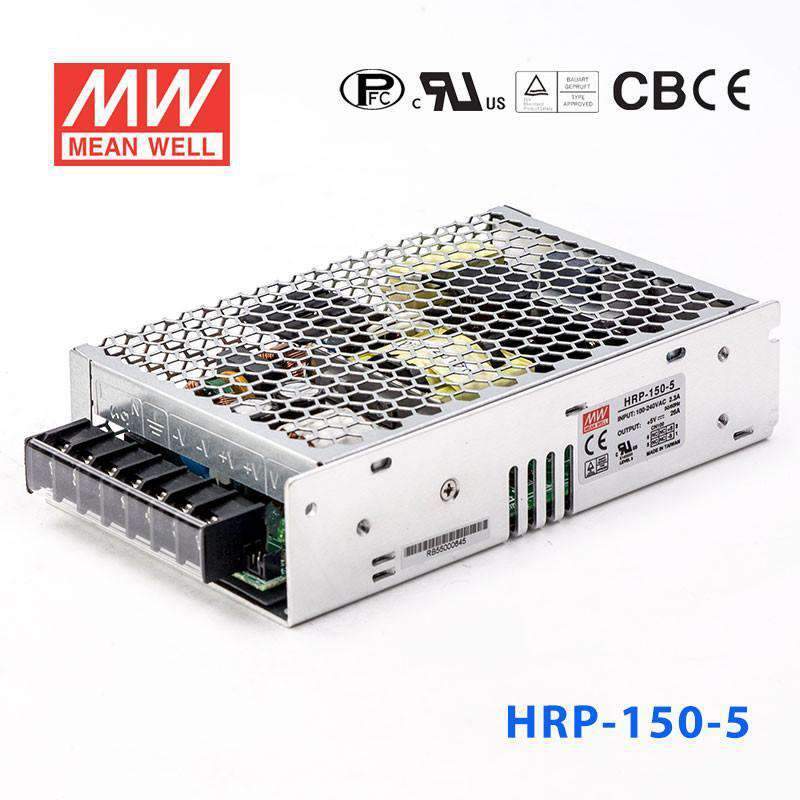

Mean Well HRP-150-5 Power Supply 130W 5V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating130 Watt
-
Output Voltage5 Volt
-
Rated Current26 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-5 for a 5V industrial controller or embedded computer load?
Yes, this model is a constant-voltage 5V supply rated for 130W and 26A. That makes it a fit for 5V industrial controllers, embedded computers, and other 5V DC loads that need a higher current reserve within that 130W limit.
Is the HRP-150-5 suitable for powering multiple 5V logic or interface devices in one automation cabinet?
It can be a good fit when the combined load needs a regulated 5V output and stays within 26A and 130W. The wide 85-264VAC input also helps when the same equipment platform is used across different AC mains ranges.
Can this 5V power supply be used for high-current USB-style electronics or SBC-based systems?
It is appropriate for 5V DC equipment where the total demand fits within 26A and 130W. Compared with lower-current 5V units, this version is aimed at heavier 5V loads rather than light peripheral power only.
Is the HRP-150-5 a good choice for indoor control panels in hot or cold industrial spaces?
The specified operating temperature range is -40°C to +70°C, which supports use in a wide range of indoor industrial environments. No IP rating is listed in the provided specs, so the product data does not define outdoor or washdown suitability from an enclosure-protection standpoint.
How does the HRP-150-5 compare with the other HRP-150 voltage options?
Within the HRP-150 series listed here, the standard models are HRP-150-3.3 at 99W, 3.3V, 30A; HRP-150-5 at 130W, 5V, 26A; HRP-150-7.5 at 150W, 7.5V, 20A; HRP-150-12 at 156W, 12V, 13A; HRP-150-15 at 150W, 15V, 10A; HRP-150-24 at 156W, 24V, 6.5A; HRP-150-36 at 154.8W, 36V, 4.3A; and HRP-150-48 at 158.4W, 48V, 3.3A. The main difference across these siblings is the output voltage and current combination, with power ranging from 99W to 158.4W.
