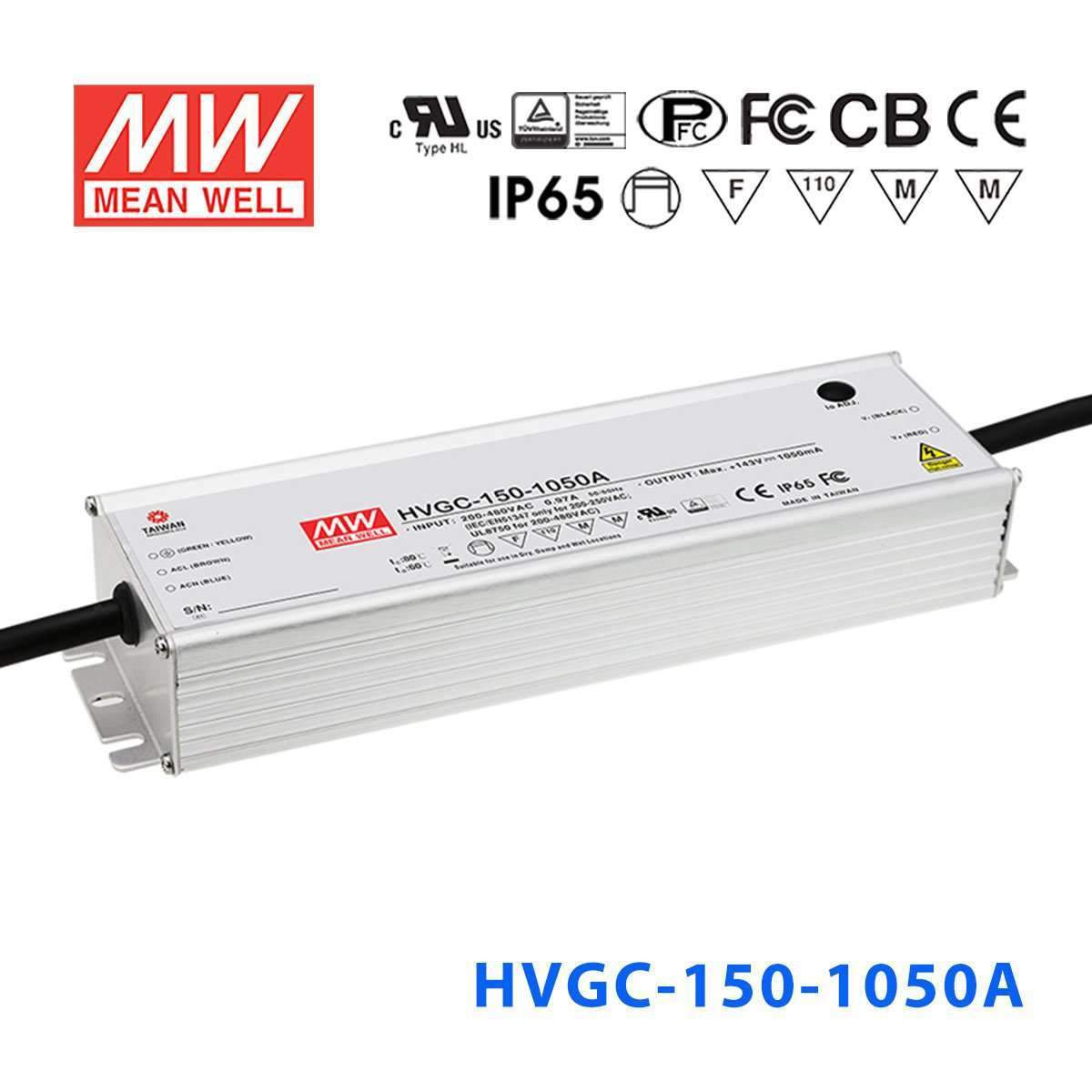

Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150.15 Watt
-
Output Voltage143 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-1050A for 1050mA LED downlights?
Yes, this is a constant current LED driver rated for 1050mA, which matches LED downlights built for that current. The full LED load must also stay within the 15-143V CC range and the 150.15W power rating.
Is this driver suitable for constant current signage modules?
It can be used for signage modules if they are designed for constant current operation at 1050mA. It is not a constant voltage unit, so it should not be used for signage products that require a fixed voltage supply.
Can the HVGC-150-1050A power a small LED array in a semi-exposed location?
Yes, it can power a small LED array when the array needs 1050mA constant current and fits within the 15-143V CC range. Its IP65 water-resistant rating supports use where protection from dust and water spray is needed.
How do I verify LED compatibility with this driver?
The connected LEDs must require 1050mA constant current, and their combined forward voltage must stay within the 15-143V constant current range. The number of LEDs depends on the forward voltage of each LED, so a specific LED count should not be assumed.
Is the HVGC-150-1050A meant for outdoor and temperature-challenging environments?
It is built for demanding environments with an IP65 water-resistant rating and an operating temperature range of -40°C to +80°C. That makes it suitable for locations where dust, spray, and temperature variation are factors.
