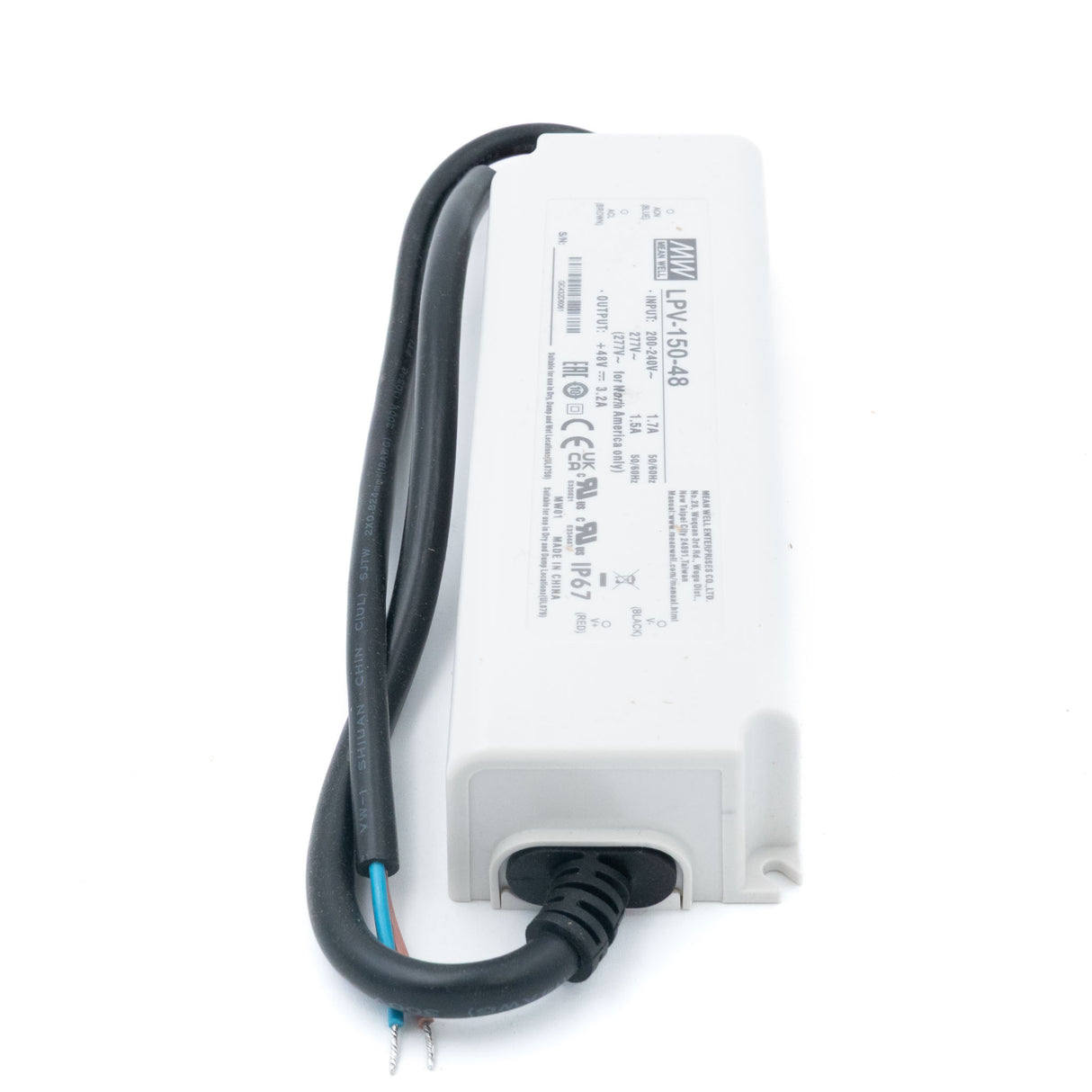

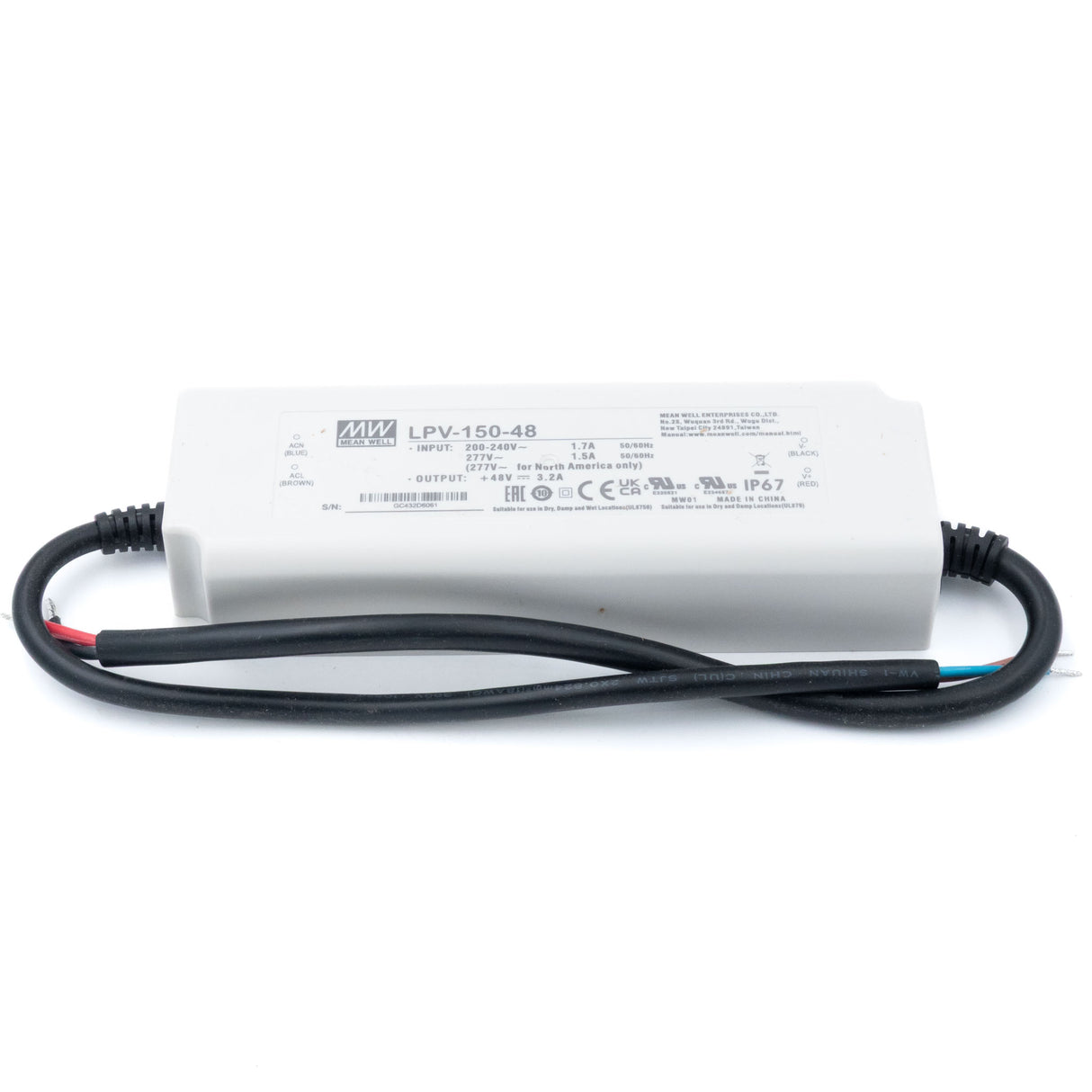

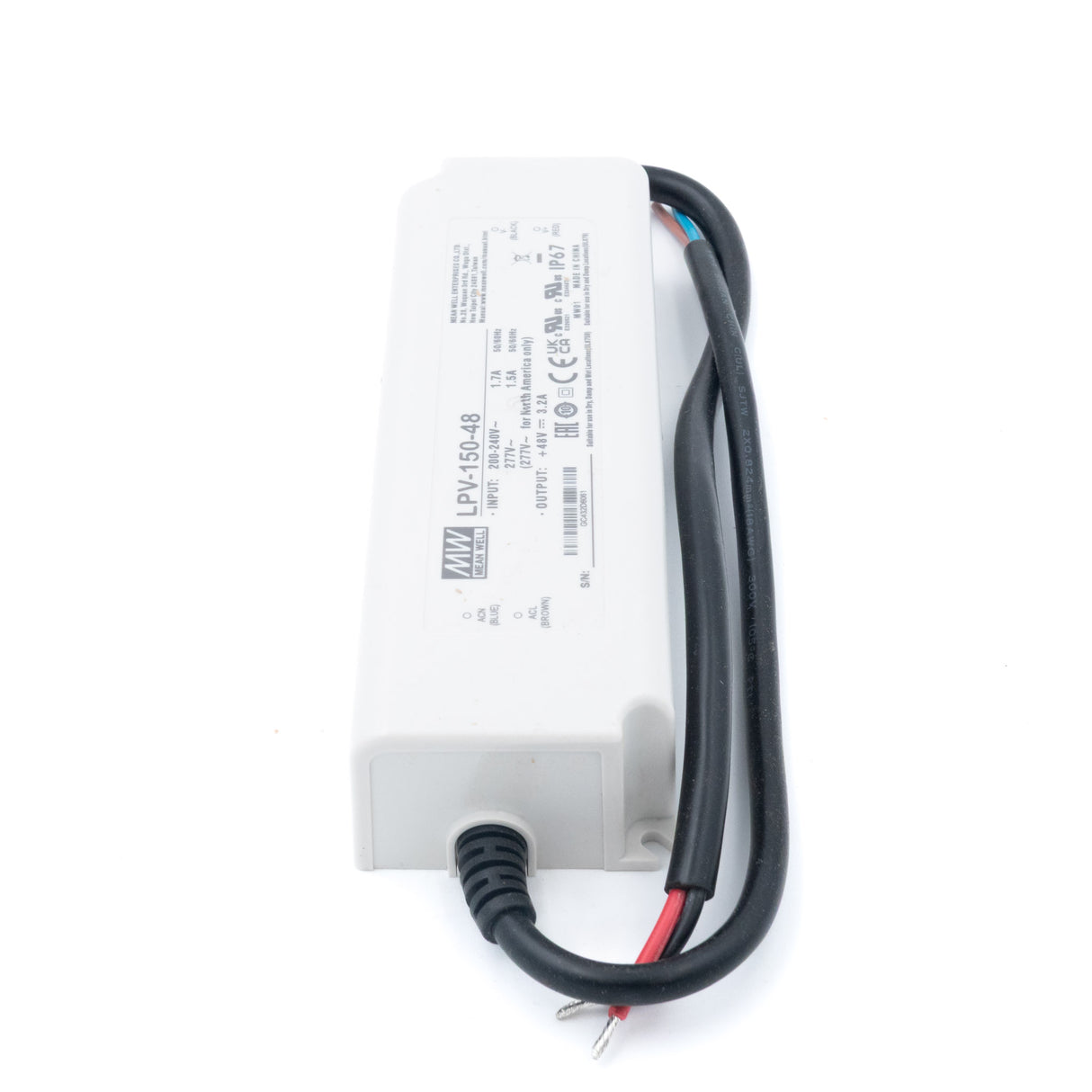

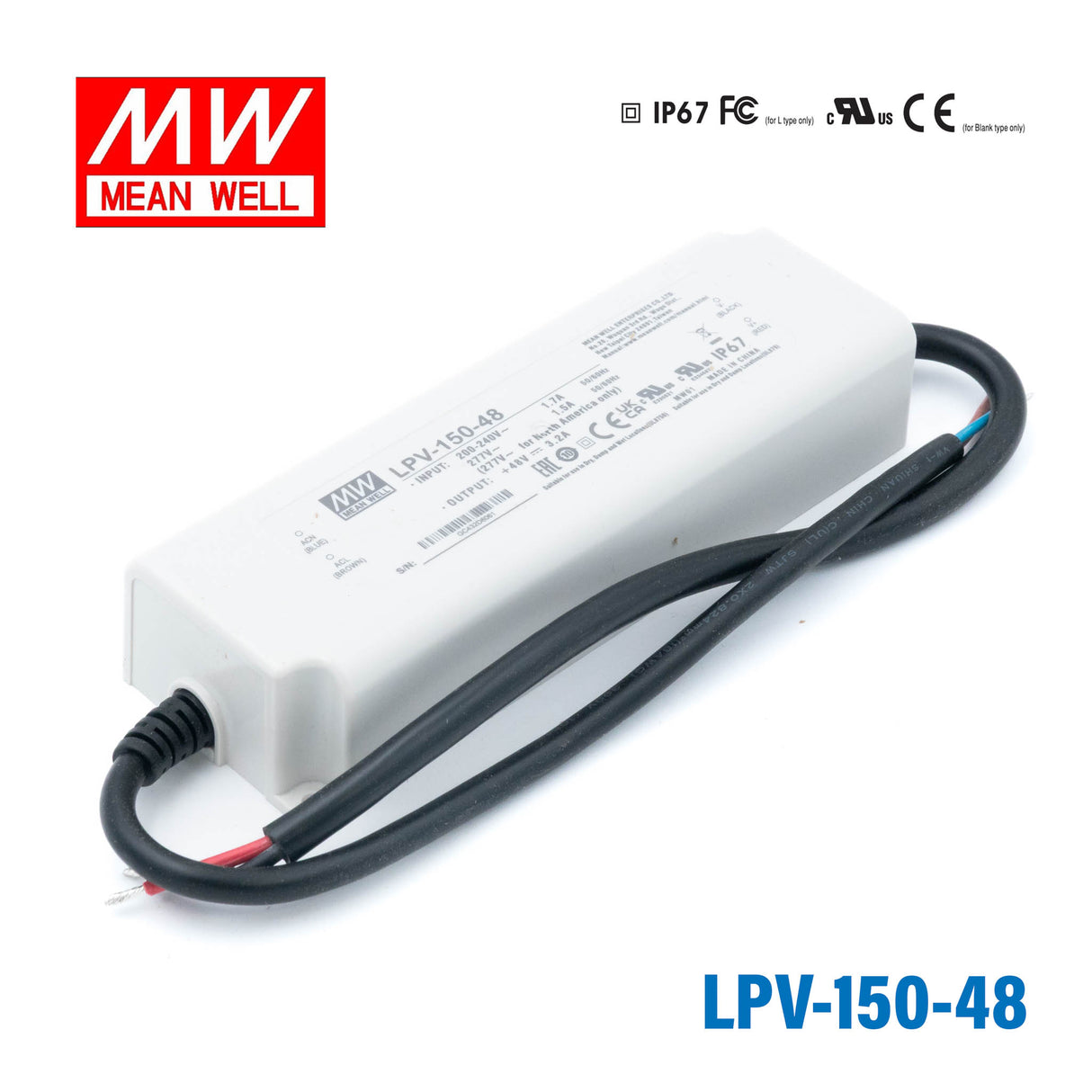

Mean Well LPV-150-48 LED Driver — 153.6W 48V 3.2A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-150-48 LED Driver — 153.6W 48V 3.2A IP67 Waterproof
The Mean Well LPV-150-48 is a 153.6W, 48V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 48V DC output at up to 3.2A and carries CE, EAC, FCC, UL certifications for global compliance.
Accepting 180-305VAC universal AC input, the LPV-150-48 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +65°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 48V DC at up to 3.2A (153.6W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 180-305VAC
- ✓Certifications: CE, EAC, FCC, UL
- ✓Wide operating temperature: -25°C to +65°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 191.0 × 63.0 × 37.5 mm, 0.79 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating153.6 Watt
-
Output Voltage48 Volt
-
Rated Current3.2 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.74 lb
::specification::
Frequently Asked Questions
What is the LPV-150-48 suitable for at 48V?
The LPV-150-48 delivers 48V DC at up to 3.2A (153.6W total), making it appropriate for 48V LED strip systems, high-voltage LED modules used in linear commercial luminaires, and architectural lighting that benefits from reduced current draw over longer cable runs. Confirm your load is rated for 48V input.
How much 48V LED strip can the LPV-150-48 drive?
The driver's maximum output is 153.6W at 48V. Divide that by your strip's rated watts per meter to find the length limit — for example, at 20W/m the result is 7.7 m. Always check your specific strip's rated power per meter and apply a derating margin for reliability.
Is the LPV-150-48 rated for outdoor or wet-environment use?
Yes. The IP67 rating provides complete dust protection and resistance to temporary water immersion up to 1 meter, making it suitable for covered outdoor fixtures, landscape lighting, and enclosed outdoor signage. The operating temperature range is -25°C to +65°C.
Why might someone choose 48V over 24V for LED strip runs?
At 48V, the same 153.6W is delivered at only 3.2A compared to 6.3A for the LPV-150-24 at 24V. Lower current allows longer cable runs with less voltage drop, which can simplify large installations. The trade-off is that the LED strip itself must be rated for 48V operation.
What certifications does the LPV-150-48 hold?
The LPV-150-48 is certified to CE, EAC, FCC, and UL standards, covering European market access, the Eurasian Economic Union, US radio-frequency requirements, and North American safety listing. It carries a 2-year manufacturer warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPV-150 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPV-150-12 LED Driver — 120W 12V 10A IP67 Waterproof | 120W | 12V | 10A | IP67 | $34.24 | View |
| Mean Well LPV-150-24 LED Driver — 151.2W 24V 6.3A IP67 Waterproof | 151.2W | 24V | 6.3A | IP67 | $34.24 | View |
| Mean Well LPV-150-36 LED Driver — 151.2W 36V 4.2A IP67 Waterproof | 151.2W | 36V | 4.2A | IP67 | $34.24 | View |
| Mean Well LPV-150-15 LED Driver — 120W 15V 8A IP67 Waterproof | 120W | 15V | 8A | IP67 | $33.81 | View |
