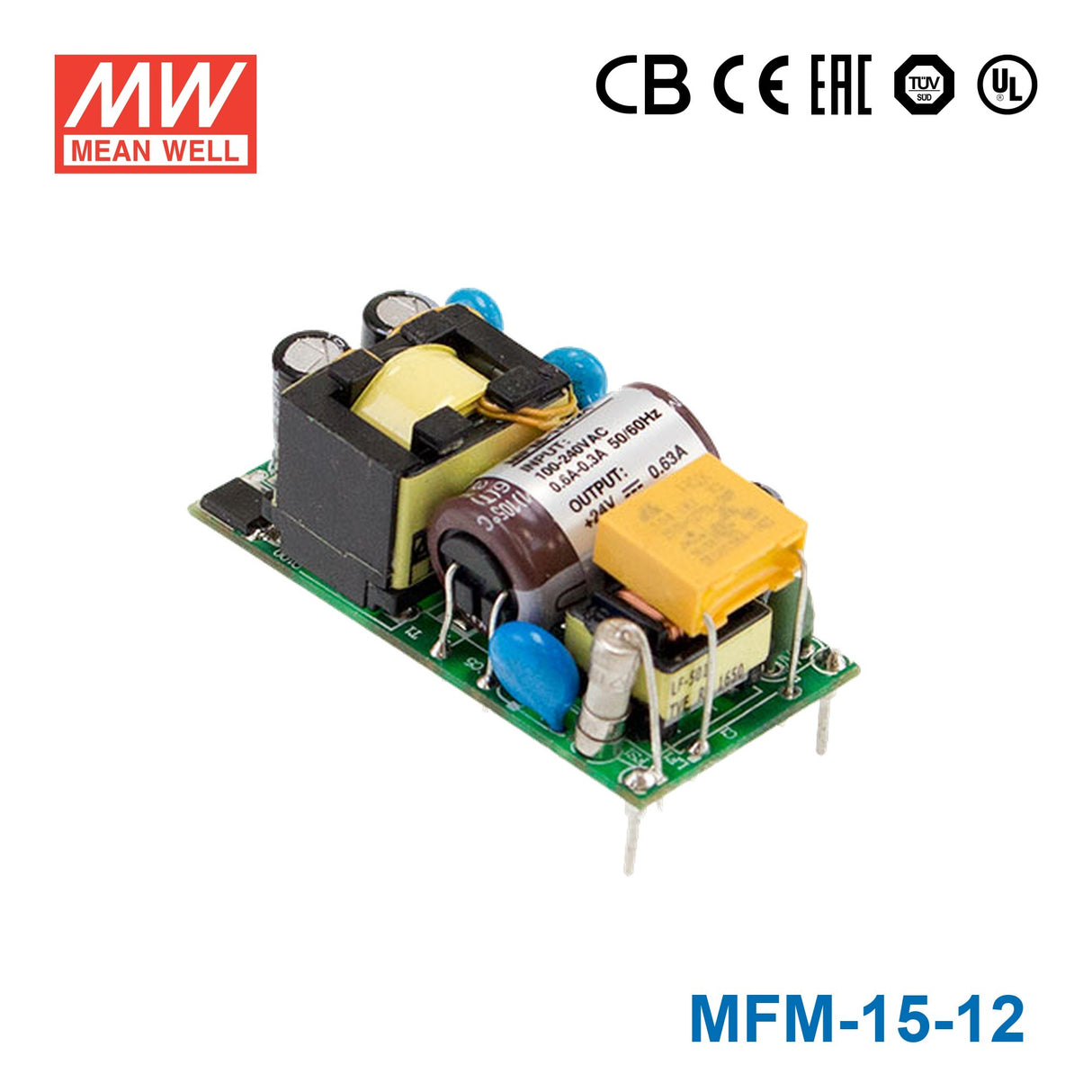

Mean Well MFM-15-12 Power Supply 15W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-15-12 Power Supply 15W 12V
Touch current<80 μA/264VAC
Key Features
- ✓1.93"x0.94" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -35~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~85°C
-
Warranty3 Year
-
Length1.93 in
-
Width0.94 in
-
Height0.91 in
-
Weight0.06 lb
::specification::
Frequently Asked Questions
Can I use the MFM-15-12 for a 12V PLC accessory or control circuit?
Yes, this model provides constant-voltage 12V output with up to 1.25A and 15W. That suits low-power PLC accessories, control boards, and industrial electronics that require a 12V rail within those limits.
Is the MFM-15-12 suitable for 12V automation sensors, relays, or interface boards?
It can be used where the combined 12V load does not exceed 1.25A or 15W. Its PCB construction and compact 49.0 × 23.8 × 23.0 mm size are intended for internal mounting in control and automation equipment.
Can this power supply be used in medical or diagnostic equipment?
The listed features include medical safety approval and extremely low leakage current. It can therefore be considered for low-power internal 12V sections of medical or diagnostic equipment up to 15W, while final equipment compliance still depends on the complete end product.
Will the MFM-15-12 handle cold or high-temperature indoor environments?
The operating temperature range is -35°C to +85°C, which is wider than the smaller 10W versions in this group. No IP rating is given in the provided specs, so it should be treated as an enclosed PCB power supply rather than an exposed outdoor unit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $11.35 | View |
| Mean Well MFM-15-3.3 Power Supply 15W 3.3V | 11.6W | 3.3V | 3.5A | Indoor | $11.35 | View |
| Mean Well MFM-15-24 Power Supply 15W 24V | 15.1W | 24V | 0.63A | Indoor | $11.35 | View |
| Mean Well MFM-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $11.35 | View |
