Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

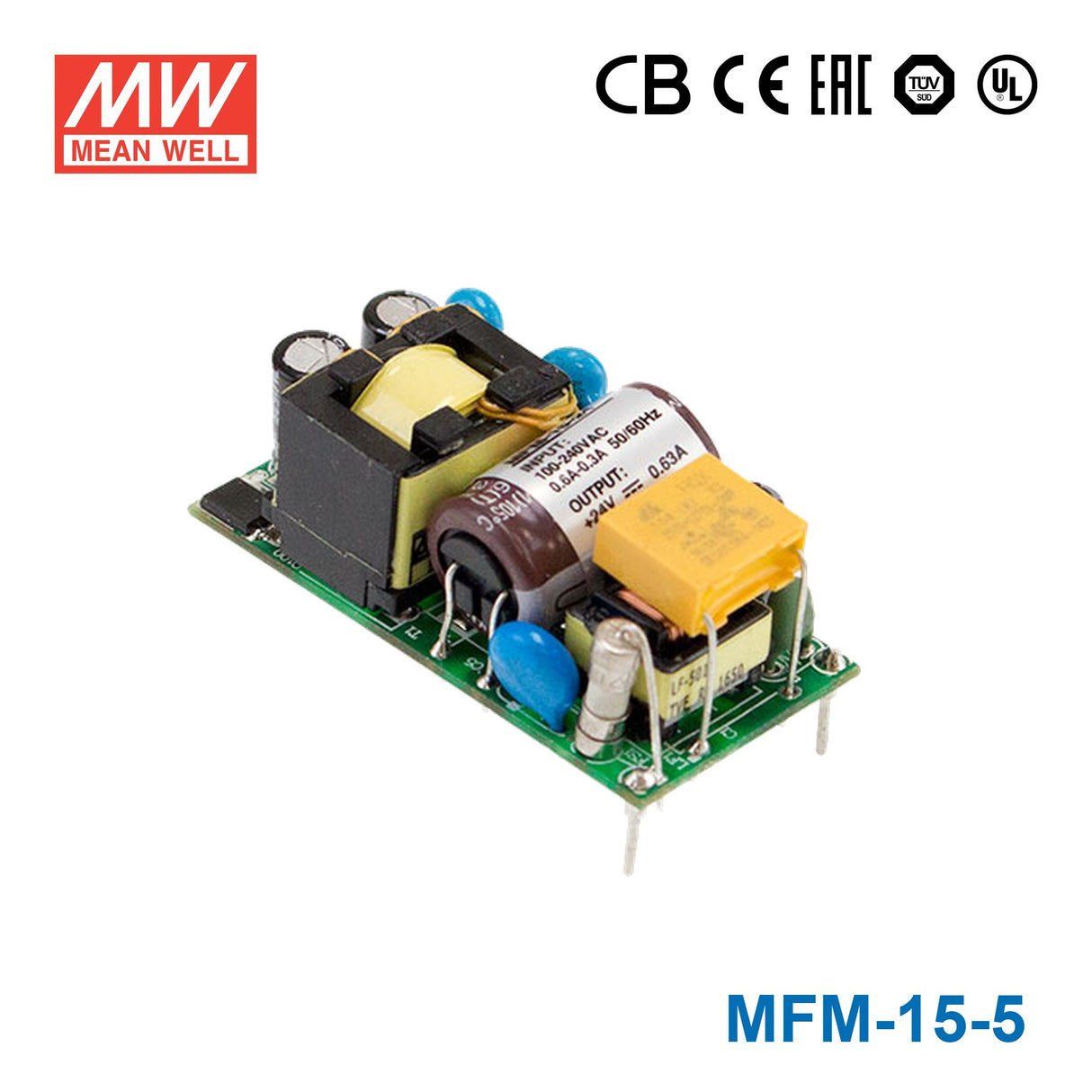

Mean Well MFM-15-5 Power Supply 15W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-15-5 Power Supply 15W 5V
Touch current<80 μA/264VAC
Key Features
- ✓1.93"x0.94" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -35~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~85°C
-
Warranty3 Year
-
Length1.93 in
-
Width0.94 in
-
Height0.91 in
-
Weight0.06 lb
::specification::
Frequently Asked Questions
Can the MFM-15-5 power a 5V single-board computer or embedded controller?
It can power 5V embedded electronics because it provides a constant 5V output rated at 3A and 15W. That makes it appropriate for board-level systems, controllers, or digital assemblies whose total demand stays within 3A.
Is this 5V power supply suitable for USB-level industrial electronics or gateways?
For equipment designed around a regulated 5V input, this model fits low-power industrial electronics and compact gateway hardware. The key limits are its 5V output, 3A maximum current, and 15W total power.
Can I use the MFM-15-5 for low-voltage automation boards inside a control enclosure?
Yes, for internal automation electronics that require 5V constant voltage, this model is a reasonable fit. It is a PCB type unit with 49.0 x 23.8 x 23.0 mm dimensions and supports up to 3A output current.
Would this model work for medical or lab devices with a small 5V internal load?
It can be considered for low-power 5V equipment because it is medical safety approved and carries CB, CE, EAC, TUV, and UL certifications. Output capacity is 15W at 5V, so the connected device must remain at or below 3A.
Is the MFM-15-5 meant for outdoor use or wide-temperature indoor equipment?
Its operating temperature range is -35C to +85C, which supports demanding indoor ambient conditions. However, no IP rating is listed, so this product is not specified here for direct outdoor or exposed wet-environment use.
How does the MFM-15-5 compare to the other 5V versions in the MFM family?
The 5V members of the series are MFM-05-5 at 5W and 1A, MFM-10-5 at 10W and 2A, MFM-15-5 at 15W and 3A, MFM-20-5 at 20W and 4A, and MFM-30-5 at 30W and 6A. Other MFM outputs in the same family include 3.3V, 12V, 15V, 24V, and 48V variants.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-15-3.3 Power Supply 15W 3.3V | 11.6W | 3.3V | 3.5A | Indoor | $11.35 | View |
| Mean Well MFM-15-24 Power Supply 15W 24V | 15.1W | 24V | 0.63A | Indoor | $11.35 | View |
| Mean Well MFM-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $11.35 | View |
| Mean Well MFM-15-12 Power Supply 15W 12V | 15W | 12V | 1.25A | Indoor | $11.37 | View |
