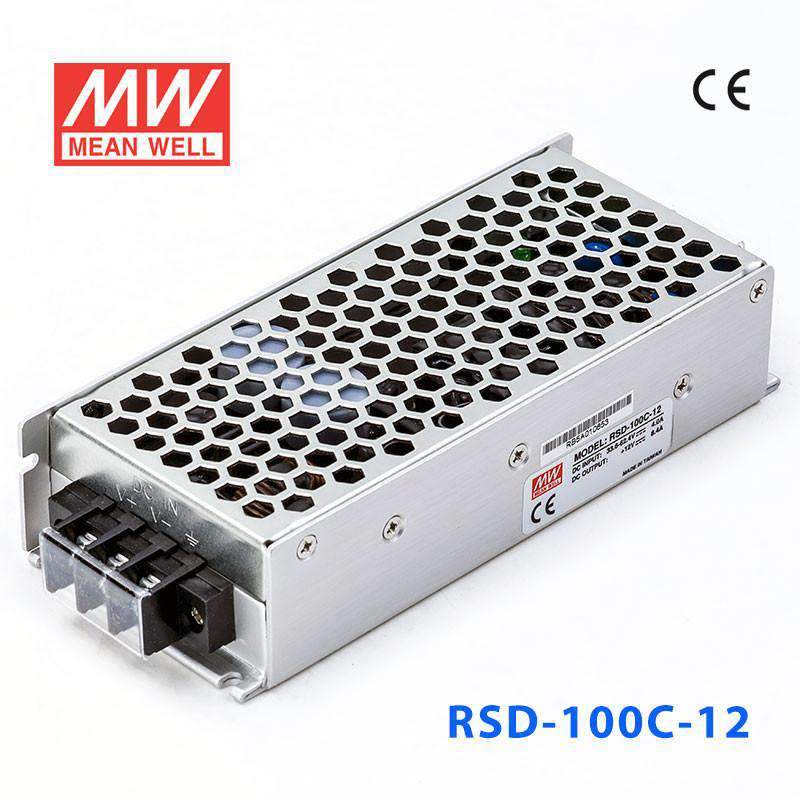

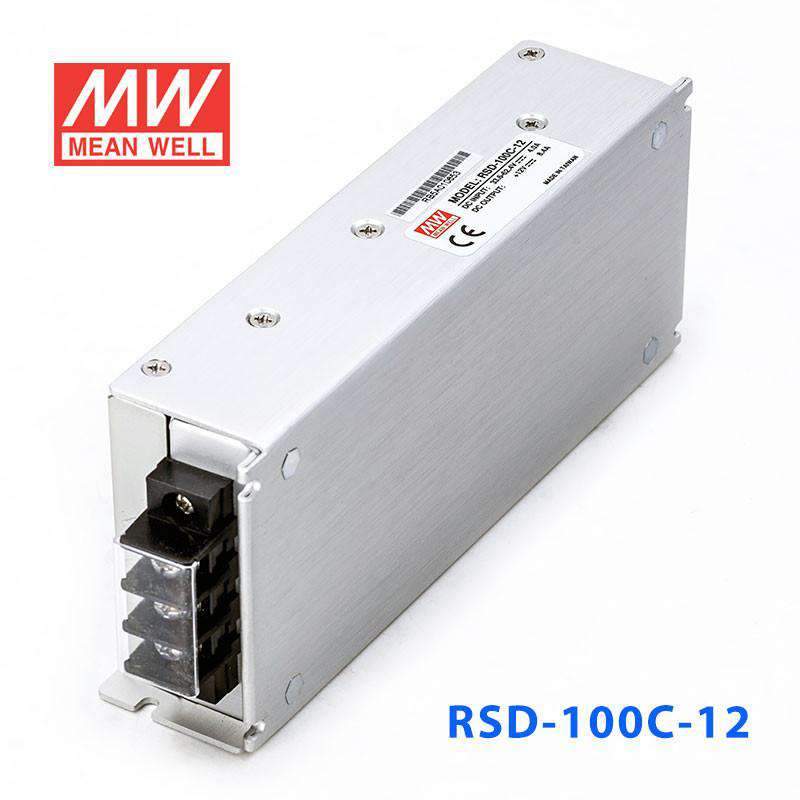

Mean Well RSD-100C-12 DC-DC Converter - 100.8W - 33.6~62.4V in 12V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-100C-12 DC-DC Converter - 100.8W - 33.6~62.4V in 12V out
The RSD-100C is a 100W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating100.8 Watt
-
Output Voltage12 Volt
-
Rated Current8.4 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.68 in
-
Height1.42 in
-
Weight1.24 lb
::specification::
Frequently Asked Questions
Can I use the RSD-100C-12 to supply 12V PLC or industrial control equipment from a 33.6~62.4V DC bus?
Yes, this converter is intended for constant-voltage 12V output from a 33.6~62.4V input range. With up to 8.4A and 100.8W available, it fits 12V PLC accessories, relays, I/O modules, and other control loads within that power budget.
Is the RSD-100C-12 a good fit for 48V telecom or automation cabinets that need 12V power?
Yes, nominal 48V DC systems fall within the 33.6~62.4V input range of this model. It converts that input to a regulated 12V output at up to 8.4A and 100.8W for 12V control and embedded equipment.
Can the RSD-100C-12 be used for 12V embedded systems in compact industrial enclosures?
Its 161.0 × 68.0 × 36.0 mm housing and 0.563 kg weight make it suitable where enclosure space is limited. It is intended for constant-voltage 12V loads up to 8.4A and 100.8W from a 33.6~62.4V DC source.
Is this converter appropriate for equipment exposed to wide temperature swings?
The specified operating range is -40°C to +85°C, and the features list includes 70°C operation. No IP rating is provided, so it is best used in a protected cabinet or enclosure if the installation environment includes dust, washdown, or direct weather exposure.
What are the main differences between the RSD-100C-12 and related 100W RSD-100 models?
Within the RSD-100 100W group, the 12V models are RSD-100B-12, RSD-100C-12, and RSD-100D-12, each rated at 100.8W and 8.4A. The matching 24V models are RSD-100B-24, RSD-100C-24, and RSD-100D-24 at 100.8W and 4.2A, and the 5V models are RSD-100B-5, RSD-100C-5, and RSD-100D-5 at 100W and 20A; the C version belongs to the 33.6~62.4V input family.
