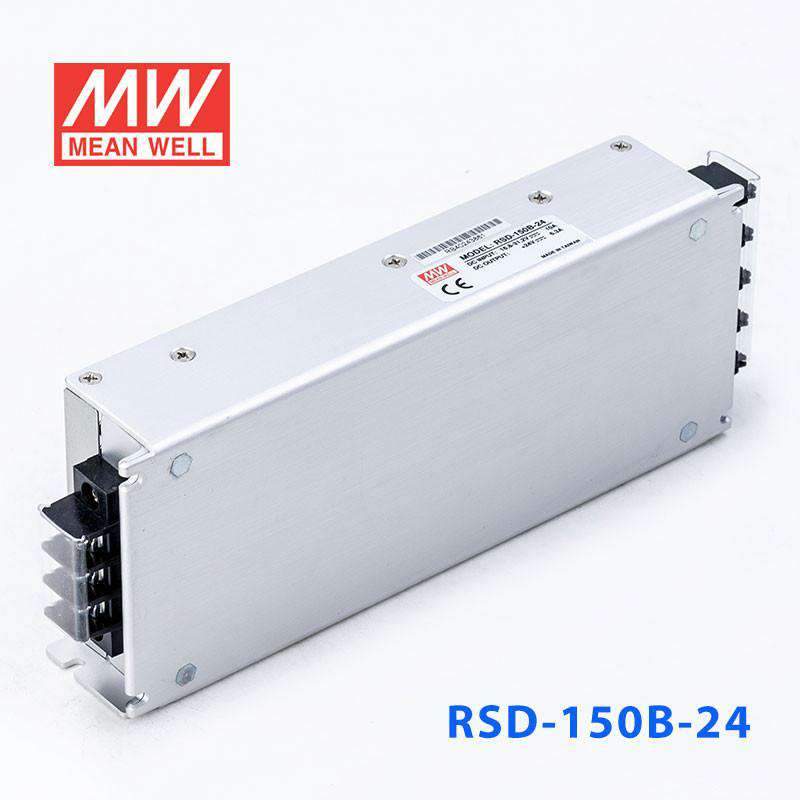

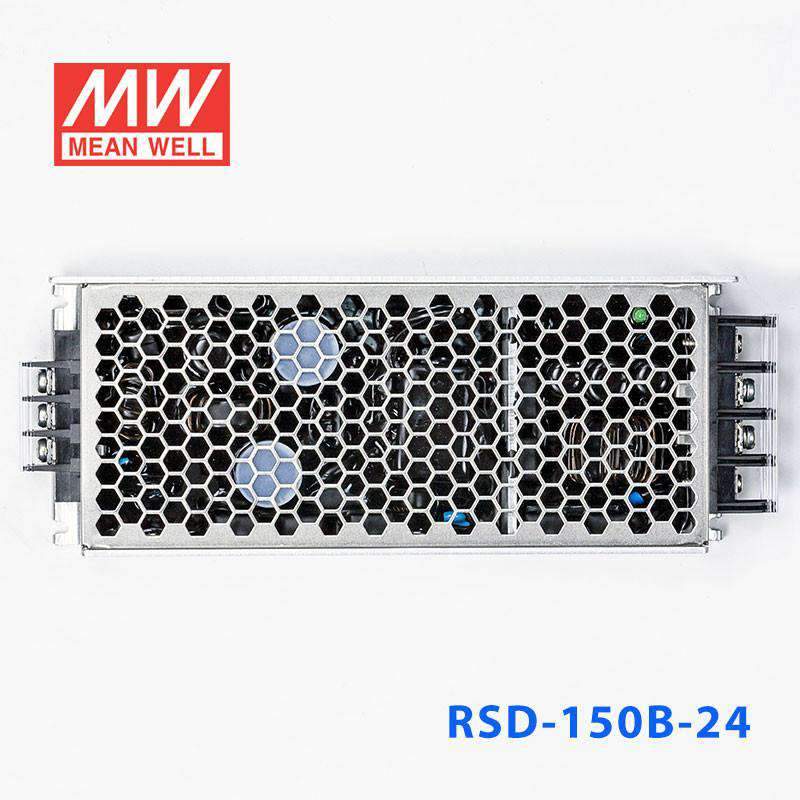

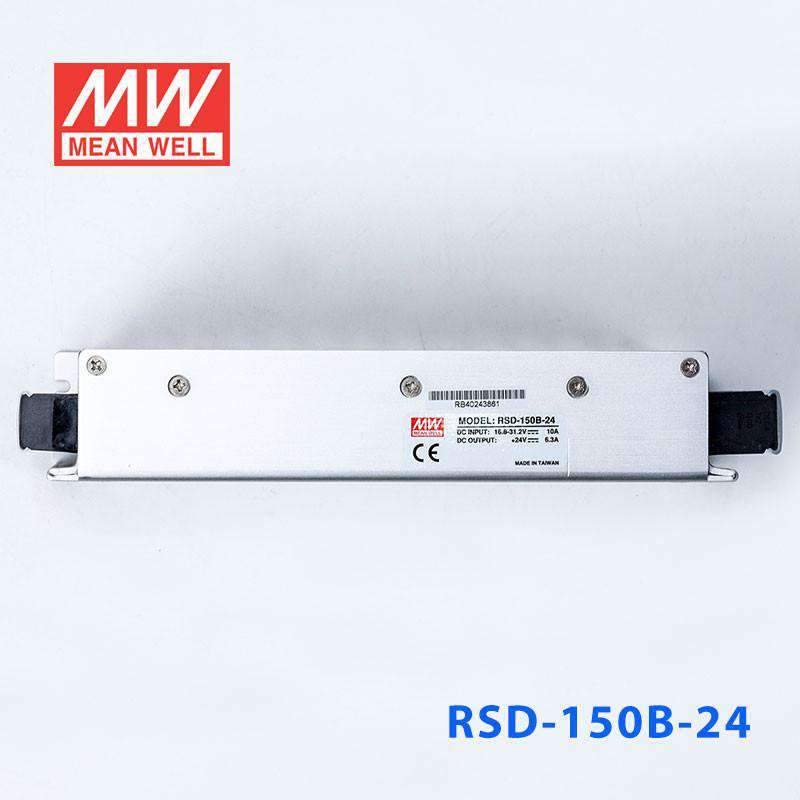

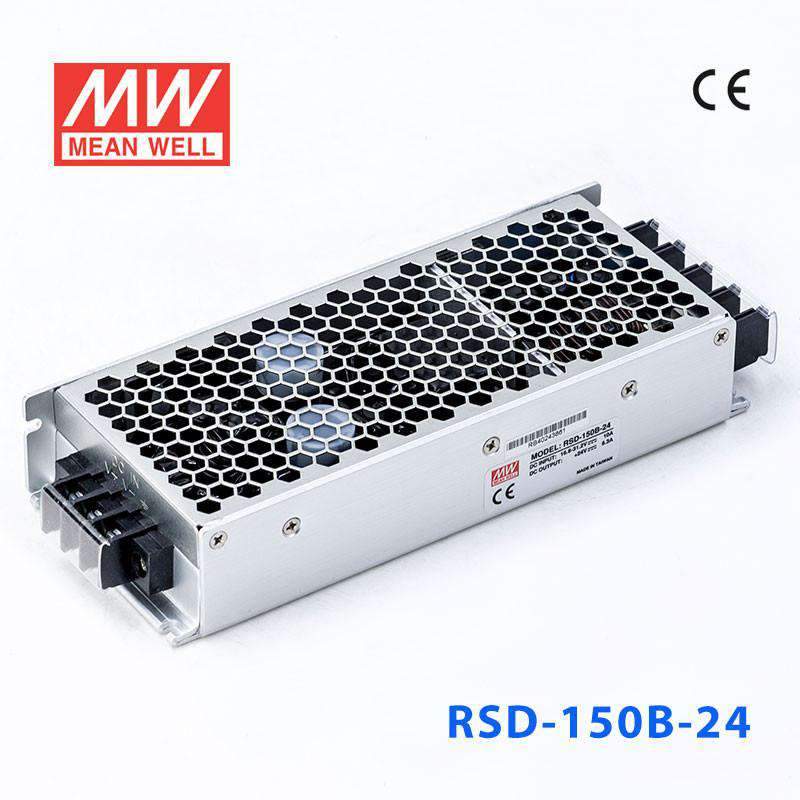

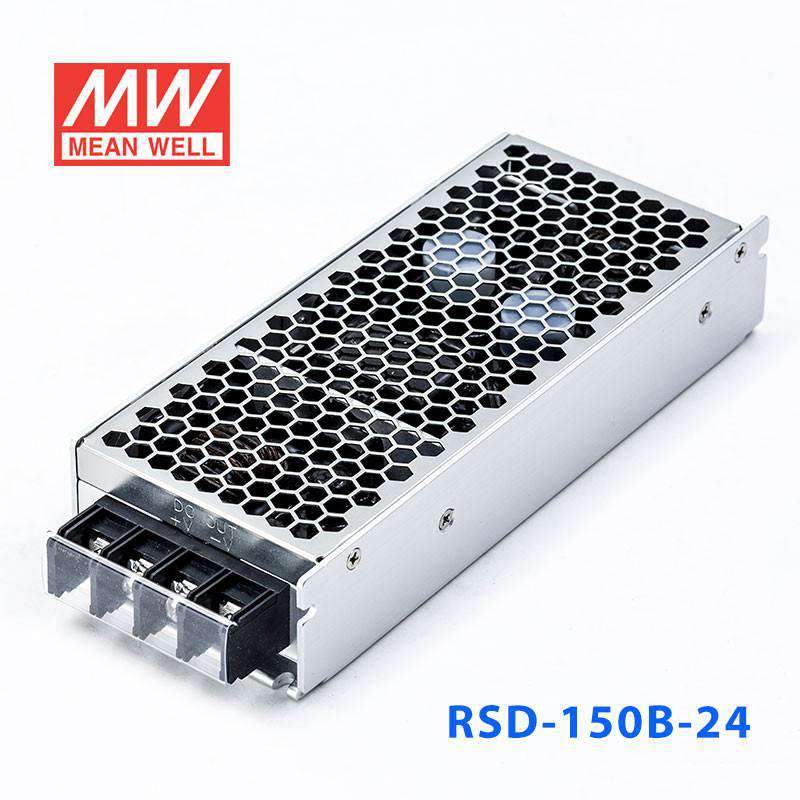

Mean Well RSD-150B-24 DC-DC Converter - 151.2W - 16.8~31.2V in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-150B-24 DC-DC Converter - 151.2W - 16.8~31.2V in 24V out
The RSD-150B is a 150W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage16.8V~31.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.44 in
-
Width3.03 in
-
Height1.42 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the RSD-150B-24 for 24V industrial automation equipment?
Yes, if the equipment requires constant 24V and the total load does not exceed 6.3A. At 151.2W, it provides more 24V output capacity than the 100.8W 24V versions in the sibling list.
Is the RSD-150B-24 suitable for 24V I/O modules, HMIs, or control electronics?
It is a fit for 24V control and interface electronics that need regulated constant-voltage output up to 6.3A. That makes it appropriate for moderate-power 24V subsystems within a 151.2W budget.
Can this model run a 24V communications or monitoring subsystem from a 16.8~31.2V input source?
Yes, when the source is within the stated 16.8~31.2V input range from the product name and the connected 24V load stays within 6.3A. This is the right kind of converter for regulated 24V output in embedded or automation applications that operate inside those limits.
Does the RSD-150B-24 work in cold or hot environments, and is it rated for outdoor exposure?
Its operating temperature range is -40°C to +85°C, so the temperature specification is wide. The provided specs do not list an IP rating, so outdoor suitability is not confirmed by this data.
What is the difference between the RSD-150B-24 and the other RSD-150B outputs?
In the RSD-150B family, RSD-150B-5 is 150W at 5V and 30A, RSD-150B-12 is 150W at 12V and 12.5A, and RSD-150B-24 is 151.2W at 24V and 6.3A. The RSD-150C and RSD-150D listings follow the same 5V, 12V, and 24V output groupings, with the 24V versions also listed at 151.2W and 6.3A.
