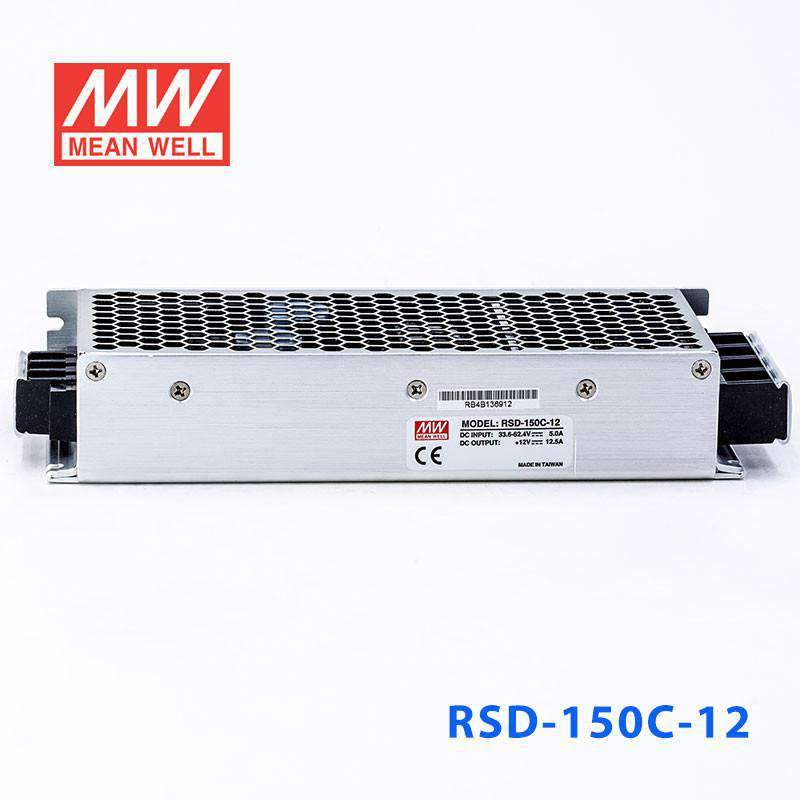

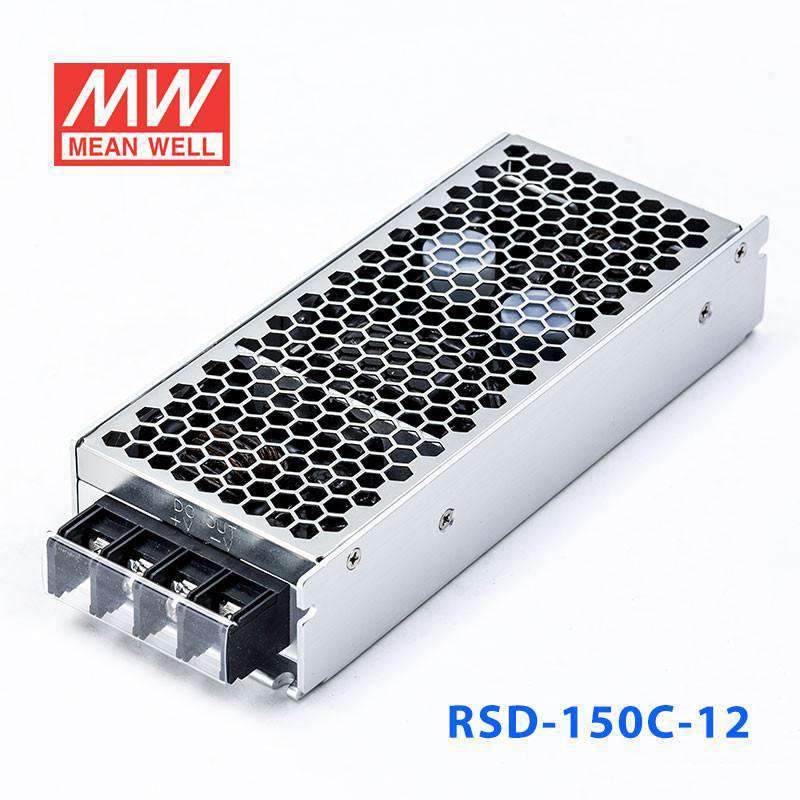

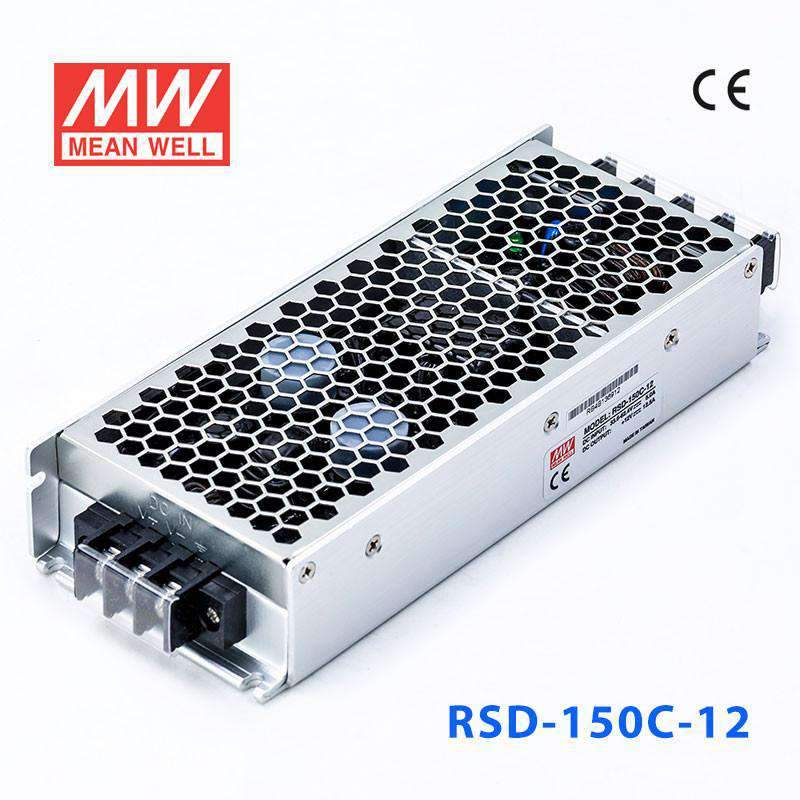

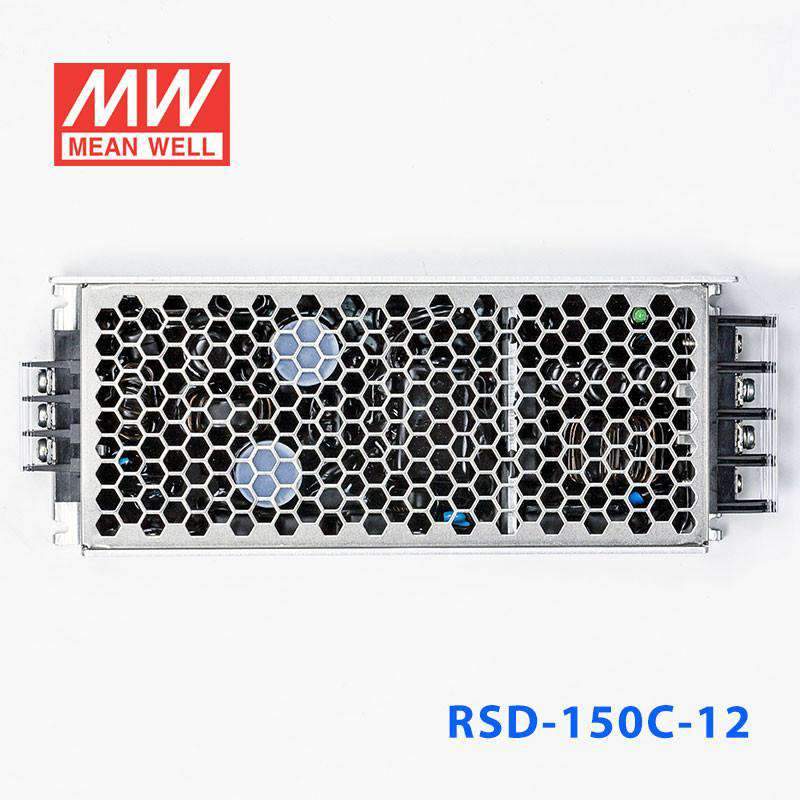

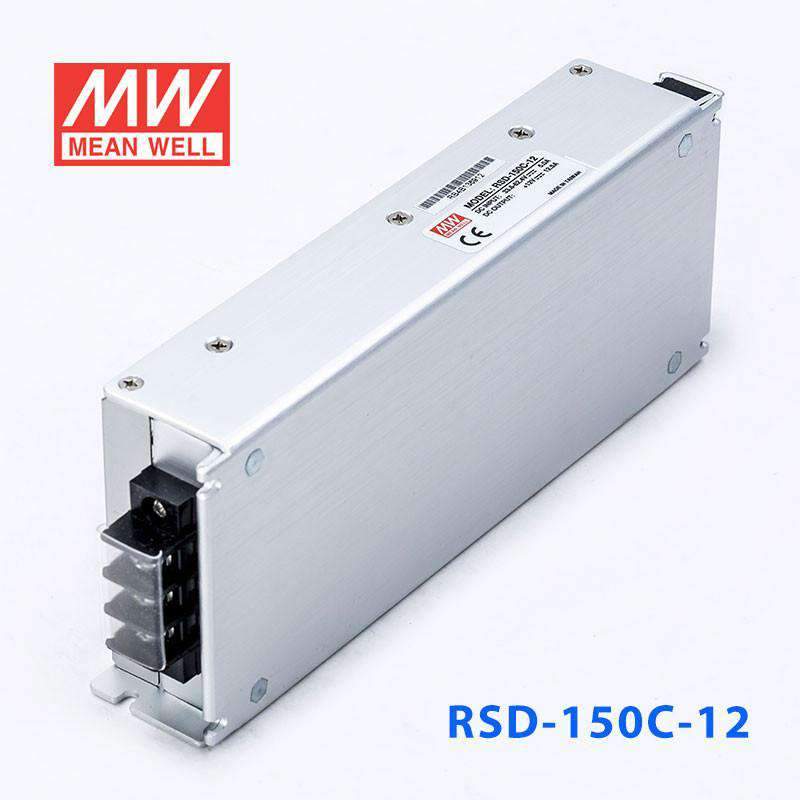

Mean Well RSD-150C-12 DC-DC Converter - 150W - 33.6~62.4V in 12V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-150C-12 DC-DC Converter - 150W - 33.6~62.4V in 12V out
The RSD-150C is a 150W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating1500 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.44 in
-
Width3.03 in
-
Height1.42 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the RSD-150C-12 to power a 12V industrial control cabinet from a 33.6 to 62.4V source?
Yes, this model is a constant voltage DC-DC converter with a 12V output and up to 12.5A output current. That makes it suitable for 12V control electronics that need regulated 12V power within its 1500W listed power rating and 33.6 to 62.4V input range.
Is the RSD-150C-12 a fit for 12V mobile or embedded equipment running on a 33.6 to 62.4V DC bus?
It can fit embedded or mobile systems that need a regulated 12V rail and draw up to 12.5A. Its compact 189.0 x 77.0 x 36.0 mm size, 0.8 kg weight, and 5G vibration resistance are relevant where space and mechanical stress matter.
Can this converter support 12V industrial networking or monitoring devices from a higher-voltage DC system?
It is intended for converting a 33.6 to 62.4V input to a constant 12V output. With 12.5A available, it is appropriate for grouped 12V networking, monitoring, or automation loads that stay within the unit's rated output.
Is the RSD-150C-12 suitable for outdoor or harsh-environment enclosures?
It has an operating temperature range of -40°C to +85°C and is specified to withstand 5G vibration, so it is designed for demanding conditions. No IP rating is listed, so it is better suited to protected enclosures than direct outdoor exposure.
How does the RSD-150C-12 compare with the other RSD-150C output options?
Within the RSD-150C group shown here, the 5V version is the RSD-150C-5 at 150W, 5V, and 30A, while the 24V version is the RSD-150C-24 at 151.2W, 24V, and 6.3A. This RSD-150C-12 is listed at 1500W, 12V, and 12.5A, so the main differences are the output voltage, current, and listed power.
