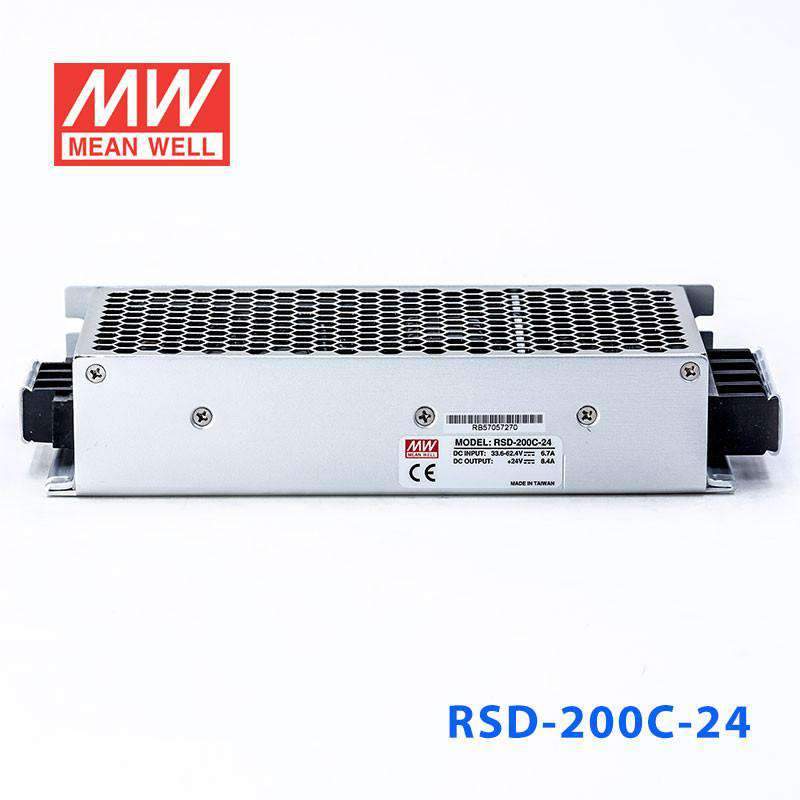

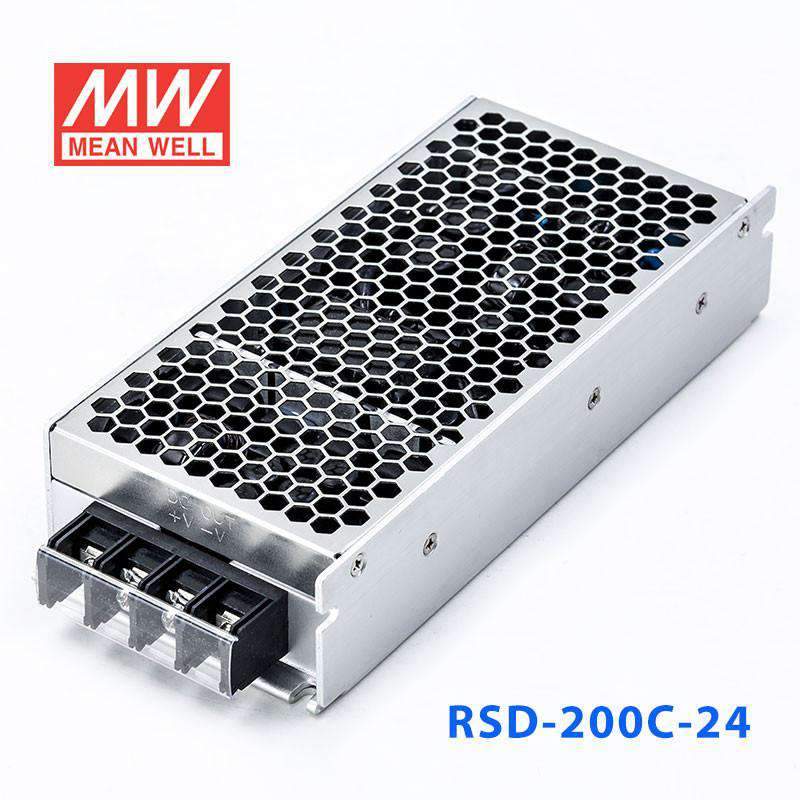

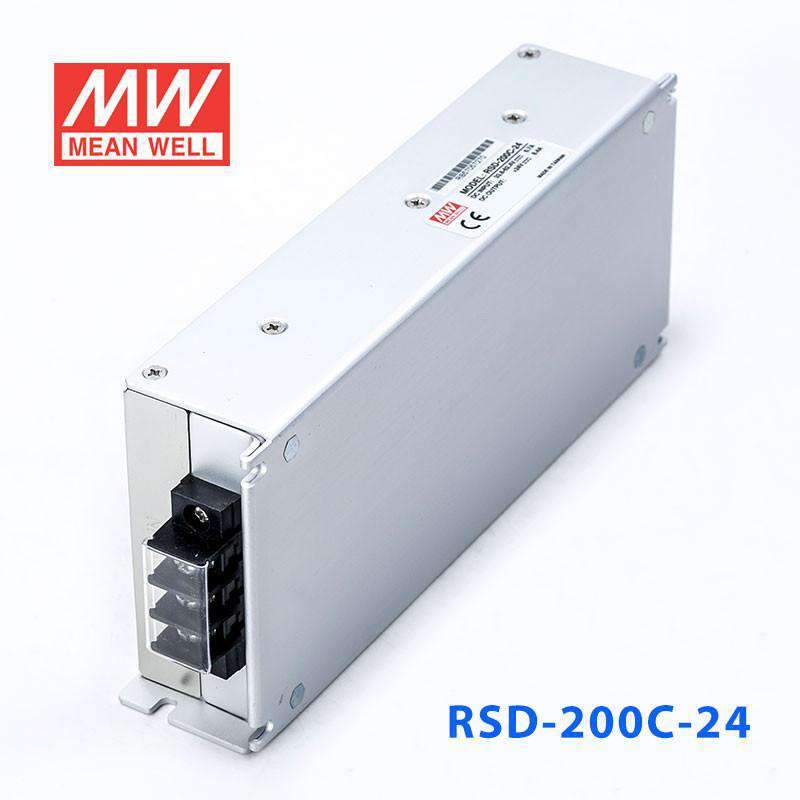

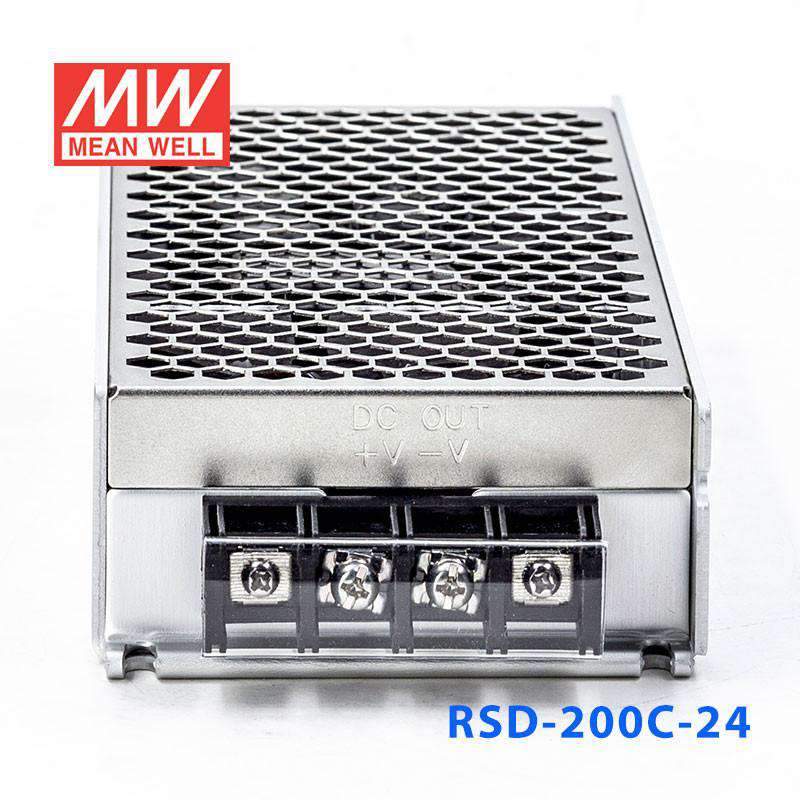

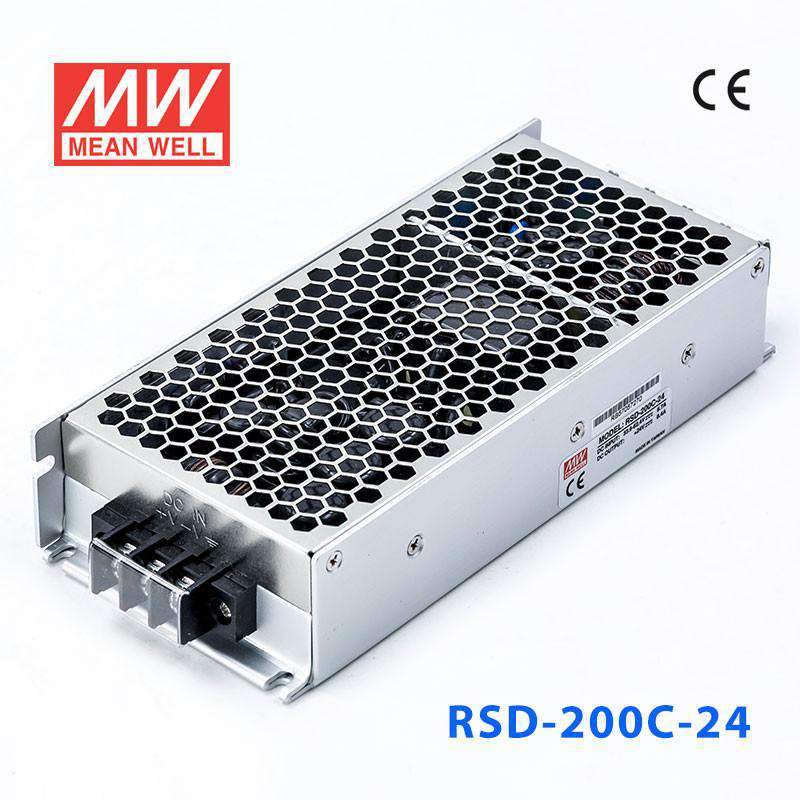

Mean Well RSD-200C-24 DC-DC Converter - 201.6W - 33.6~62.4V in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-200C-24 DC-DC Converter - 201.6W - 33.6~62.4V in 24V out
The RSD-200C is a 200W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: IEC61373 5000 meters UL 62368-1, IEC 62368-1 AS/NZS 62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.52 in
-
Width3.39 in
-
Height1.57 in
-
Weight2.07 lb
::specification::
Frequently Asked Questions
Can I use the RSD-200C-24 to power a 24V PLC or industrial control panel from a 33.6~62.4V DC source?
Yes, this model is a constant-voltage 24V DC-DC converter rated for 201.6W and 8.4A output. That makes it a fit for 24V industrial control loads as long as the source is within 33.6~62.4V and the total load stays within 8.4A.
Is the RSD-200C-24 suitable for 24V embedded computers, gateways, or HMI equipment on a vehicle or battery bus?
It can be used for 24V embedded and control electronics when a regulated 24V output is needed from a 33.6~62.4V input range. With 201.6W available and 5G vibration resistance noted in the features, it is aligned with mobile or industrial environments that need a compact 24V constant-voltage supply.
Can this converter run 24V automation sensors, relays, and I/O loads in one system?
It is appropriate for grouped 24V automation loads when the combined demand stays within 201.6W and 8.4A. Because it is a constant-voltage 24V model, it is better suited to 24V control and automation equipment than to loads needing a different output voltage.
Would the RSD-200C-24 work for 24V telecom or industrial communication equipment?
It can fit 24V communication and control equipment that expects a stable 24V DC bus and draws no more than 8.4A. The deciding factors are the 24V output, the 201.6W capacity, and the required 33.6~62.4V input range.
How does the RSD-200C-24 compare with the other RSD-200C models?
Within the RSD-200C group, the RSD-200C-12 is rated at 200.4W with 12V output at 16.7A, the RSD-200C-24 is rated at 201.6W with 24V output at 8.4A, and the RSD-200C-48 is rated at 201.6W with 48V output at 4.2A. The main difference is the output voltage and current pairing, while all three stay in the same general power class.
Is the RSD-200C-24 suitable for outdoor or high-temperature locations?
The operating temperature range is -40°C to +85°C, so the unit is specified for very wide temperature conditions. No IP rating is listed in the provided specs, so exposed outdoor or washdown use should not be assumed without placing it in a suitable protective enclosure.
