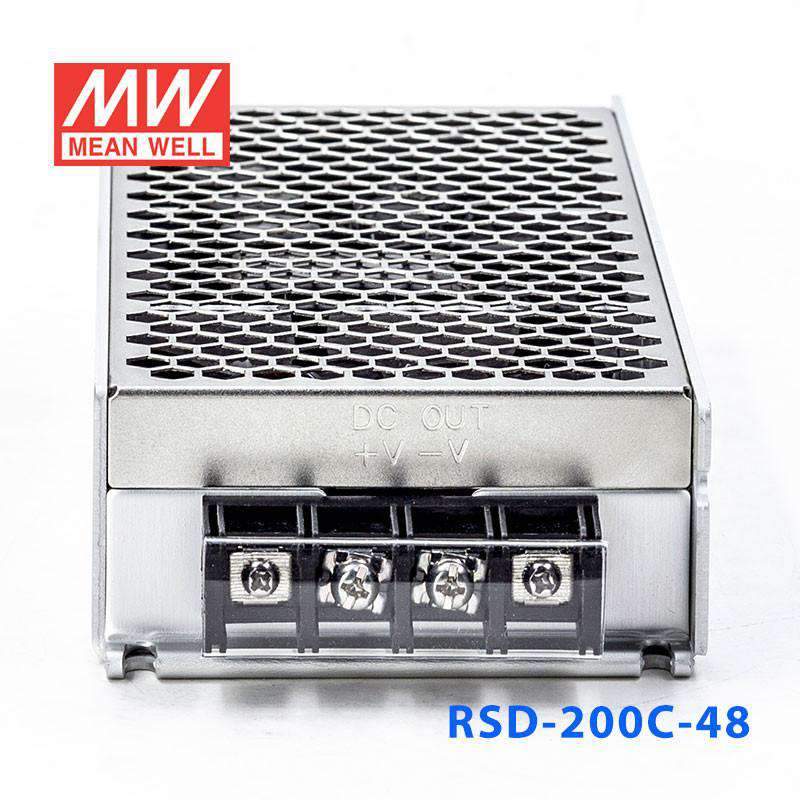

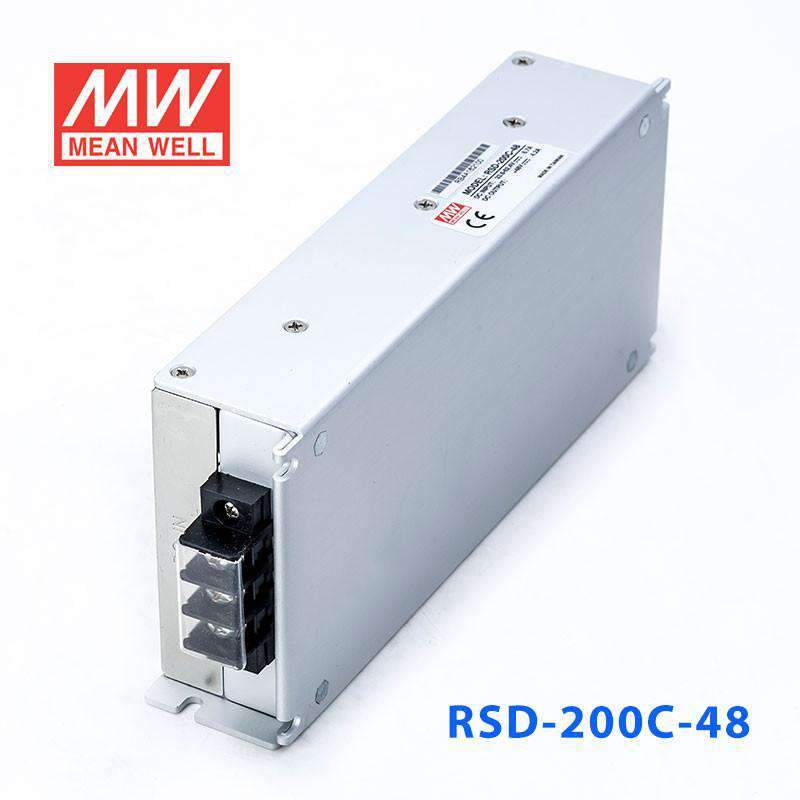

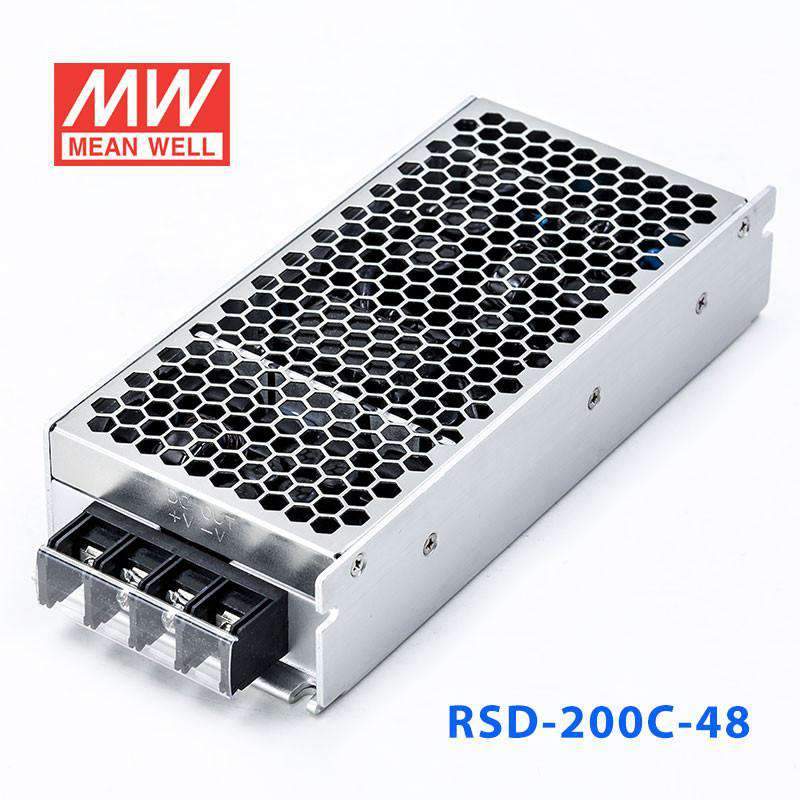

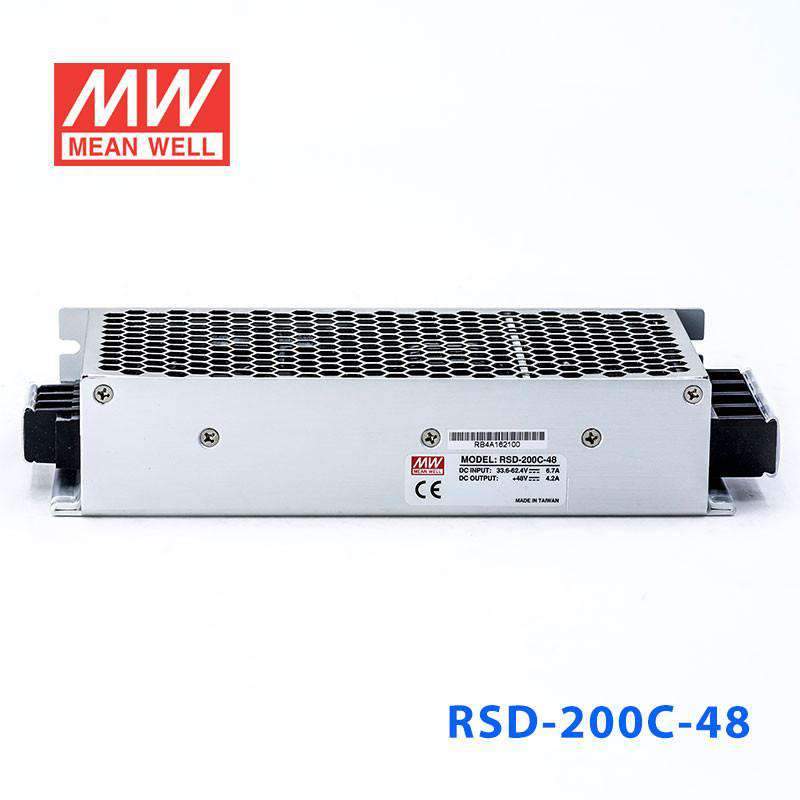

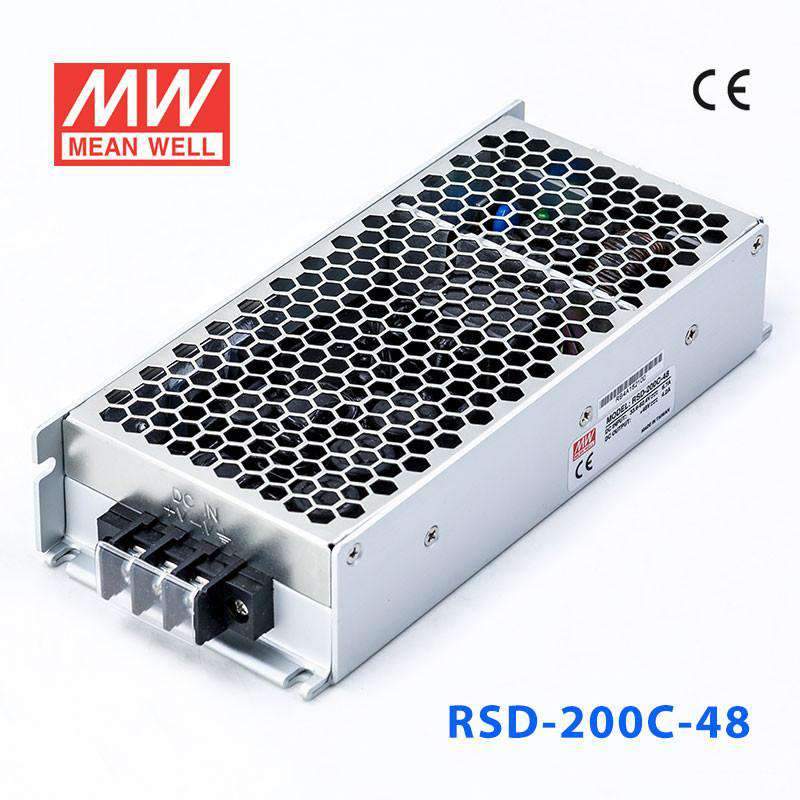

Mean Well RSD-200C-48 DC-DC Converter - 201.6W - 33.6~62.4V in 48V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-200C-48 DC-DC Converter - 201.6W - 33.6~62.4V in 48V out
The RSD-200C is a 200W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: IEC61373 5000 meters UL 62368-1, IEC 62368-1 AS/NZS 62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating201.6 Watt
-
Output Voltage48 Volt
-
Rated Current4.2 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.52 in
-
Width3.39 in
-
Height1.57 in
-
Weight2.07 lb
::specification::
Frequently Asked Questions
Can I use the RSD-200C-48 for 48V telecom or network equipment from a 33.6~62.4V DC source?
Yes, this model is a constant-voltage 48V DC-DC converter with 201.6W output and 4.2A available. It fits 48V telecom or network loads when the source stays within 33.6~62.4V and the load stays within 4.2A.
Is the RSD-200C-48 a good fit for 48V industrial communication or control devices?
It is suitable for 48V industrial electronics that require a regulated 48V bus and do not exceed 201.6W. The 48V output and 4.2A rating make it better matched to 48V control and communication equipment than to higher-current 12V or 24V loads.
Can this converter be used in battery-powered automation systems that need 48V output?
It can be used where the available source is in the 33.6~62.4V range and the downstream system needs constant 48V output. The compact 191.0 × 86.0 × 40.0 mm size and 0.94 kg weight also help in space-limited industrial or mobile installations.
Would the RSD-200C-48 work for 48V embedded computing or edge hardware?
It can support 48V embedded or edge systems that need up to 4.2A from a 48V rail. Buyers should size the load against the full 201.6W rating rather than choosing it only by output voltage.
How does the RSD-200C-48 compare with the other RSD-200C versions?
The RSD-200C-12 is rated at 200.4W, 12V, and 16.7A, the RSD-200C-24 is rated at 201.6W, 24V, and 8.4A, and the RSD-200C-48 is rated at 201.6W, 48V, and 4.2A. They stay close in overall wattage, but the output voltage and output current change across the range.
Can the RSD-200C-48 be used in cold or hot industrial environments?
Its specified operating range is -40°C to +85°C, which covers very low and very high ambient temperatures. No IP rating is provided in the specs, so it should not be treated as an exposed outdoor unit without additional enclosure protection.
