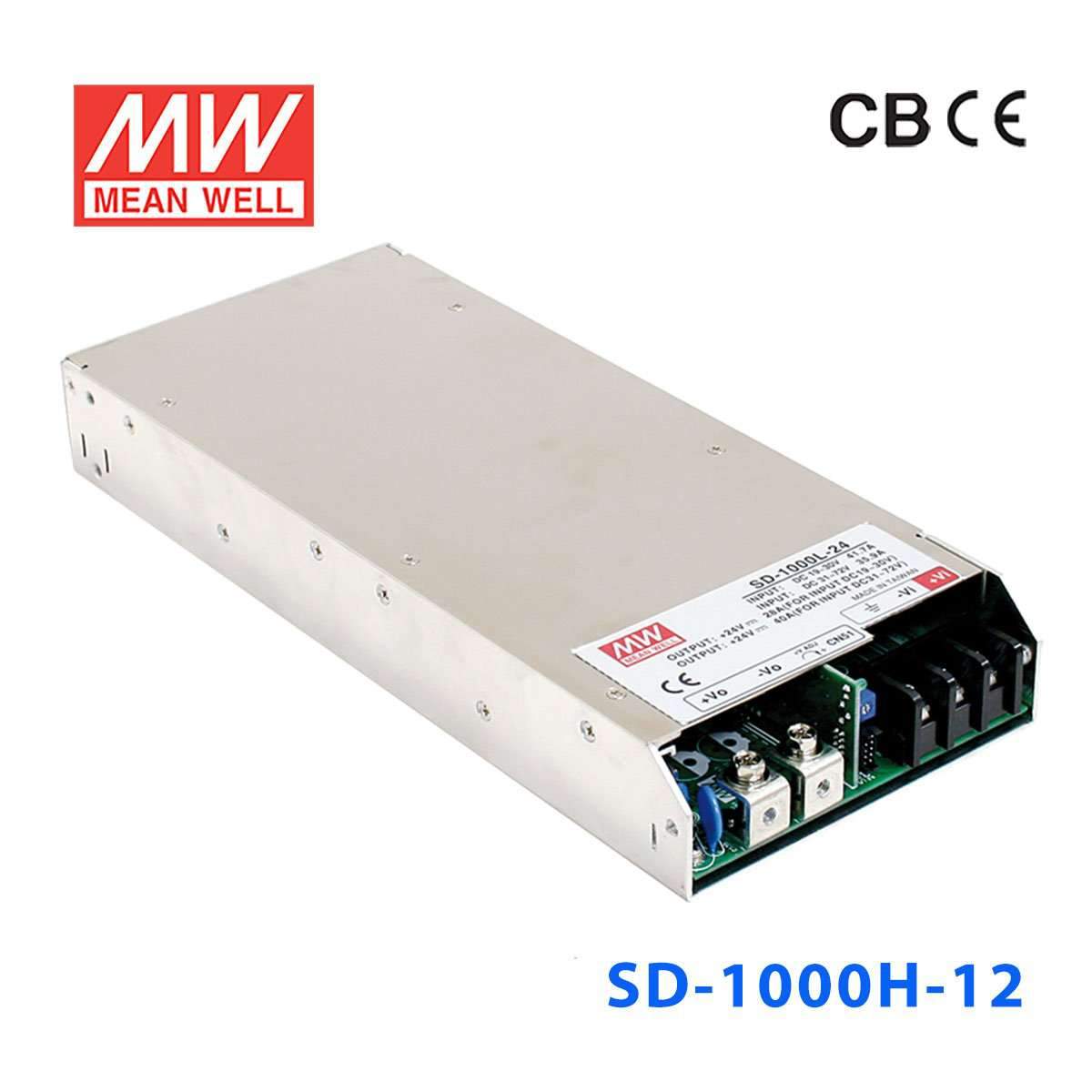

Mean Well SD-1000H-12 DC-DC Converter - 720W - 72~144V in 12V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000H-12 DC-DC Converter - 720W - 72~144V in 12V out
The SD-1000H is a 1000W Mean Well power converter (input range: 19~72VDC).
Key Features
- ✓ Input voltage range: 19~72VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 2KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
::specification::
Frequently Asked Questions
Can I use the SD-1000H-12 to power a 12V industrial control or automation system from a high-voltage DC bus?
Yes, this converter is built for constant-voltage 12V output from a 72-144V input range. With 720W available and up to 60A output current, it fits higher-power 12V industrial control, automation, and auxiliary DC loads that need substantial current.
Is the SD-1000H-12 a fit for vehicle, rolling stock, or mobile equipment electronics that use a 72-144V source?
It can be a fit where the source voltage falls within the 72-144V input range and the load requires a regulated 12V output. The available 720W and 60A output support heavier 12V electronics than low-power converters.
Can this model support 12V communication, monitoring, or computing loads in an IT or industrial rack?
Yes, the 1U low-profile format and 12V constant-voltage output make it relevant for rack or cabinet-based DC power conversion. Its 720W rating, 60A output, and built-in remote ON/OFF control and remote sense are useful where the 12V load is concentrated in enclosed equipment.
What is the difference between the SD-1000H-12 and the other SD-1000H or SD-1000L versions?
In this output class, SD-1000H-12 and SD-1000L-12 are 720W models with 12V at 60A, SD-1000H-24 and SD-1000L-24 are 960W models with 24V at 40A, and SD-1000H-48 and SD-1000L-48 are 1008W models with 48V at 21A. The H version shown here has a 72-144V input range, while the L versions in this family are listed separately.
Can the SD-1000H-12 be used outdoors or in wide-temperature industrial environments?
The listed operating temperature range is -20°C to +60°C, so the temperature window is intended for industrial environments within that range. No IP rating is shown on this page, so the specs here do not indicate outdoor or washdown protection.
