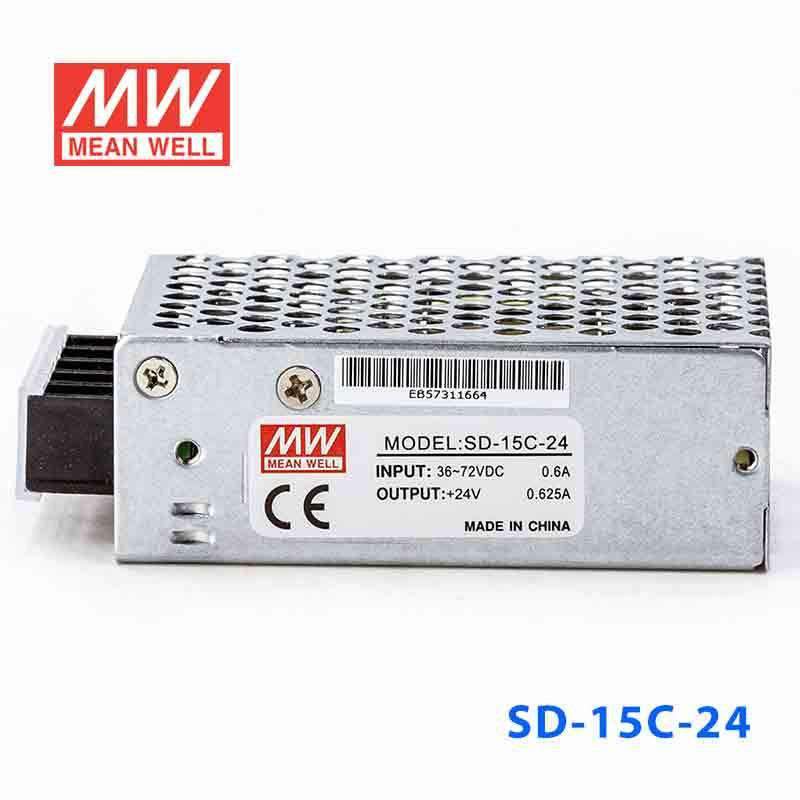

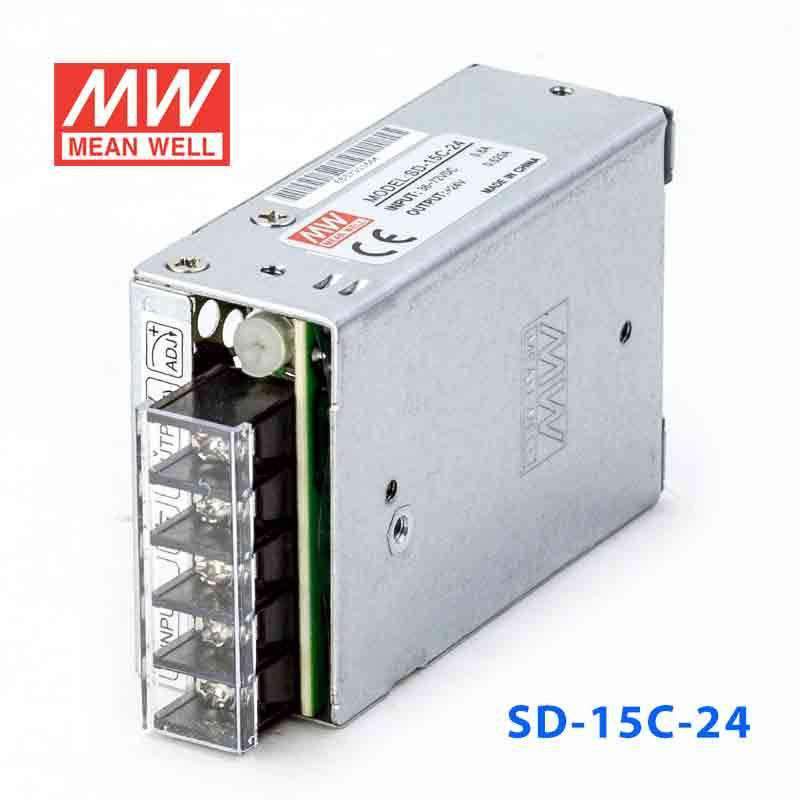

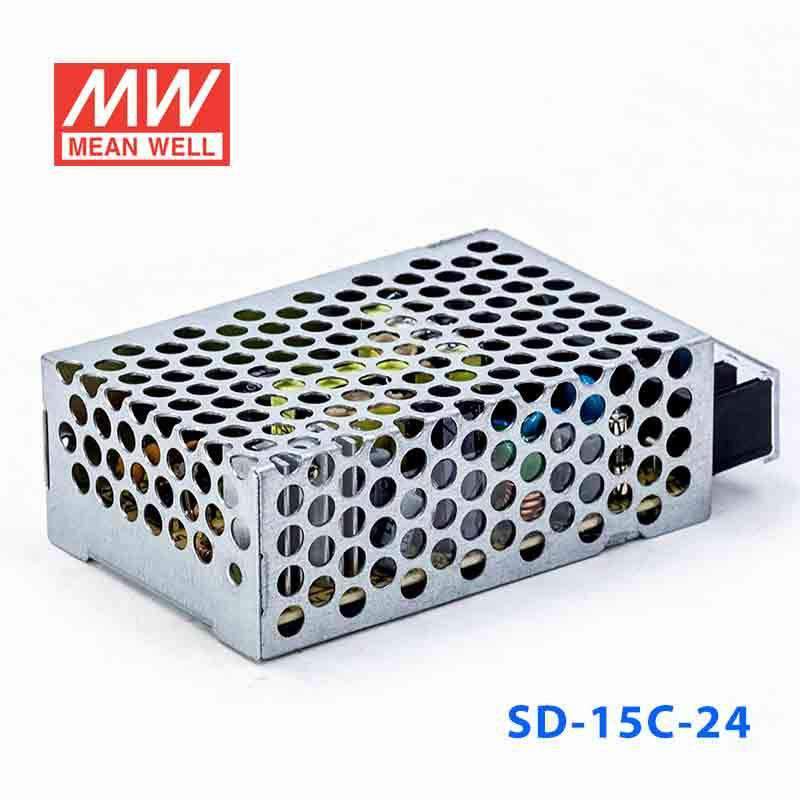

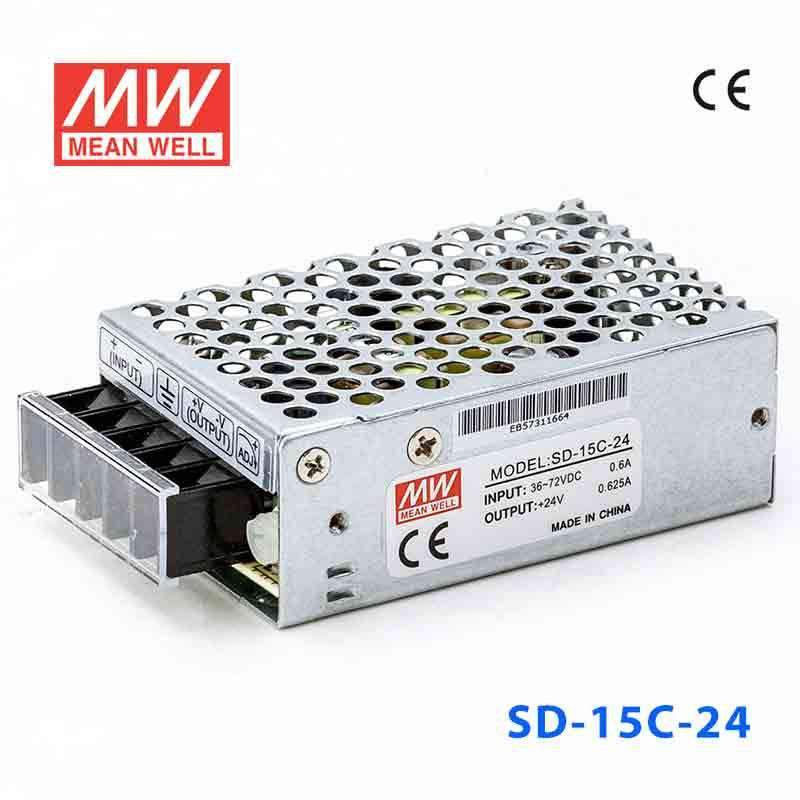

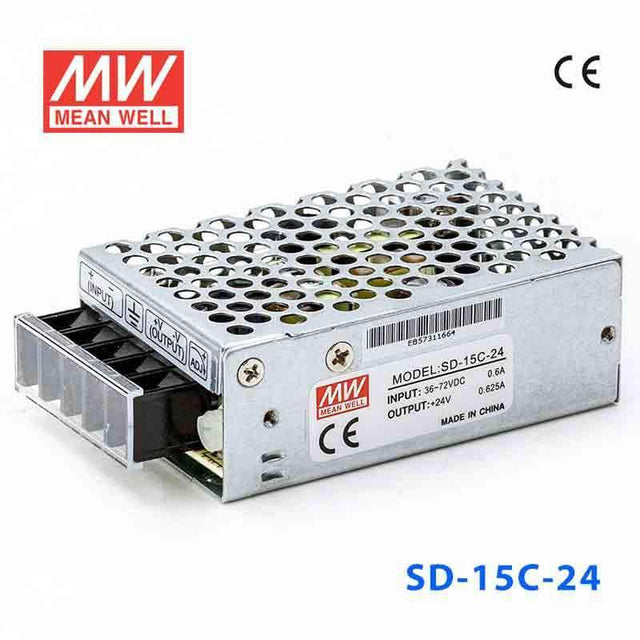

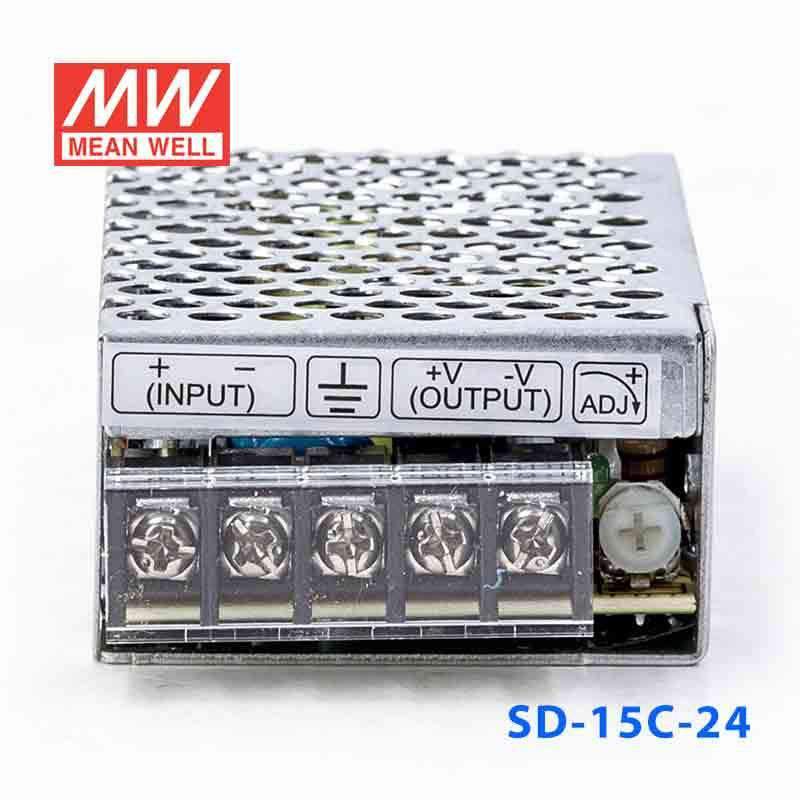

Mean Well SD-15C-24 DC-DC Converter - 15W - 36~72V in 24V out
The SD-15C is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the SD-15C-24 for a low-current 24V sensor or relay load from a 48V system?
Yes, this converter fits low-current 24V loads when the source is within the listed 36-72VAC input range. It provides constant-voltage 24V output at up to 0.62A with a 15W rating, so it is intended for lighter auxiliary loads.
Is the SD-15C-24 suitable for small 24V automation accessories in industrial equipment?
It can be suitable for small 24V accessories that remain within 0.62A and 15W. The 2:1 wide input range supports use on higher-voltage DC-DC conversion points where the available source sits between 36-72VAC.
Would this model work for compact 24V instrumentation modules?
Yes, if the instrumentation module needs constant-voltage 24V and does not exceed 0.62A. The listed 1.5~2KVAC isolation by models can also matter in industrial instrumentation where isolation is part of the design requirement.
How does SD-15C-24 compare with the other 15W SD-15C converters?
The SD-15C variants listed are SD-15C-5 at 15W, 5V, 3A; SD-15C-12 at 15W, 12V, 1.25A; and SD-15C-24 at 15W, 24V, 0.62A. The output current decreases as the output voltage changes, while the family stays in the 15W class.
Is the SD-15C-24 rated for exposed outdoor environments?
The operating temperature is specified as -20°C to +85°C, so the thermal range is broad. The provided specifications do not show an IP rating, which means dust and water protection are not defined in the product data.
