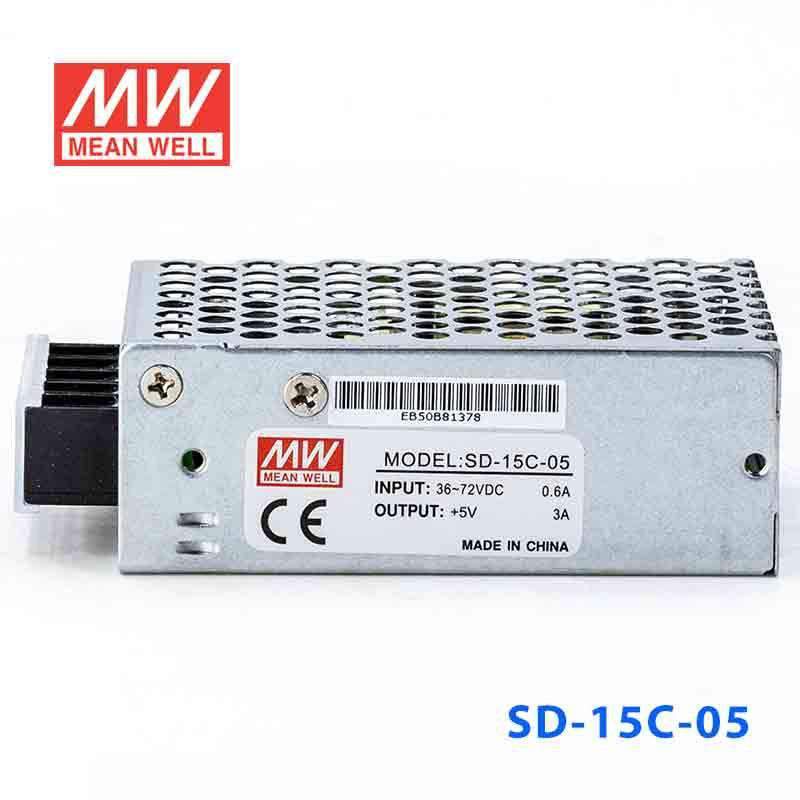

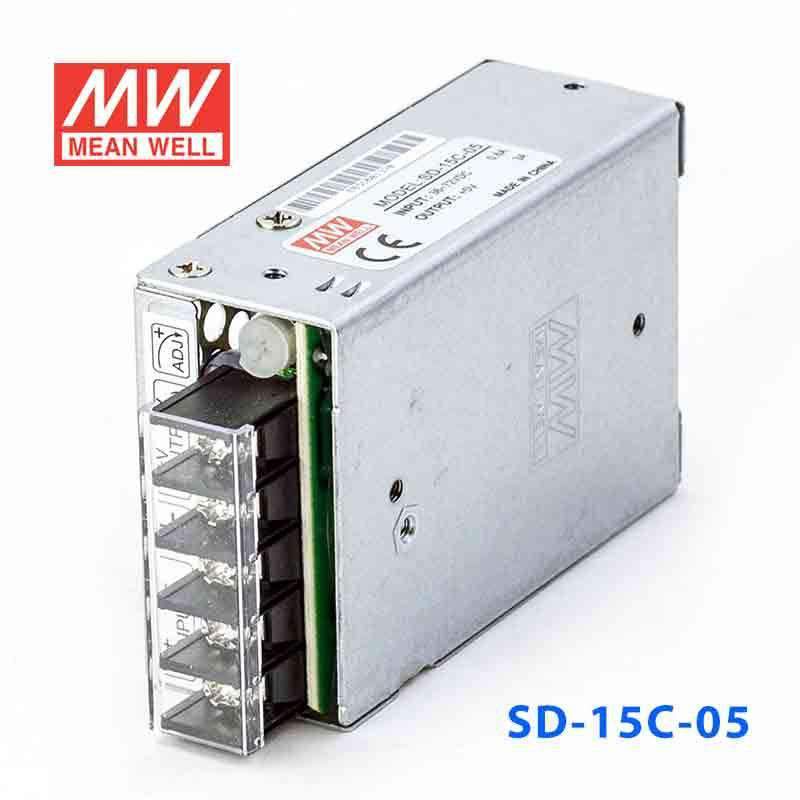

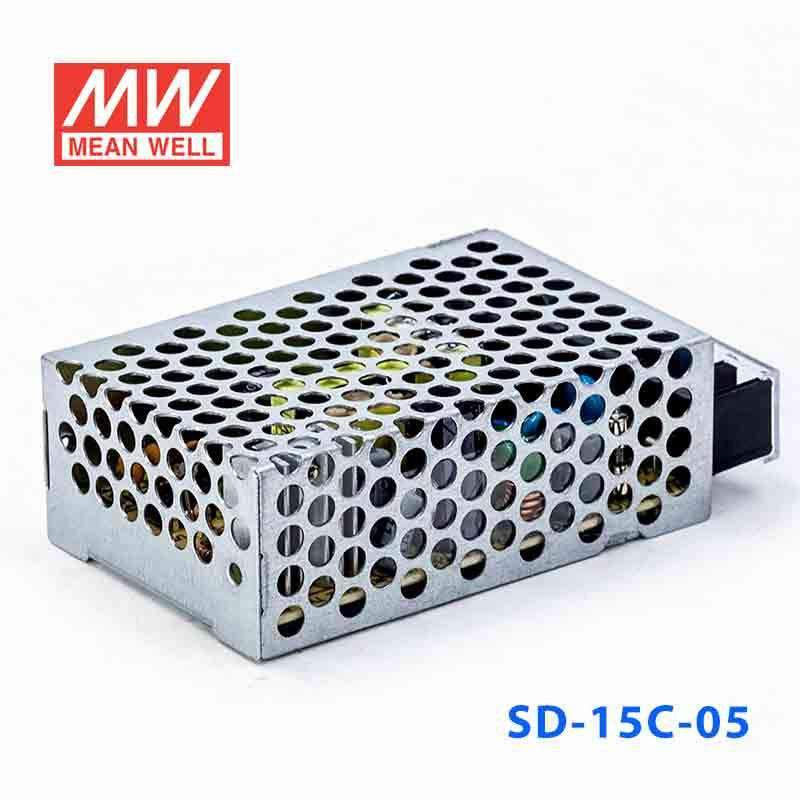

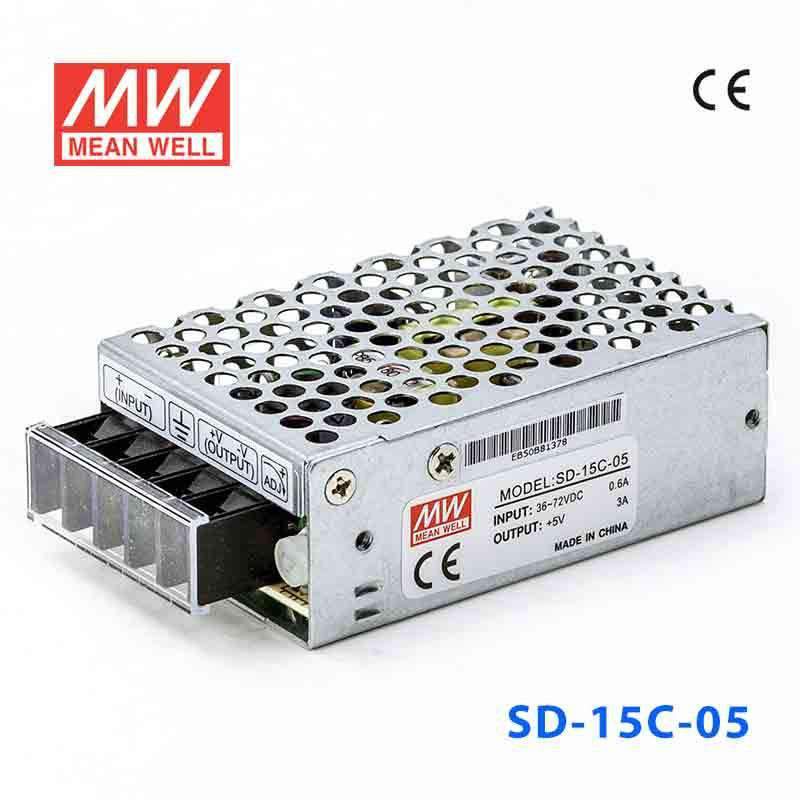

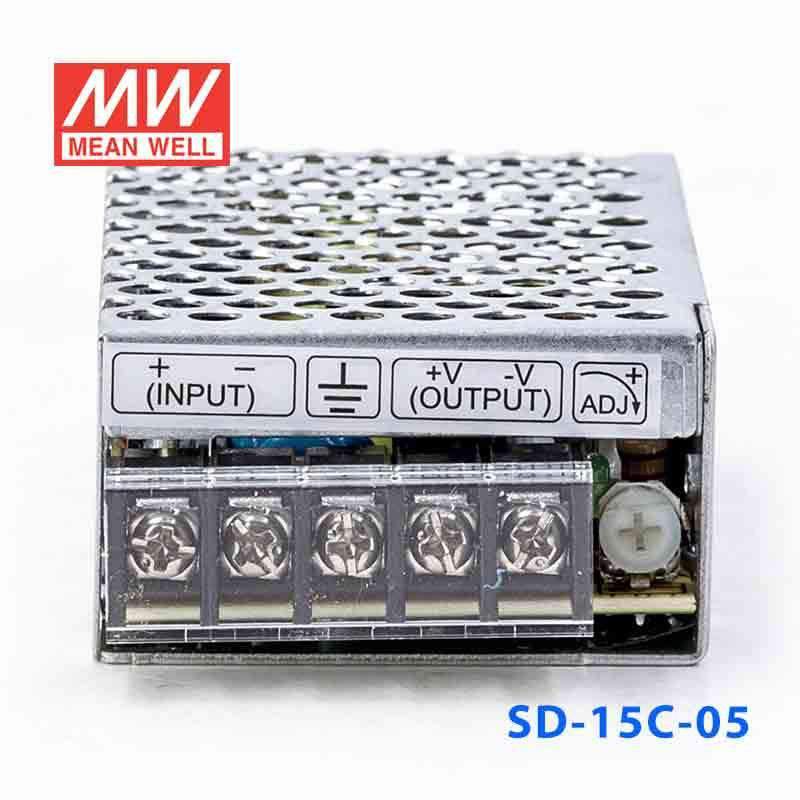

Mean Well SD-15C-5 DC-DC Converter - 15W - 36~72V in 5V out
The SD-15C is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can the SD-15C-5 power 5V embedded electronics from a 48V or 60V system?
Yes, it is designed for constant-voltage 5V output from a listed 36-72VAC input range. With up to 3A output current and 15W total power, it fits low-power embedded electronics and control circuitry that need regulated 5V.
Is this a good fit for industrial communication or interface boards that run on 5V?
It can be a fit when the 5V board stays within the 3A and 15W limits. The 2:1 wide input range supports use in higher-voltage industrial systems that need a small isolated 5V rail.
Can I use the SD-15C-5 in a compact automation cabinet for low-power logic loads?
Yes, this model is aimed at compact 5V logic loads rather than high-power devices. Its size is 78.0 × 51.0 × 28.0 mm and its weight is 0.18 kg, which helps in tighter equipment layouts.
What are the key differences between SD-15C-5 and the other SD-15C outputs?
The SD-15C group includes SD-15C-5 at 15W, 5V, 3A; SD-15C-12 at 15W, 12V, 1.25A; and SD-15C-24 at 15W, 24V, 0.62A. They are all 15W models, but each version changes the output voltage and output current.
Can the SD-15C-5 be used in hot or cold industrial locations?
The specified operating temperature range is -20°C to +85°C, so it covers a wide temperature window. The product data does not list an IP rating, so environmental sealing for dust or water is not specified here.
