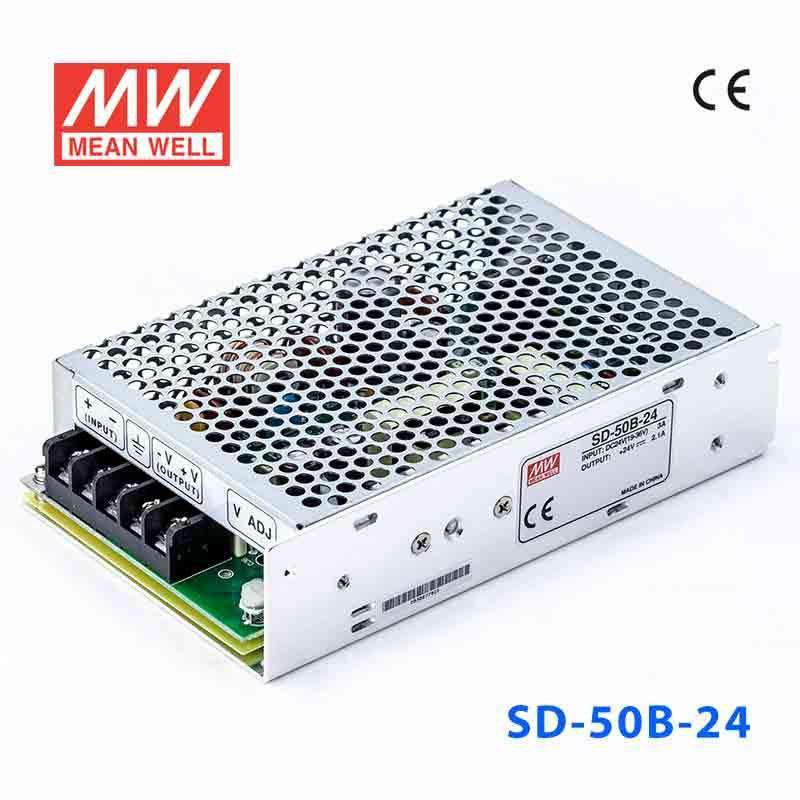

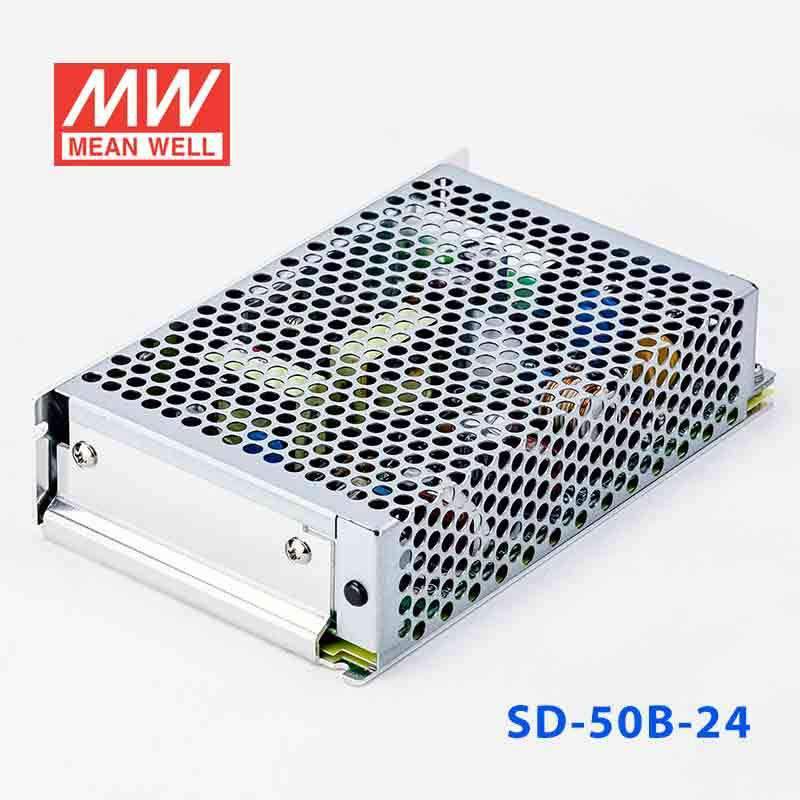

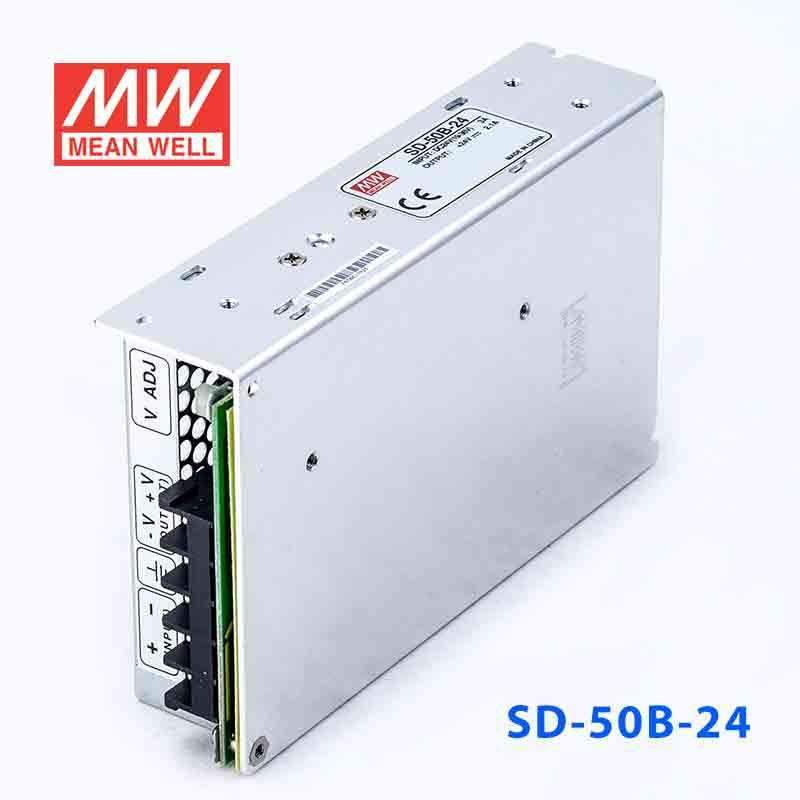

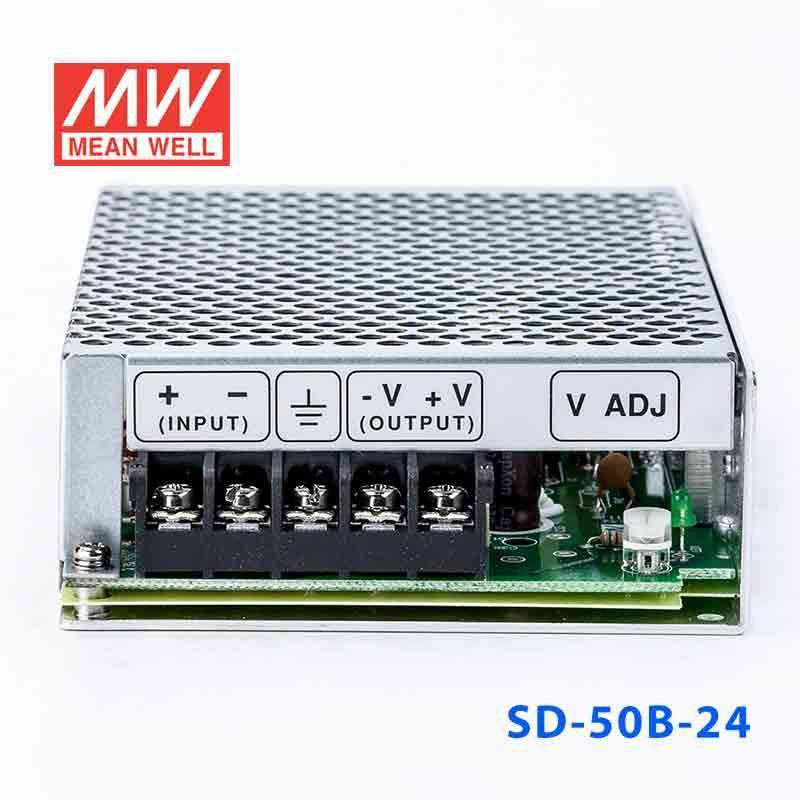

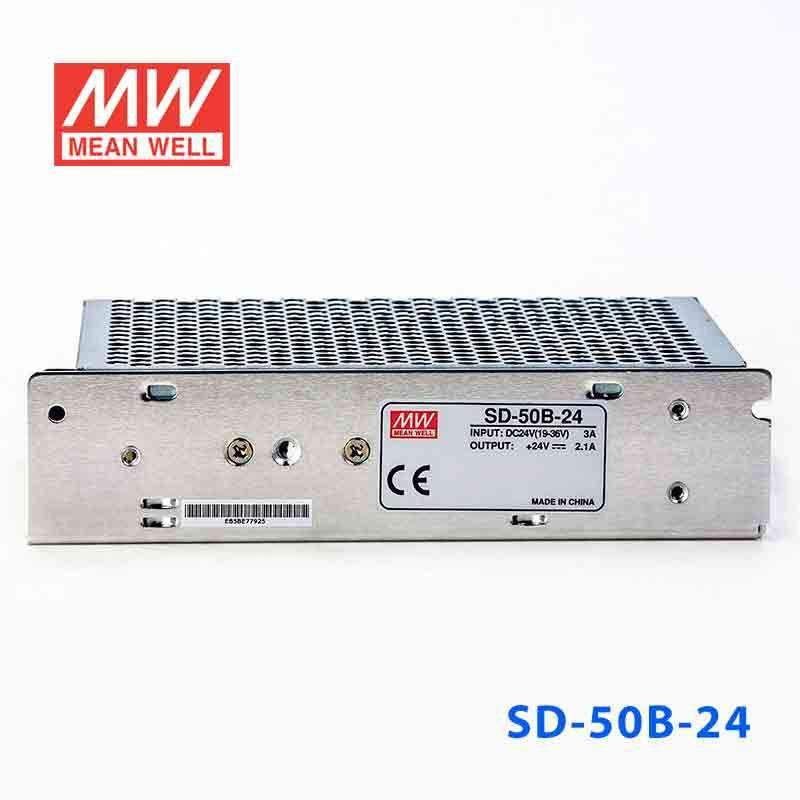

Mean Well SD-50B-24 DC-DC Converter - 50W - 19~36V in 24V out
The SD-50B is a 50W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating504 Watt
-
Output Voltage24 Volt
-
Rated Current2.1 Ampere
-
Input Voltage19V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
Can I use the SD-50B-24 for a 24V industrial sensor or control circuit from a 19-36V source?
Yes, this model is a 24V constant-voltage converter rated for 2.1A output. It is intended for systems where the available input is within 19-36V and the load requires regulated 24V.
Is the SD-50B-24 a fit for small 24V automation loads in a control cabinet?
It can suit low-power 24V automation equipment that needs constant voltage and draws up to 2.1A. The defining limits are the 24V output and the 19-36V input range.
Can this converter power 24V embedded or industrial communication hardware?
It is appropriate for embedded or industrial hardware that requires a steady 24V output and stays within the 2.1A rating. This model is selected when the source side falls within the specified 19-36V range.
Can the SD-50B-24 be used in hot or cold indoor equipment spaces?
The listed operating temperature range is -10C to +60C. No IP rating is included in the provided specs, so the temperature envelope is defined but sealed outdoor use is not established here.
How does the SD-50B-24 compare with the other 24V SD-50 versions?
The SD-50A-24, SD-50B-24, and SD-50C-24 all provide 24V output at 2.1A. Their difference is input range: 9-18V for SD-50A-24, 19-36V for SD-50B-24, and 36-72V for SD-50C-24.
