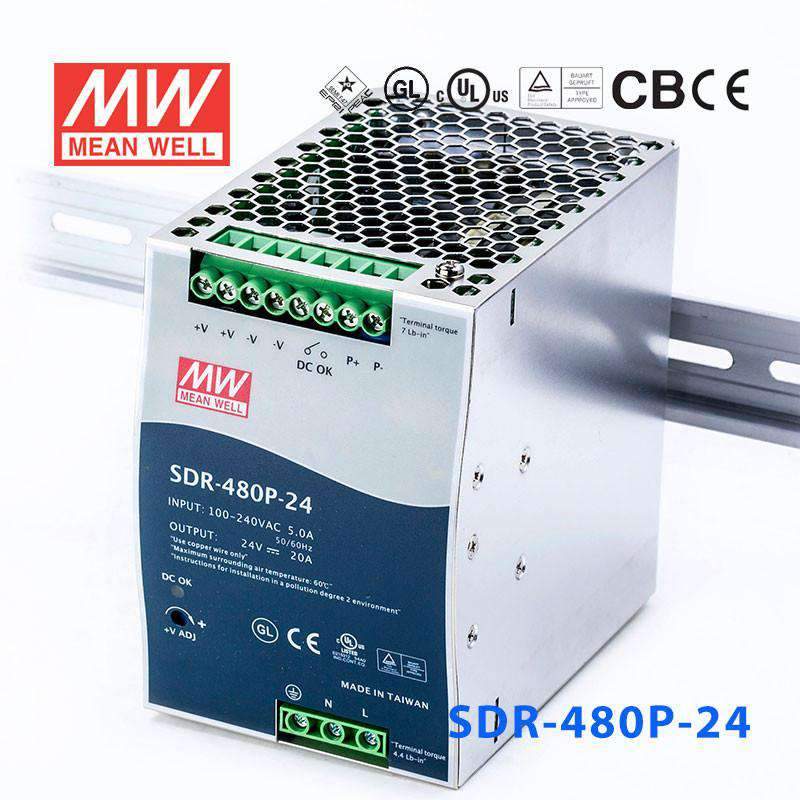

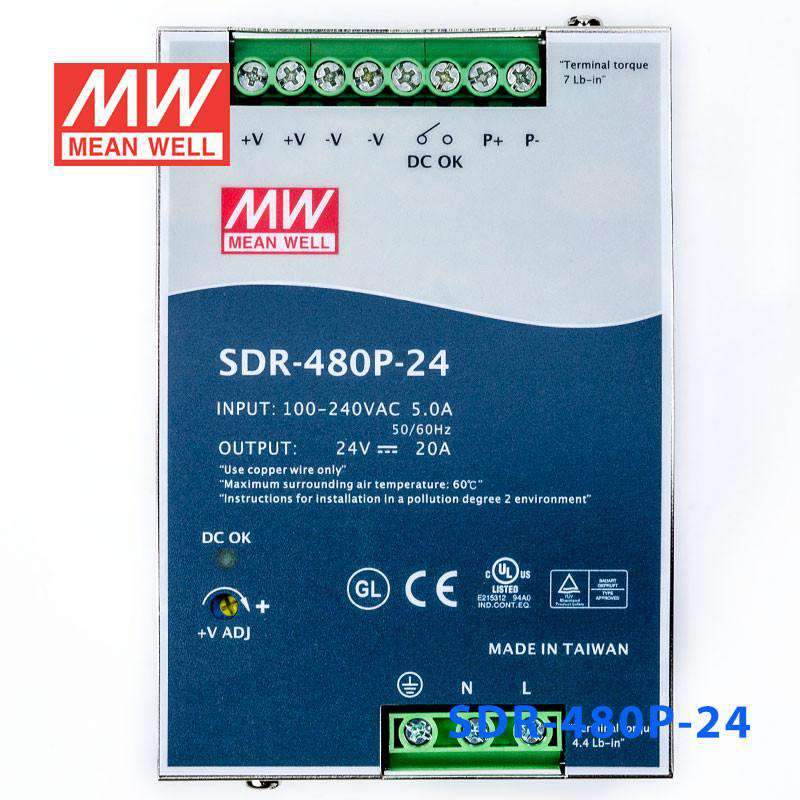

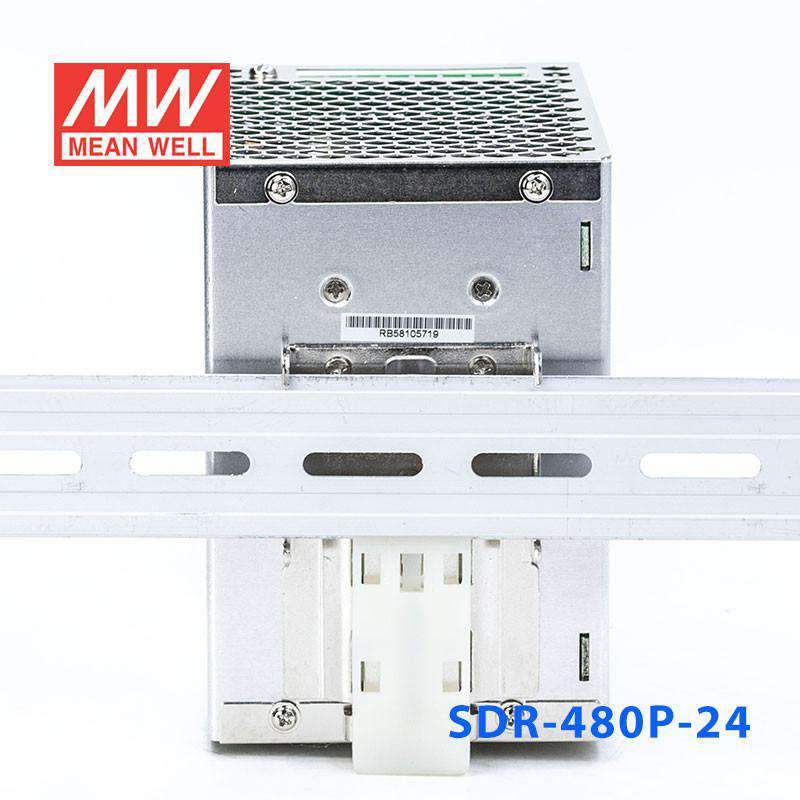

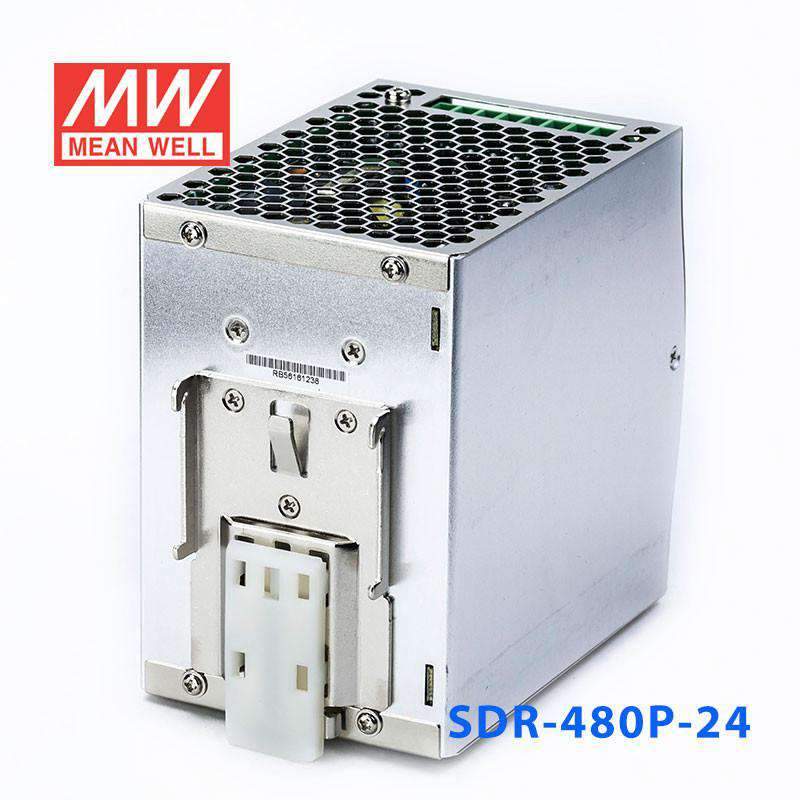

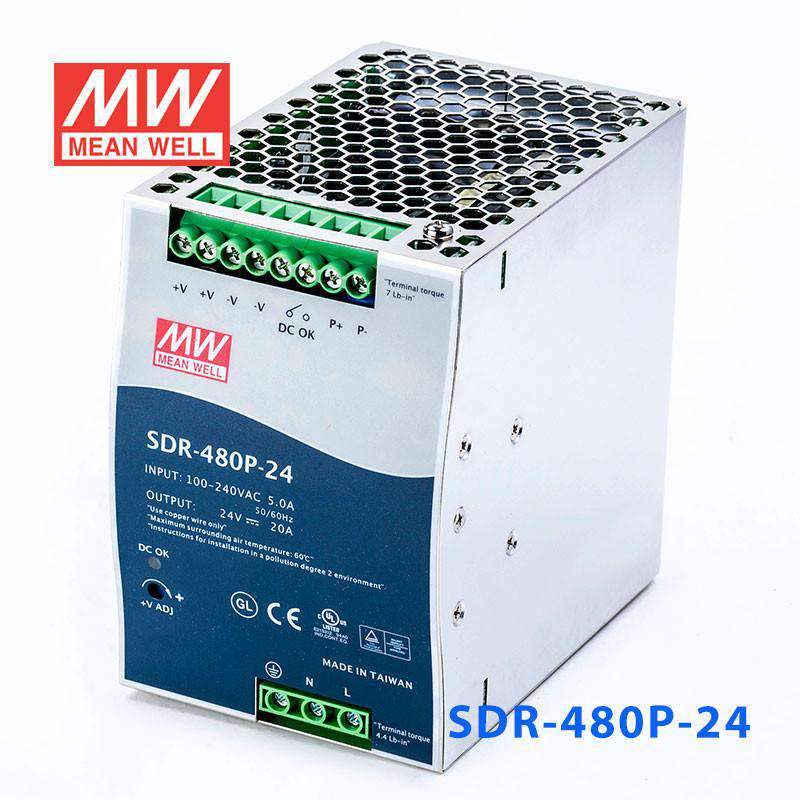

Mean Well SDR-480P-24 Single Output Industrial Power Supply 480W 24...
The SDR-480P is a 480W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Current sharing up to 3840W (parallel units)
- ✓ Safety approvals: ¢J , 10 ~ 95% RH ¢J) -40 ~ +85 ¡(cid:211) 0.03%/ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 (0 ~ 50 ¢J UL508 TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length5.06 in
-
Width4.93 in
-
Height3.37 in
-
Weight3.53 lb
::specification::
Frequently Asked Questions
Can the SDR-480P-24 be used for 24V PLC and factory automation systems?
Yes. The SDR-480P-24 provides 24V output at up to 20A with 480W total power, which fits many 24V PLC, industrial control, and automation cabinet loads. Its DIN rail format is also appropriate for structured panel layouts.
Is the SDR-480P-24 a good fit for 24V building automation panels?
It is suitable for 24V building automation and control panel applications that need up to 480W and 20A. The 90-264VAC input range allows it to be used with common AC mains feeds in centralized electrical enclosures.
Can I use the SDR-480P-24 to supply multiple 24V control devices from one DIN rail power supply?
Yes, provided the combined 24V load does not exceed 20A or 480W. That makes it relevant for cabinets powering several 24V relays, sensors, controllers, or automation devices from one DIN rail supply.
How does the SDR-480P-24 compare with the other SDR series models?
The listed siblings are SDR-75-12 at 75.6W, 12V, 6.3A; SDR-75-24 at 76.8W, 24V, 3.2A; SDR-75-48 at 76.8W, 48V, 1.6A; SDR-120-12 at 120W, 12V, 10A; SDR-120-24 at 120W, 24V, 5A; SDR-120-48 at 120W, 48V, 2.5A; SDR-240-24 at 240W, 24V, 10A; and SDR-240-48 at 240W, 48V, 5A. In the higher ranges, the series also includes SDR-480-24 at 480W, 24V, 20A; SDR-480-48 at 480W, 48V, 10A; SDR-480P-48 at 480W, 48V, 10A; SDR-960-24 at 960W, 24V, 40A; and SDR-960-48 at 960W, 48V, 20A.
Should the SDR-480P-24 be used inside a cabinet or exposed directly to the environment?
This DIN rail model is best matched to control cabinet or enclosure installations where the ambient temperature stays within -25°C to +70°C. Its 128.5 × 125.2 × 85.5 mm housing is sized for panel mounting, and the published specs are framed around industrial cabinet use.
