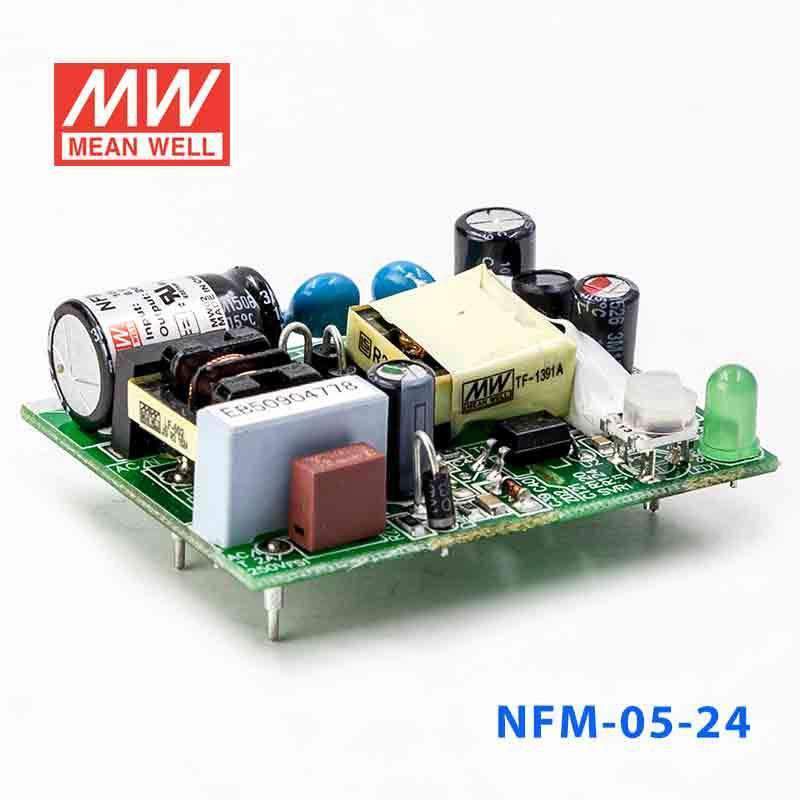

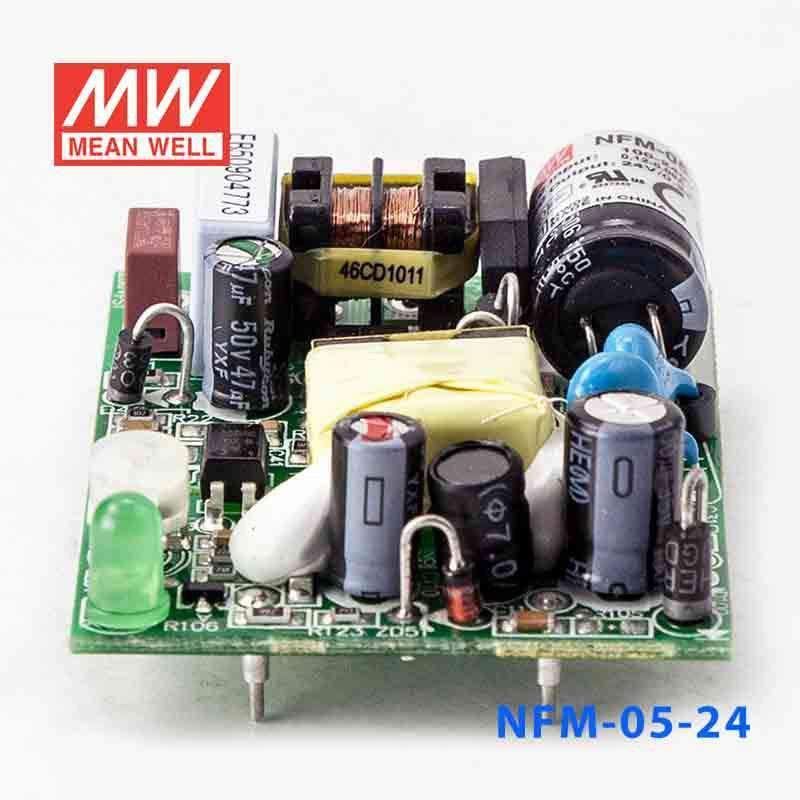

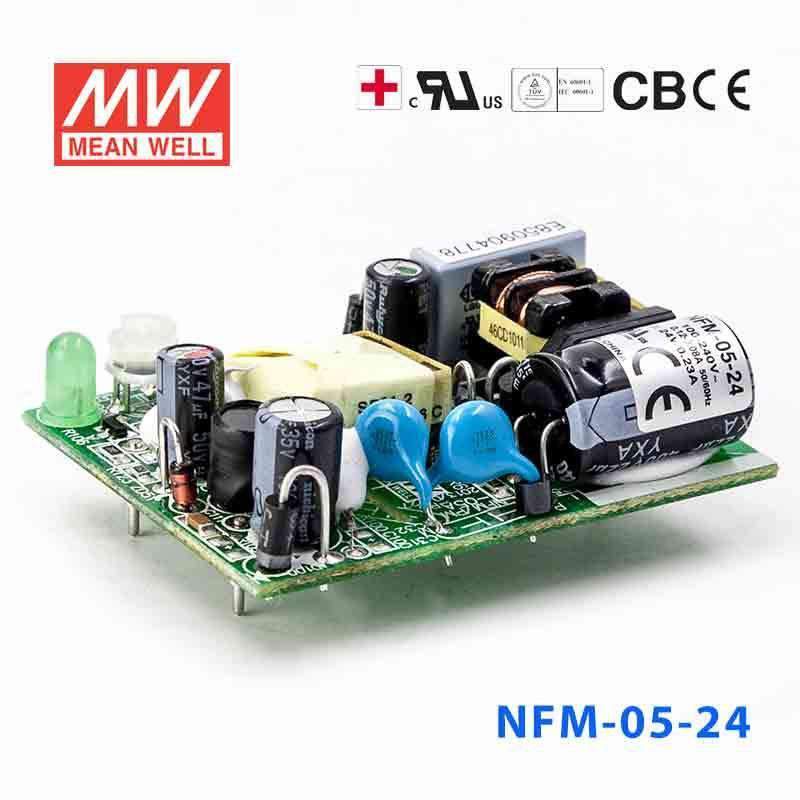

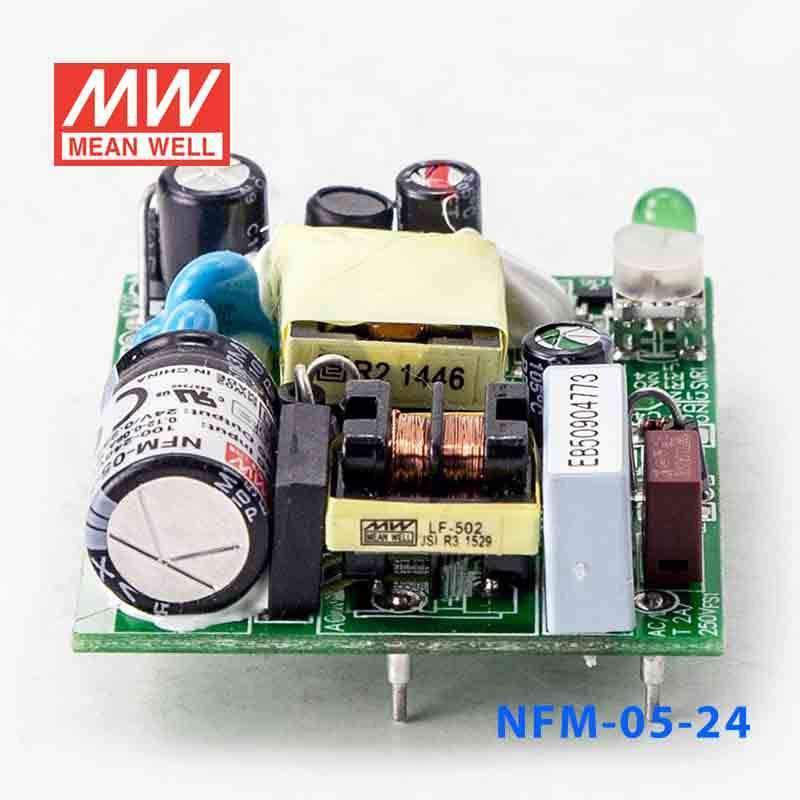

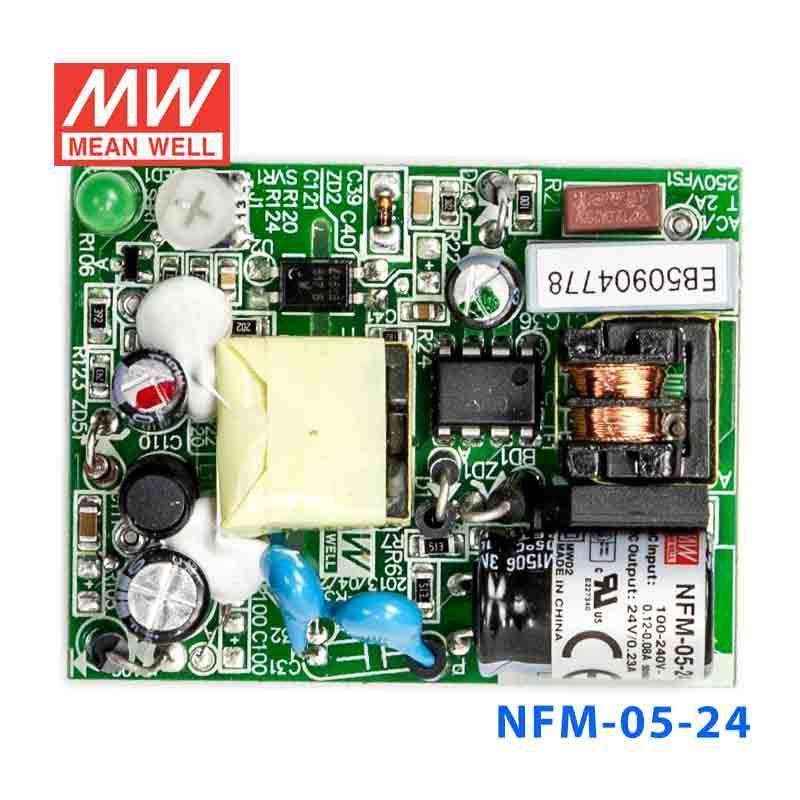

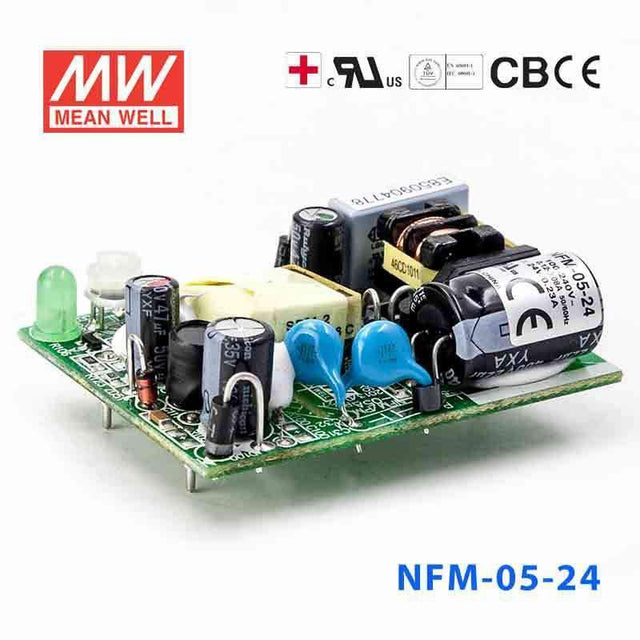

Mean Well NFM-05-24 Power Supply 5W 24V
AC-DC Single output Medical Open frame power supply; Output 5Vdc at 1A; PCB mount; 2xMOPP; NFM-05-5 is succeeded by NFM-05-5.
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating5.52 Watt
-
Output Voltage24 Volt
-
Rated Current0.23 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.28 in
-
Width1.77 in
-
Height0.75 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the NFM-05-24 for a small 24V PLC or sensor circuit?
This model provides 24V constant voltage with up to 0.23A output and 5.52W total power. That makes it suitable for small 24V industrial control, sensor, or interface loads that stay within those electrical limits.
Is the NFM-05-24 a good fit for low-power 24V automation hardware?
It is intended for low-power 24V devices because its output is fixed at 24V and its capacity is 0.23A. For compact automation assemblies, the 58.0 x 45.0 x 19.1 mm size can also help where board or enclosure space is limited.
Can this 24V power supply be used for a small embedded or industrial interface board?
Yes, if the board requires 24V constant voltage and draws no more than 0.23A or 5.52W. The wide 85-264VAC input range also suits equipment that may be deployed across different AC input standards.
Would the NFM-05-24 work for a compact 24V relay or signal module?
It can work for a compact 24V relay, signal, or interface module when the load remains within 24V, 0.23A, and 5.52W. This is a small-output model, so it fits light-duty 24V applications rather than higher-current 24V hardware.
How does the NFM-05-24 compare with other NFM series models?
Within the series, nearby 5W-class options are NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and this NFM-05-24 at 5.52W, 24V, 0.23A. Higher-capacity models include NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. The 15W group includes NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; and NFM-15-24 at 15.12W, 24V, 0.63A. The 20W group includes NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W; and NFM-20-24 at 22.08W, 24V, 0.92A.
Is the NFM-05-24 suitable for outdoor or harsh locations?
The listed operating temperature range is -20°C to +70°C, so temperature capability is specified across that range. The provided specs do not include an IP rating, so dust and water ingress protection are not defined here.
