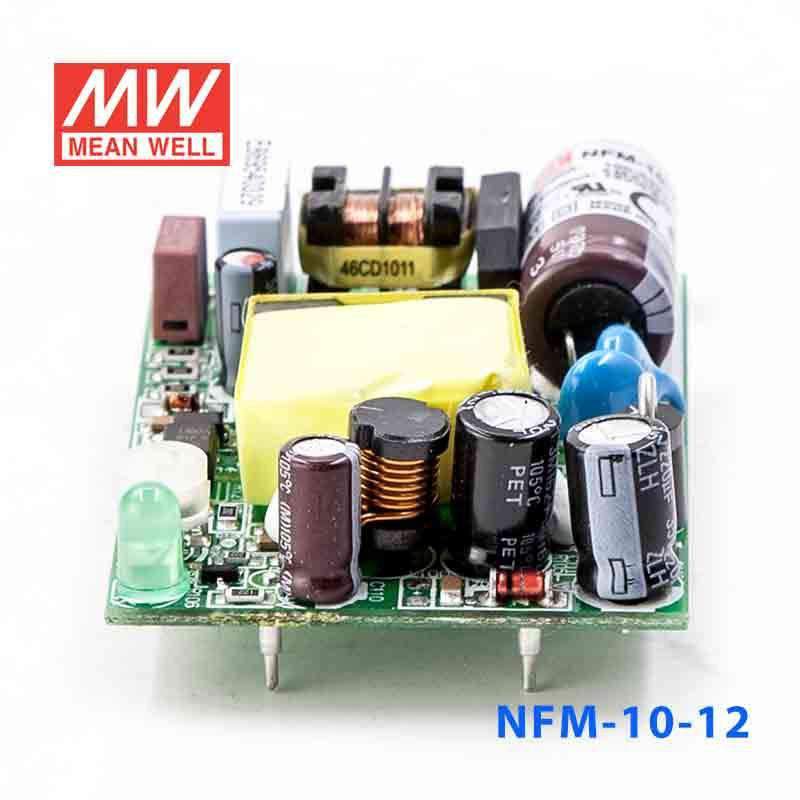

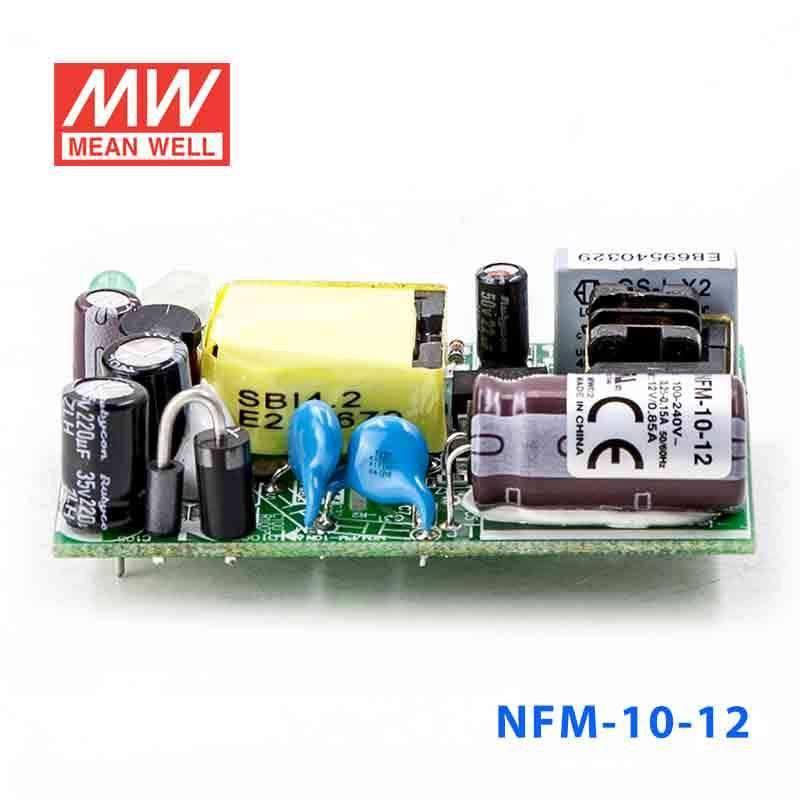

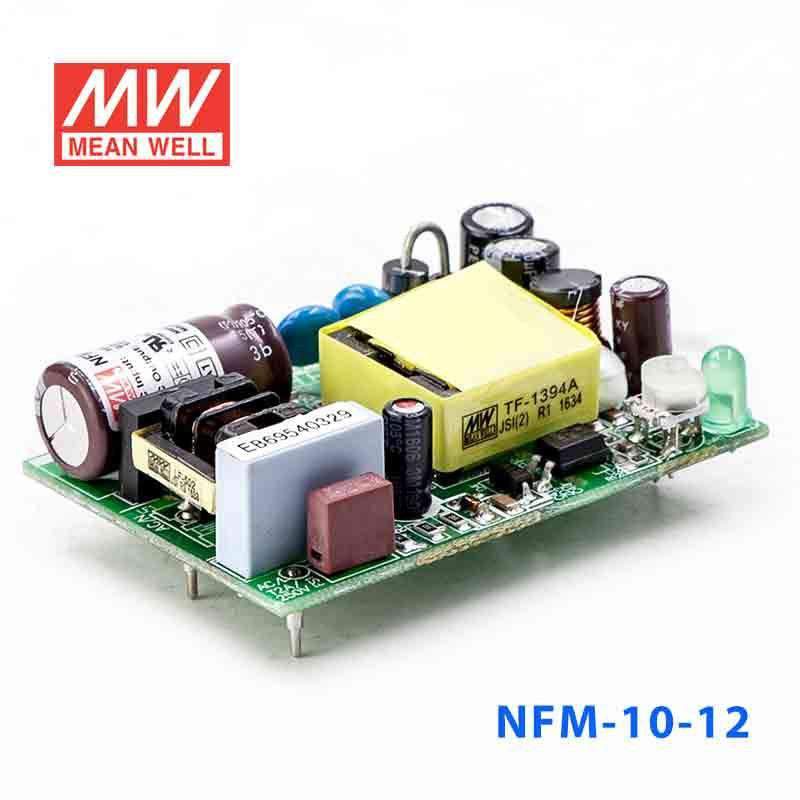

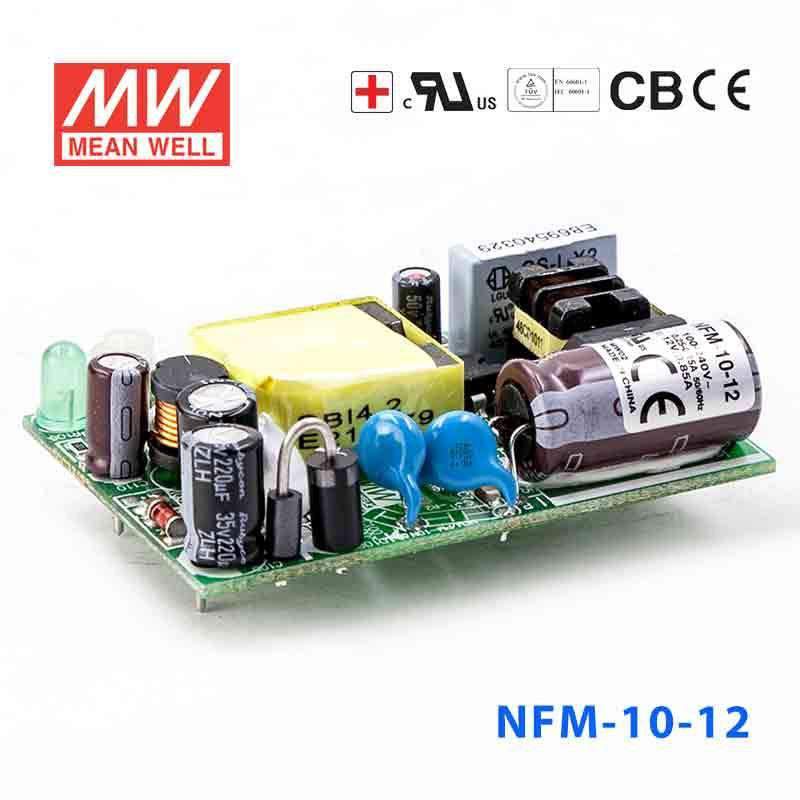

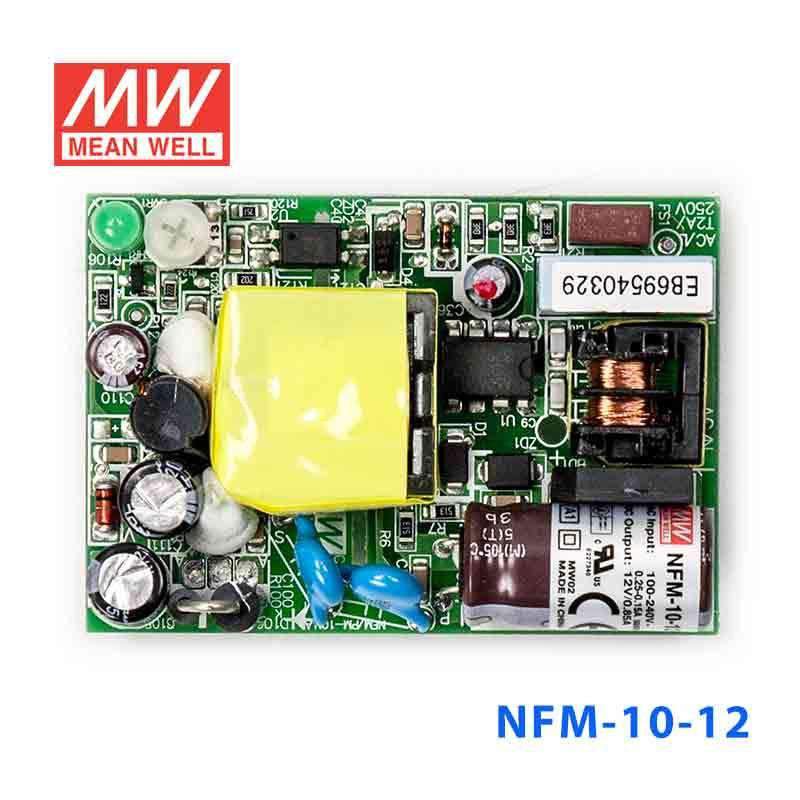

Mean Well NFM-10-12 Power Supply 10W 12V
AC-DC Single output Medical Open frame power supply; Output 12Vdc at 0.85A; PCB mount; 2xMOPP; NFM-10-12 is succeeded by NFM-10-12.
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.56 in
-
Width1.77 in
-
Height0.87 in
-
Weight0.1 lb
::specification::
Frequently Asked Questions
Can I use the NFM-10-12 for a 12V PLC accessory or control circuit?
This model provides 12V constant voltage at up to 0.85A, with 10.2W available output power. That makes it suitable for small 12V control, PLC accessory, relay, or sensor loads that stay within those ratings.
Is the NFM-10-12 a fit for compact 12V automation hardware?
Yes, for compact 12V automation electronics that require a fixed 12V supply and no more than 0.85A. Its 65.0 x 45.0 x 22.0 mm dimensions are useful where the power module needs to fit inside a smaller enclosure.
Would the NFM-10-12 work for low-power 12V monitoring or alarm electronics?
It can support low-power 12V monitoring, alarm, or interface electronics when the total load is within 10.2W. The constant-voltage operating mode is appropriate for devices designed to run from a regulated 12V rail.
Can this 12V power supply be used in equipment sold internationally?
The 85-264VAC input range supports a wide span of AC input conditions. That makes it practical for 12V equipment intended for use across regions with different mains voltages.
How does the NFM-10-12 compare to other NFM series options?
The lower-power models include NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and NFM-05-24 at 5.52W, 24V, 0.23A. The 10W group includes NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; this NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. The 15W models are NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; and NFM-15-24 at 15.12W, 24V, 0.63A. The 20W models are NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W; and NFM-20-24 at 22.08W, 24V, 0.92A.
Can the NFM-10-12 be used in environments with variable temperatures?
The specified operating temperature range is -20°C to +70°C. The provided specifications do not include an IP rating, so protection against water and dust ingress is not specified here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NFM-10 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NFM-10-5 Power Supply 10W 5V | 10W | 5V | 2A | Indoor | $19.11 | View |
| Mean Well NFM-10-3.3 Power Supply 10W 3.3V | 8.25W | 3.3V | 2.5A | Indoor | $19.11 | View |
| Mean Well NFM-10-24 Power Supply 10W 24V | 10.08W | 24V | 0.42A | Indoor | $19.11 | View |
| Mean Well NFM-10-15 Power Supply 10W 15V | 10.05W | 15V | 0.67A | Indoor | $19.11 | View |
