Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

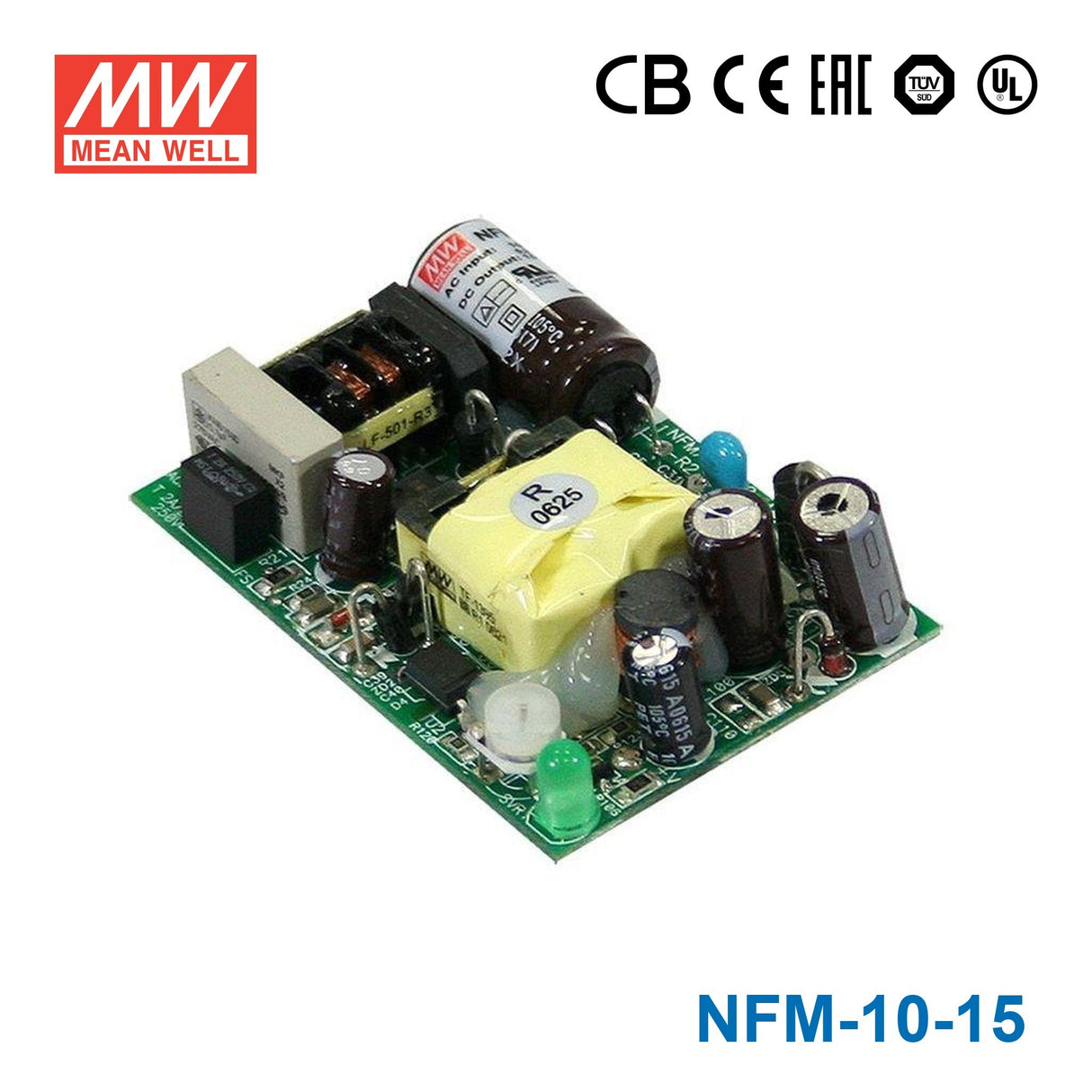

Mean Well NFM-10-15 Power Supply 10W 15V 670mA
AC-DC Single output Medical Open frame power supply; Output 12Vdc at 0.85A; PCB mount; 2xMOPP; NFM-10-12 is succeeded by NFM-10-12.
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating10.05 Watt
-
Output Voltage15 Volt
-
Rated Current0.67 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.56 in
-
Width1.77 in
-
Height0.87 in
-
Weight0.1 lb
::specification::
Frequently Asked Questions
Can I use the NFM-10-15 for a 15V industrial control or instrumentation circuit?
This unit provides 15V constant voltage with up to 0.67A output and 10.05W total power. That makes it suitable for lower-power 15V control, instrumentation, or interface electronics that stay within those ratings.
Is the NFM-10-15 suitable for compact 15V automation equipment?
Yes, if the equipment requires a fixed 15V supply and no more than 0.67A. Its 65.0 x 45.0 x 22.0 mm size supports use in compact automation housings or internal assemblies.
Would this model work for 15V analog or signal-processing hardware?
It can be used for 15V analog, signal, or interface hardware when the total demand remains within 10.05W. The constant-voltage output is intended for electronics designed around a regulated 15V input.
Can the NFM-10-15 handle installations with different AC input standards?
The input range is 85-264VAC, so it supports a broad AC input span. That is useful for 15V equipment deployed across sites that do not share the same mains voltage.
What is the difference between the NFM-10-15 and the other NFM versions?
The 5W-class models are NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and NFM-05-24 at 5.52W, 24V, 0.23A. The 10W group includes NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; this NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. The 15W group includes NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; and NFM-15-24 at 15.12W, 24V, 0.63A. The 20W models include NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W; and NFM-20-24 at 22.08W, 24V, 0.92A.
Is the NFM-10-15 rated for outdoor conditions?
The operating temperature range is listed as -20°C to +70°C, so temperature limits are defined. The specifications provided do not show an IP rating, so outdoor dust and water resistance are not specified in this data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NFM-10 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NFM-10-5 Power Supply 10W 5V 2A | 10W | 5V | 2A | Indoor | $19.11 | View |
| Mean Well NFM-10-3.3 Power Supply 10W 3.3V 2.5A | 8.25W | 3.3V | 2.5A | Indoor | $19.11 | View |
| Mean Well NFM-10-24 Power Supply 10W 24V 420mA | 10.08W | 24V | 0.42A | Indoor | $19.11 | View |
| Mean Well NFM-10-12 Power Supply 10W 12V 850mA | 10.2W | 12V | 0.85A | Indoor | $19.11 | View |
