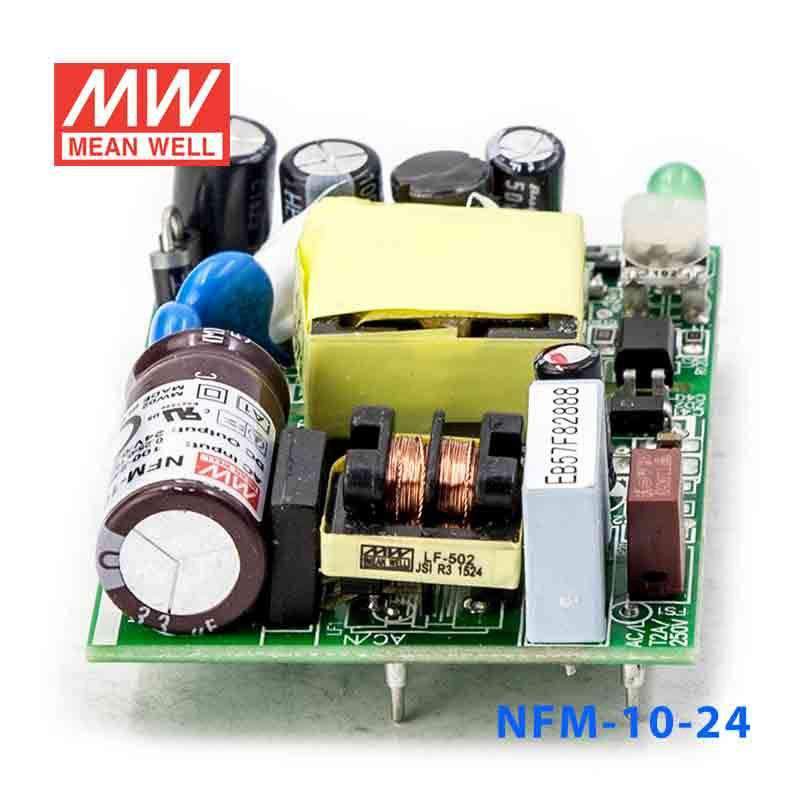

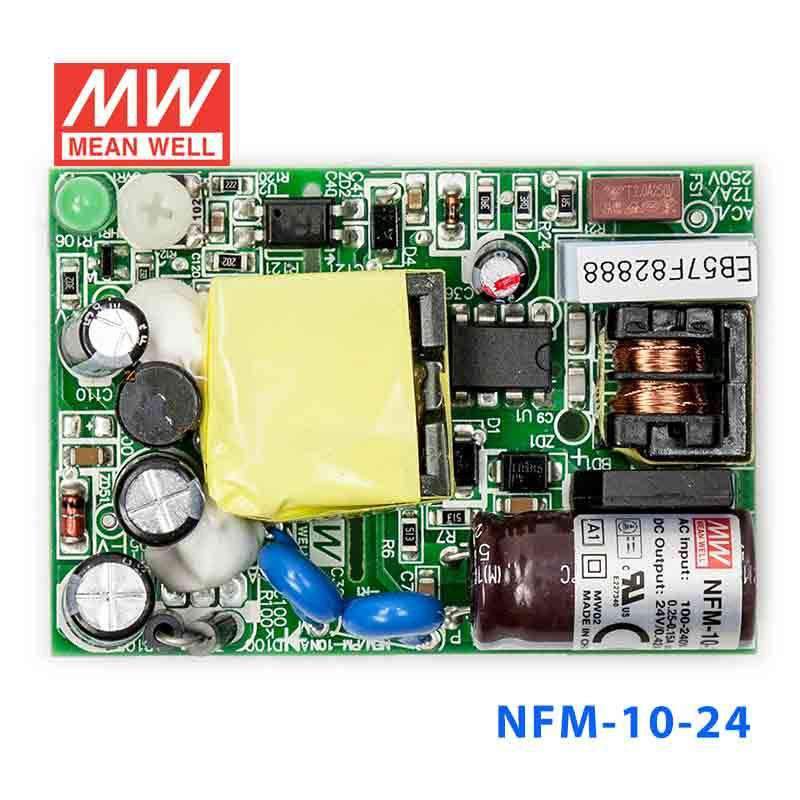

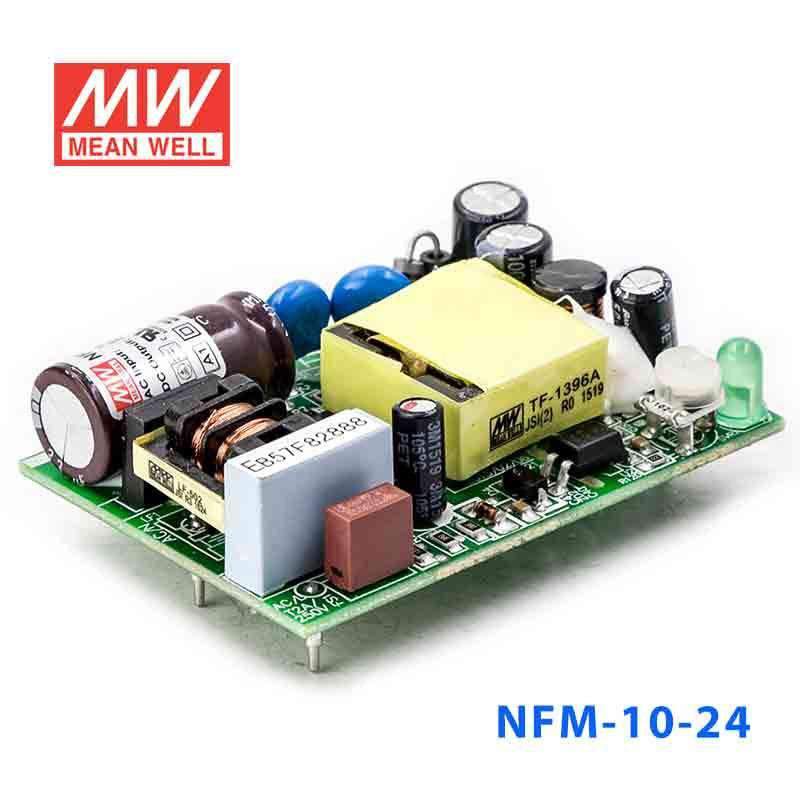

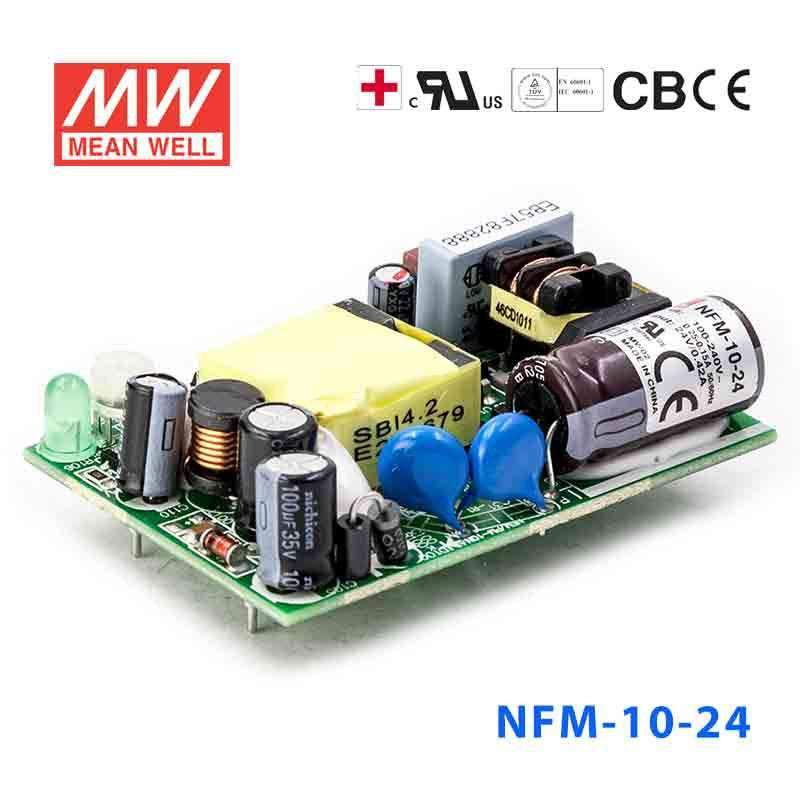

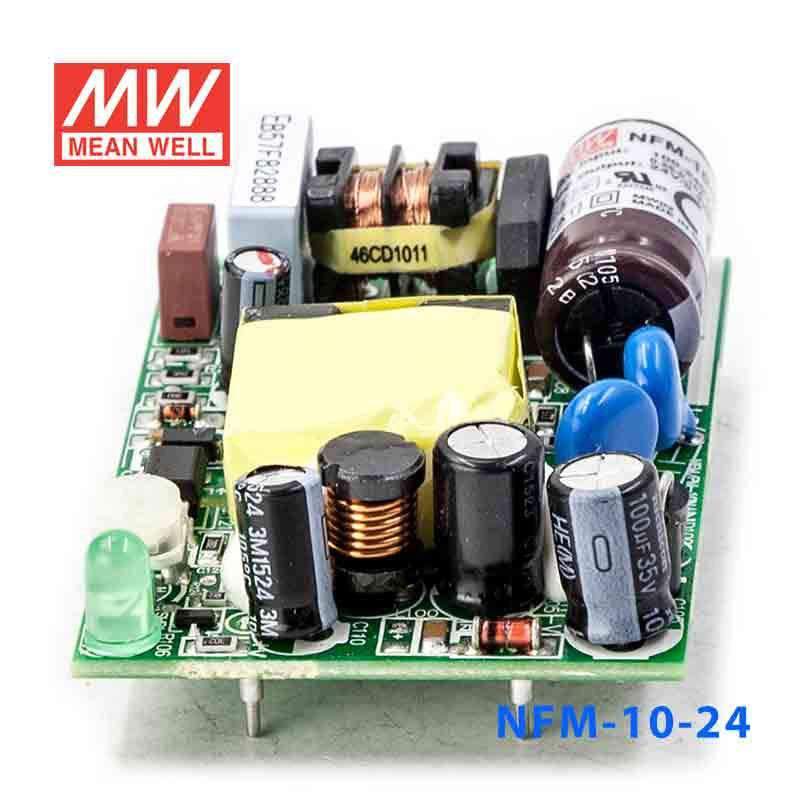

Mean Well NFM-10-24 Power Supply 10W 24V
AC-DC Single output Medical Open frame power supply; Output 12Vdc at 0.85A; PCB mount; 2xMOPP; NFM-10-12 is succeeded by NFM-10-12.
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating10.08 Watt
-
Output Voltage24 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.56 in
-
Width1.77 in
-
Height0.87 in
-
Weight0.1 lb
::specification::
Frequently Asked Questions
Can I use the NFM-10-24 to power a 24V PLC input or control circuit?
It can fit 24V control electronics that need a constant 24V output and stay within 0.42A and 10.08W. That makes it suitable for low-power industrial or automation control loads rather than heavier 24V equipment. Check that the total load stays inside the rated current and power.
Is the NFM-10-24 suitable for 24V industrial sensors or transmitters?
This model is intended for constant-voltage 24V loads and can support sensor or transmitter circuits that draw no more than 0.42A. With 10.08W available, it is a better fit for small instrumentation or control devices than for larger field hardware. Its wide 85-264VAC input also helps in facilities using different AC mains ranges.
Can I use this 24V power supply in a compact embedded or automation enclosure?
The housing is 65.0 x 45.0 x 22.0 mm and weighs 0.045 kg, so it is sized for compact equipment layouts. It is generally appropriate where a board or subsystem needs regulated 24V at modest power. Confirm the enclosure and load requirements match the 10.08W and 0.42A limits.
Is the NFM-10-24 rated for outdoor or harsh-environment use?
The stated operating temperature range is -20C to +70C, so the temperature range is broad for indoor equipment use. No IP rating is listed in the provided specs, so the product data does not identify it as outdoor, washdown, or weather-exposed rated. It is safer to treat it as a unit for protected environments unless the full product documentation says otherwise.
How does the NFM-10-24 compare with other NFM 24V models?
Within the listed siblings, the 24V options are NFM-05-24 at 5.52W and 0.23A, NFM-10-24 at 10.08W and 0.42A, and NFM-15-24 at 15.12W and 0.63A, with NFM-20-24 at 22.08W and 0.92A. The NFM-10-24 sits in the middle of that range for both output power and current. If your 24V load is above 0.42A, you would need to move up to a higher-output sibling.
