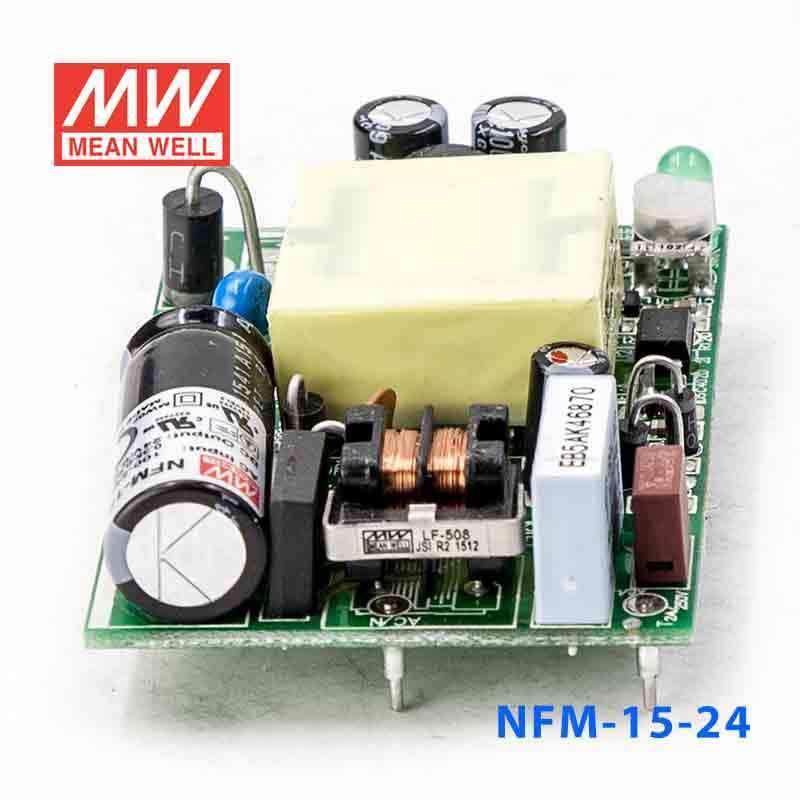

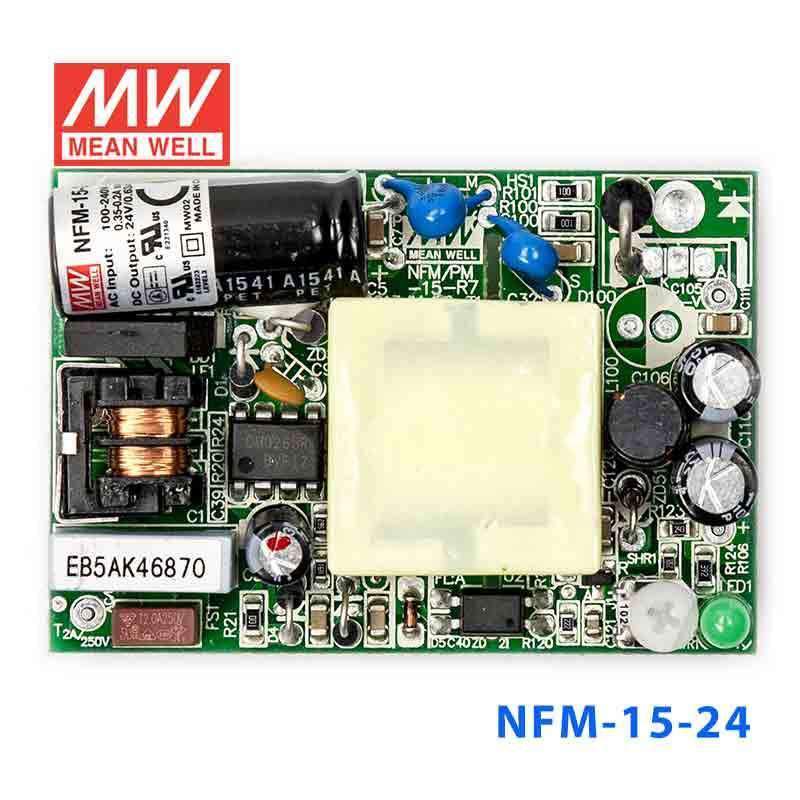

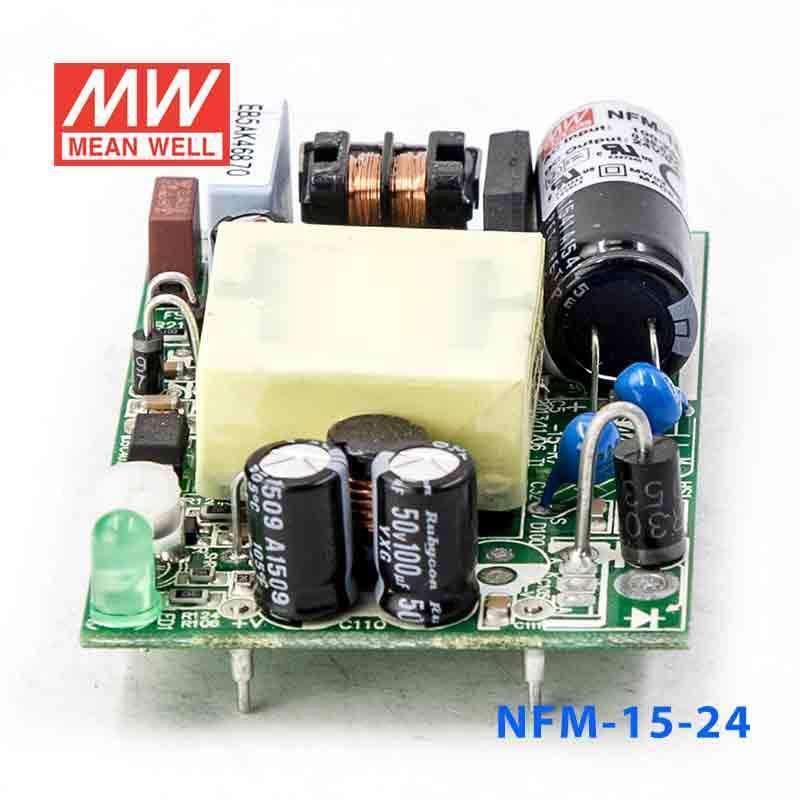

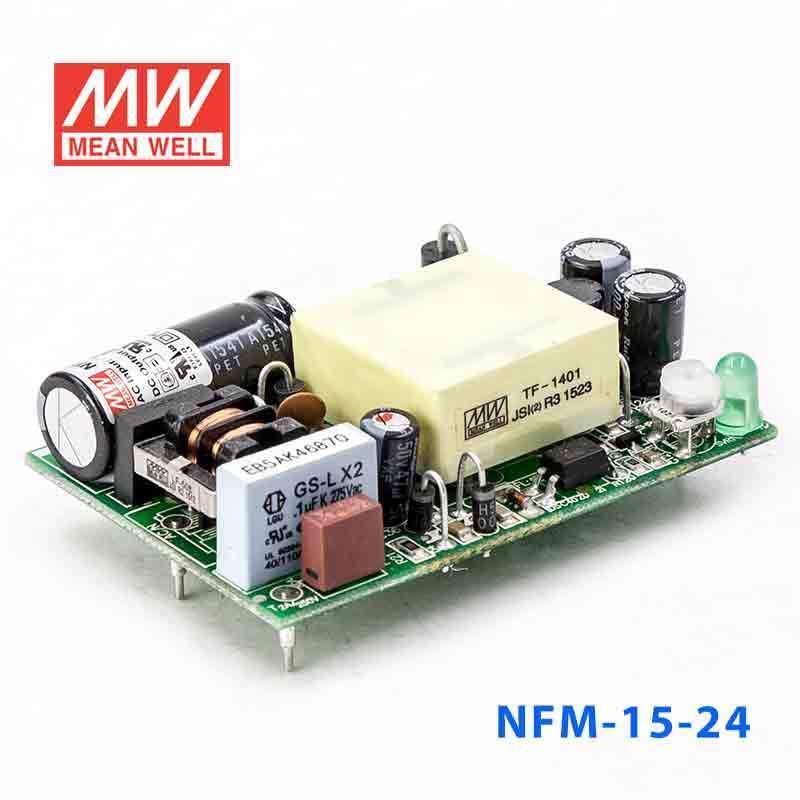

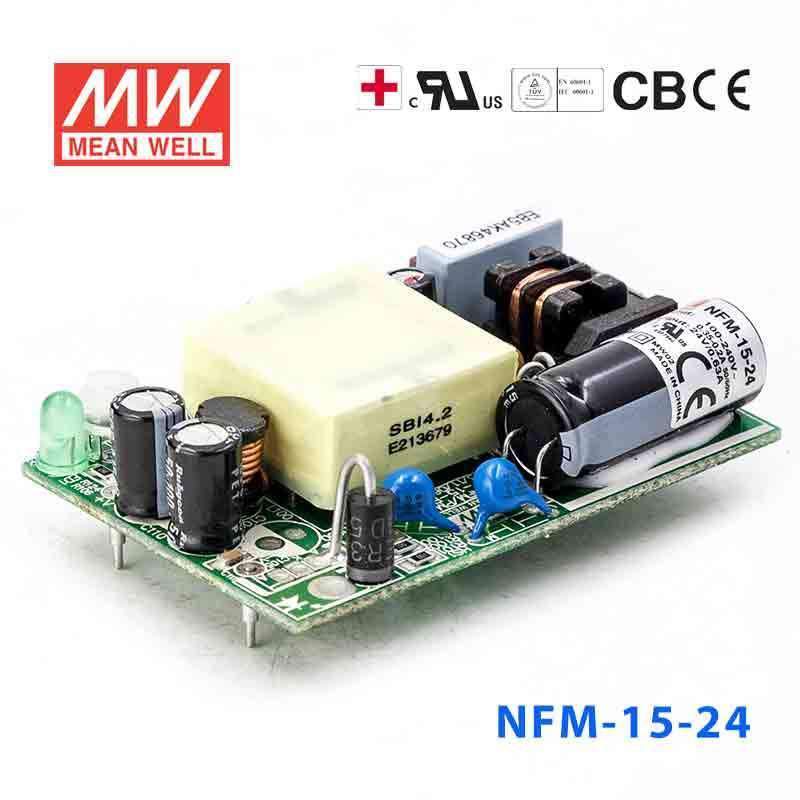

Mean Well NFM-15-24 Power Supply 15W 24V
AC-DC Single output Medical Open frame power supply; Output 24Vdc at 0.63A; PCB mount; 2xMOPP; NFM-15-24 is succeeded by MFM-15-24
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating15.12 Watt
-
Output Voltage24 Volt
-
Rated Current0.63 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.89 in
-
Height0.87 in
-
Weight1.43 lb
::specification::
Frequently Asked Questions
Can I use the NFM-15-24 for a 24V PLC I/O module or small automation controller?
It can fit 24V control loads that stay within the unit's 0.63A output current and 15.12W power rating. That makes it relevant for small industrial control electronics that require constant 24V DC rather than higher-current field devices.
Is the NFM-15-24 suitable for powering a 24V sensor or relay interface in an industrial cabinet?
It is intended for constant-voltage 24V output and can support loads up to 0.63A. For low-power sensor interfaces, relay boards, or monitoring modules that stay inside 15.12W, the electrical rating is aligned with that type of use.
Can this 24V power supply be used for embedded or IT equipment that runs on 24V DC?
Yes, if the equipment requires a regulated 24V constant-voltage supply and draws no more than 0.63A. Its 85-264VAC input also suits equipment deployed across sites with different AC mains ranges.
Is the NFM-15-24 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. Based on the provided data, temperature capability is defined, while outdoor or washdown suitability is not established by an IP classification.
How does the NFM-15-24 compare with the other NFM series models?
Within the provided sibling list, the series includes NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; NFM-05-24 at 5.52W, 24V, 0.23A; NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. Higher-output siblings listed are NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W in the provided data; and NFM-20-24 at 22.08W, 24V, 0.92A. This NFM-15-24 sits between the 10.08W 24V model and the 22.08W 24V model in the 24V branch.
