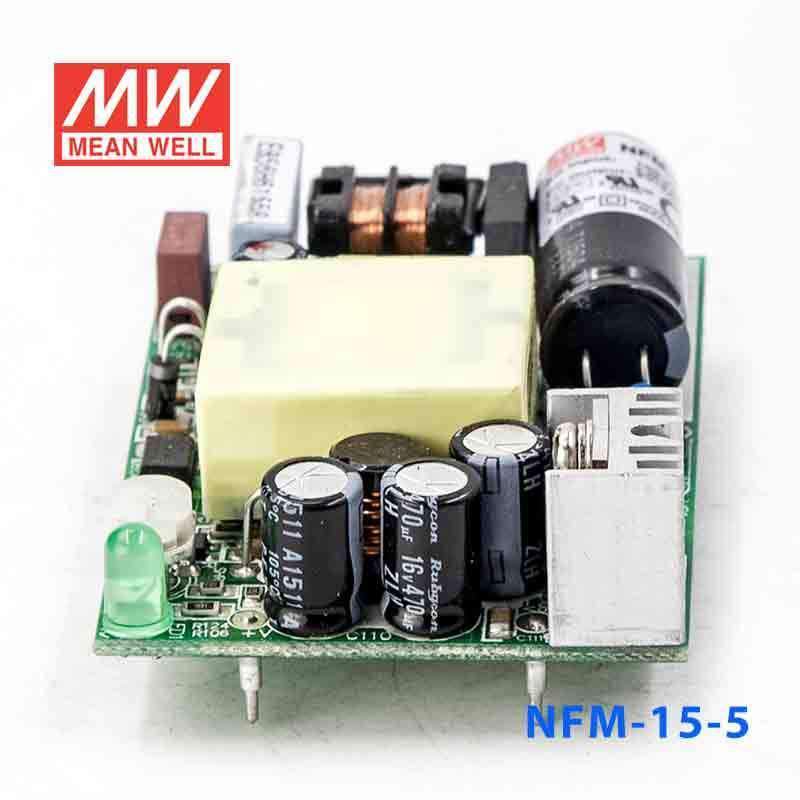

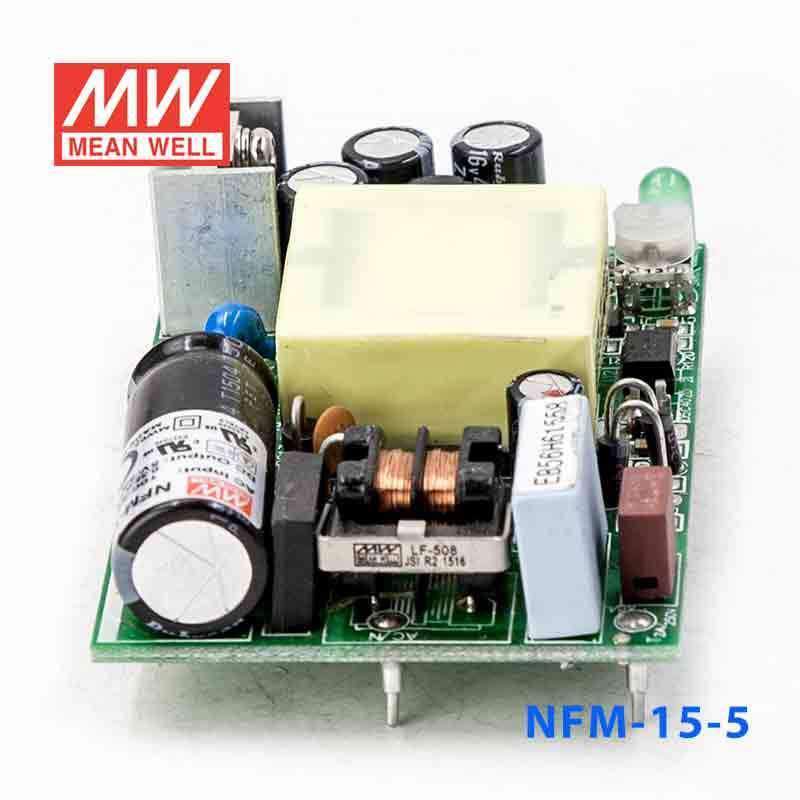

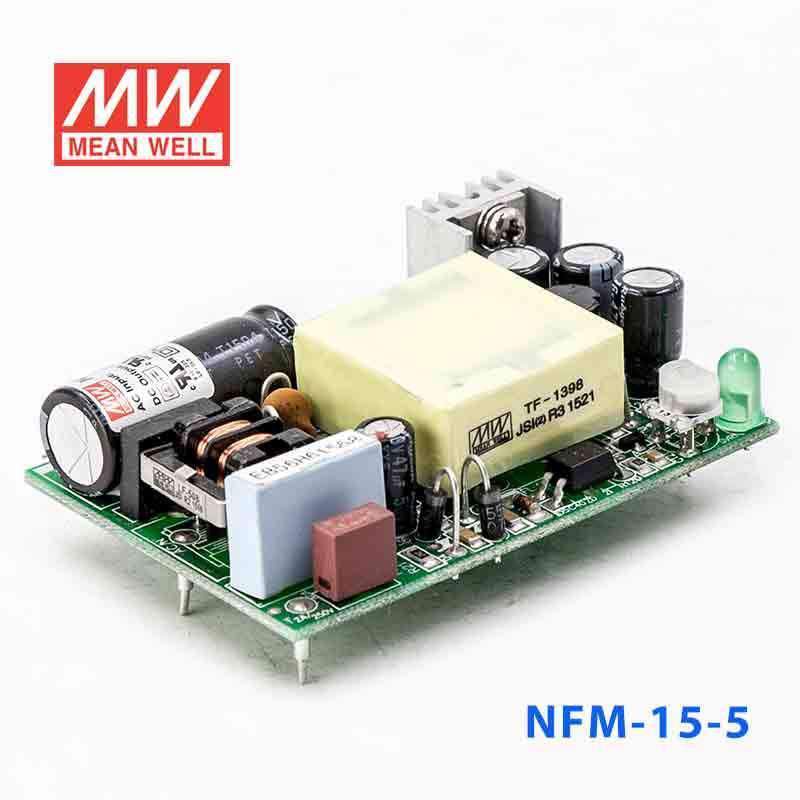

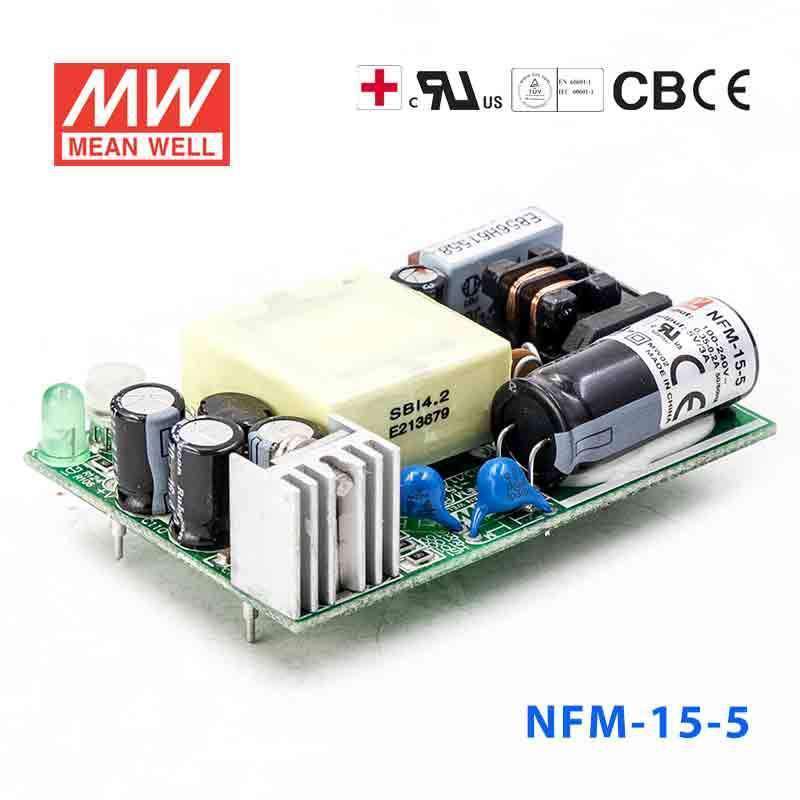

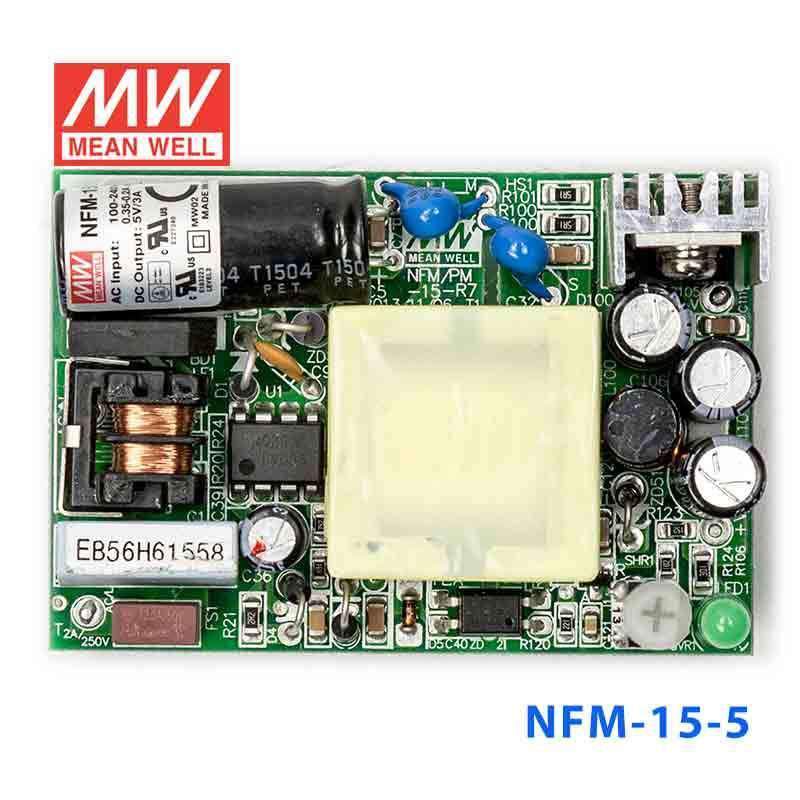

Mean Well NFM-15-5 Power Supply 15W 5V
AC-DC Single output Medical Open frame power supply; Output 5Vdc at 0.63A; PCB mount; 2xMOPP; NFM-15-5 is succeeded by MFM-15-5
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.89 in
-
Height0.87 in
-
Weight1.43 lb
::specification::
Frequently Asked Questions
Can I use the NFM-15-5 for a 5V single-board computer or embedded controller?
It provides constant 5V output up to 3A, with a 15W rating. That fits many embedded control boards and compact computing devices that need a regulated 5V rail within those current and power limits.
Is the NFM-15-5 suitable for 5V industrial logic or HMI support electronics?
It can support 5V DC electronics that require no more than 3A. For low-voltage control logic, panel electronics, or support circuitry that stays within 15W, the output profile is consistent with that type of load.
Can this model power 5V USB-class or peripheral electronics inside equipment?
It is appropriate for 5V constant-voltage loads up to 3A when the equipment is designed around a 5V DC supply. The 85-264VAC input range also helps when the same equipment platform is used across different AC input regions.
Is the NFM-15-5 rated for outdoor conditions?
The provided operating temperature range is -20°C to +70°C, so temperature performance is specified. The provided specs do not include an IP rating, so outdoor exposure suitability is not confirmed by the product data here.
How does the NFM-15-5 differ from the other NFM family options?
In the 5V branch of the provided sibling list, NFM-05-5 is 5W at 5V and 1A, NFM-10-5 is 10W at 5V and 2A, this NFM-15-5 is 15W at 5V and 3A, and NFM-20-5 is 22W at 5V and 4.4A. The same family also includes NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; NFM-05-24 at 5.52W, 24V, 0.23A; NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; NFM-10-24 at 10.08W, 24V, 0.42A; NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; NFM-15-24 at 15.12W, 24V, 0.63A; NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W in the provided data; and NFM-20-24 at 22.08W, 24V, 0.92A. This makes the NFM-15-5 the mid-range 5V option by output current.
