Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

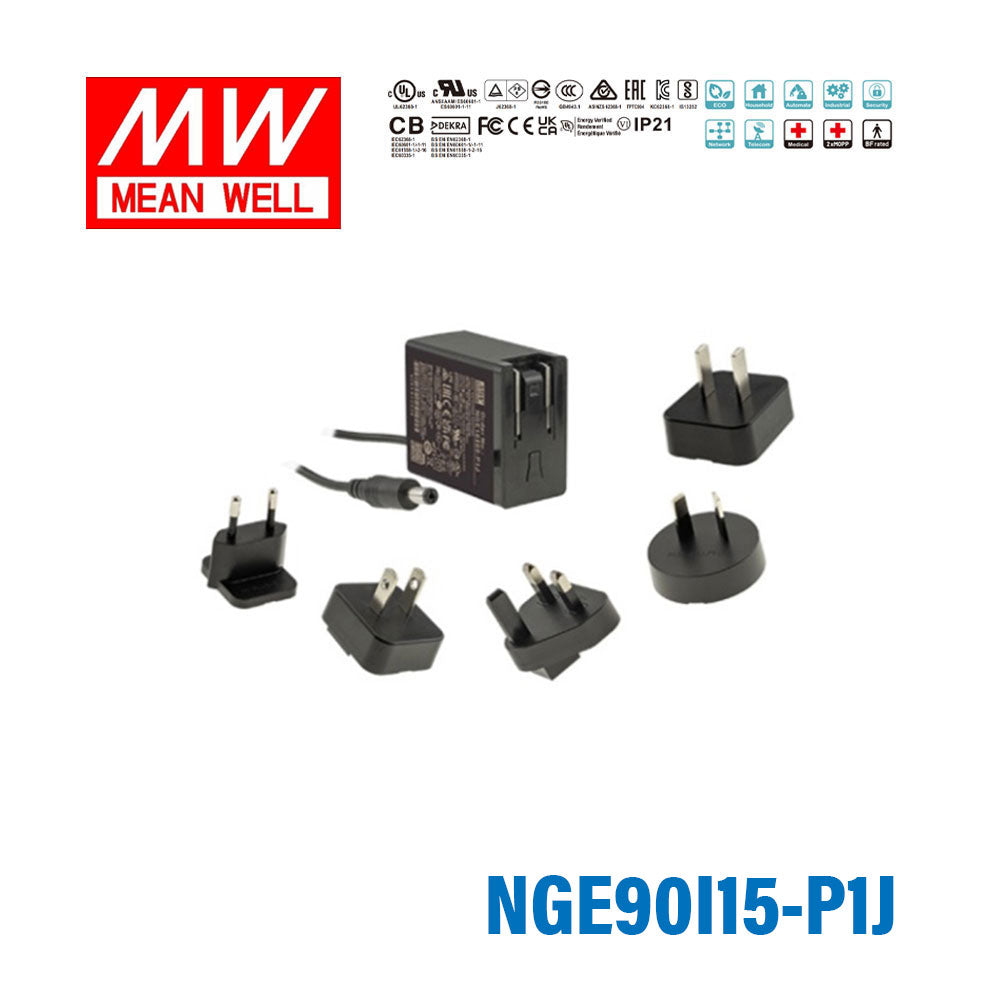

Mean Well NGE90I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 82.5W 15V 5.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE90I15-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE90I15 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating82.5 Watt
-
Output Voltage15 Volt
-
Rated Current5.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height3.37 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE90I15-P1J?
The NGE90I15-P1J is a 15V AC-DC wall-mounted adaptor rated for 5.5A, with a maximum output power of 82.5W. It is designed as a non-dimmable power supply in Mean Well's NGE90 series.
What types of applications is this adaptor intended for?
This model is suited to applications that need a regulated 15V DC supply at up to 5.5A in a compact wall-mounted format. Its certifications cover multiple fields including ITE, medical, household, and industrial standards, making it a strong option for professional equipment sourcing.
Does the NGE90I15-P1J support international use?
Yes. It has a universal input range of 80 to 264VAC and uses interchangeable AC plugs, which makes it suitable for deployment across different regions. The product also lists a broad set of international safety approvals and certifications.
How energy efficient is the Mean Well NGE90I15-P1J?
This adaptor meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a good choice for buyers who want lower standby power usage in commercial or OEM applications.
Can this power adaptor operate in demanding temperature conditions?
Yes. The NGE90I15-P1J is rated for operation from -30C to +70C, which supports use in a wide range of indoor and controlled equipment environments. Buyers should still confirm that the end application stays within the product's published operating limits.
What protection and safety features does this model include?
The unit includes short circuit, overload, and over-voltage protection. It is also a Class II power supply with no earth pin, offers 4000VAC input-to-output withstand voltage, and is specified with leakage current below 100uA.
What are the physical size and warranty for the NGE90I15-P1J?
This model has compact dimensions of 62 x 30 x 85.5mm and an ultra-slim 28mm profile, helping reduce space impact in finished equipment deployments. It is backed by a 3-year warranty from Mean Well.
