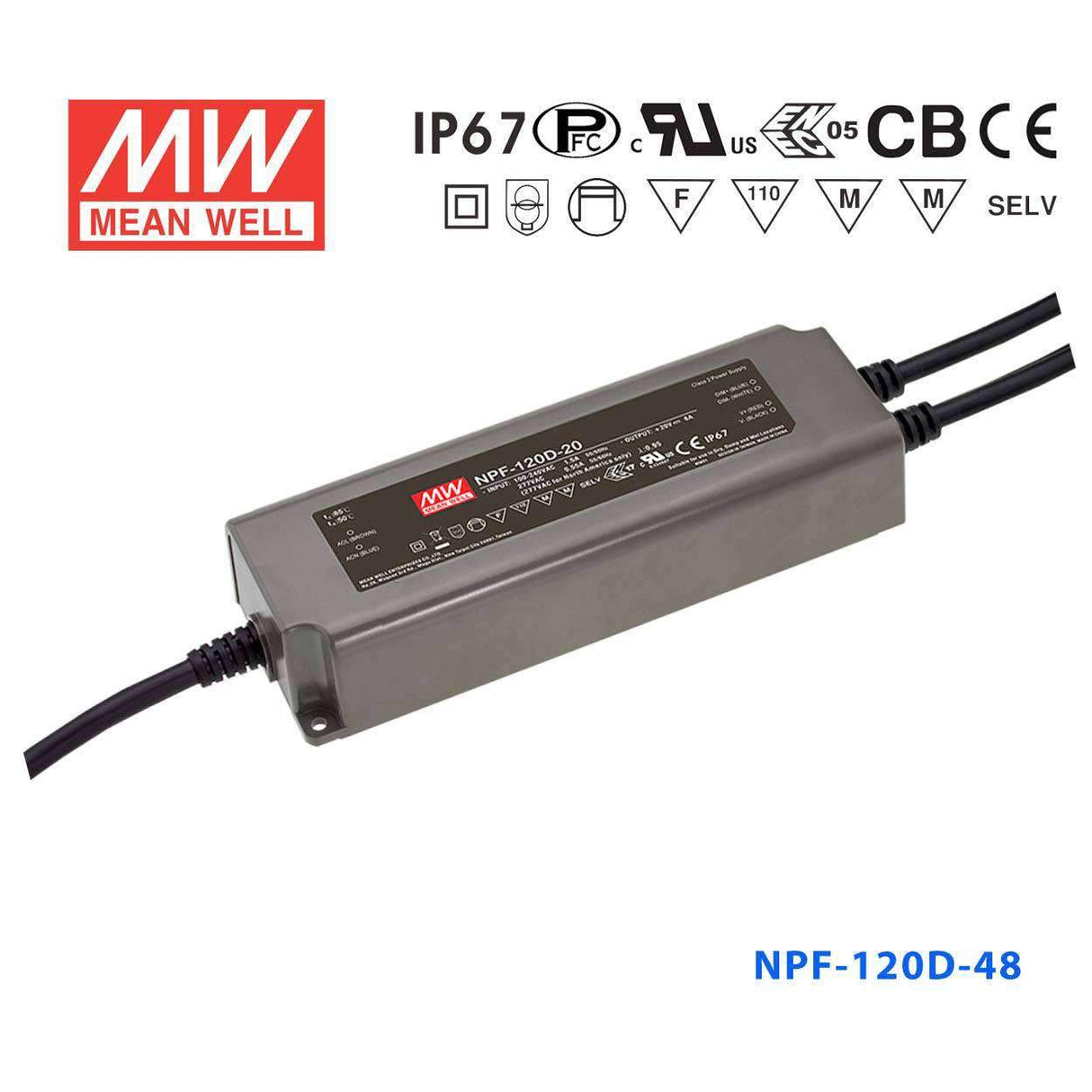

Mean Well NPF-120D-48 Power Supply 120W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-120D-48 Power Supply 120W 48V - Dimmable
The NPF-120D is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 191mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
::specification::
Frequently Asked Questions
What dimming protocols are supported by the NPF-120D-48?
The NPF-120D-48 includes built-in 3-in-1 dimming, accepting PWM signal, 1–10V analog, and resistance (potentiometer) inputs. These cover the most common lighting control interfaces used in commercial building management systems and outdoor lighting controllers.
Can the NPF-120D-48 be used in outdoor or damp environments?
Yes. The NPF-120D-48 is rated IP67 for dust and temporary submersion protection and operates from -40°C to +90°C. It is suitable for direct installation inside outdoor luminaires, landscape lighting fixtures, and harsh industrial enclosures.
What 48V LED systems benefit from the NPF-120D-48's dimmable output?
The NPF-120D-48 provides 48V DC at 2.5A (120W) in constant-current mode with a CC range of 28–48V. It suits dimmable 48V LED high-bay fixtures, outdoor area lights, tunnel lighting, and industrial work-lighting systems where remote brightness control via 1–10V or PWM is specified.
How does the NPF-120D-48 compare to the NPF-120D-54?
Both have IP67, 3-in-1 dimming, the same 191.0 × 63.0 × 37.5 mm dimensions, and 0.97 kg weight. NPF-120D-48 outputs 48V at 2.5A (120W, CC range 28–48V); NPF-120D-54 outputs 54V at 2.3A (124.2W, CC range 32–54V). The choice depends on whether your LED string requires a 48V or 54V constant-current source.
