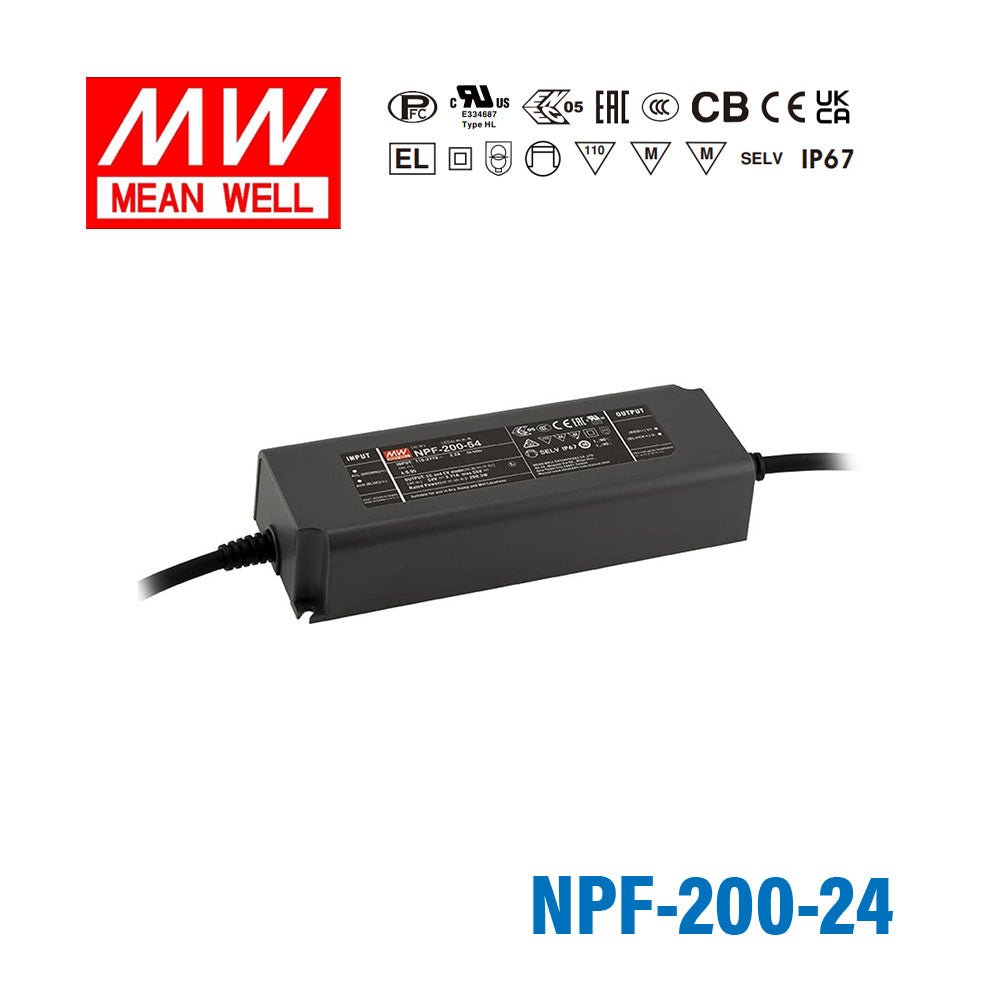

Mean Well NPF-200-24 Power Supply 200W 24V 8.3A
The NPF-200 is a 200W Mean Well AC-DC LED driver (input: 100~305VAC, output: 24V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 24V
- ✓ Rated output current: 8.3A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
::specification::
Frequently Asked Questions
Is the NPF-200-24 rated for damp or outdoor environments?
Yes. The NPF-200-24 carries an IP67 ingress protection rating and operates across -40°C to +85°C. It can be installed inside outdoor luminaires, facade lighting enclosures, and industrial installations without a secondary weatherproof housing around the driver.
What 24V LED applications benefit from the NPF-200-24's 200W output?
The NPF-200-24 delivers 24V DC at 8.3A (200W) in constant-current mode. It is well matched to large-scale 24V LED systems — including long commercial LED strip runs, 24V outdoor area lighting, retail signage installations, and industrial status-lighting arrays — where 200W of drive capacity from a single unit is needed.
How does the NPF-200-24 compare to the NPF-200-12 and NPF-200-36?
All NPF-200 non-dimming variants share IP67, the 195.0 × 68.0 × 39.5 mm housing, 1.03 kg weight, 100–305VAC input, and -40°C to +85°C operating range. They differ in output: NPF-200-12 is 12V/15A; NPF-200-24 is 24V/8.3A; NPF-200-36 is 36V/5.55A. Select the voltage that matches your LED module's rated voltage.
Does the NPF-200-24 require a ground connection?
No. The NPF-200-24 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal. Double insulation satisfies safety requirements without a protective earth conductor, simplifying installation in plastic or isolated mounting structures.
