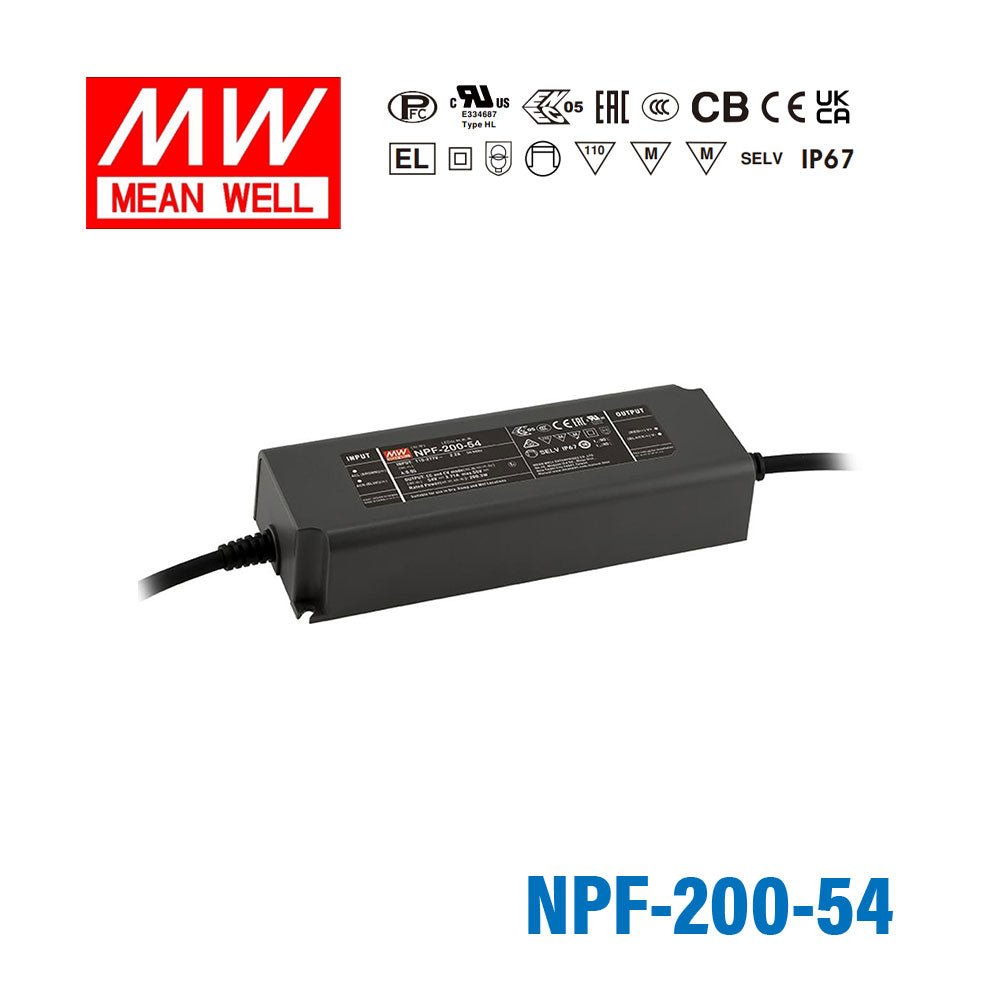

Mean Well NPF-200-54 Power Supply 200W 54V 3.71A
The NPF-200 is a 200W Mean Well AC-DC LED driver (input: 100~305VAC, output: 54V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 54V
- ✓ Rated output current: 3.71A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating200 Watt
-
Output Voltage54 Volt
-
Rated Current3.71 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
::specification::
Frequently Asked Questions
Can the NPF-200-54 be used in outdoor or wet industrial locations?
Yes. The NPF-200-54 is IP67 rated and operates from -40°C to +85°C. Its sealed plastic case and wide temperature tolerance make it suitable for direct mounting inside outdoor area lights, industrial tunnel fixtures, and high-humidity production environments.
What 54V LED systems match the NPF-200-54's output?
The NPF-200-54 supplies 54V DC at 3.71A (200W) in constant-current mode. It suits large 54V LED modules used in high-power commercial street lighting, sports arena lighting, and high-output architectural floodlights that specify a 200W 54V constant-current driver.
How does the NPF-200-54 differ from the NPF-200-48?
Both are 200W drivers with IP67, the same 195.0 × 68.0 × 39.5 mm housing, and 1.03 kg weight. NPF-200-48 outputs 48V at 4.17A; NPF-200-54 outputs 54V at 3.71A. Select NPF-200-54 only when your LED string is rated for 54V constant-current operation.
Does the NPF-200-54 support 90VAC input?
No. The NPF-200-54 requires a minimum input of 100VAC (up to 305VAC), unlike the NPF-120 and NPF-40 series which accept 90VAC. Verify that the supply voltage at the installation point does not drop below 100VAC under full load before specifying this driver.
