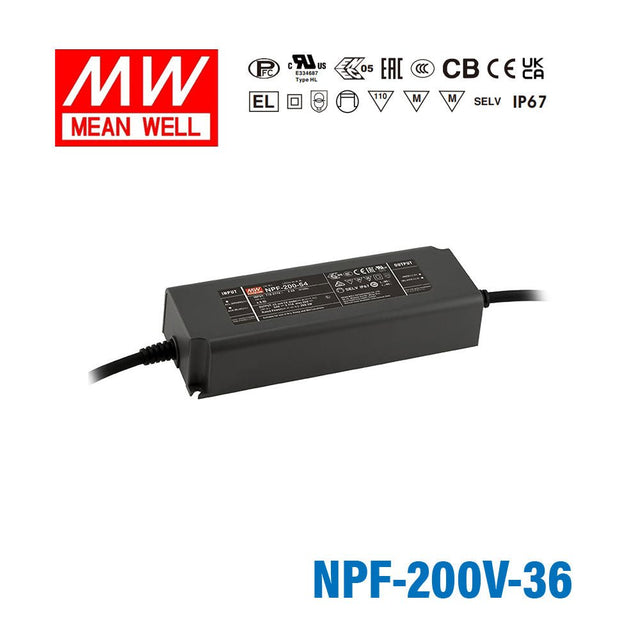

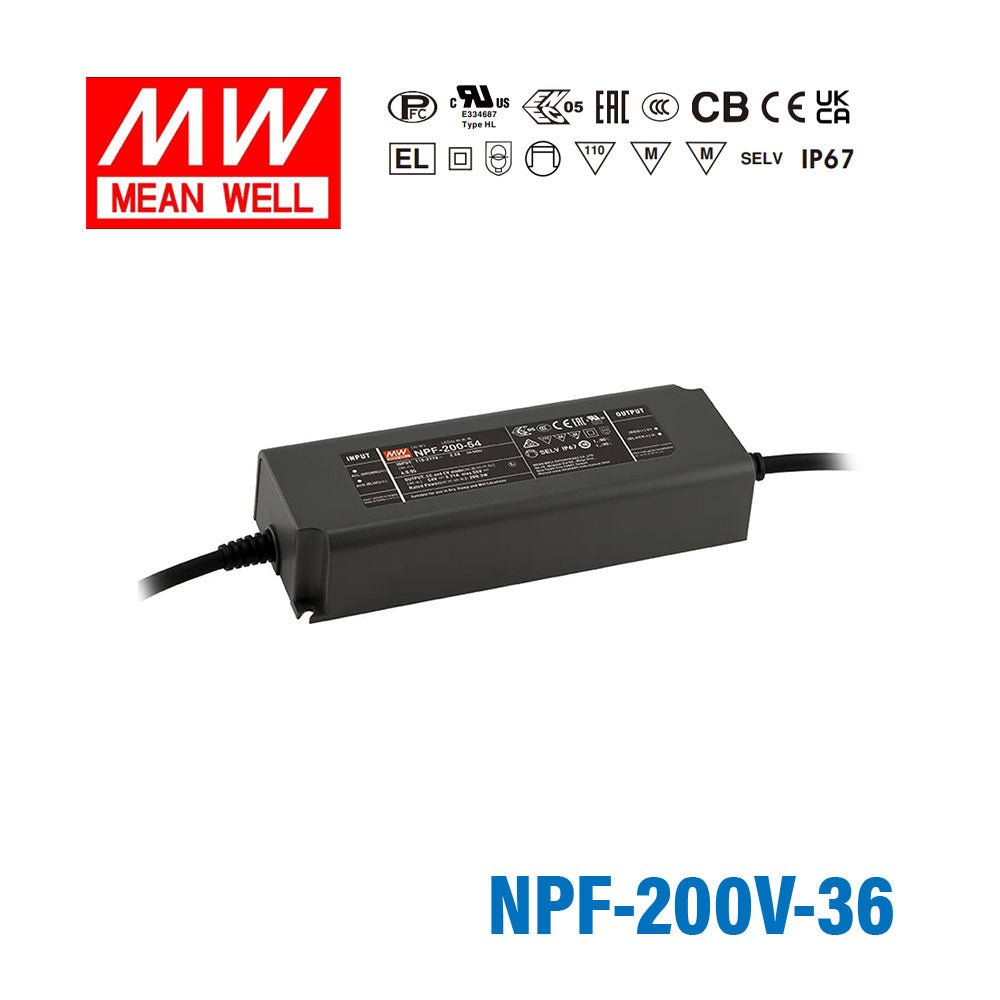

Mean Well NPF-200V-36 Power Supply 200W 36V 3 in 1 Dimmable
The NPF-200V is a 200W Mean Well DIN rail power converter with a 195mm profile (input range: 100~305VAC, operating temperature: -40~+85℃).
Key Features
- ✓ 195mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating200 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
::specification::
Frequently Asked Questions
What dimming protocols does the NPF-200V-36 accept?
The NPF-200V-36 supports 3-in-1 dimming: PWM signal, 1–10V analog, and resistance (potentiometer) control. The built-in interface handles all three without additional hardware, making it compatible with standard commercial lighting controllers.
Is the NPF-200V-36 suitable for outdoor or harsh industrial environments?
Yes. The NPF-200V-36 is IP67 rated and operates from -40°C to +85°C. It can be mounted directly inside outdoor high-power luminaires, industrial floodlights, or open enclosures in high-humidity facilities without supplemental weatherproofing of the driver.
What applications is the NPF-200V-36's 36V 200W dimmable output suited for?
The NPF-200V-36 outputs 36V DC at 5.55A (200W) in constant-current mode with 3-in-1 dimming. It suits high-power dimmable 36V LED systems in outdoor sports lighting, large commercial high-bay fixtures, and horticultural grow lighting where centralized 1–10V or PWM control is specified.
How does the NPF-200V-36 compare to the NPF-200V-42?
Both share IP67, 3-in-1 dimming, the 195.0 × 68.0 × 39.5 mm housing, and 1.03 kg weight. NPF-200V-36 outputs 36V at 5.55A (200W); NPF-200V-42 outputs 42V at 4.75A (200W). The distinction is solely the LED string voltage — choose the model that matches your module's rated voltage.
