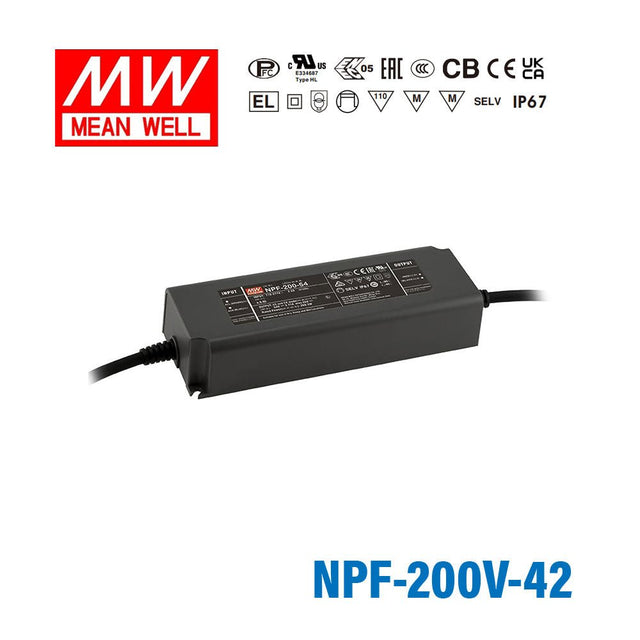

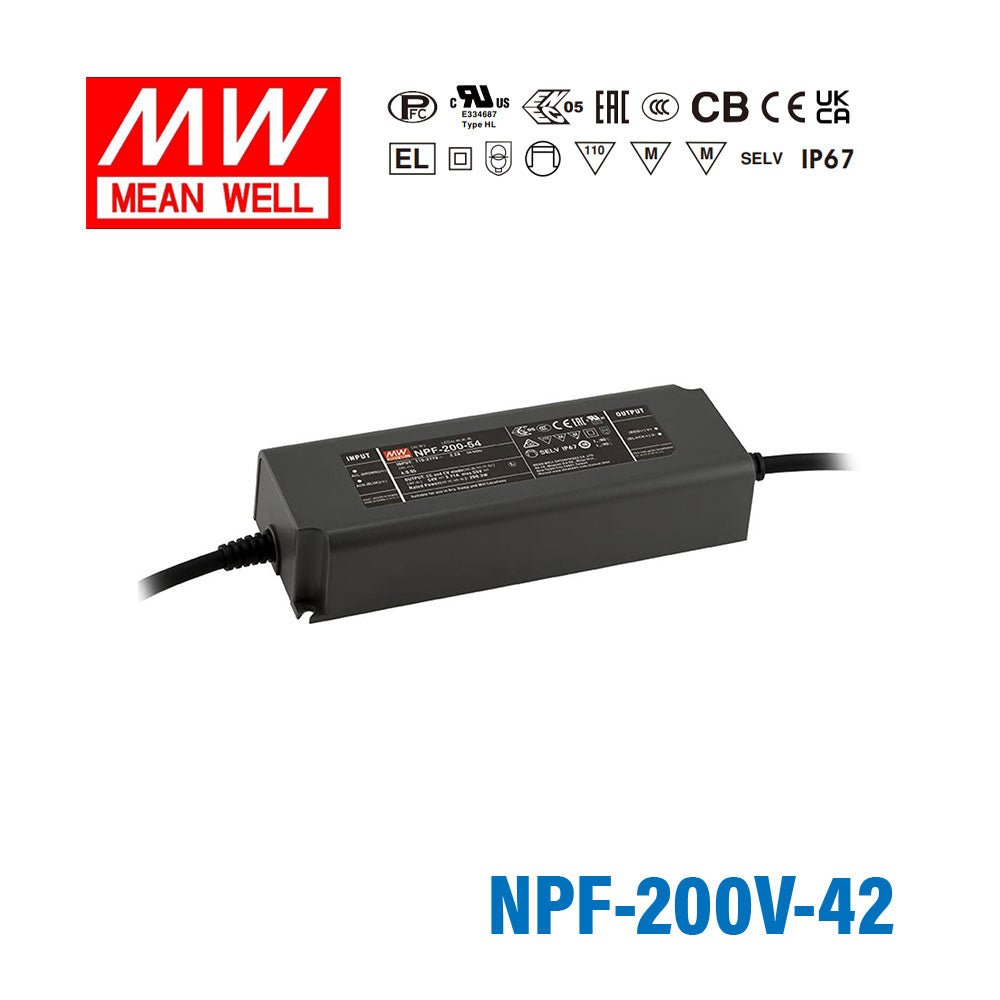

Mean Well NPF-200V-42 Power Supply 200W 42V 3 in 1 Dimmable 4.75A
The NPF-200V is a 200W Mean Well AC-DC LED driver (input: 100~305VAC, output: 42V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 42V
- ✓ Rated output current: 4.75A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating200 Watt
-
Output Voltage42 Volt
-
Rated Current4.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
::specification::
Frequently Asked Questions
What dimming methods are available on the NPF-200V-42?
The NPF-200V-42 includes built-in 3-in-1 dimming: PWM signal, 1–10V analog, and resistance (potentiometer) control. All three are accessible on the same driver without additional dimming adapters.
Can the NPF-200V-42 be installed in wet or outdoor fixtures?
Yes. The NPF-200V-42 is IP67 rated and operates from -40°C to +85°C. It is appropriate for direct installation inside outdoor area lights, roadway fixtures, and industrial luminaires exposed to rain or high humidity.
What 42V LED applications match the NPF-200V-42's dimmable 200W output?
The NPF-200V-42 delivers 42V DC at 4.75A (200W) in constant-current mode with 3-in-1 dimming. It suits high-power 42V dimmable LED systems in outdoor floodlights, commercial tunnel lighting, and industrial high-bay fixtures where 1–10V or PWM control from a building management system is required.
How does the NPF-200V-42 compare to the NPF-200V-48 and NPF-200V-36?
All three share IP67, 3-in-1 dimming, the 195.0 × 68.0 × 39.5 mm housing, and 1.03 kg weight. NPF-200V-36 outputs 36V/5.55A; NPF-200V-42 outputs 42V/4.75A; NPF-200V-48 outputs 48V/4.17A. Select based on the rated voltage of the LED strings in your fixture.
