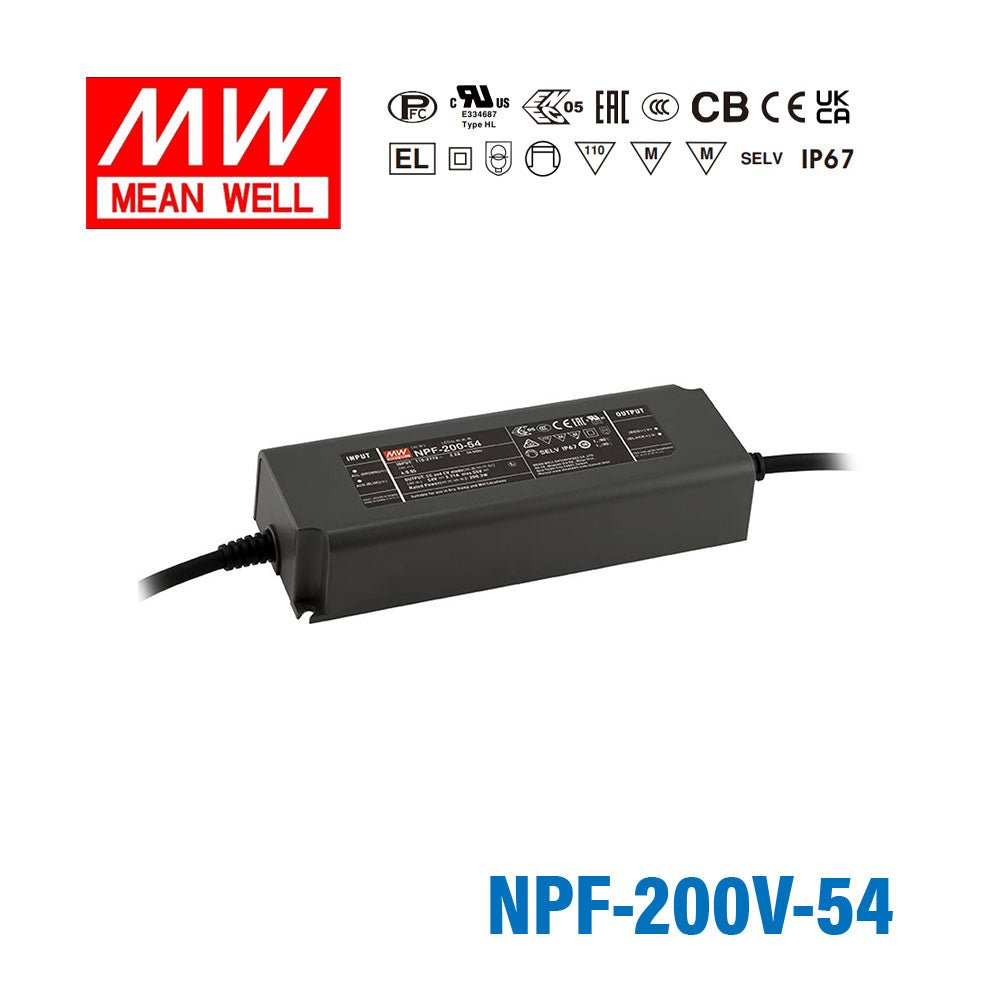

Mean Well NPF-200V-54 Power Supply 200W 54V 3 in 1 Dimmable 3.71A
The NPF-200V is a 200W Mean Well AC-DC LED driver (input: 100~305VAC, output: 54V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 54V
- ✓ Rated output current: 3.71A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating200 Watt
-
Output Voltage54 Volt
-
Rated Current3.71 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
::specification::
Frequently Asked Questions
What dimming control options does the NPF-200V-54 offer?
The NPF-200V-54 supports built-in 3-in-1 dimming: PWM signal, 1–10V analog, and resistance (potentiometer) control. These three interfaces are integrated into the driver without the need for external dimming modules.
Is the NPF-200V-54 suitable for outdoor or damp-location installations?
Yes. The NPF-200V-54 is IP67 rated and operates from -40°C to +85°C. These ratings make it suitable for direct installation inside outdoor high-power luminaires, waterfront or coastal area lights, and industrial fixtures exposed to sustained moisture.
What 54V LED applications is the NPF-200V-54 designed for?
The NPF-200V-54 outputs 54V DC at 3.71A (200W) in constant-current mode with 3-in-1 dimming. It is appropriate for large 54V dimmable LED systems in commercial street lighting, sports arena area lights, and high-power architectural floodlights where central 1–10V or PWM scene control is required. Input accepts 100–305VAC.
How does the NPF-200V-54 compare to the NPF-200-54?
Both output 54V at 3.71A (200W) with IP67 protection, identical 195.0 × 68.0 × 39.5 mm housing, and 1.03 kg weight. The NPF-200V-54 adds 3-in-1 dimming (PWM, 1–10V, resistance); the NPF-200-54 has no dimming capability. For fixed-brightness applications, use the NPF-200-54; for dimmable systems, choose the NPF-200V-54.
