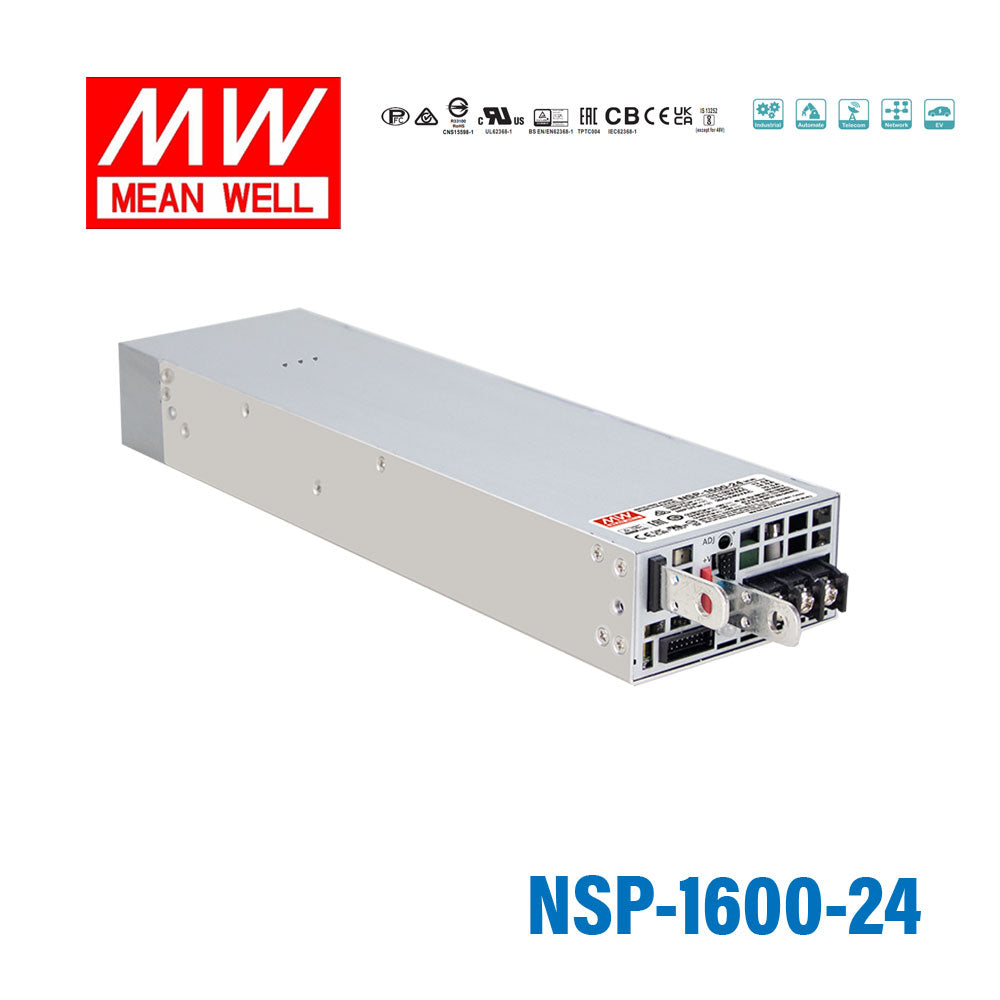

Mean Well NSP-1600-24 1608W 24V Compact Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NSP-1600-24 1608W 24V Compact Power Supply
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating1608 Watt
-
Output Voltage24 Volt
-
Rated Current67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What are the key output specifications of the Mean Well NSP-1600-24?
The NSP-1600-24 is a single-output enclosed AC/DC power supply rated for 24V DC output at 67A, with a total power rating of 1608W. It is designed for high-power industrial applications that need a compact 1U low-profile form factor.
What kinds of applications is the NSP-1600-24 best suited for?
This model is aimed at industrial and high-reliability applications that need substantial 24V DC power in a compact enclosure. Its high power density, built-in active PFC, programmable output voltage capability, and DC OK signal make it a strong fit for demanding OEM and control-system environments.
How compact is the NSP-1600-24 for its power level?
The NSP-1600-24 is built as a 1U low-profile enclosed power supply and is described as offering power density up to 20W per inch. For a 1608W unit, that makes it a practical option where space efficiency matters in industrial equipment.
Can the output of the Mean Well NSP-1600-24 be adjusted or controlled remotely?
Yes. This model supports programmable output voltage level control and includes built-in remote ON-OFF control, remote sense, auxiliary power, and a DC OK signal. Those features make it suitable for systems that need monitoring or control functions beyond basic power conversion.
What protection features are included in the NSP-1600-24?
The NSP-1600-24 includes protection for short circuit, overload, over voltage, and over temperature conditions. These built-in safeguards are important for industrial equipment that requires stable operation and protection against fault conditions.
What operating temperature range does the NSP-1600-24 support?
This power supply is specified for operation from -20°C to 70°C. It uses forced-air cooling with a built-in DC fan, which supports performance in higher-temperature industrial environments.
Does the Mean Well NSP-1600-24 support global AC input requirements?
Yes. The NSP-1600-24 is listed with universal AC input and full-range input capability, which helps when the same power supply platform is used across different regions or industrial sites. It also includes active power factor correction for improved input-side performance.
What warranty comes with the NSP-1600-24?
The Mean Well NSP-1600-24 includes a 5-year warranty. That longer warranty period is consistent with its positioning as a high-reliability industrial power supply.
