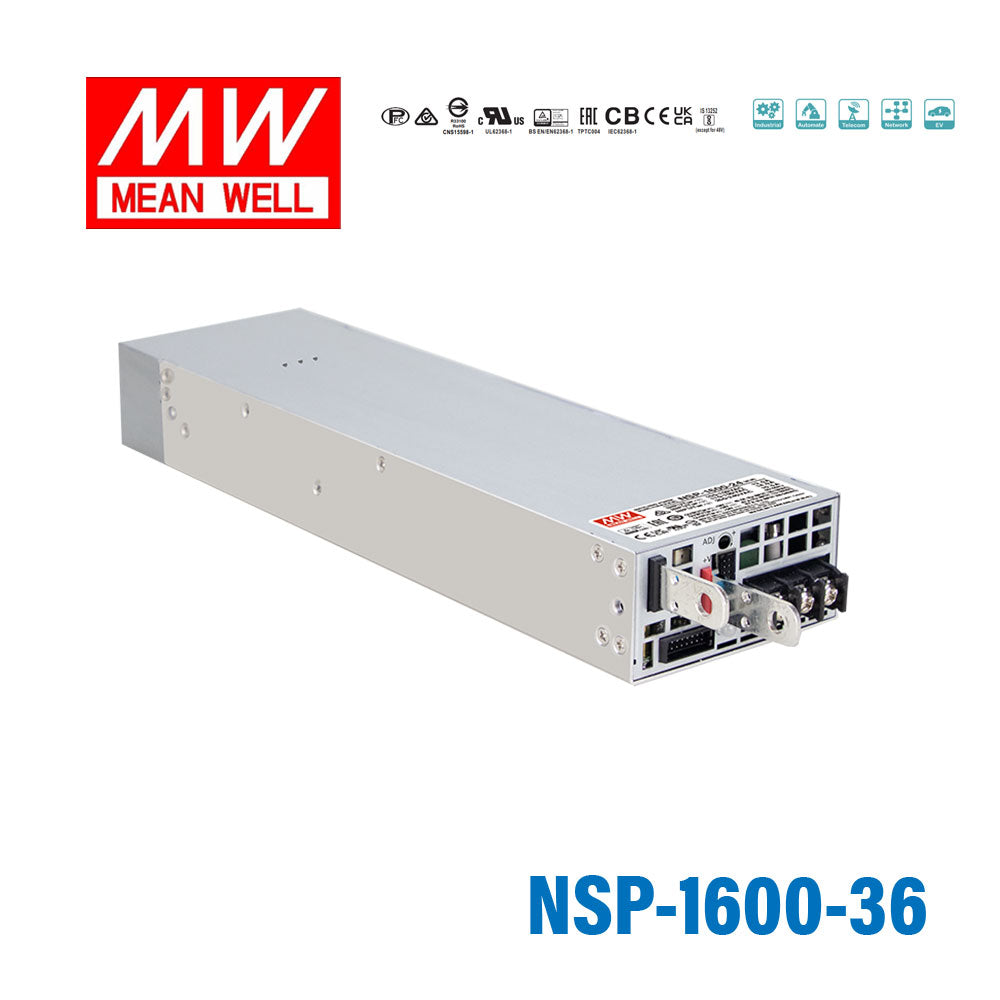

Mean Well NSP-1600-36 1602W 36V Compact Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NSP-1600-36 1602W 36V Compact Power Supply
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating1602 Watt
-
Output Voltage36 Volt
-
Rated Current44.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well NSP-1600-36?
The NSP-1600-36 is a single-output enclosed AC/DC power supply rated for 36V DC output, 44.5A rated current, and 1602W power. It is designed as a compact 1U low-profile unit for high-power applications.
Is the NSP-1600-36 a good fit for industrial 36V systems?
Yes. This model is built for high-power industrial use where a regulated 36V DC supply is needed and the load stays within 44.5A and 1602W. Its enclosed design, active PFC, DC OK signal, and remote control features make it better suited to industrial equipment environments than basic general-purpose supplies.
Can the output voltage be adjusted on the NSP-1600-36?
Yes. The NSP-1600-36 supports programmable output voltage, which can be useful in systems that need tighter control around a nominal 36V rail. That makes it more flexible than fixed-output supplies that do not offer programmable adjustment.
What operating temperature range does the NSP-1600-36 support?
This model is rated for operation from -20°C to 70°C. It uses forced-air cooling with a built-in DC fan, which is appropriate for higher-power enclosed power supply applications.
What protection features are included in the NSP-1600-36?
The NSP-1600-36 includes short circuit, overload, over voltage, and over temperature protection. These built-in protections are important for industrial systems that need a more robust power platform under varying load conditions.
What should buyers check before selecting the NSP-1600-36 for a system?
The main checks are whether the system requires a 36V DC output and whether total demand remains within 44.5A and 1602W. Buyers should also confirm that a compact 1U enclosed power supply with forced-air cooling and a 1.8 kg unit weight fits their equipment and reliability requirements.
What warranty and efficiency does the NSP-1600-36 offer?
Mean Well specifies a 5-year warranty for the NSP-1600-36. The unit also offers efficiency up to 92%, which helps support high-power operation in a compact enclosure.
